Water play structure
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 21 persons |
| Activities ? | Manual activity |
Technical data
| Device length ? | 5,60 m |
|---|---|
| Device width ? | 3,65 m |
| Device height ? | 1,65 m |
| Free fall height ? | 0,80 m |
| Platform heights | - |
| Total weight ? | 455.00 kg |
| Heaviest single item ? | 85.00 kg |
| Minimum room length ? | 8,60 m |
| Minimum room width ? | 6,65 m |
| Minimum room height ? | 1,65 m |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data

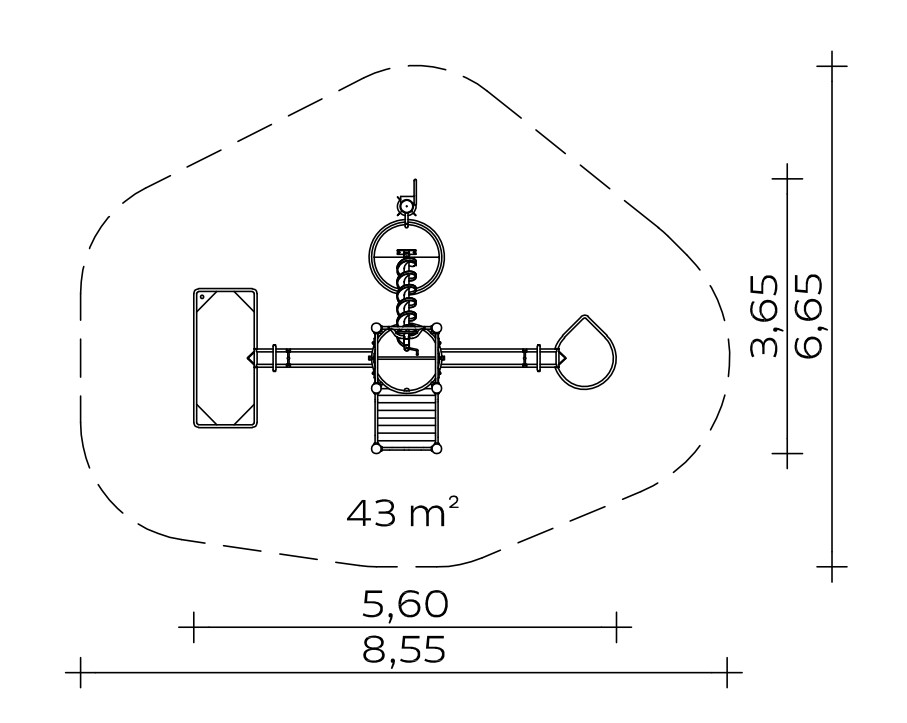

Floor area: 3.65 x 5.60 m
Minimum space: 6.65 x 8.60 m (43 m²)
Total height: 1.65 m
Platform height: 0.60 m
Free fall height: 0.80 m
Weight: 85 kg heaviest individual part
455 kg in total
Support post
Posts made of stainless steel tube Ø 120 x 3 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The screw connections are secured against unauthorised loosening.
Attachments
- Railing bracket to prevent rolling, made of stainless steel tube, Ø 33.7 x 2 mm
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
Water pump part no. 0-33130-001
Suction pipe connection 1 ¼ inch (pipe diameter min. ¾ inch), welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with swivel must be removed during the frost period, sealing cover („winterisation plate“) for the remaining lower part of the pump is supplied.
Please note:
A K&K valve combination (item no. 0-33190-000 or 0-33195-000) is required to connect the water pump to a pressurised water line.
If the water supply is intentionally interrupted temporarily (timer or similar), a negative pressure builds up in the pipe system when the pump is operated again, which causes the pump swivel to kick back.
It is therefore essential to prevent the pump swivel arm from being actuated (e.g. by using the pump lock, part no. 1040639).
Please also observe the framework data specified in the installation instructions (spacing, diameter of the cables, etc.); these are available on request from K&K or directly as a PDF from our website at www.kaiser-kuehne.com.
Flange pipe art. no. 1040065
Flange pipe for screwing onto K&K water pump.
For setting in concrete below the play level.
Solitary bottom basin (without screw pump)
Welded stainless steel construction with mounting device for the base bearing of the water spiral, with drain hole. Sheet thickness min. 2 mm / pipe Ø 38 mm.
Matching ring foundation (015168) for anchoring to the flange ring and moulded stones (015169) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Water spiral
Length: approx. 1.50 m
Outer diameter: 25 cm
Welded stainless steel construction with head and foot bearing, for connection to posts.
Collecting basin with water stopper
Welded stainless steel construction for water absorption with two water drainage openings. Sheet thickness min. 2 mm / tube Ø 38 mm, for connection to posts.
Water channel 1.60 m, 2 pieces
Welded stainless steel construction 0.80 x 1.60 m, sheet thickness: min. 2 mm / pipe Ø 38 mm. With connection to support posts and additional elevation for stepless inclination of the channel. Sloped outlet. Including positionable storage flap, stainless steel handle, rubber blade with fabric insert.
Water table (0.25) Article no. 0-33445-000
Base area: 0.84 x 1.84 m
Total height: 0.40 m
Welded stainless steel construction with 1 water drain pipe. Rubber cone closure with locking mechanism for complete water drainage. 4 shelves. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Anchored to the flange ring.
Matching ring foundations (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundations in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Water bowl (0.25) Article no. 0-33430-000
Base area: 0.84 x 1.00 m
Total height: 0.40 m
Welded stainless steel construction with 1 water drainage opening. Sheet thickness: min. 2 mm/pipe Ø 38 mm.
Matching ring foundation (015165) for anchoring to the flange ring and moulded stones (015170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Foundations (client-provided)
6 pcs. 0.40 x 0.40 x 0.40 m
3 pcs. 0.50 x 0.50 x 0.50 m
Concrete volume: 0.8 m³
Assembly time
2 fitters 2 hours each.
(without foundation, without water connection)
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Manual activities
Item number: 034354501
