Water table (0,25)
The most important information
:
;
| Age group ? | - |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 0 people |
| Activities ? | - |
Technical data
:
;
| Minimum space length ? | 4,84 m |
|---|---|
| Minimum space width ? | 3,84 m |
| Minimum space height ? | 0,48 m |
| Equipment length ? | 1,84 m |
| Equipment width ? | 0,84 m |
| Equipment height ? | 0,48 m |
| Free-fall height ? | 0,26 m |
| Platform heights | - |
| Total weight ? | 85.00 kg |
| Heaviest single part ? | 0.00 kg |
Assembly & Foundations
:
;
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 0 people |
| Lifting equipment required | - |
| Foundations | - |
Product Downloads
:
;
Product description
:
;
Technical data

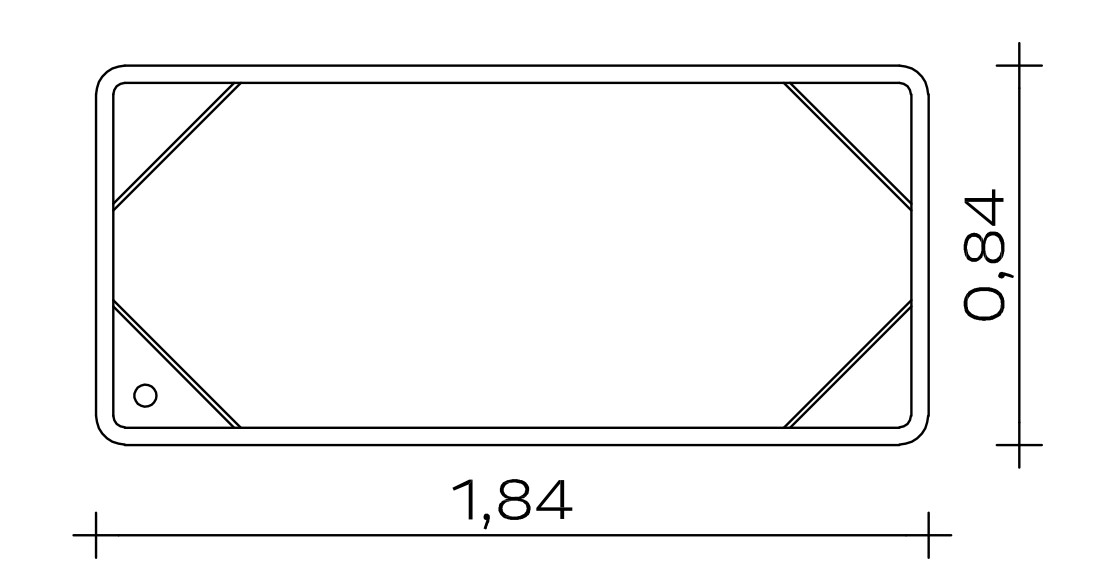

Dimensions: 0.84 x 1.84 m
Total height: 0.48 m
Weight: 85 kg in total
Welded stainless steel construction with a water drain pipe and four shelves. Rubber cone closure with locking mechanism for residue-free water removal. Sheet thickness: 2 mm / tube Ø 38 mm.
Matching ring foundations (015165) for anchoring to the flange ring and moulded stones (015170) for bricking up and levelling height differences or for secure foundations in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Free fall height
0,25 m
Item number: 033445000
