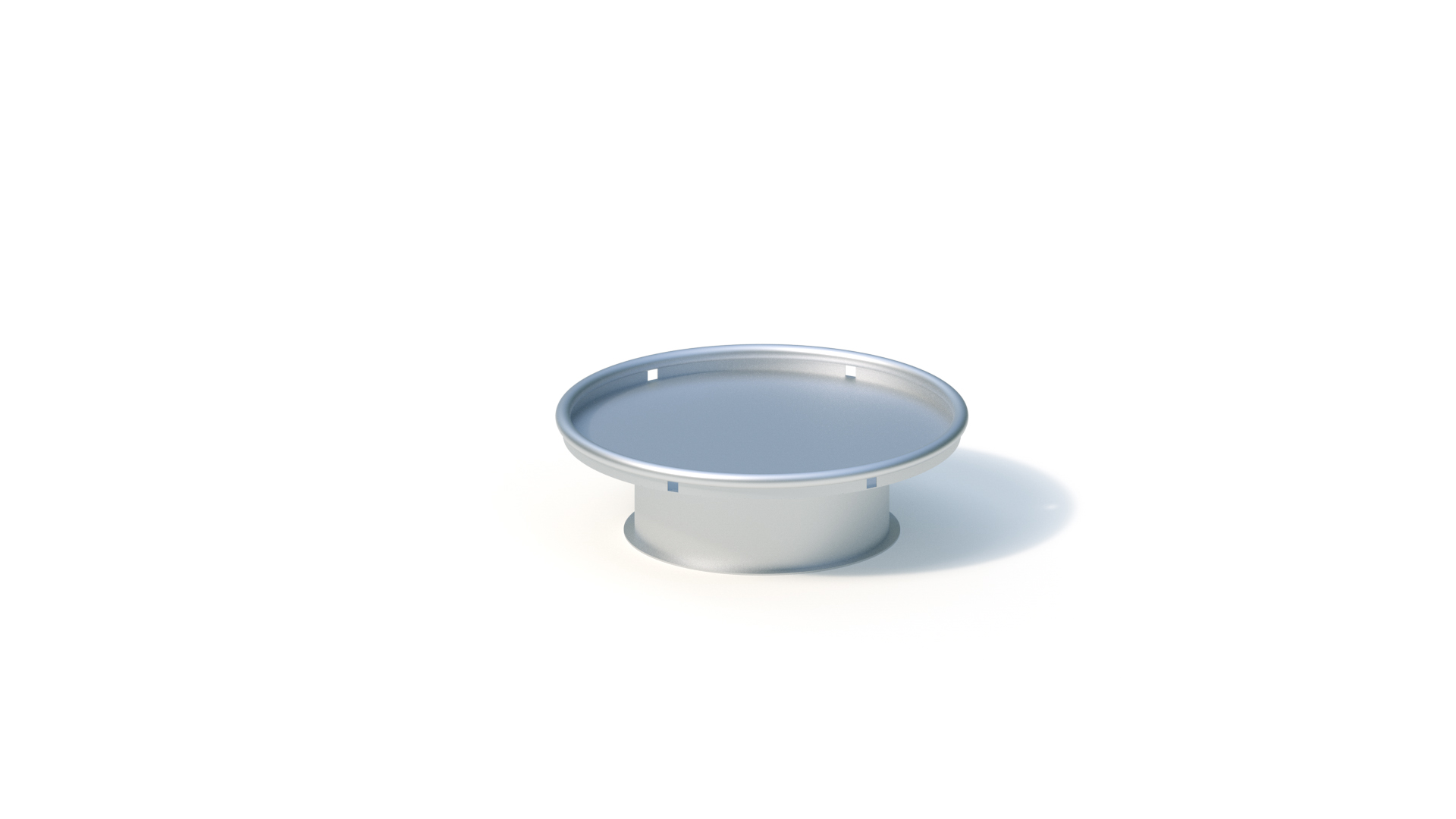

Mixing plate (0,25)
The most important information
:
;
| Altersgruppe ? | - |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 0 Personen |
| Aktivitäten ? | - |
Technical data
:
;
| Gerätelänge ? | 1,04 m |
|---|---|
| Gerätebreite ? | 1,04 m |
| Gerätehöhe ? | 0,32 m |
| Freie Fallhöhe ? | 0,25 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 40.00 kg |
| Schwerstes Einzelteil ? | 0.00 kg |
| Mindestraumlänge ? | 4,04 m |
| Mindestraumbreite ? | 4,04 m |
| Mindestraumhöhe ? | 0,32 m |
Assembly & Foundations
:
;
| Montagezeit ? | 0,0 h |
|---|---|
| Monteuranzahl ? | 0 Personen |
| Hebezeug erforderlich | - |
| Fundamente | - |
Product Downloads
:
;
Product description
:
;
Technical data

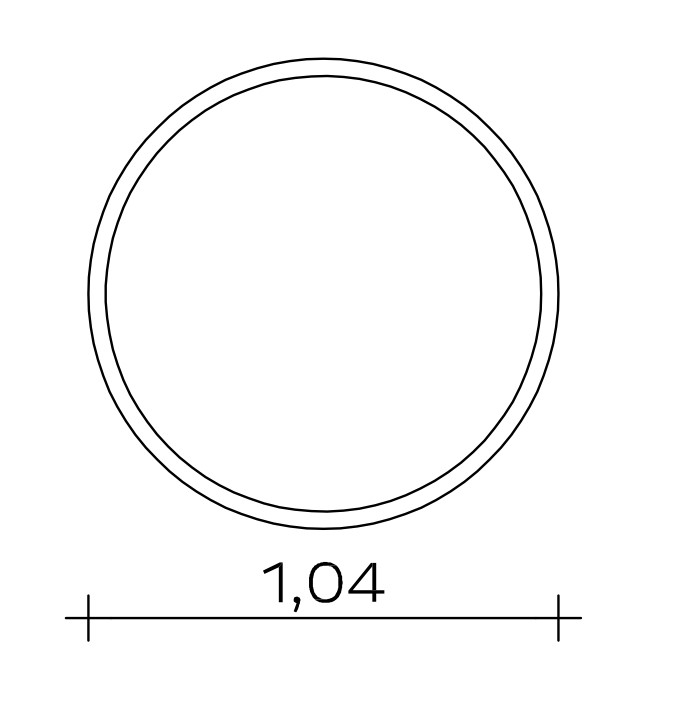

Base area: Ø 1.04 m
Total height: 0.32 m
Weight: 40 kg in total
Welded stainless steel construction with 6 water drainage openings. Sheet thickness: 2.5 mm / 2 mm / pipe Ø 38 mm. Anchored to the flange ring.
Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Free fall height
0,25 m
Item number: 033450000
