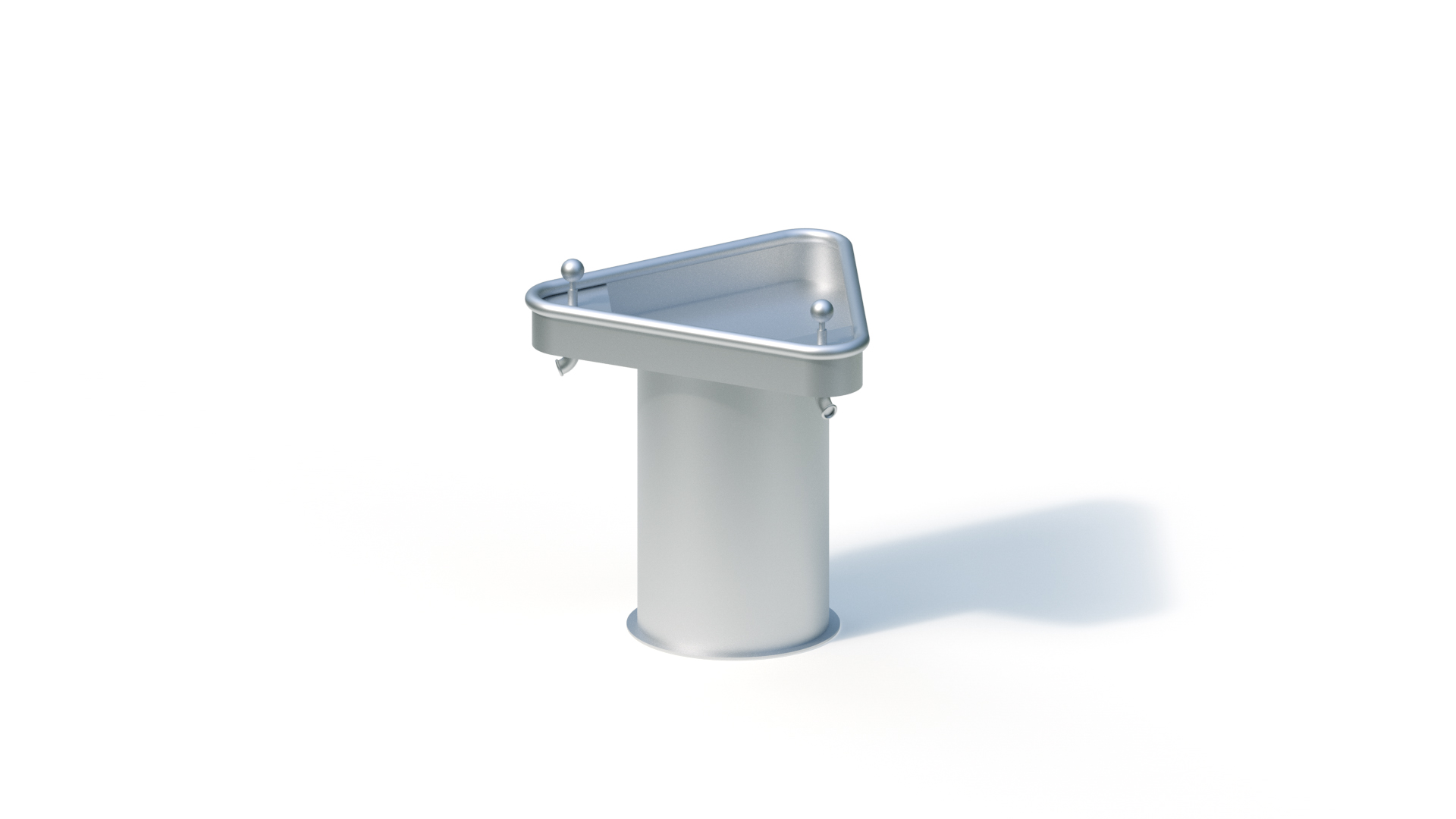

Water distribution table (0.75)
The most important information
:
;
| Age group ? | - |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 0 persons |
| Activities ? | Manual activity, Social activity |
Technical data
:
;
| Device length ? | 0,94 m |
|---|---|
| Device width ? | 0,85 m |
| Device height ? | 0,90 m |
| Free fall height ? | - |
| Platform heights | - |
| Total weight ? | - |
| Heaviest single item ? | 0.00 kg |
| Minimum room length ? | 3,94 m |
| Minimum room width ? | 3,85 m |
| Minimum room height ? | 0,90 m |
Assembly & Foundations
:
;
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 0 persons |
| Lifting gear required ? | - |
| Foundations | - |
Product Downloads
:
;
Product description
:
;
Technical data

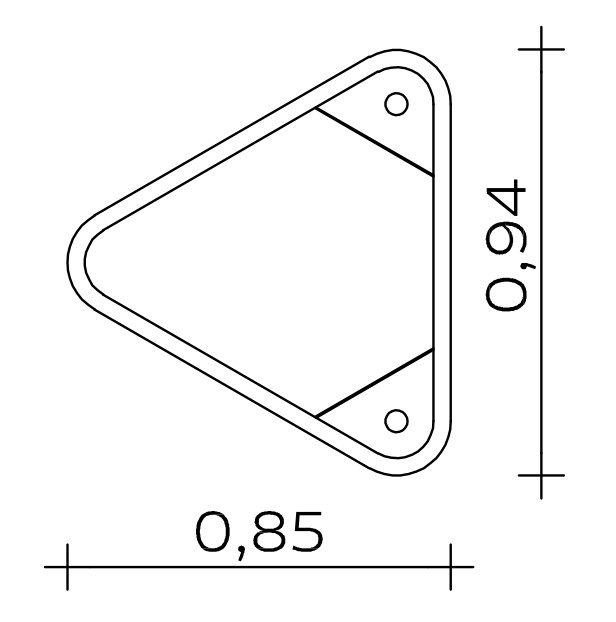

Base area: 0.85 x 0.94 m
Total height: 0.90 m
Weight: 60 kg in total
Welded stainless steel construction with 2 water drain pipes. Rubber cone closure with locking mechanism for complete water drainage. Sheet thickness min. 2 mm/ pipe Ø 38 mm.
Matching ring foundation (15166) for anchoring to the flange ring and moulded stones (15167) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Free fall height
0,75 m
Item number: 033481000
