Water pump with hand wheel (stainless steel)
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 2 persons |
| Activities ? | - |
Technical data
| Device length ? | 0,40 m |
|---|---|
| Device width ? | 0,40 m |
| Device height ? | 1,19 m |
| Free fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 35.00 kg |
| Heaviest single item ? | 0.00 kg |
| Minimum room length ? | 3,40 m |
| Minimum room width ? | 3,40 m |
| Minimum room height ? | 1,19 m |
Assembly & Foundations
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 0 persons |
| Lifting gear required | - |
| Foundations | - |
Product Downloads
Product description
Technical data

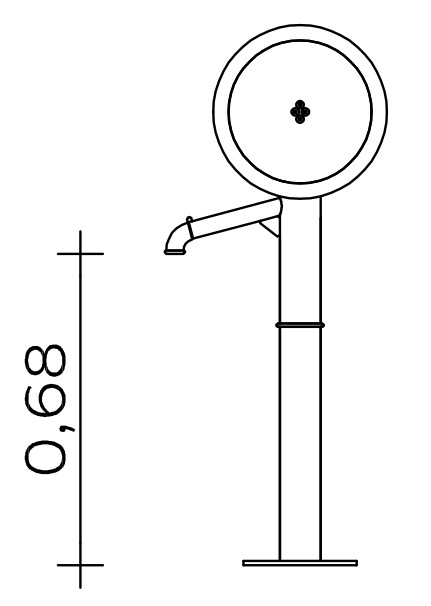

Height: 1.20 m
Outlet height: 0.69 m
Weight: 35 kg in total
Water pump for direct connection to a water pipe, suction pipe connection 1 ¼ inch (pipe diameter at least ¾ inch)
Welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with handwheel must be removed, e.g. during the frost period.
Cover („winterisation plate“) for the remaining pump base is supplied
Please note:
When connecting the water pump to a pressurised water line, the valve combination (item no. 0-33190-000 or 0-33195-000) is required.
Please also observe the framework data specified in the installation instructions (spacing, diameter of the cables, etc.); these are available on request from K&K or directly as a PDF from our website at www.kaiser-kuehne.com.
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Day care centres, schools
Item number: 033131001
