Products

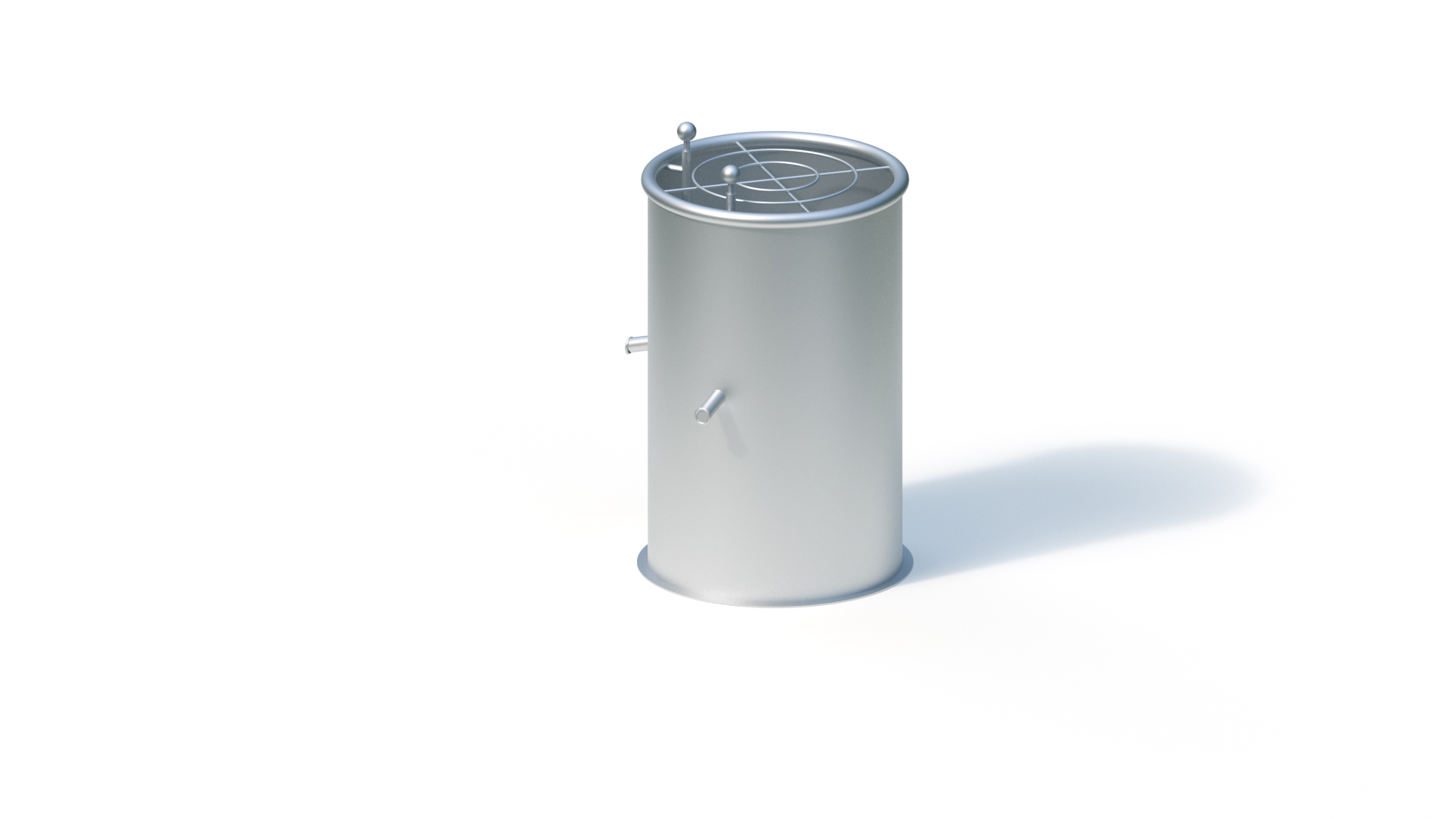

Water storage basin
The most important information
:
;
| Age group ? | 2+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 3 people |
| Activities ? | - |
Technical data
:
;
| Minimum space length ? | 3,68 m |
|---|---|
| Minimum space width ? | 3,68 m |
| Minimum space height ? | 1,04 m |
| Equipment length ? | 0,68 m |
| Equipment width ? | 0,68 m |
| Equipment height ? | 1,04 m |
| Free-fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 65.00 kg |
| Heaviest single part ? | 0.00 kg |
Assembly & Foundations
:
;
| Assembly time ? | 0,0 h |
|---|---|
| Number of fitters ? | 0 people |
| Lifting equipment required | - |
| Foundations | - |
Product Downloads
:
;
Product description
:
;
Technical data

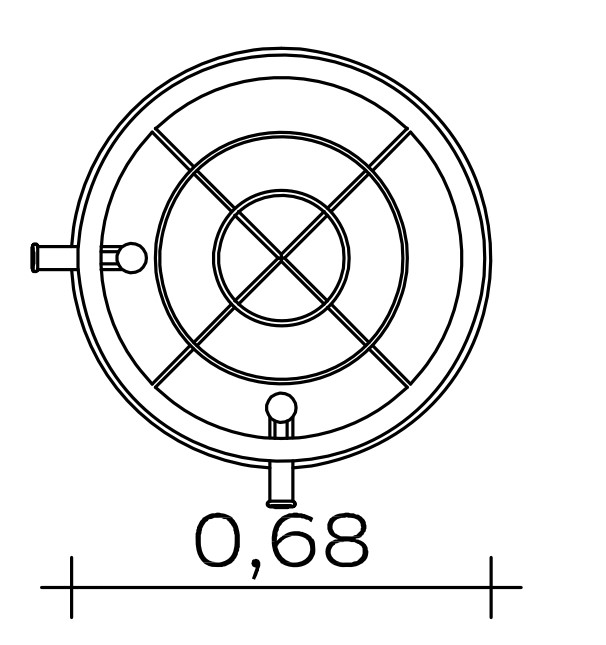

Base area: Ø 0.68 m
Height: 1.04 m
Water capacity: 140 litres
Weight: 65 kg in total
- Welded stainless steel construction with 2 water drainage pipes
- Safety cover grille
- Rubber cone stopper with locking mechanism for residue-free water extraction
- Sheet thickness: 2.5 mm/tube Ø 38 mm
- Anchoring on the flange ring
Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.
Item number: 033411000
