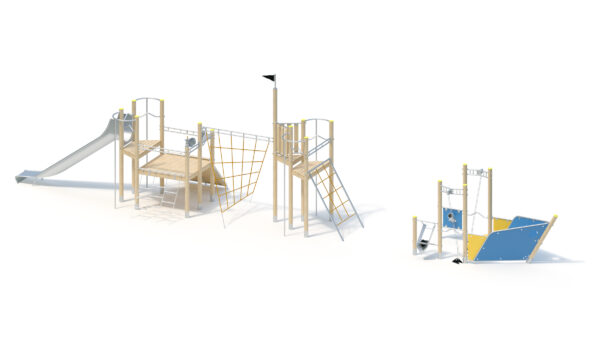

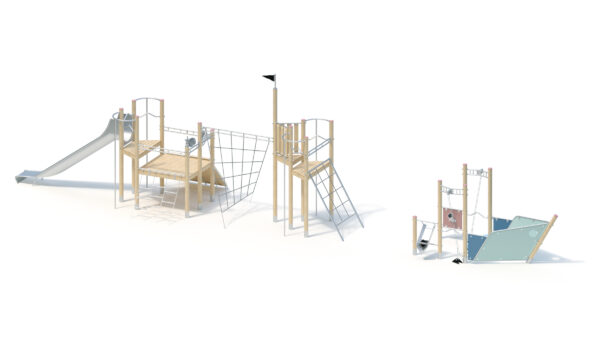

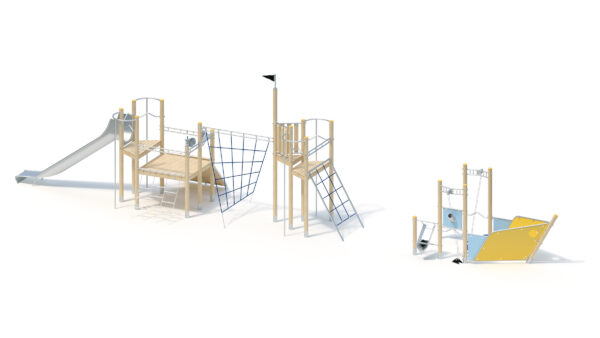

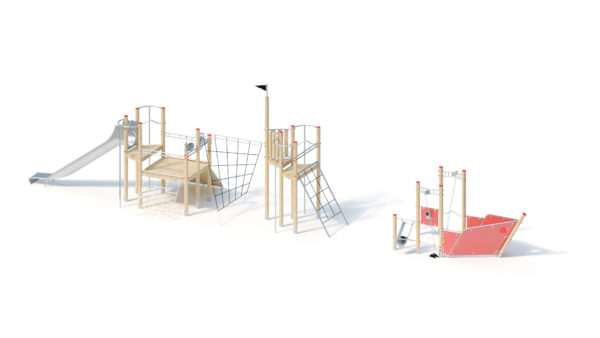

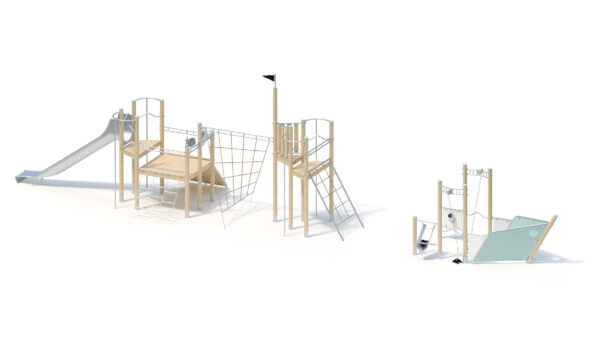

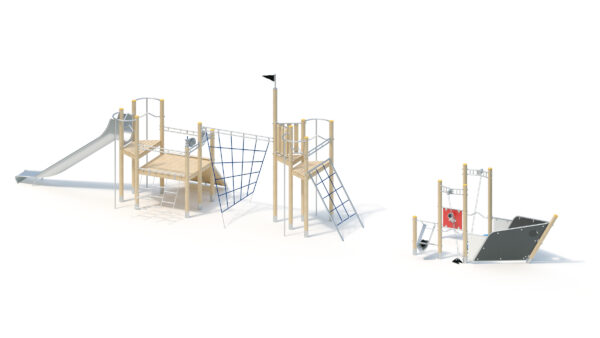

Technical data
Total height: 4.44 m

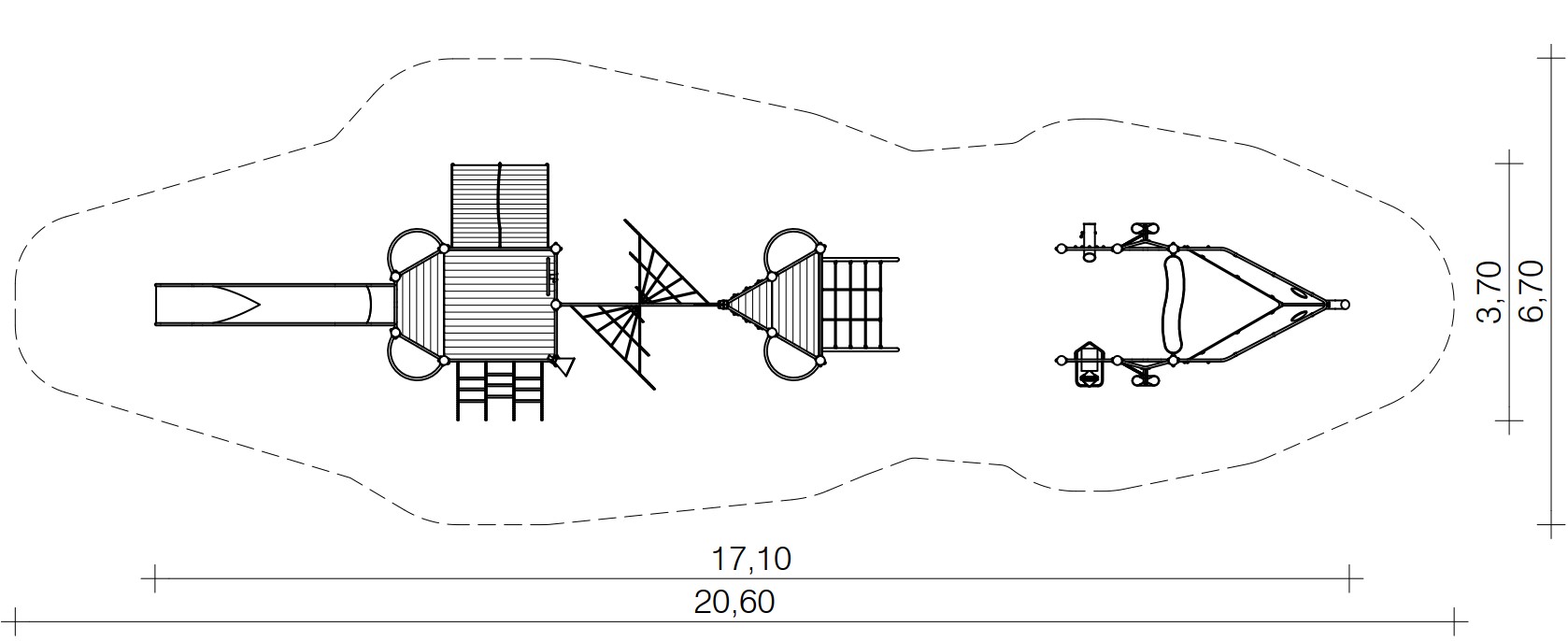

Floor area: 3.70 x 17.10 m
Minimum space: 7.06 x 20.45 m (98 m²)
Platform height: 1.20/1.60/1.80/2.00 m
Slide attachment height: 1.60 m
Seat height: 1.70 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm

Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps. Tubular base made of stainless steel for the foundation and elevation of robinia roundwood posts, Ø 120 mm, below the play level.

Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.

Attachments
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Ship's bow parapet made of coloured, highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Climbing poles made of stainless steel tube
- Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Hercules climbing rope
- Chain ladder with stainless steel rungs
- Climbing net made of Hercules rope on stainless steel crossbar, twisted through 90°
- Boarding net made of Hercules rope on stainless steel crossbar
- Bench, wave-shaped, made of coloured, highly weather-resistant HPL laminate, 20 mm
- Steering wheel, rotatable with latching mechanism, made of stainless steel, low-wear double plain bearing, inner and outer ring tube Ø 30 x 2 mm, 6 spokes tube Ø 20 x 2 mm
- Rubber flag with fabric insert for attachment to the stand post
- Megaphone horizontally rotatable 360
- Sand lift with rubber transport container and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into neighbouring play areas or open spaces
- Step channel with rubber sand wheel with fabric insert
- Pouring tube wall made of coloured, highly weather-resistant HPL laminate, with sand pouring tube including shut-off flap
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section

For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.

Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.

Foundations (client-provided)
18 units 0.40 x 0.40 x 0.40 m
1 piece 0.50 x 0.50 x 0.50 m
7 units 0.30 x 0.30 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 1.65 m³

Assembly time
2 fitters 16 hours each
(without foundation)

Free fall height
2,52 m

Suitable for
Children aged 5 and over,
public playgrounds etc.,
Movement activities, manual activities

Item number: 031660702
