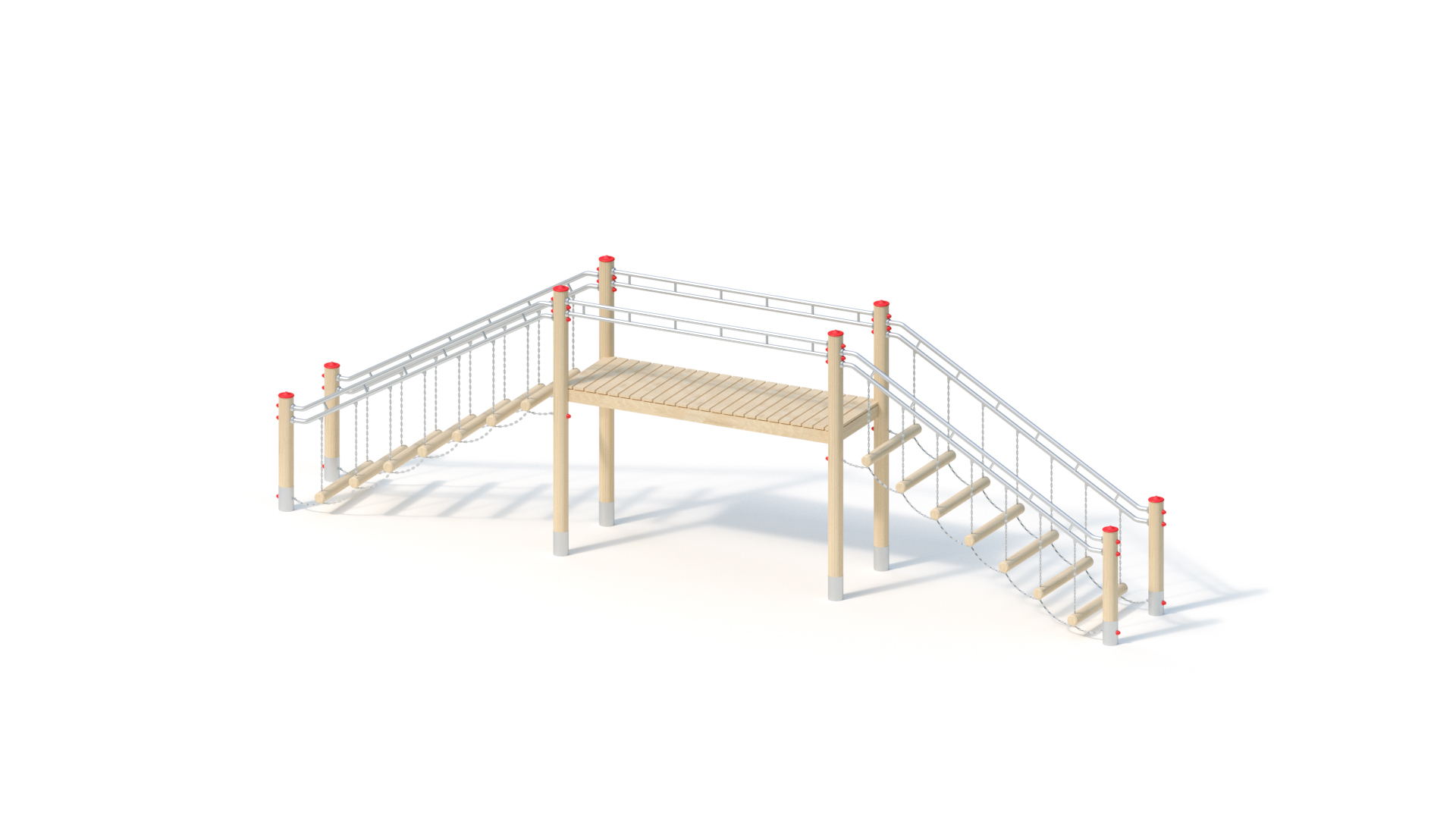

Bridge combination
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 10 Personen |
| Aktivitäten ? | Balance, Physical activity |
Technical data
| Mindestraumlänge ? | 10,35 m |
|---|---|
| Mindestraumbreite ? | 3,95 m |
| Mindestraumhöhe ? | 2,25 m |
| Gerätelänge ? | 7,35 m |
| Gerätebreite ? | 0,95 m |
| Gerätehöhe ? | 2,25 m |
| Freie Fallhöhe ? | 1,40 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 405.00 kg |
| Schwerstes Einzelteil ? | 80.00 kg |
Assembly & Foundations
| Montagezeit ? | 3.0 hours |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 8 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Floor area: 0.95 x 7.35 m
Minimum space: 3.95 x 10.35 m (39 m²)
Total height: 2.25 m
Platform height: 1.40 m
Weight: 80 kg heaviest individual part
405 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm.
- Wobbly steps on tandem crossbeam, walkway posts made of robinia Ø 10 cm. Fine-linked stainless steel railing chains.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
8 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.51 m³
Assembly time
2 fitters 2.5 hours each
(without foundation)
Free fall height
1,40 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
Physical activities
Item number: 028142700
