Totter bridge
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 7 People |
| Activities ? | Balance, Physical activity |
Technical data
| Minimum space length ? | 7,15 m |
|---|---|
| Minimum space width ? | 3,95 m |
| Minimum space height ? | 1,05 m |
| Equipment length ? | 4,15 m |
| Equipment width ? | 0,95 m |
| Equipment height ? | 1,05 m |
| Free-fall height ? | 0,20 m |
| Platform heights | - |
| Total weight ? | 228.00 kg |
| Heaviest single part ? | 80.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 8 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

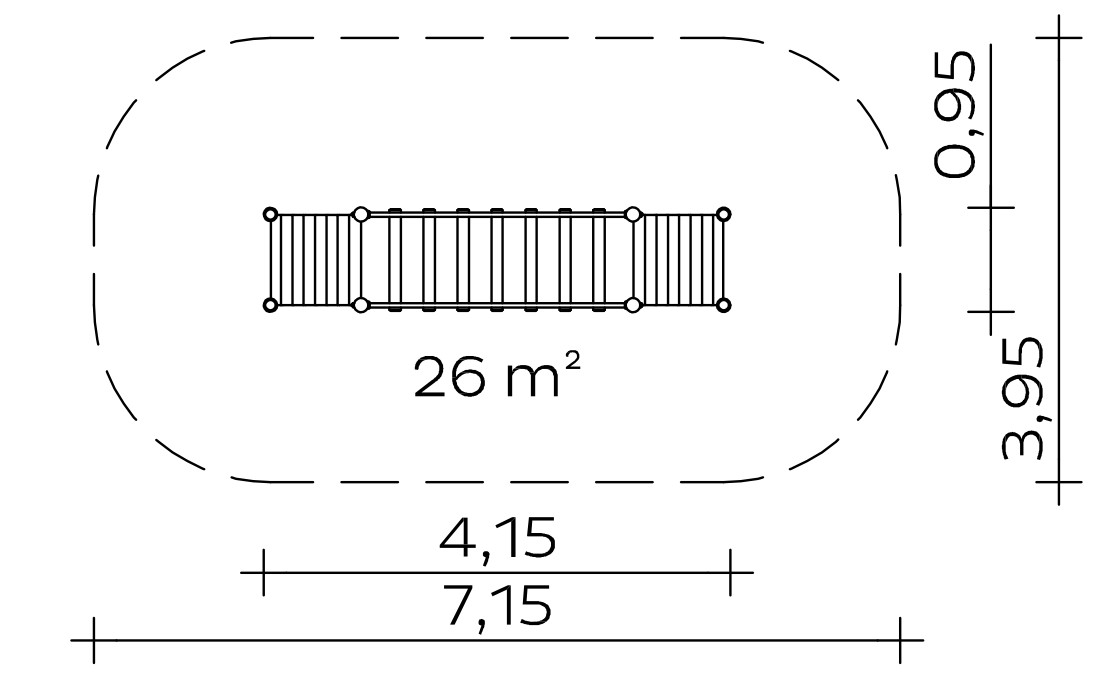

Floor area: 0.95 x 4.15 m
Minimum space: 3.95 x 7.15 m (26 m²)
Total height: 1.05 m
Platform height: 0.20 m
Weight: 80 kg heaviest individual part
215 kg in total
Support post
Support posts made of laminated robinia timber, cylindrically milled, Ø 120 mm. Unprotected end-grain surfaces are covered with non-removable stainless steel post caps. Stainless steel tubular base for anchoring and supporting black locust round timber posts, Ø 120 mm, below the play level. Support posts made of stainless steel tubing, Ø 120 mm, flush with the platform, sealed with welded-on stainless steel discs.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Wobbly bridge on a tandem crossbeam, walkways made of robinia Ø 100 mm. Fine-linked stainless steel railing chains.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
8 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.51 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
0,20 m
Suitable for
Children from 2 years,
public playgrounds etc.
Physical activities
Item number: 028026701
