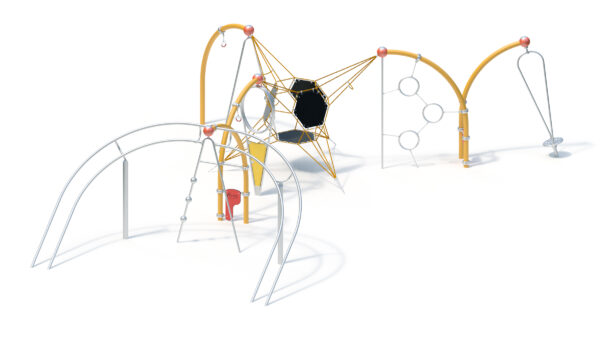

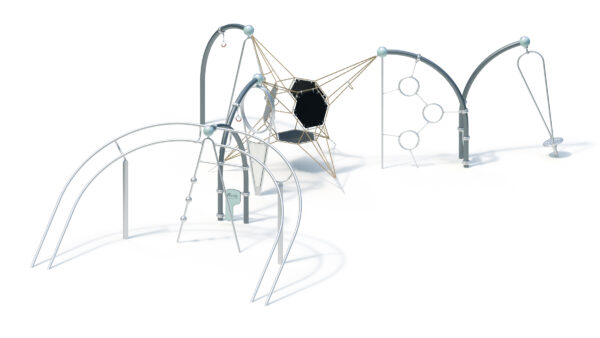

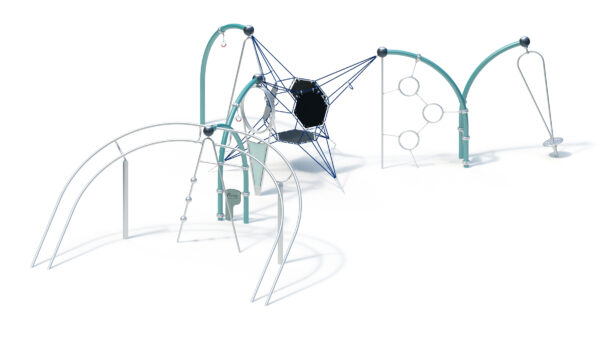

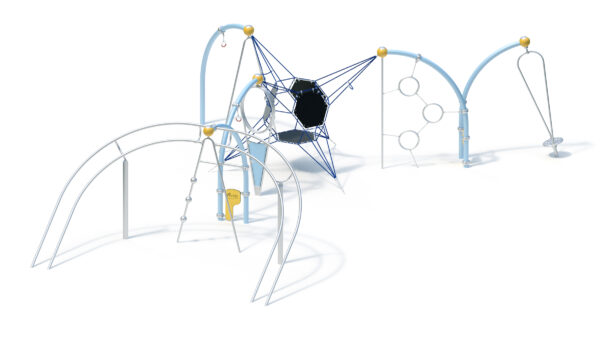

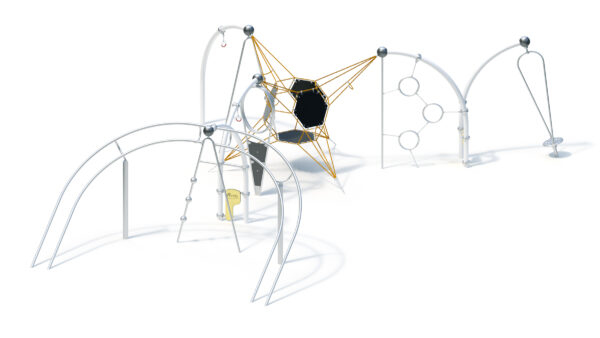

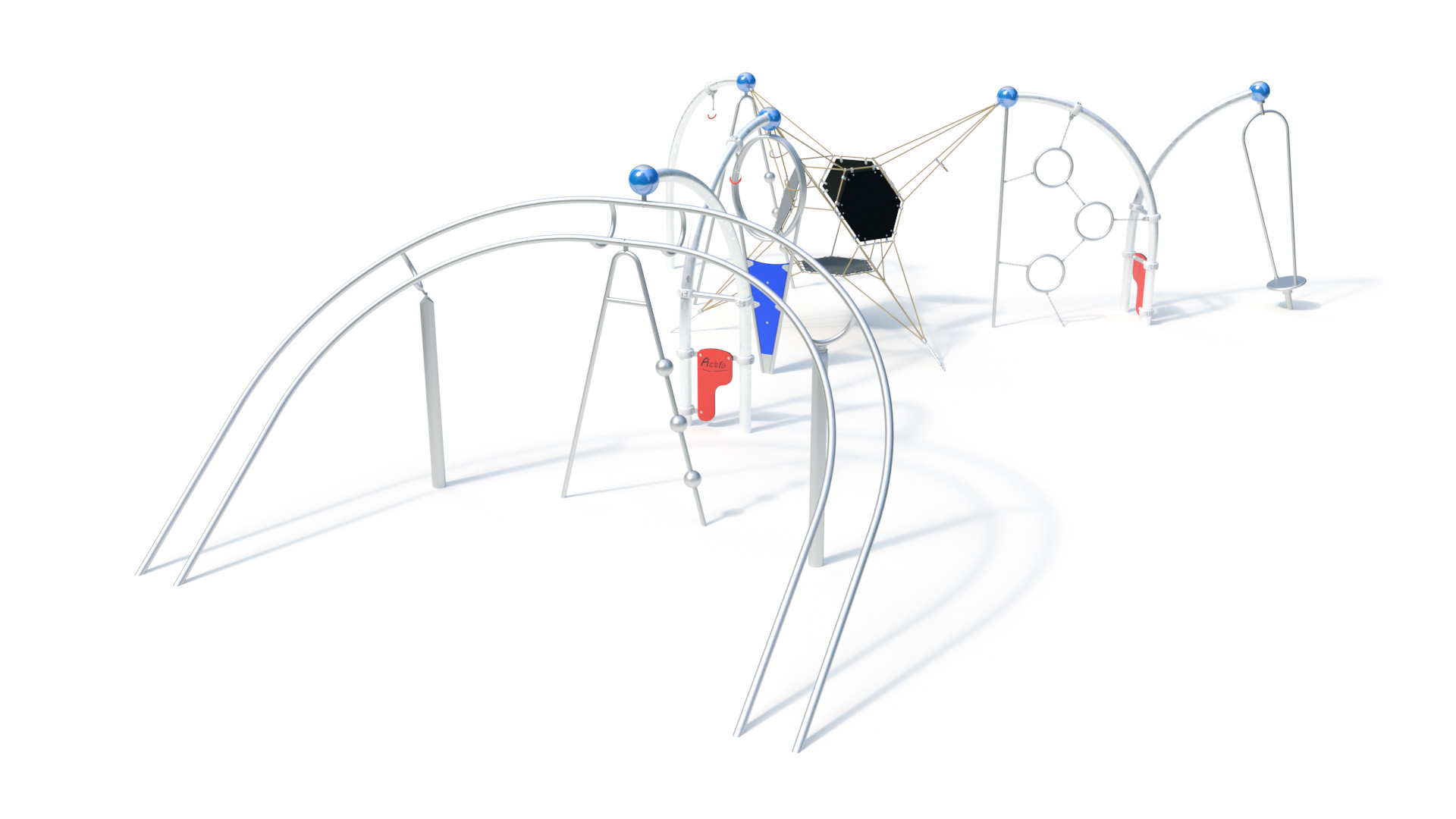

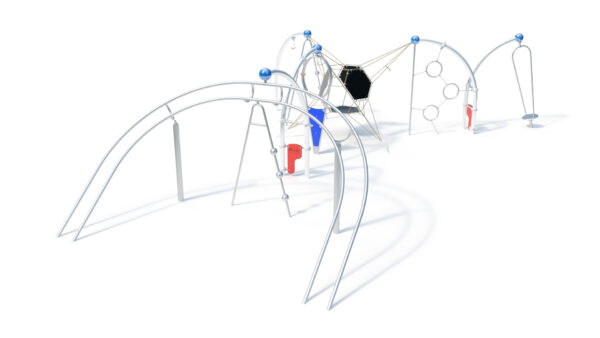

2242-003Technical data

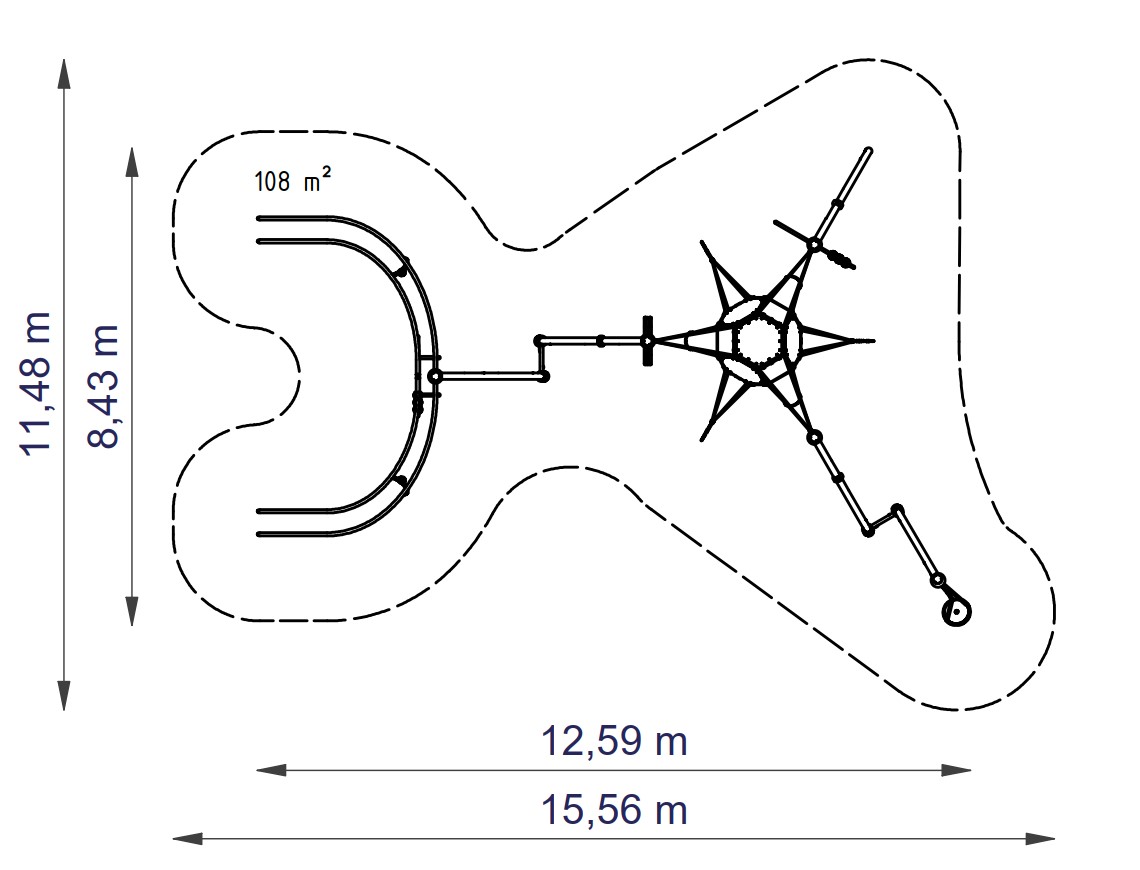

Equipment room: 12.52 x 8.43 x 2.93 m
Minimum space: 15.52 x 11.43 x 2.93 m
Impact area: 115 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest individual part
814 kg in total

Arc 75°
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)

Arc 90 degrees
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)

Arc 90° Space Cube
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Space Cube
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Cross connections and T-connectors in the cable mesh made of aluminium
- Rubber mats made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
- Rubber mat fastened with U-bracket (stainless steel)
- Floor fastening with stainless steel chains (Ø 7 mm) and foundation tube (Ø 38 x 2 mm)

Airrail
- Welded, partially bolted construction made of stainless steel tube Ø 60.3 and Ø 42.4 mm
- Spherical stainless steel access elements
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations

Big Hurricane
- Welded, twisted stainless steel tube construction
- Rotating base made from profiled stainless steel sheet
- Roller bearings at the bottom and top: protected against interference and dirt
– top: screw-on connection to Actio construction element
- below: Anchoring via a hot-dip galvanised steel foundation anchor to be set in concrete

Monkey Climber
- Ring combination made of stainless steel tube Ø 38 mm
- Suspension and connection with 7 mm stainless steel chains and swivels
- Above: Connection to Actio construction element
– below: Fixation by site foundations

Resting Point
- Climbing wall made of highly weather-resistant HPL laminate, colour blue similar to RAL 5015, 20 mm, in a frame made of stainless steel tube Ø38 ; with free climbing elements attached on one side
– top: screw-on connection to Actio construction element
below: Clamping through in-situ foundations

Hanging handle
- Stainless steel hanging handle with rubberised grip surface and Ø 6 mm chain
- Above: Connection to Actio construction element via aluminium clip (optionally powder-coated in RAL colour of choice)

Actio shield
- Actio sign made of a highly weather-resistant HPL laminate, including „Actio“ marking, 20 mm, colour red similar to RAL 2002.
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)

Number of components for optional powder coating
5 pipe bends 90°
10 pcs. Aluminium clamp Ø 114 mm

Foundations (client-provided)
2 pcs. 1.30 x 0.50 x 0.50 m
1 piece 1.00 x 0.80 x 0.50 m
12 pcs. 0.60 x 0.60 x 0.50 m
Concrete volume: 4.67 m³

Assembly time
3 fitters 8 hours each.
(without foundation)

Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities

Item number: 027501000
