Actio 366

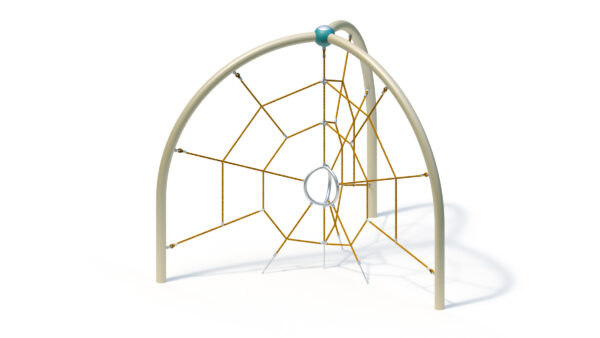

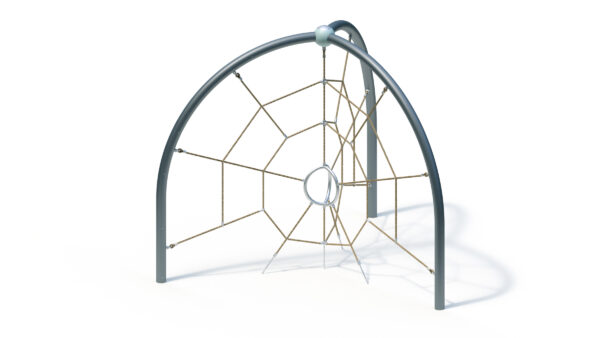

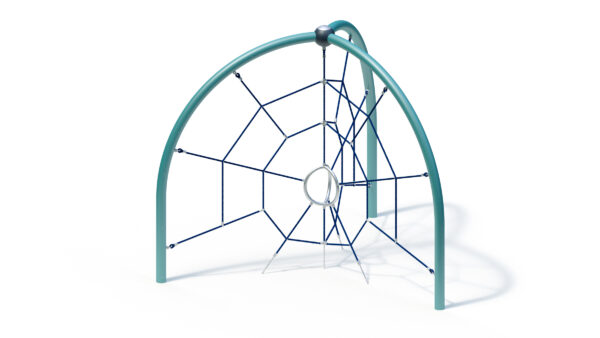

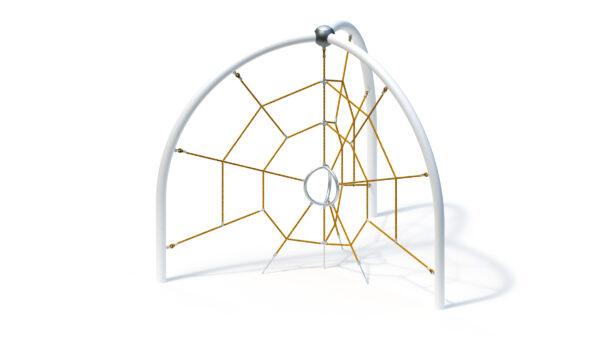

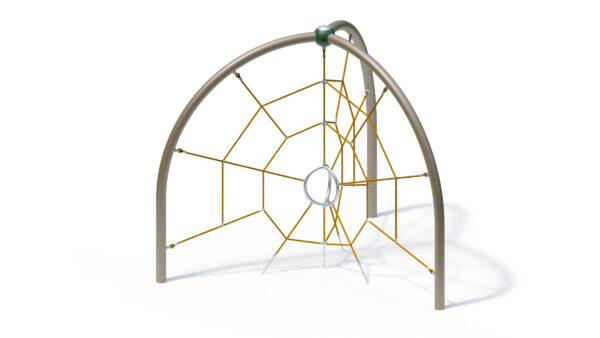

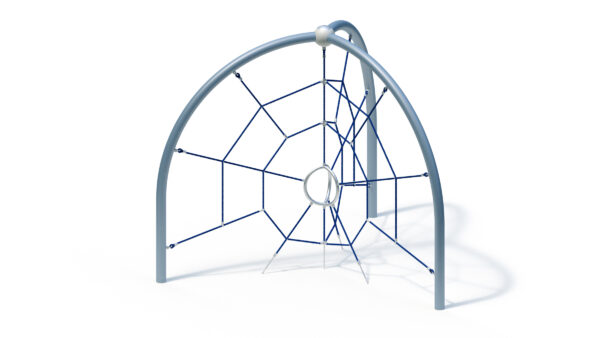

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 14 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 6,42 m |
|---|---|
| Minimum space width ? | 5,98 m |
| Minimum space height ? | 2.93 m |
| Equipment length ? | 3,42 m |
| Equipment width ? | 2,98 m |
| Equipment height ? | 2.93 m |
| Free-fall height ? | 2,86 m |
| Platform heights | - |
| Total weight ? | 200.00 kg |
| Heaviest single part ? | 67.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 3 people |
| Lifting equipment required | - |
| Foundations | Quantity: 3 (1.3m x 0.5m x 0.5m) Quantity: 1 (0.6m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data

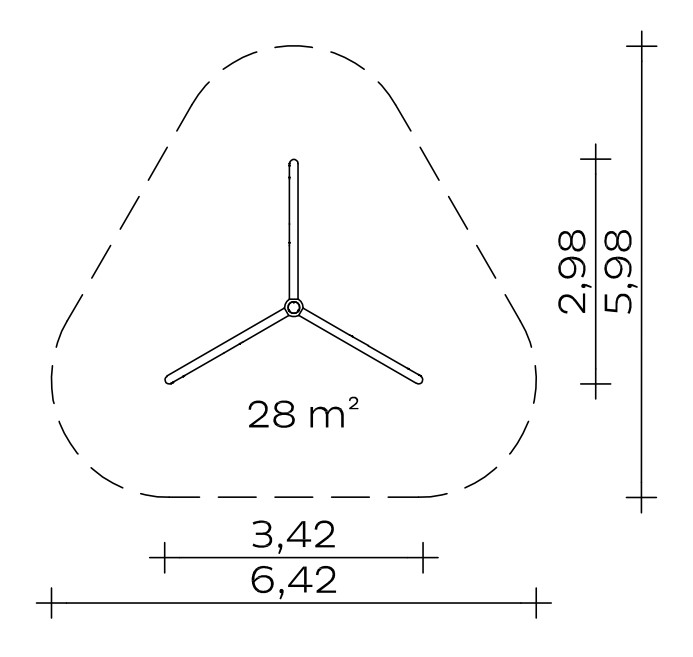

Equipment room: 3.42 x 2.98 x 2.93 m
Minimum space: 6.42 x 5.98 x 2.93 m
Impact area: 28 m²
Total height: 2.92 m
Free fall height: 2.86 m
Weight: 67 kg heaviest individual part
200 kg in total

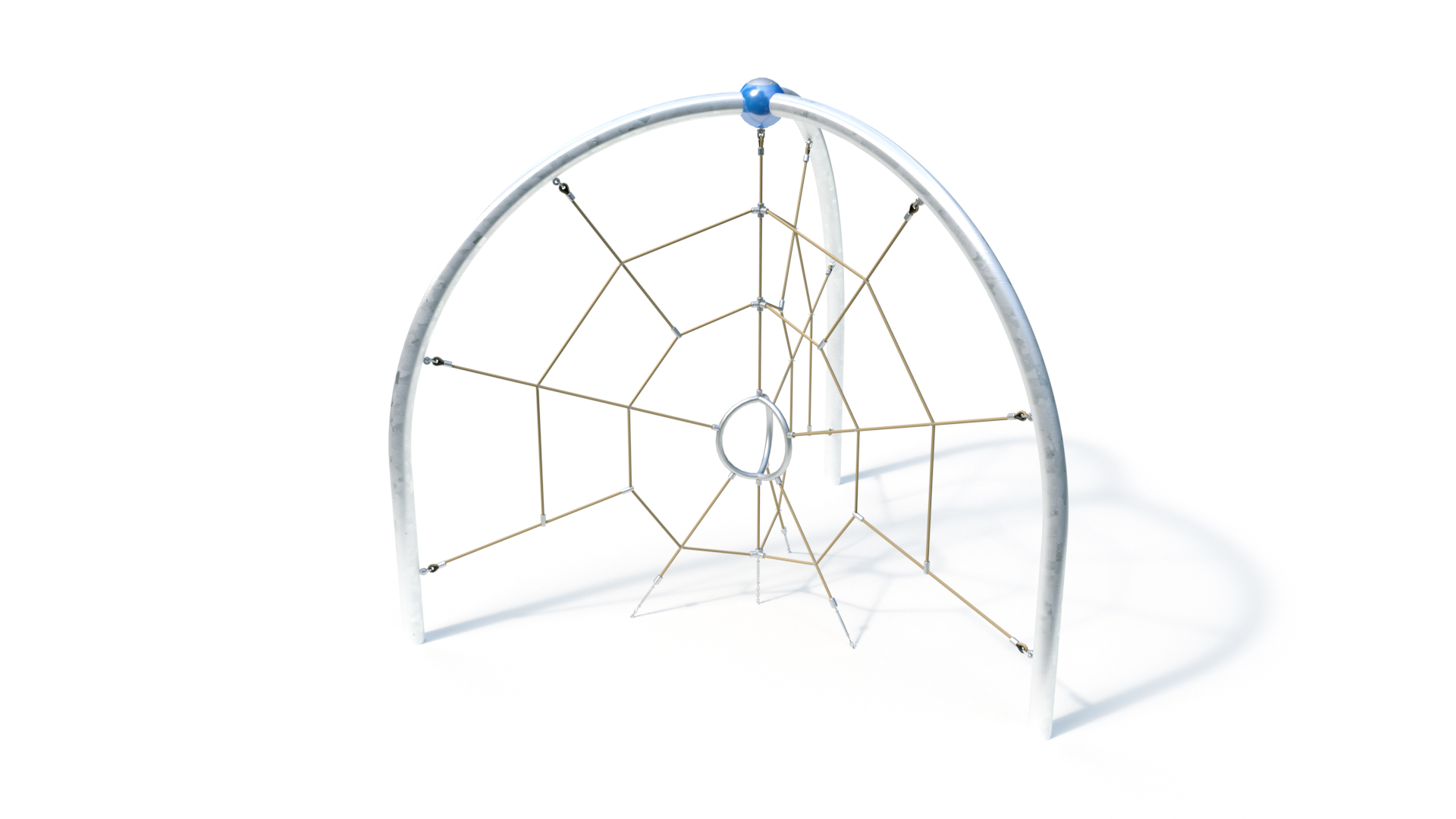

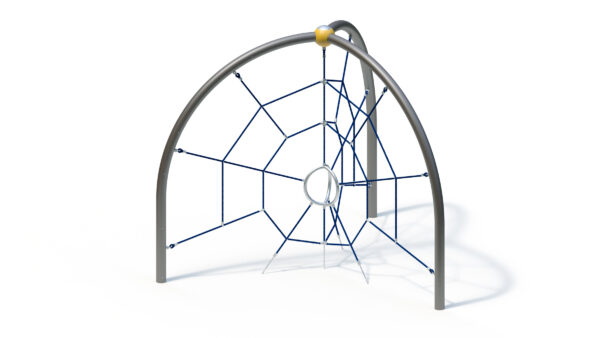

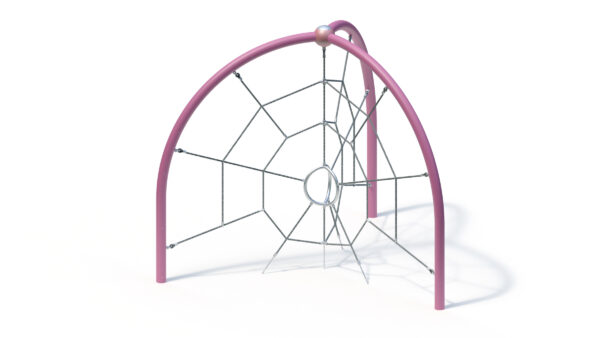

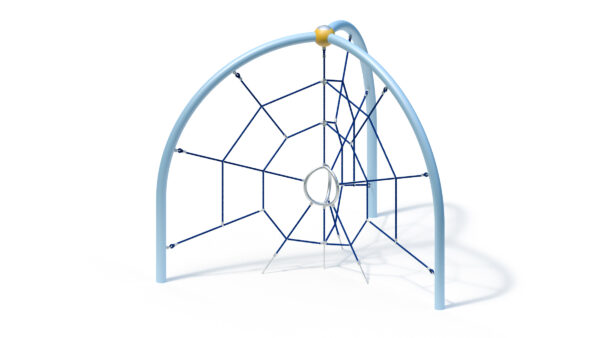

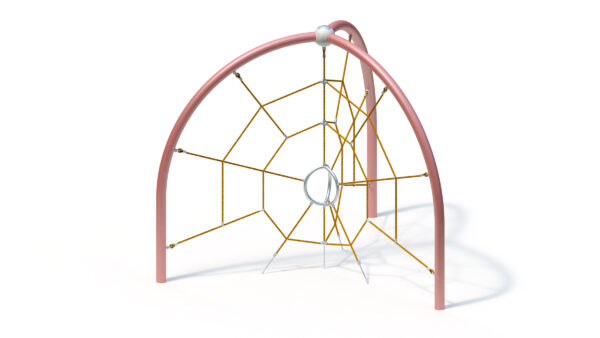

Arc 90° Spider Net
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)
Spider Net
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Cross connections and T-connectors in the aluminium cable mesh
- Tubular ring made of stainless steel (Ø 450 x Ø 38 x 2 mm), welded with cable connections (Ø 48.3 mm)
- Floor mounting, stainless steel chains (Ø 7 mm), welded with chain adapter (Ø 34 x 8.5 mm) at the upper end,
Screwed at the bottom with foundation tube (Ø 38 x 2 mm)
- Connection to Arc 90° with shackle, Ø 10 mm
Foundations (client-provided)
3 pcs. 1.30 x 0.50 x 0.50 m
1 piece 0.60 x 0.60 x 0.60 m
Concrete volume: 1.17 m³
Assembly time
3 fitters 3 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027366000
