Technical data

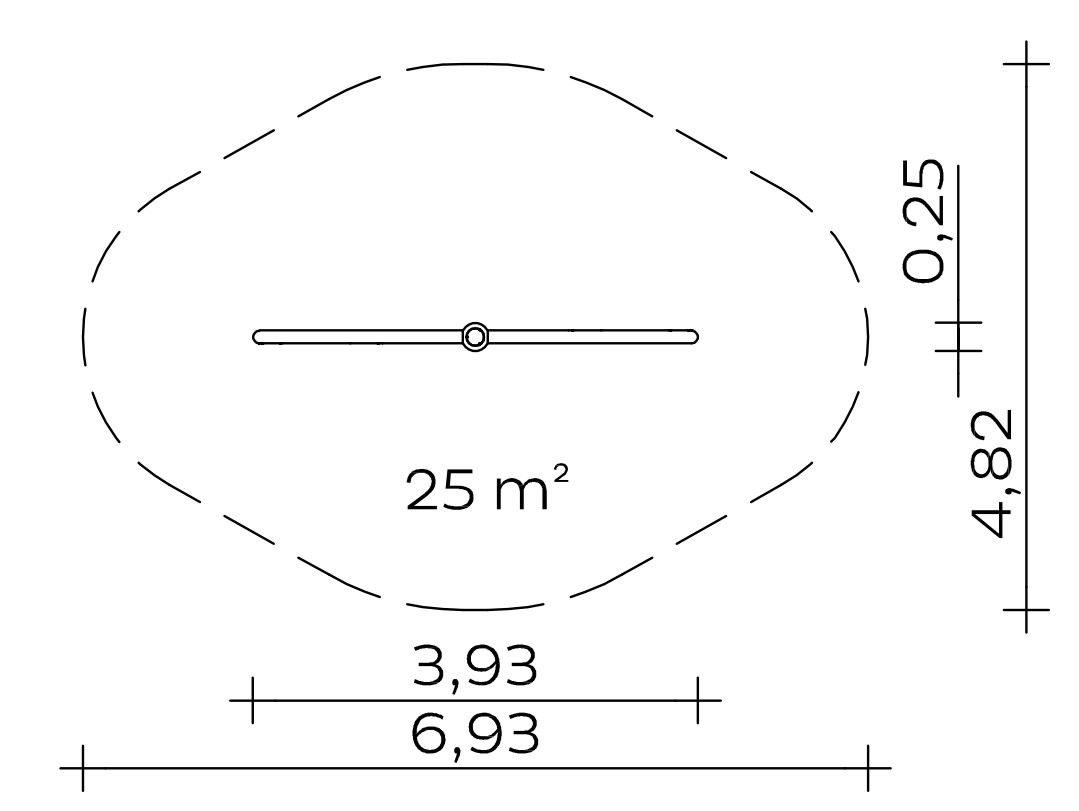

Equipment room: 3.93 x 0.25 x 2.93 m
Minimum space: 6.93 x 4.82 x 2.93 m
Impact area: 25 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest individual part
150 kg in total

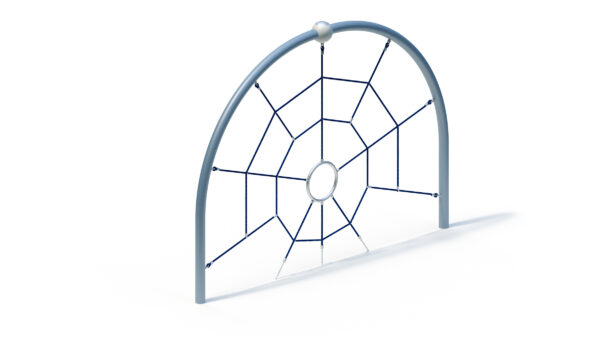

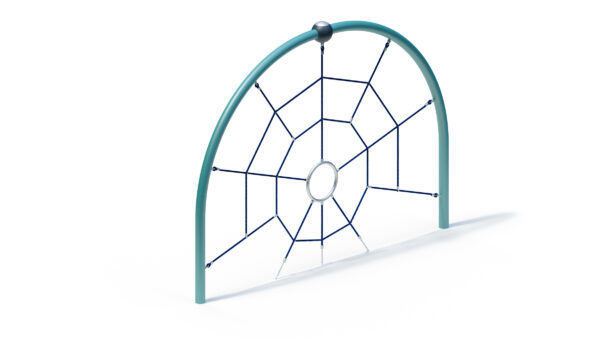

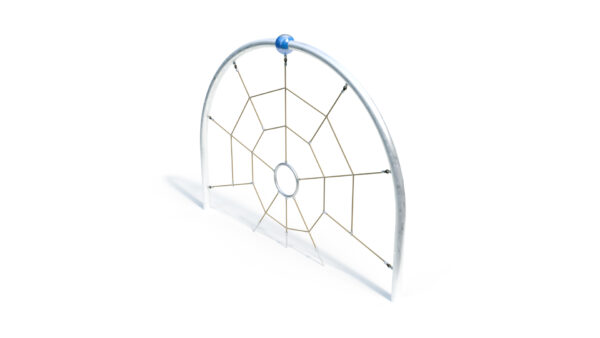

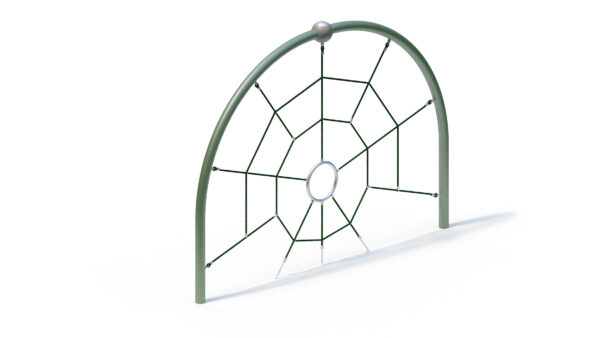

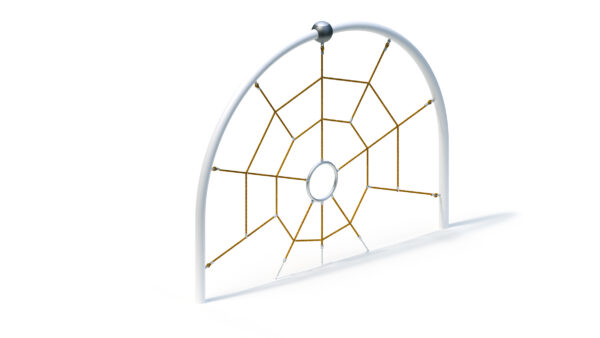

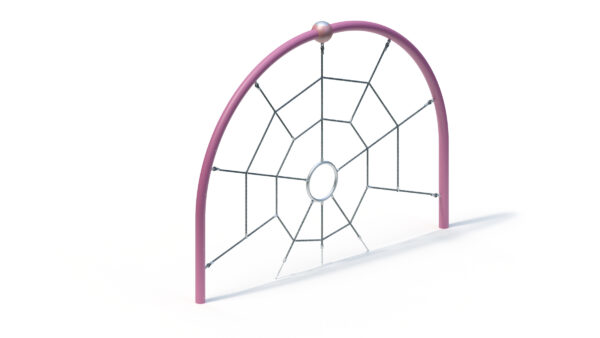

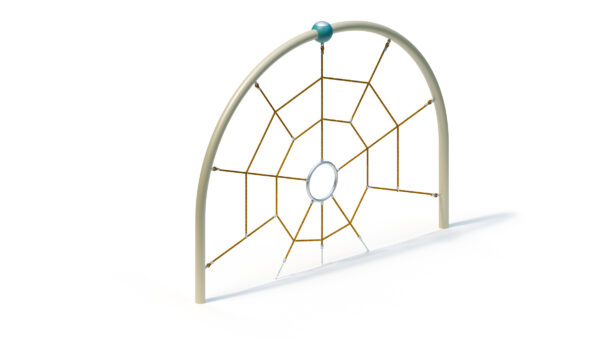

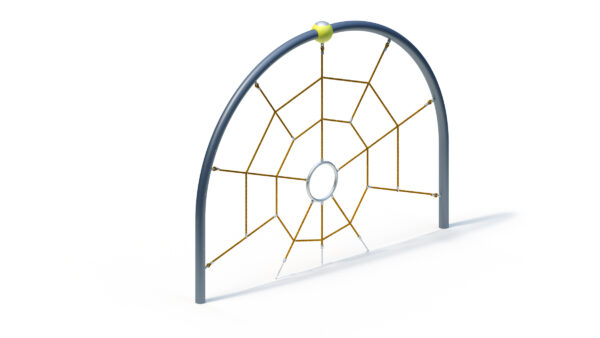

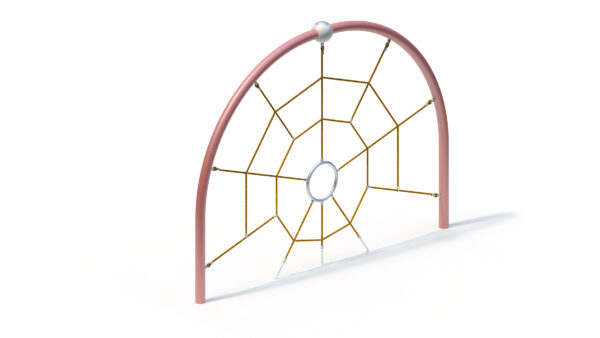

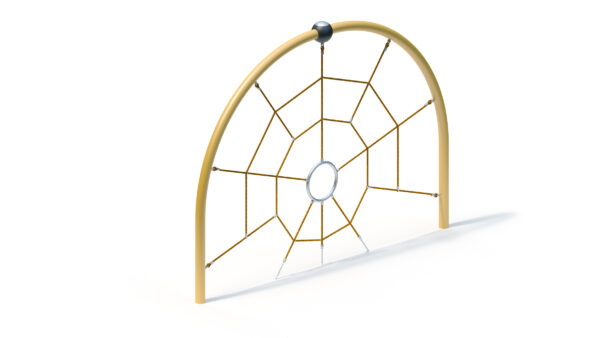

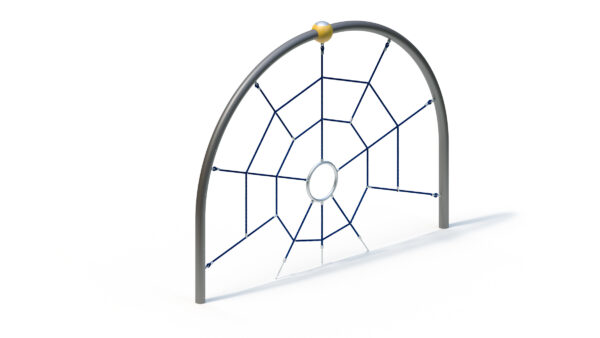

Arc 90° Spider Net
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)

Spider Net 180°
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Cross connections and T-connectors in the cable mesh made of aluminium
- Tubular ring made of stainless steel (Ø 450 x Ø 38 x 2) welded with 6x cable connection (Ø 48.3)
- Floor mounting, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the upper end,
Screwed at the bottom with foundation tube (Ø 38 x 2 mm)
- Connection to Arc 90° with shackle, Ø 10 mm

Foundations (client-provided)
1 piece 0.60 x 0.60 x 0.50 m
2 pcs. 1.30 x 0.50 x 0.50 m

Concrete volume: 0.90 m³

Assembly time
2 fitters 3 hours each.
(without foundation)

Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities

Item number: 027291000
