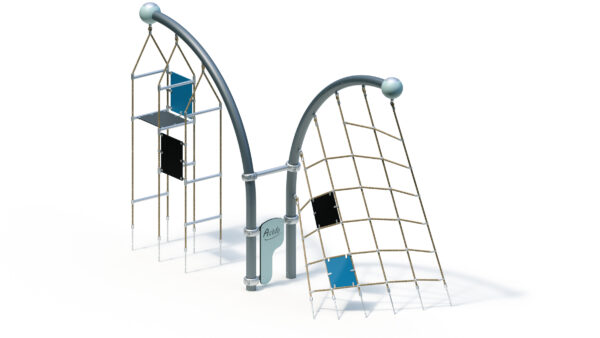

Actio 287

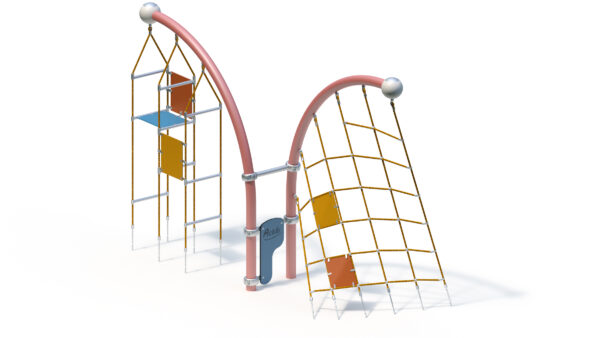

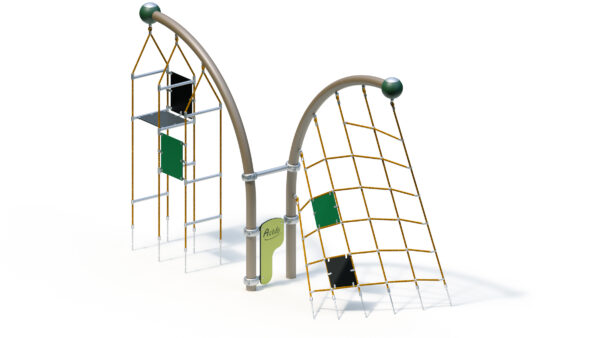

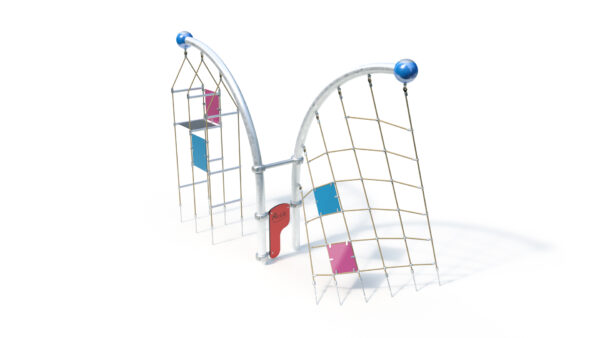

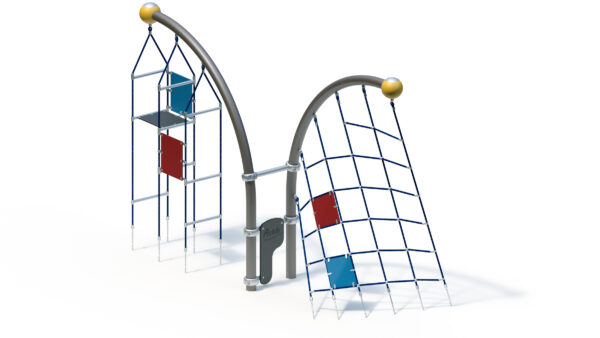

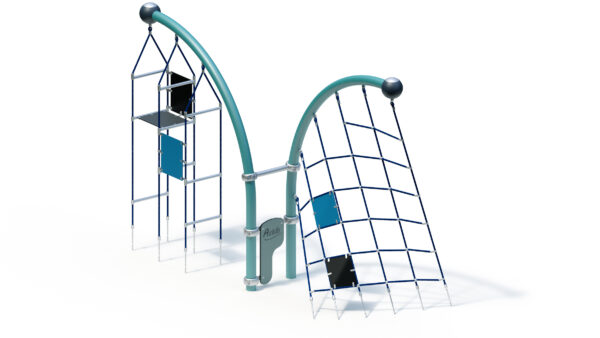

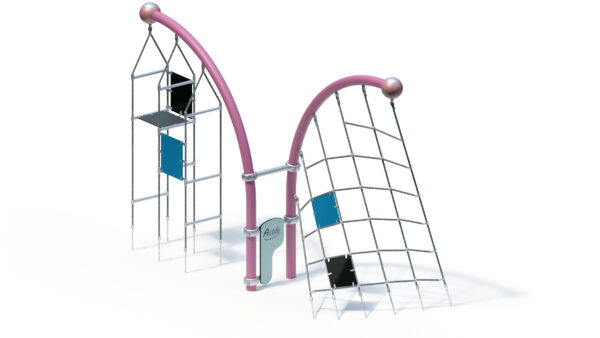

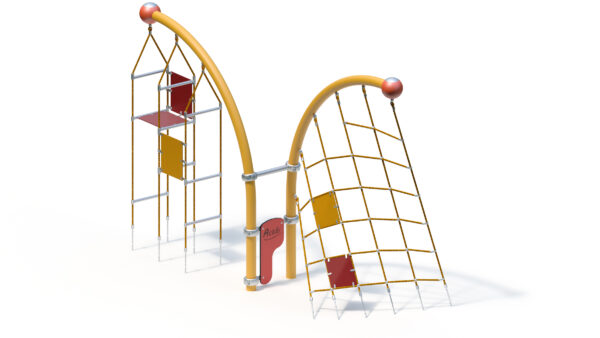

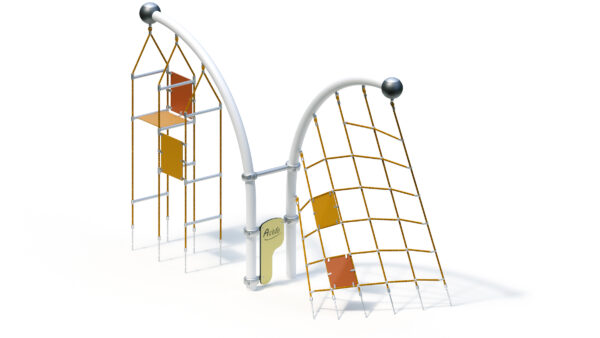

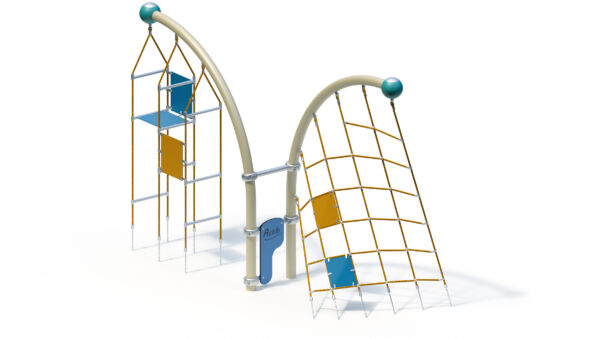

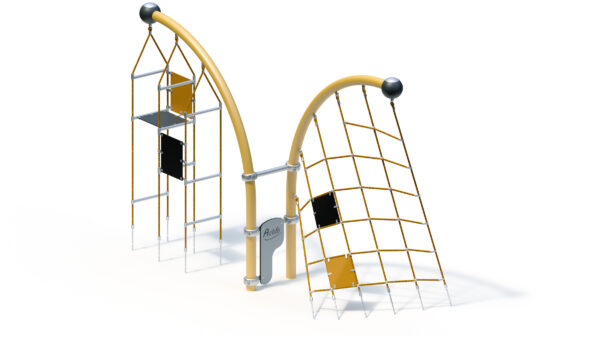

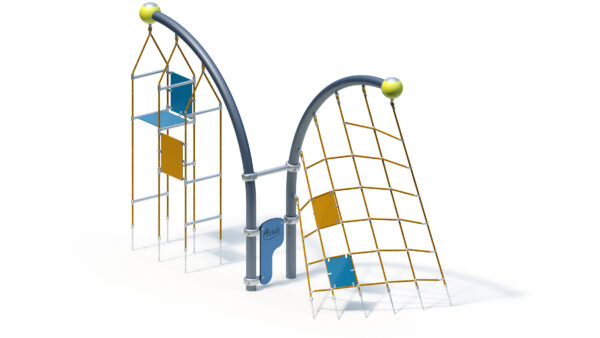

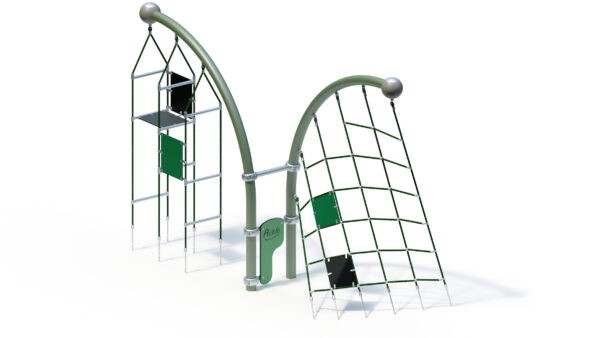

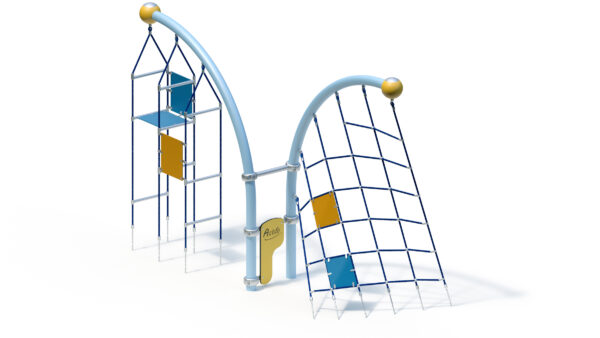

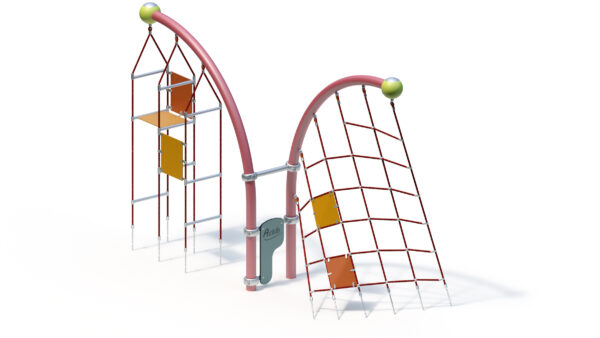

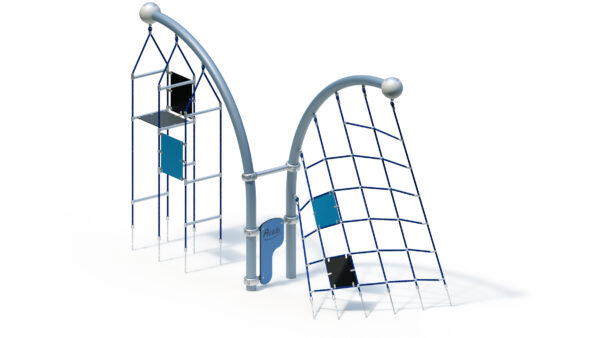

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 12 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 8,55 m |
|---|---|
| Minimum space width ? | 5,43 m |
| Minimum space height ? | 2.93 m |
| Equipment length ? | 4,00 m |
| Equipment width ? | 1,75 m |
| Equipment height ? | 2.93 m |
| Free-fall height ? | 2,86 m |
| Platform heights | - |
| Total weight ? | 205.00 kg |
| Heaviest single part ? | 67.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1x (1.2m x 0.7m x 0.5m) Quantity: 1 (1.7m x 1m x 0.5m) Quantity: 1 (2.5m x 0.3m x 0.5m) |
Product Downloads
Product description
Technical data

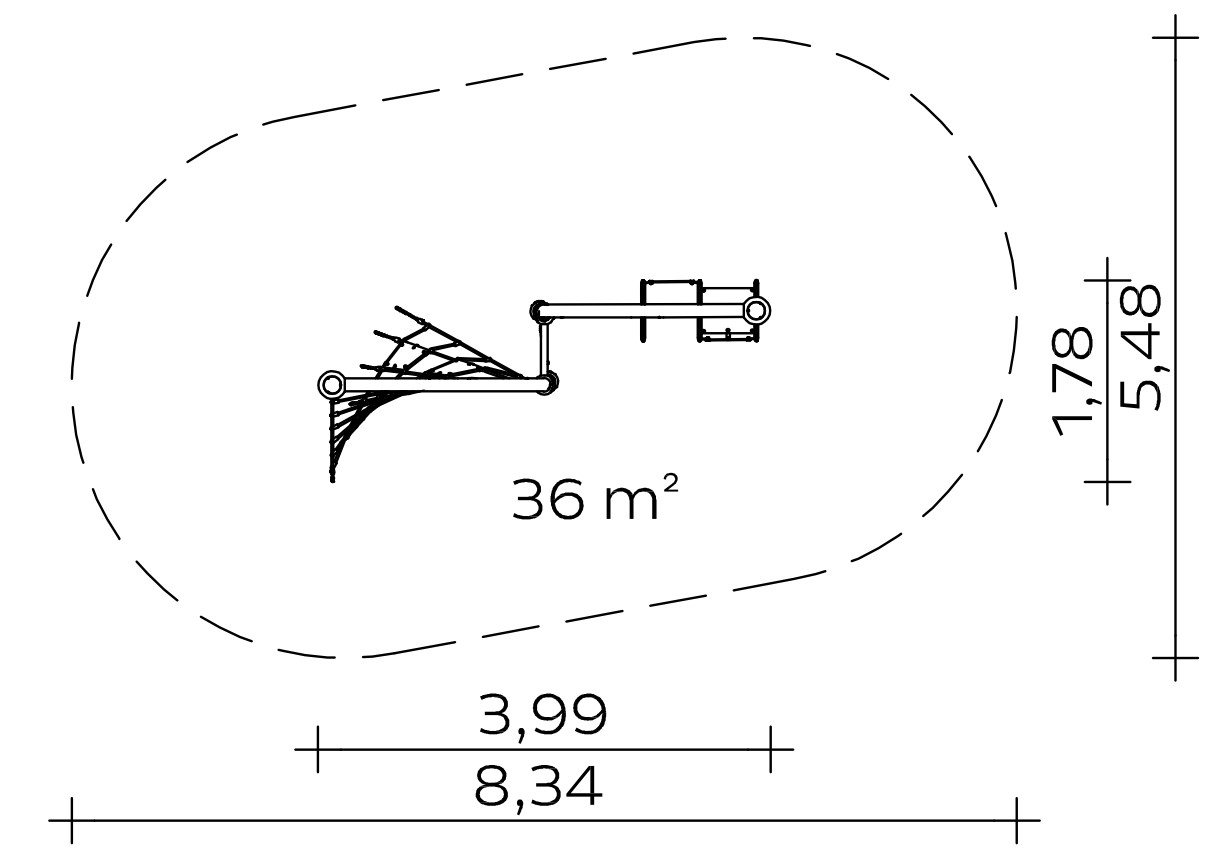

Equipment room: 4.00 x 1.75 x 2.93 m
Minimum space: 8.55 x 5.43 x 2.93 m
Impact area: 36 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single item
205 kg in total
Arc 90° Climbing Cube
- Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optionally powder-coated in RAL colour of choice)
- Aluminium ball, Ø 250 mm, powder-coated in RAL colour of choice
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)
Arc 90° Twister
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
- Aluminium ball, Ø 250 mm, powder-coated in RAL colour of choice
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)
Climbing Cube
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Rubber mats (8 mm), PAH-free and 4-fold textile-reinforced
- Mounting bracket for rubber mat, clamping tube (Ø 34 x 8.5 mm) welded to sheet metal (30 x 68 mm)
- Cross clamping tube, welded stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded to clamping tube (Ø 34 x 8.5 mm)
- Floor mounting, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the upper end,
Screwed into the foundation at the bottom
- Connection to Arc 90° with shackle, Ø 10 mm
Twister
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Cross connections and T-connectors in the aluminium cable mesh
- Rubber mats (8 mm), PAH-free and 4-fold textile-reinforced
- Rubber mat fastened with U-bracket (stainless steel)
- Floor mounting, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the upper end,
Screwed into the foundation at the bottom
- Connection to Arc 90° with shackle, Ø 10 mm
Actio shield
- Actio sign made of highly weather-resistant HPL laminate with „Actio“ marking, 20 mm, colour similar to RAL 2002 (red)
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)
Foundations (client-provided)
1 piece 1.20 x 0.70 x 0.50 m
1 piece 1.70 x 1.00 x 0.50 m
1 piece 2.50 x 0.30 x 0.50 m
Concrete volume: 1.65 m³
Assembly time
2 fitters 3 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027287000
