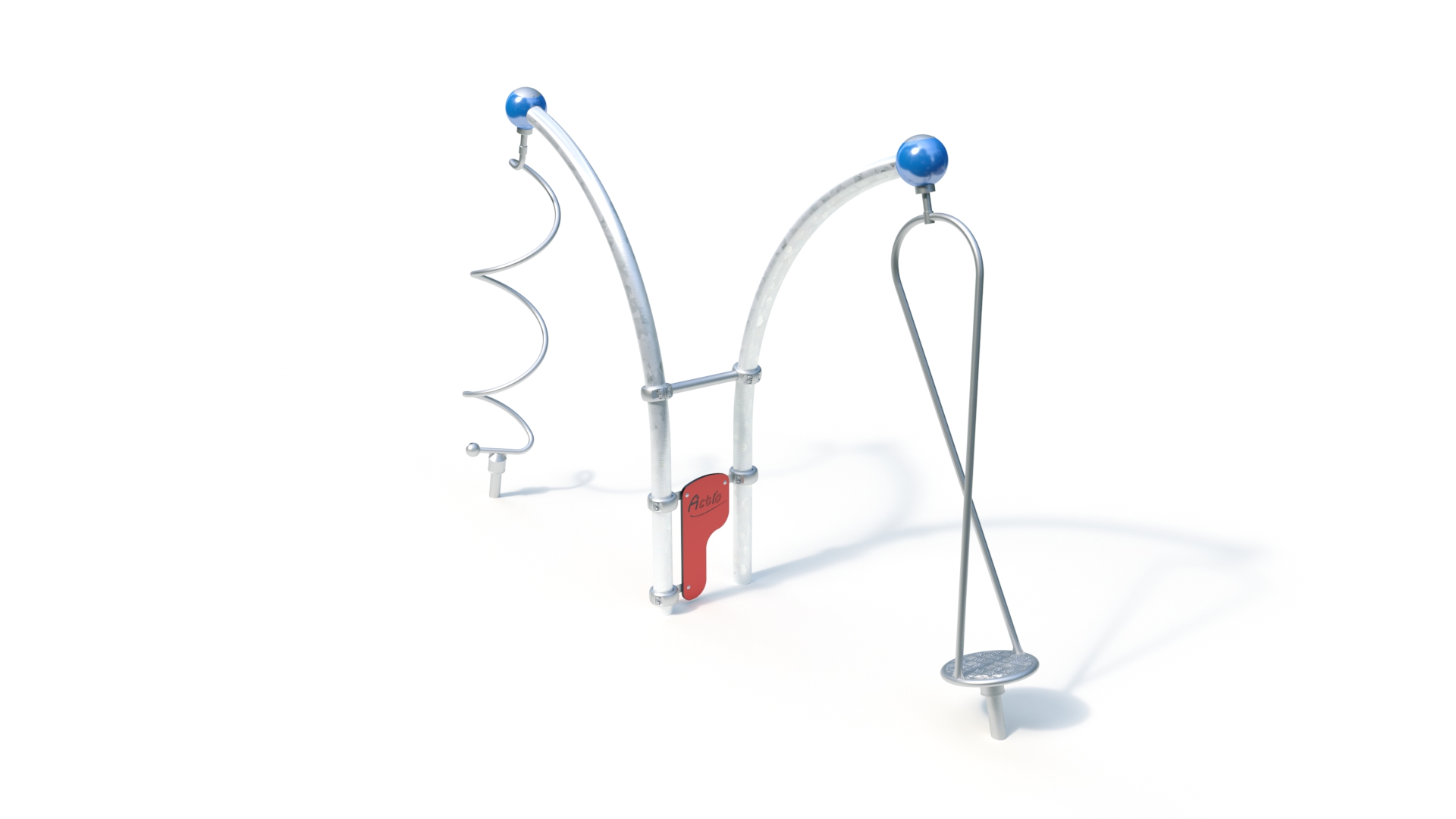

Actio 285

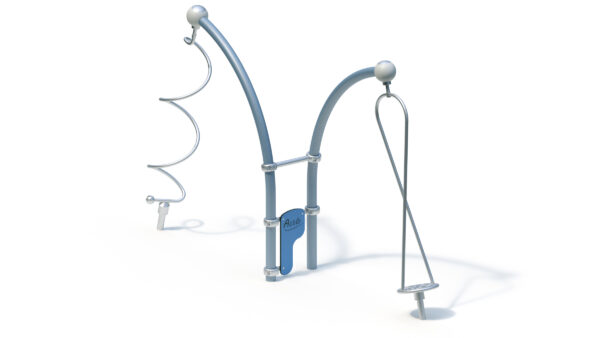

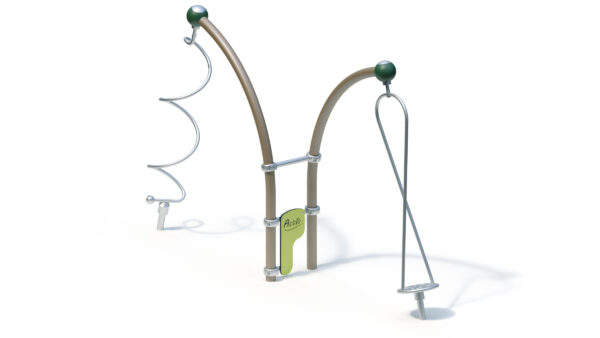

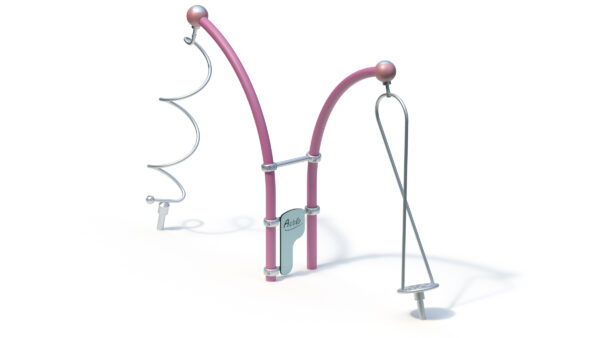

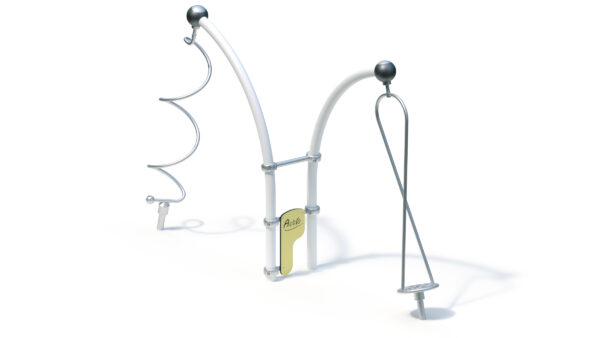

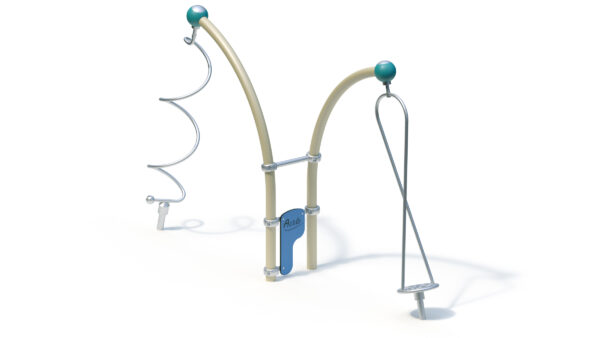

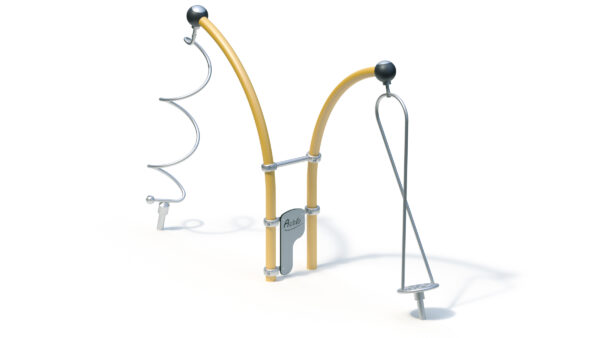

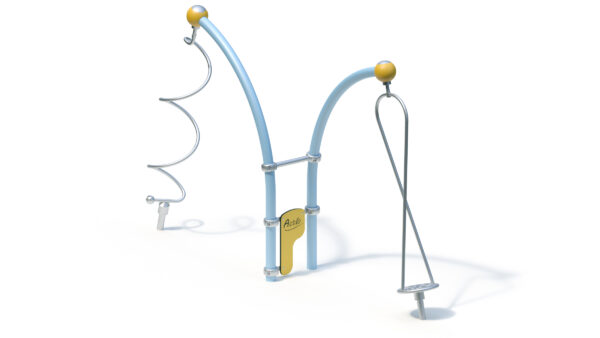

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 5 people |
| Activities ? | Physical activity |
Technical data
| Minimum space length ? | 7,55 m |
|---|---|
| Minimum space width ? | 4,15 m |
| Minimum space height ? | 2,89 m |
| Equipment length ? | 4,55 m |
| Equipment width ? | 1,15 m |
| Equipment height ? | 2,89 m |
| Free-fall height ? | 1,38 m |
| Platform heights | - |
| Total weight ? | 242.00 kg |
| Heaviest single part ? | 62.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (1.7m x 1m x 0.5m) Quantity: 2 (0.6m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data

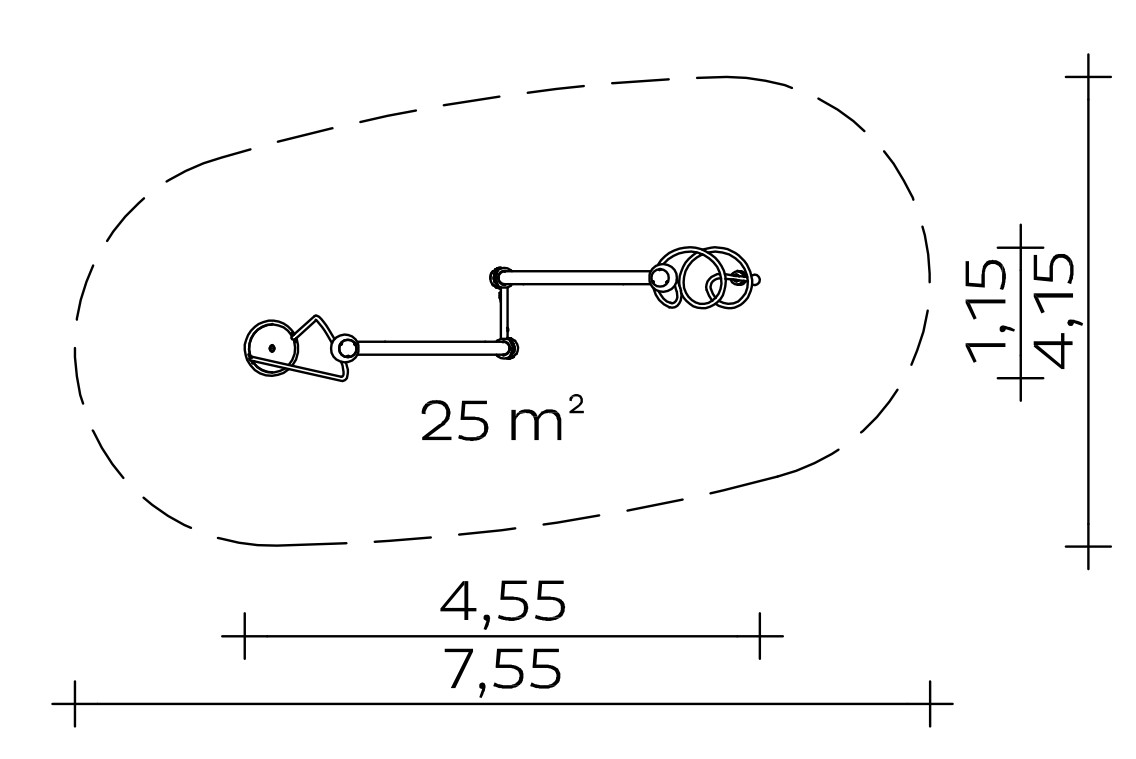

Equipment room: 4.55 x 1.15 x 2.89 m
Minimum space: 7.55 x 4.15 x 2.89 m
Impact area: 25 m²
Total height: 2.89 m
Free fall height: 1.38 m
Weight: 62 kg heaviest individual part
242 kg in total
Arc 75°

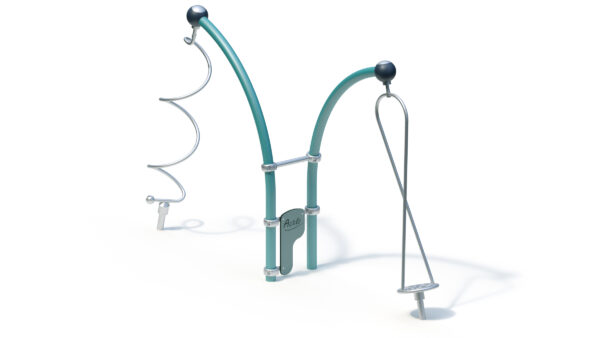

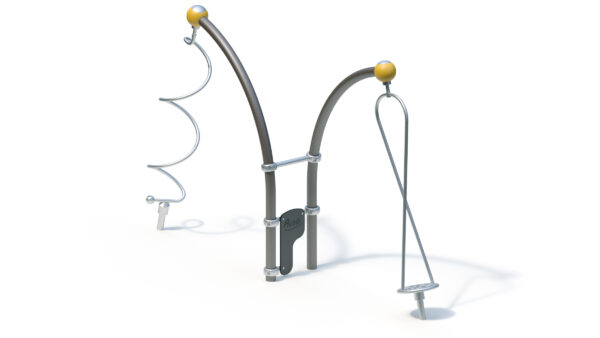

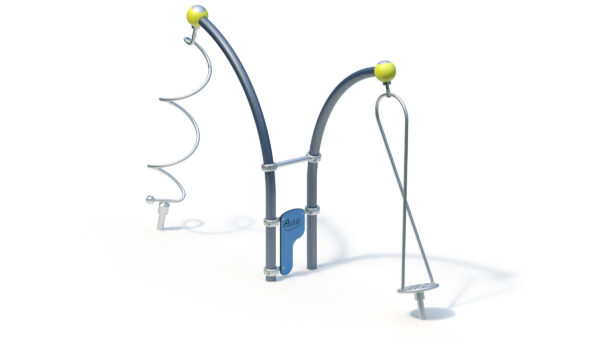

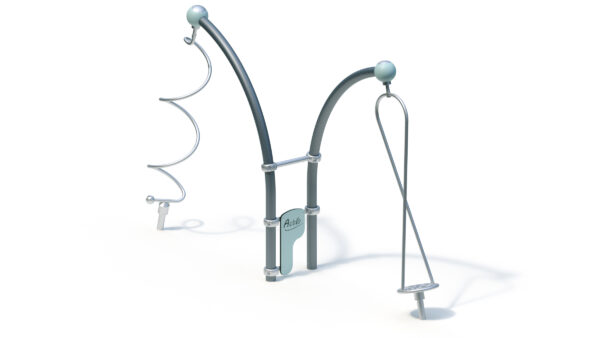

– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
- Aluminium ball, Ø 250 mm, powder-coated in RAL colour of choice (see item below), with additional safety chain
Big Tornado
- Welded, spiral-shaped construction made of stainless steel tube with knurled base
- Roller bearings at the bottom and top: protected against interference and dirt
- Anchoring via a hot-dip galvanised steel foundation anchor to be set in concrete
– top: screw-on connection to Actio construction element
- below: Anchoring via a hot-dip galvanised steel foundation anchor to be set in concrete
Big Hurricane
- Welded, twisted stainless steel tube construction
- Rotating base made from profiled stainless steel sheet
- Roller bearings at the bottom and top: protected against interference and dirt
– top: screw-on connection to Actio construction element
- below: Anchoring via a hot-dip galvanised steel foundation anchor to be set in concrete
Actio shield
- Actio sign made of a highly weather-resistant HPL laminate, including „Actio“ marking, 20 mm, colour red similar to RAL 2002.
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice).
Number of components for optional powder coating
2 pipe bends 75°
5 pcs. Aluminium clamp Ø 114 mm
Foundations (client-provided)
1 piece 1.70 x 1.00 x 0.50 m
2 pcs. 0.60 x 0.60 x 0.50 m
Concrete volume: 1.2 m³
Assembly time
2 fitters 3 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027285000
