Actio 228

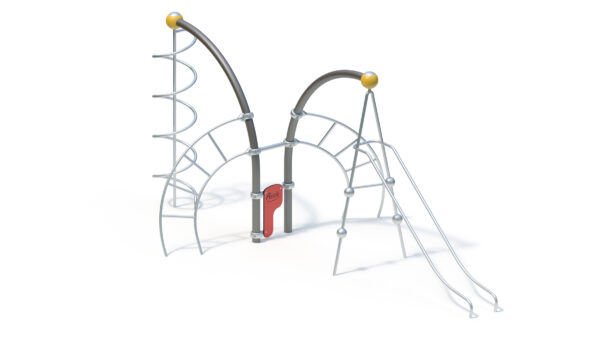

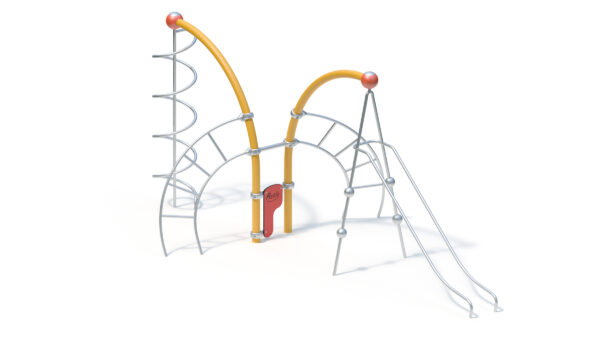

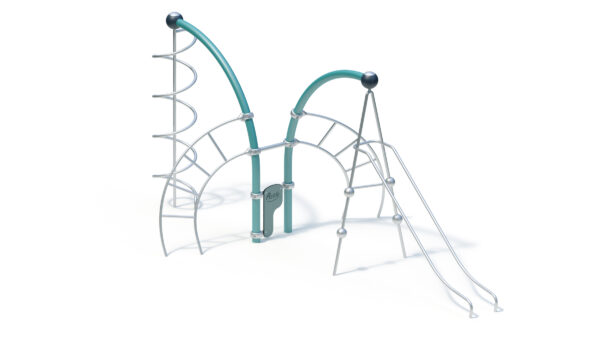

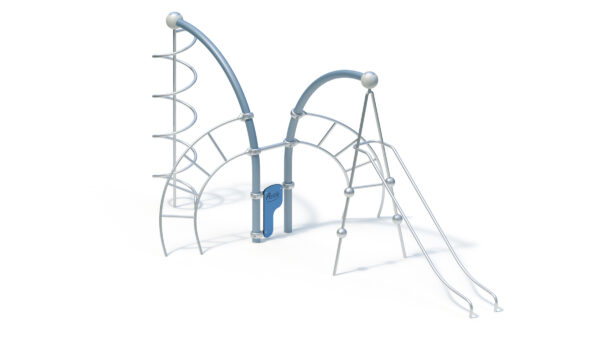

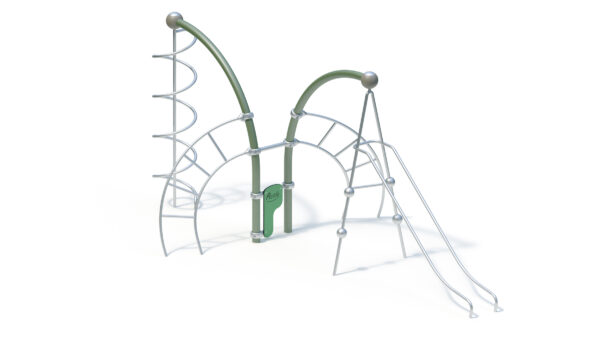

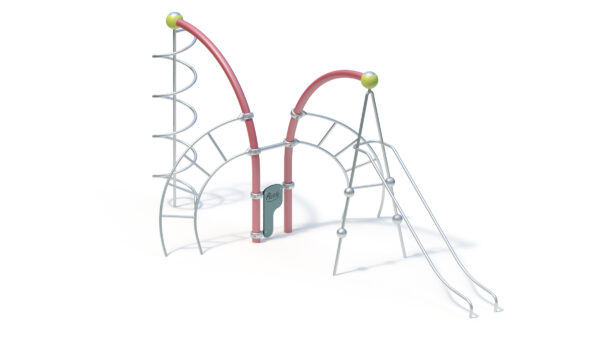

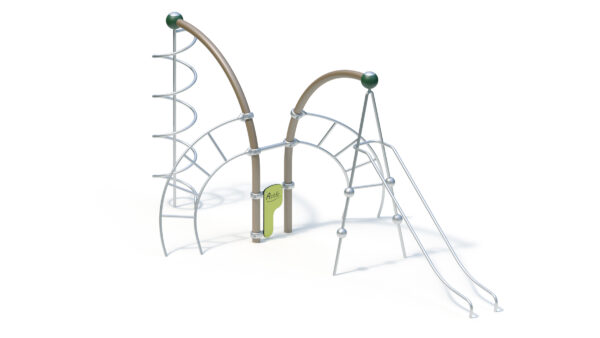

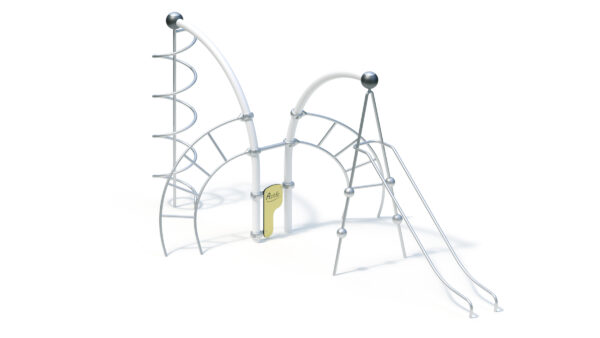

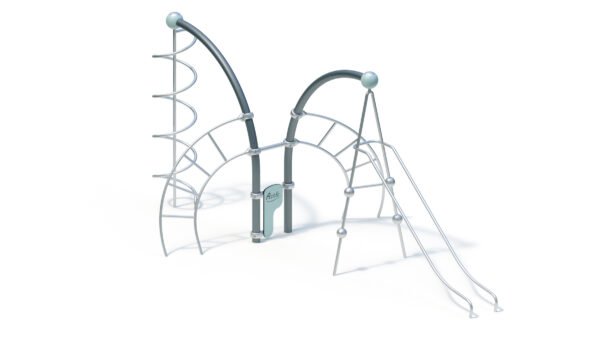

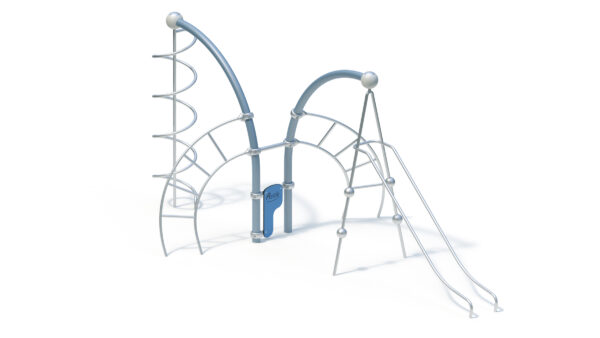

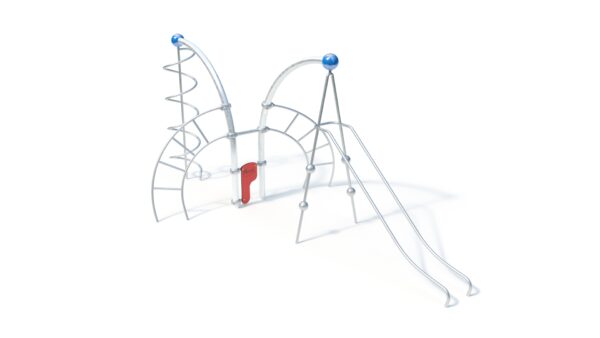

Variante wählen:
The most important information
| Altersgruppe ? | 5+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 12 Personen |
| Aktivitäten ? | Balance, Physical activity, Climbing, Slide |
Technical data
| Mindestraumlänge ? | 10,67 m |
|---|---|
| Mindestraumbreite ? | 6,44 m |
| Mindestraumhöhe ? | 2.93 m |
| Gerätelänge ? | 6,77 m |
| Gerätebreite ? | 3,46 m |
| Gerätehöhe ? | 2.93 m |
| Freie Fallhöhe ? | 2,86 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 304.00 kg |
| Schwerstes Einzelteil ? | 67.00 kg |
Assembly & Foundations
| Montagezeit ? | 4,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 1 (1.7m x 1m x 0.5m) Quantity: 3 (0.9m x 0.4m x 0.5m) Quantity: 3 (0.6m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data

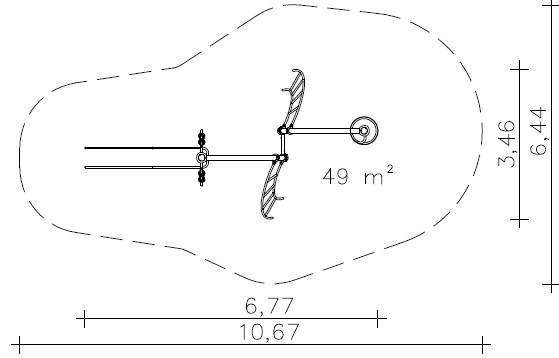

Equipment room: 6.77 x 3.46 x 2.93 m
Minimum space: 10.67 x 6.44 x 2.93 m
Impact area: 49 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest individual part
304 kg in total
Arc 90 degrees
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
Monkey Slide
- Welded, partially bolted construction made of stainless steel tube Ø 42.4 mm
- Spherical stainless steel access elements
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations
Spring Slide
- Welded construction made of stainless steel tube Ø 42.4 mm
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations
Actio shield
- Actio sign made of a highly weather-resistant coloured HPL laminate, including „Actio“ marking, 20 mm.
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)
Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– Arc-shaped ladder
– Top: Connection to Actio construction element using aluminium clamps (optionally powder-coated in a RAL colour of your choice).
– below: Fixation by site foundations
Number of components for optional powder coating
2 pipe bends 90°
7 pcs. Aluminium clamp Ø 114 mm
Foundation (on site)
1 piece 1.70 x 1.00 x 0.50 m
3 units 0.90 x 0.40 x 0.50 m
3 units 0.60 x 0.60 x 0.50 m
Concrete quantity: 2.00 m³
Assembly time
2 fitters 4 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027228001
