Actio 162

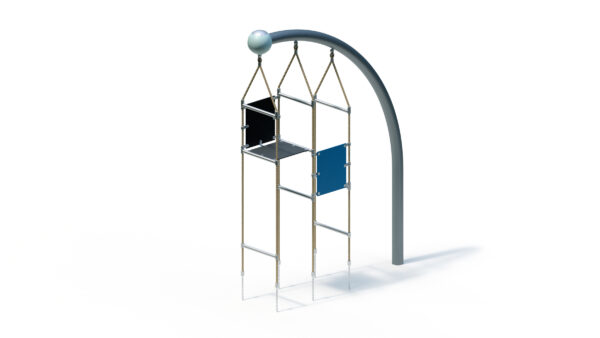

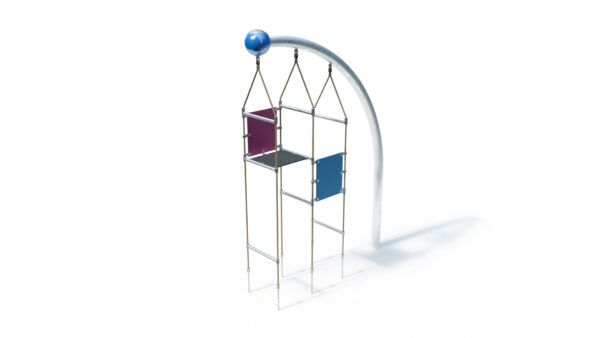

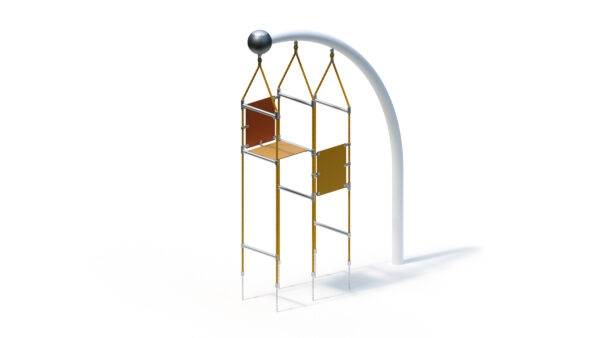

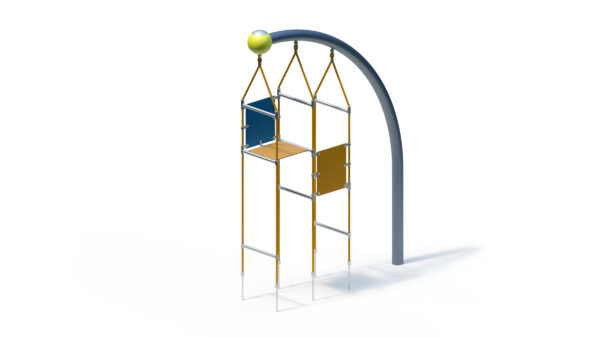

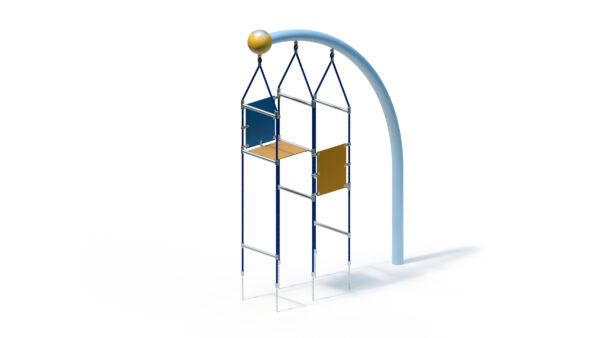

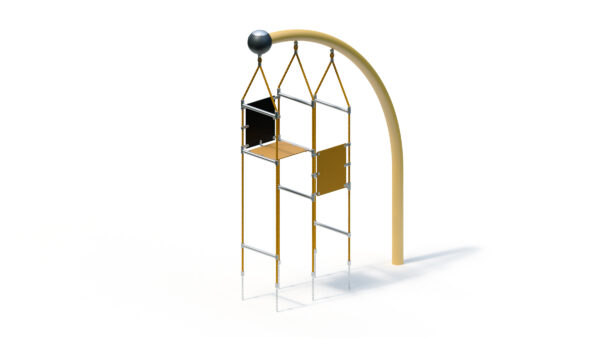

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 6 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 5,76 m |
|---|---|
| Minimum space width ? | 4,82 m |
| Minimum space height ? | 2.93 m |
| Equipment length ? | 2,09 m |
| Equipment width ? | 0,53 m |
| Equipment height ? | 2.93 m |
| Free-fall height ? | 2,86 m |
| Platform heights | - |
| Total weight ? | 100.00 kg |
| Heaviest single part ? | 67.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (2.4m x 0.85m x 0.5m) |
Product Downloads
Product description
Technical data

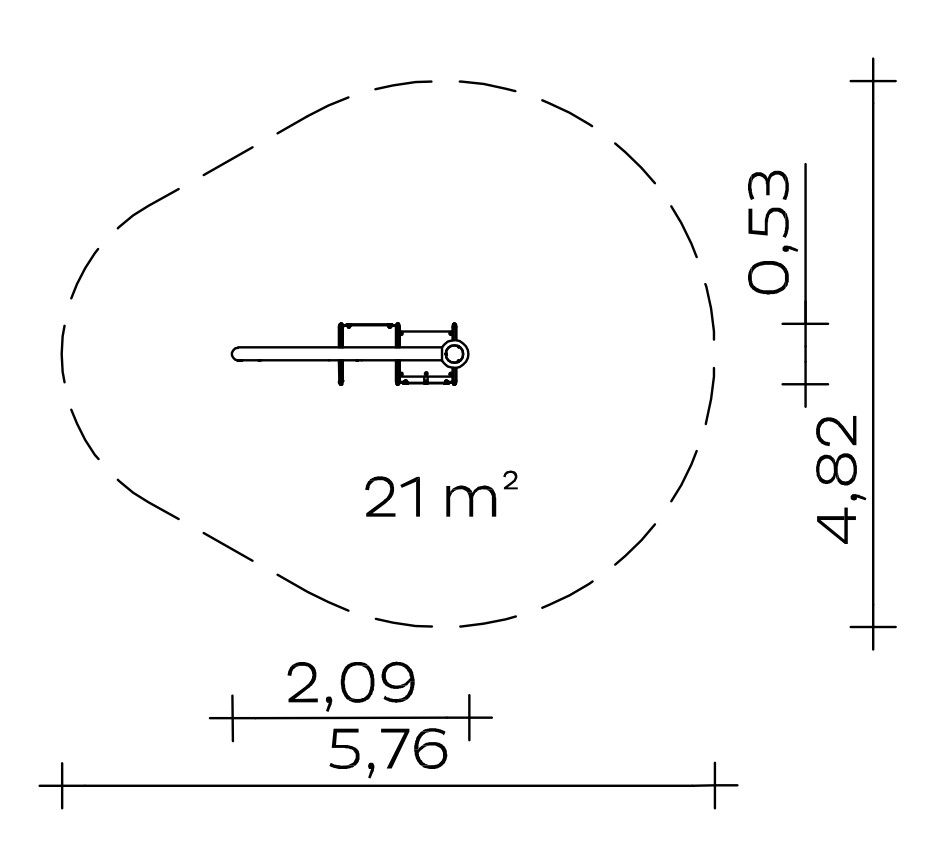

Equipment room: 2.09 x 0.53 x 2.93 m
Minimum space: 5.76 x 4.82 x 2.93 m
Impact area: 21 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single item
100 kg in total
Arc 90° Climbing Cube
- Steel pipe bend, hot-dip galvanised, Ø 114.3 x 3.6 mm (optionally powder-coated in RAL colour of choice)
- Aluminium ball, Ø 250 mm, powder-coated in RAL colour of choice
- Turned part, Ø 40 x 16.2 mm, with plain bearing bush IGUS (plastic)
Climbing Cube
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Connection to Arc 90° with shackle, Ø 10 mm
- Cross clamping tube, welded stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded to clamping tube (Ø 34 x 8.5 mm)
- elastic mat elements made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
- Mounting bracket for rubber mat, clamping tube (Ø 34 x 8.5 mm) welded to sheet metal (30 x 68 mm)
- Floor fastening: Stainless steel chains (Ø 7 mm), welded at the top end with turnbuckle (M10), shackle at the bottom with welded-on threaded rod for screwing into internally threaded anchors in the foundation
Foundations (client-provided)
1 pc. 1.17 x 0.5 x 0.5 m
2 pcs. 0.90 x 0.4 x 0.5 m
Concrete volume: 0.65 m³
Assembly time
2 fitters 3 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027162000
