Technical data
Total height: 9.32 m

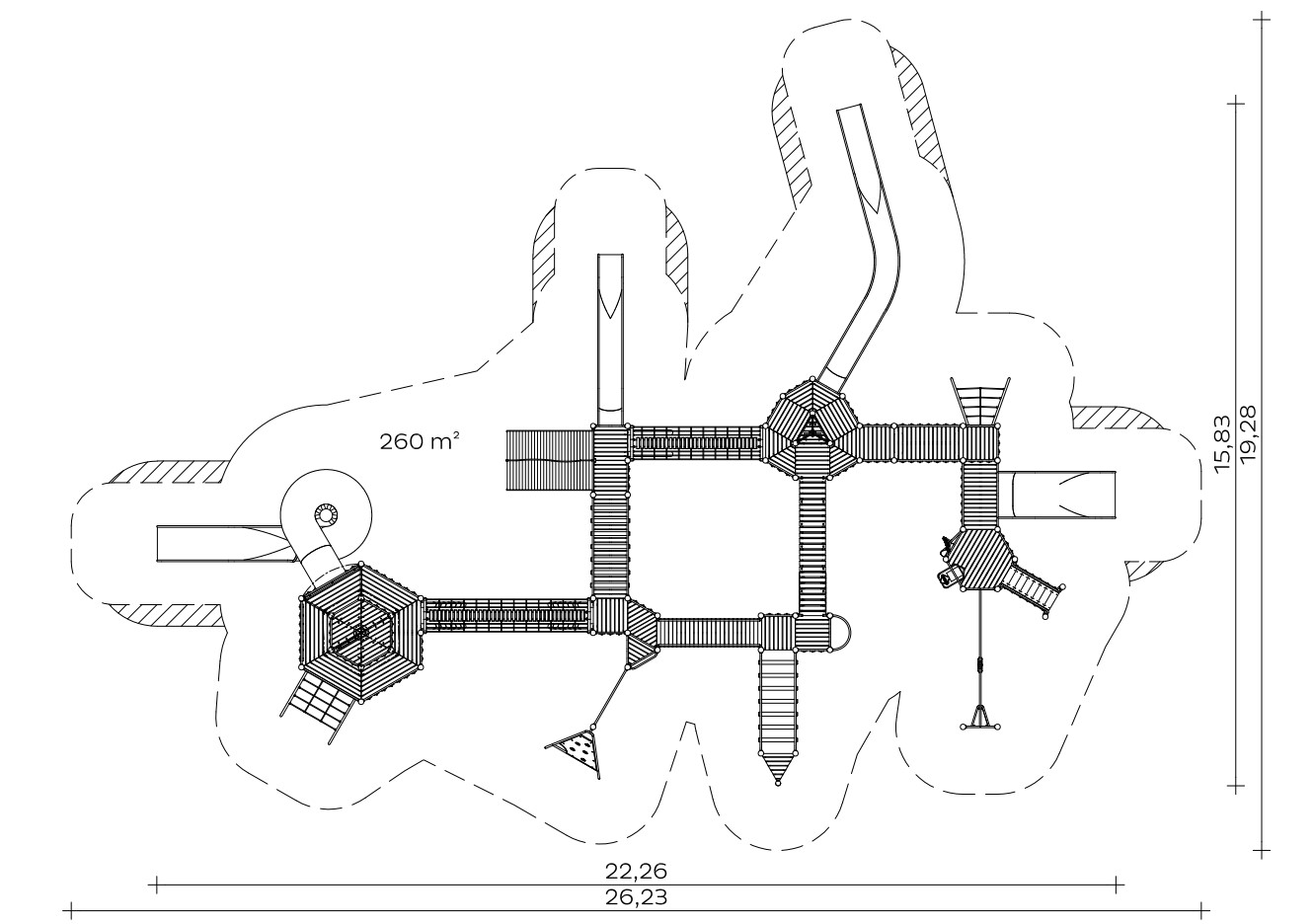

Floor area: 15.83 x 22.26 m
Impact area: 19.28 x 26.23 m (260 m²)
Platform heights: 0.20 to 4.20 m
Slide attachment heights: 1.20/2.00/2.80/4.20 m
Weight: 840 kg heaviest individual part
6860 kg in total

Support post
Stainless steel posts, Ø 120 x 3 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.

Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.

Attachments
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Access railing, roll-preventing, welded construction made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube with bent, vertically arranged support tubes
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm
- Access tandem railing, roll-off prevention, welded construction made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal tandem railing with curved, vertically arranged support tubes
- Wooden balustrade made of robinia, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm, from 1.50 m height with additional crossbar, 30 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Ladder ascent made of stainless steel tube Ø 38 x 2 mm, rung height 500 mm, glass bead blasted
- Rung (cranked) made of stainless steel tube, Ø 33.7 mm
- Wobbly staircase on tandem crossbeam, walkway posts made of robinia Ø 100 mm, fine-linked stainless steel railing chains
- Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Hercules climbing rope
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, frame made of stainless steel tube, five climbing openings
- Climbing rung made of stainless steel tube, Ø 38 mm, torsion-resistant
- Stilt net made of Hercules rope on stainless steel frame
- Vertical climbing pole made of stainless steel tube, Ø 38 mm
- Stainless steel chain mesh
- Harvester net made of Hercules rope on stainless steel frame Ø 16 mm
- Bench 0.80 m made of highly weather-resistant HPL laminate, 20 mm, on stainless steel tube, Ø 33.7 x 2 mm
- Step channel with rubber sand wheel with fabric insert
- Sand slide made of stainless steel tube with HPL laminate panel
- Sand lift with rubber transport container and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into neighbouring play areas or open spaces
- Stainless steel transport rail with sand transport trolley
- Arched bridge made of robinia wood with tandem railing made of stainless steel tube as handrail
- Wobbly bridge on tandem crossbeam, robinia timbers Ø 100 mm, robinia wood walk-through protection
- Suspension bridge made of 45 x 100 mm timbers with 30 mm hard rubber spacer blocks. Stainless steel suspension cables Ø 10 mm with 4 tensioning devices, fine-linked stainless steel railing chains
- Footbridge, V-shaped net construction made of Hercules rope, walkway made of wooden rungs with approx. 40 mm clear rung spacing, attached to steel frame construction, parapet height approx. 0.75 m
- Add-on staircase with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, step height 133 mm
- Staircase balustrade made of robinia wood, fixed between stainless steel tubes Ø 33.7 x 2 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
- Attachable wide slide, 1.10 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll guard above the single-seat section
- Tower roof, pitch 80°, made of highly weather-resistant HPL laminate, 13 mm, round eaves, with stainless steel canopy and pennant
- Tower roof, inclination 72°, made of highly weather-resistant coloured HPL laminate, 13 mm, with stainless steel canopy and stainless steel wind chimes
- Trapezoidal monopitch roof, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm

Tunnel spiral slide
Mounting height: 4.20 m
Seat height: 4.30 m
Slide inclination: 30°/38°
Turning (right): 300°
Tunnel diameter: 0.80 m
Sliding plate thickness: 2.5 mm
Slide segments made of stainless steel, particularly quiet due to the tunnel shape, welded for transport reasons to form a three-part slide coiled around a centre pylon, including corresponding connecting flanges to facilitate assembly on site.

Slope slide
Mounting height: 2.80 m
Seat height: 2.90 m
Slide inclination: 30°
Course: Curve 45° right
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Slide segments made of stainless steel, particularly quiet due to trough shape, welded to form a one-piece slide, including slope slide support posts for the curve area and fastening flange, each made of stainless steel

For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.

Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.

Foundations (client-provided)
1 piece 0.80 x 0.80 x 1.00 m
3 pcs. 1.00 x 0.40 x 0.40 m
1 piece 0.75 x 0.40 x 0.40 m
1 piece 1.40 x 0.75 x 0.40 m
6 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.40 x 0.40 x 0.60 m
1 piece 1.25 x 0.40 x 0.40 m
4 pcs. 1.00 x 0.60 x 0.50 m
49 units 0.40 x 0.40 x 0.40 m
13 units 0.50 x 0.50 x 0.60 m

Assembly time
4 fitters 42 hours each, plus lifting gear
(without foundation)

Free fall height
2,90 m

Suitable for
Children aged 4 and over,
public playgrounds etc.,
Movement activities, manual activities

Item number: 025370500
