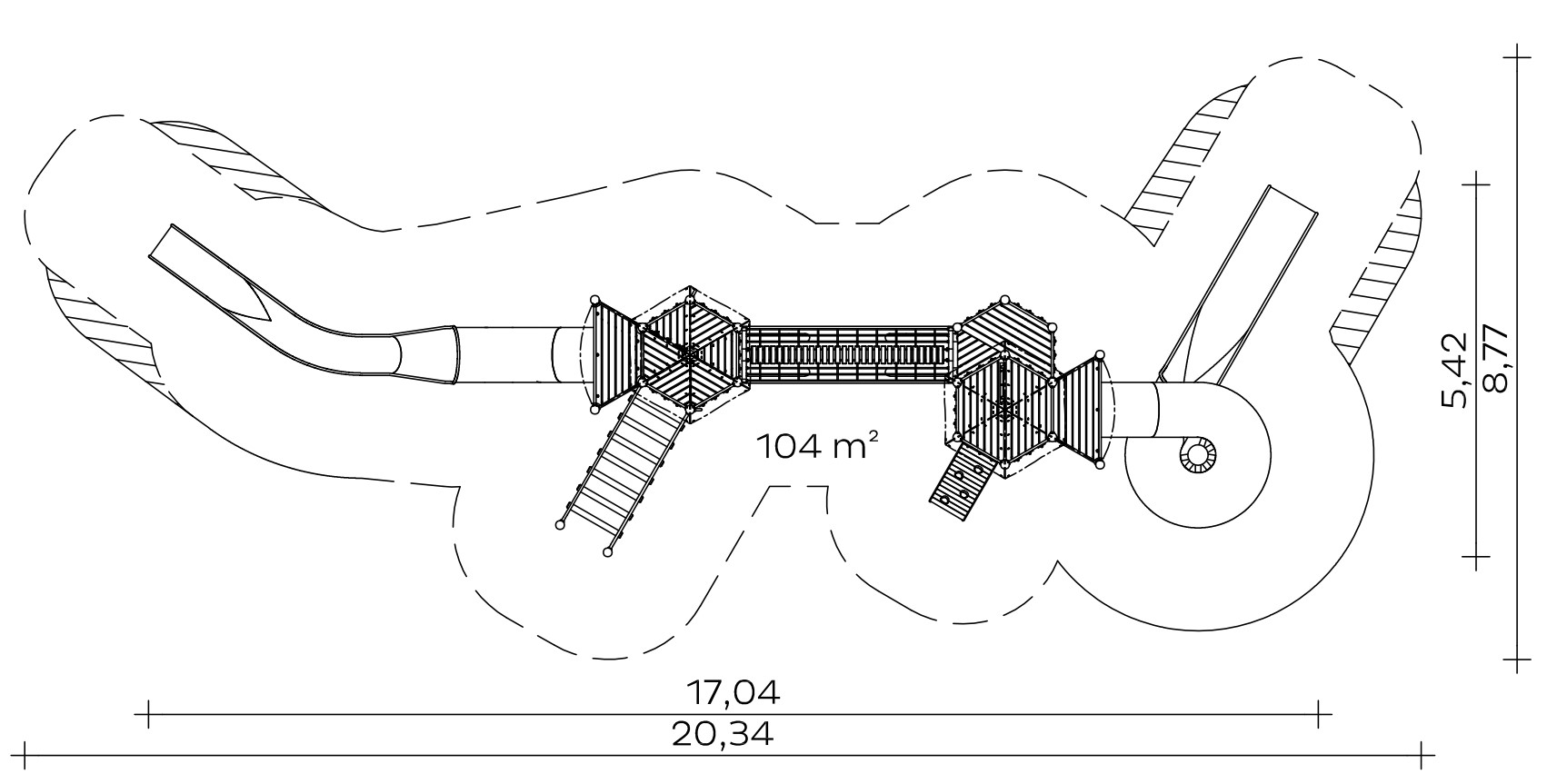

• Technical drawing
• Technical drawing (2D DWG)
• Technical drawing (3D DWG)

Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.

Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.

Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm, from 1.50 m height with additional crossbar, 30 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Safety attachment for parapet tube 0.80 m, made of stainless steel tube Ø 20 x 2 mm, to prevent head catching points between the upper edge of the parapet and the inner roof surface
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate panels, 20 mm
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, frame made of stainless steel tube, 6 climbing openings.
- Wobbly staircase on tandem crossbeam, walkway posts made of robinia Ø 100 mm, fine-linked stainless steel railing chains
- Rung (cranked) made of stainless steel tube, Ø 33.7 mm
- Play table made of highly weather-resistant coloured HPL laminate, 15 mm
- Bench 0.80 m made of highly weather-resistant coloured HPL laminate, 20 mm, on stainless steel tube, Ø 33.7 x 2 mm
- Footbridge, V-shaped net construction made of Hercules rope, walkway made of wooden rungs with approx. 40 mm clear rung spacing, attached to steel frame construction, parapet height approx. 0.75 m
- Awning made of highly weather-resistant coloured HPL laminate, 15 mm
- Tower roof, pitch 72°, made of highly weather-resistant coloured HPL laminate, 13 mm
- Stainless steel canopy, edged for tower roof 6 x 72°, 1.5 mm
- Trapezoidal monopitch roof, pitch 30°, made of highly weather-resistant coloured HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Tunnel slope slide 36°, installation height 3.60 m, curve 36° right, slide segments made of stainless steel, particularly quiet due to tunnel or trough shape, with connection for a support post
- Support post made of stainless steel tube Ø 120 x 3 mm with plug-in base
- Tunnel spiral chute 30°/’38° made of stainless steel, 2.5 mm, particularly quiet due to tunnel shape, welded into a three-part chute spiral around a centre pylon for transport reasons, incl. corresponding connecting flanges for assembly on site
- Ladder ascent made of stainless steel tube Ø 38 x 2 mm, rung height 500 mm, glass bead blasted, for retrofitting to platform floors

For your planning, please note that stainless steel slides and roller tracks should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.

Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.

Item number: 025330700
