Technical data
Total height: 8.33 m
Floor area: 4.83 x 13.23 m

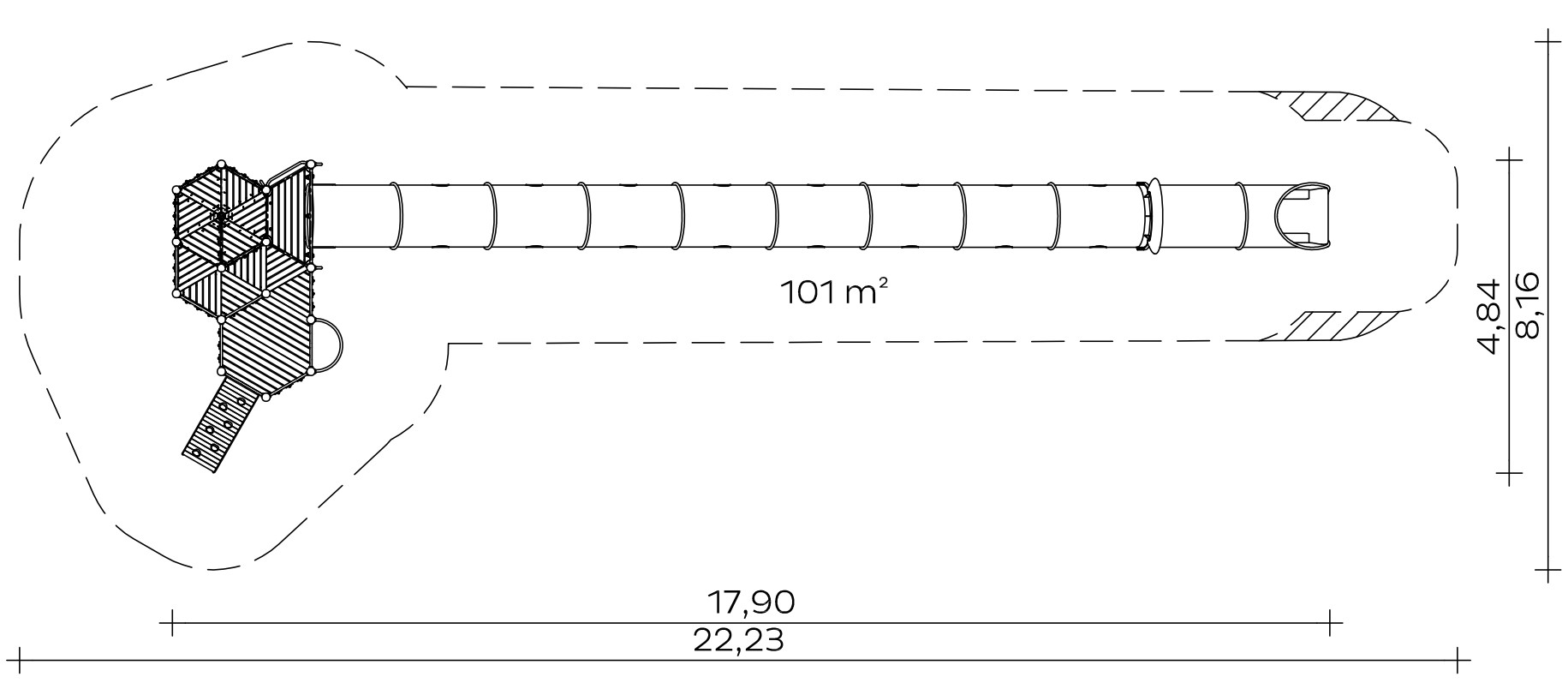

Minimum space: 8.16 x 17.57 m (82 m²)
Platform heights: 1.40 to 4.00 m
Weight: 1610 kg heaviest individual part
3754 kg in total

Support post
Stainless steel posts, Ø 120 x 3 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.

Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
The trapezoidal platform for the roller conveyor connection is equipped with a 6 mm thick, folded reinforcement bracket for fastening the single-seat flange.

Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastening between stainless steel tubes Ø 33.7 x 2 mm, from 1.50 m height with additional crossbar, 30 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Stainless steel balustrade, 4 mm, for roller conveyor, with shed roof made of highly weather-resistant coloured HPL laminate, 13 mm, fastened between stainless steel tubes Ø 38 x 2.5 mm
- Climbing wall made of highly weather-resistant coloured HPL laminate with free climbing elements attached on one side, 20 mm, frame made of stainless steel tubes Ø 33.7 x 2 mm
- Rung (cranked) made of stainless steel tube, Ø 33.7 mm
- Vertical climbing pole made of stainless steel tube, Ø 38 mm
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate panels, 20 mm
- Bench 0.80 m made of highly weather-resistant coloured HPL laminate, 20 mm, on stainless steel tube, Ø 33.7 x 2 mm
- Roller conveyor with connection for support posts, welded in one piece, sheet thickness: 2.5 mm, gripper opening on both sides in the single-seat section, polyacrylic light openings on both sides, with internal stainless steel track guide, stainless steel rollers on roller bearings, Ø 50 mm,
- Support post made of stainless steel tube Ø 120 x 3 mm with plug-in base
- Depth anchoring for the roller conveyor outlet made of stainless steel tube Ø 48.3 x 2.6 mm with flat steel struts, 8 mm
- Climb-over protection made of highly weather-resistant coloured HPL laminate, attached to clamp, installation on site
- Tower roof, pitch 72°, made of highly weather-resistant HPL laminate, 13 mm, with wind chimes

For your planning, please note that stainless steel slides and roller tracks should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.

Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.

Foundations (client-provided)
2 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.40 x 0.40 x 0.60 m
1 piece 1.20 x 0.40 x 0.40 m
16 units 0.50 x 0.50 x 0.60 m

Assembly time
3 fitters 16 hours each, plus lifting gear
(without foundation)

Free fall height
2,00 m

Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities

Item number: 025320500
