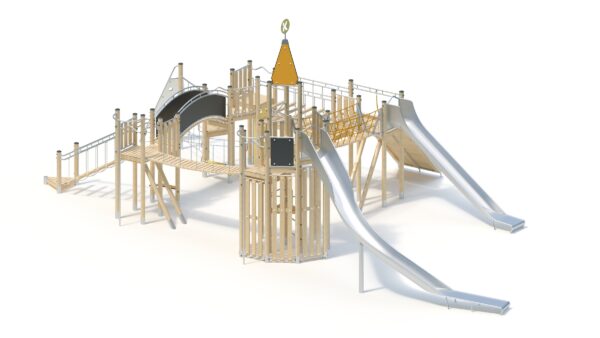

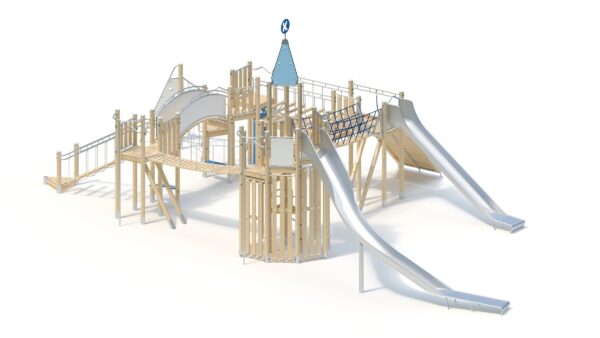

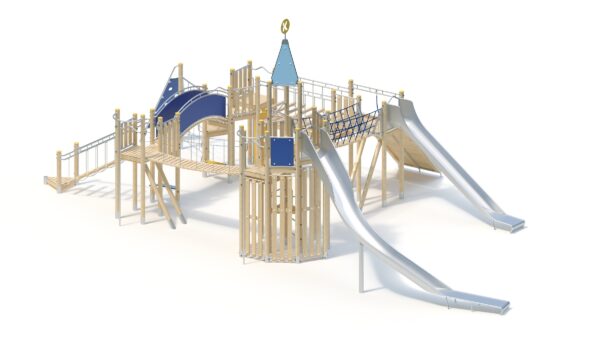

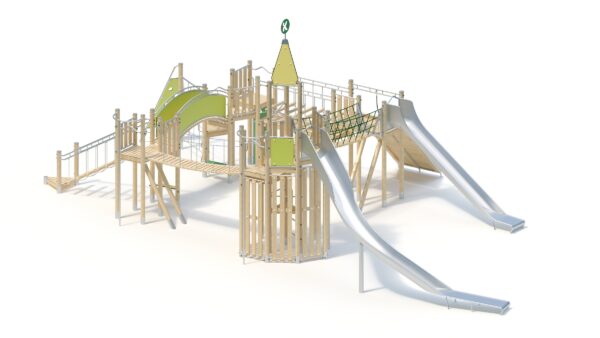

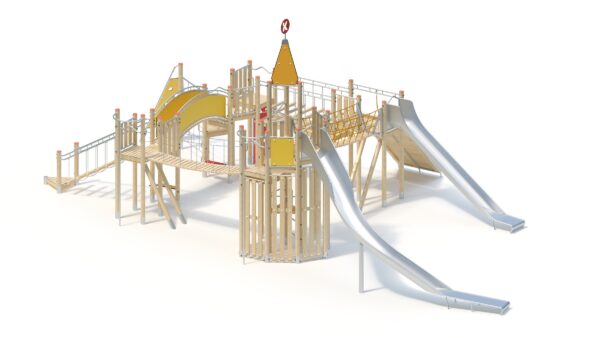

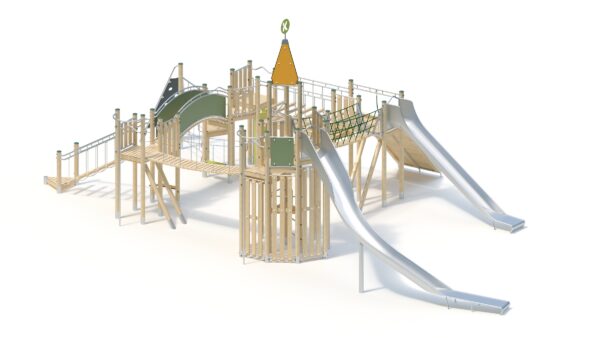

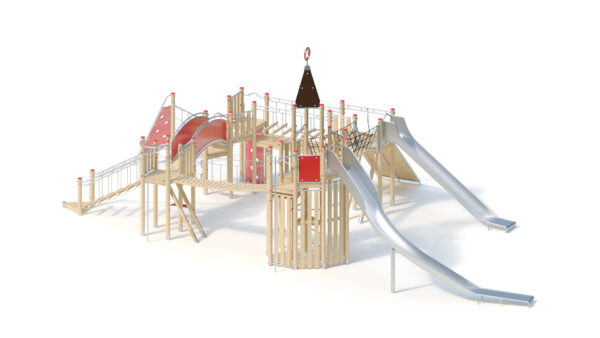

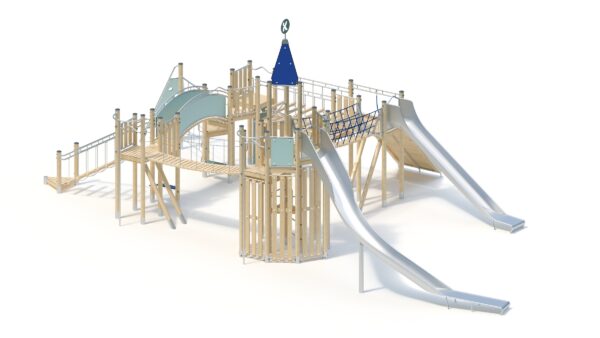

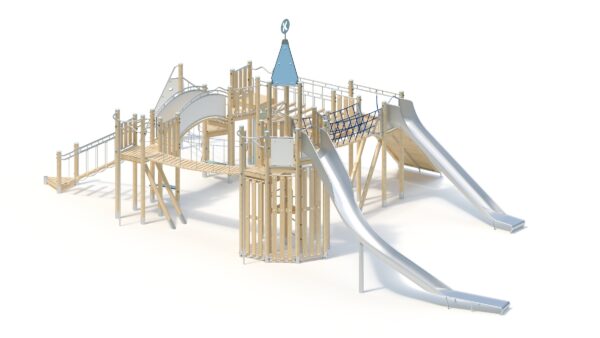

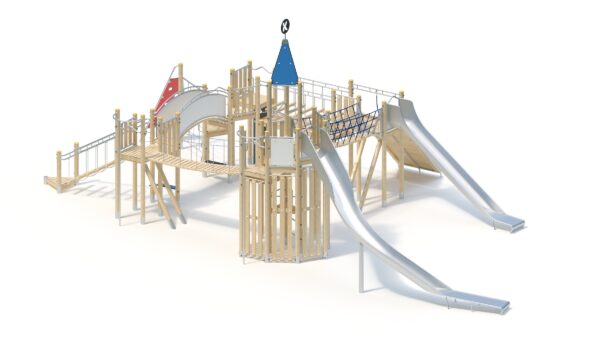

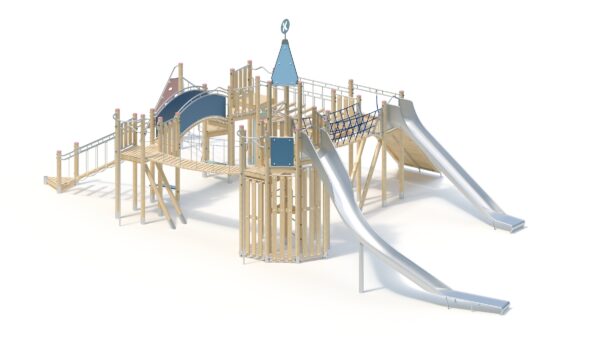

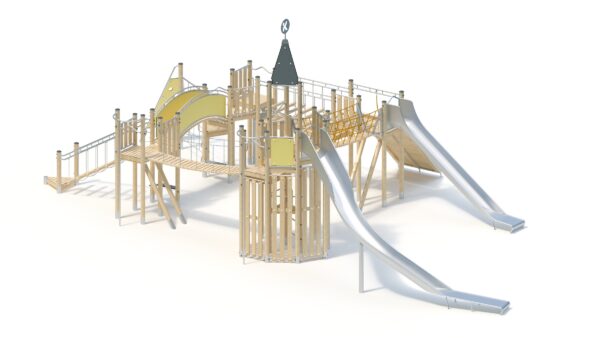

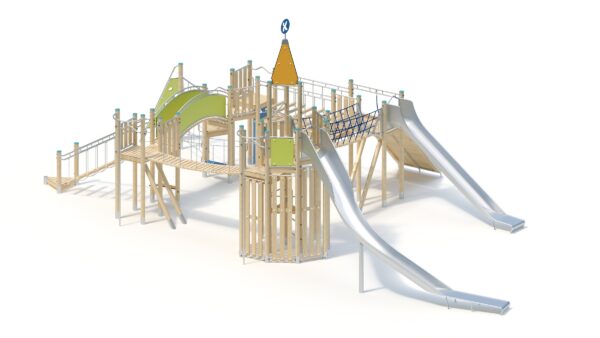

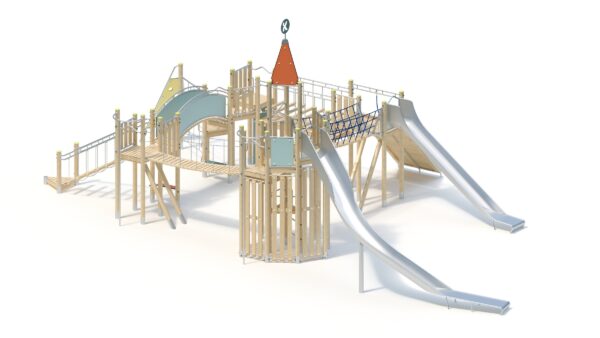

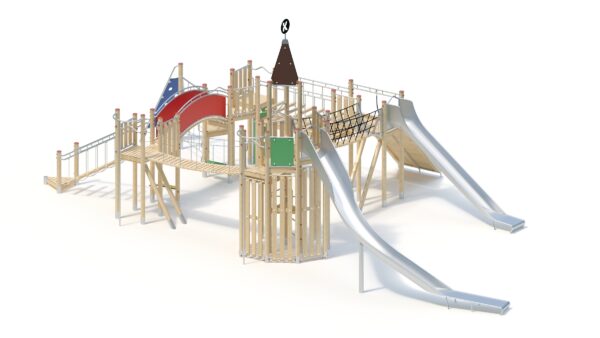

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 50 persons |
| Activities ? | - |
Technical data
| Device length ? | 15,85 m |
|---|---|
| Device width ? | 9,15 m |
| Device height ? | 6,40 m |
| Free fall height ? | 2,90 m |
| Platform heights | - |
| Total weight ? | 3205.00 kg |
| Heaviest single item ? | 210.00 kg |
| Minimum room length ? | 19,30 m |
| Minimum room width ? | 12,35 m |
| Minimum room height ? | 6,40 m |
Assembly & Foundations
| Assembly time ? | 15,0 h |
|---|---|
| Number of fitters ? | 4 persons |
| Lifting gear required ? | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data
Total height: approx. 6.40 m

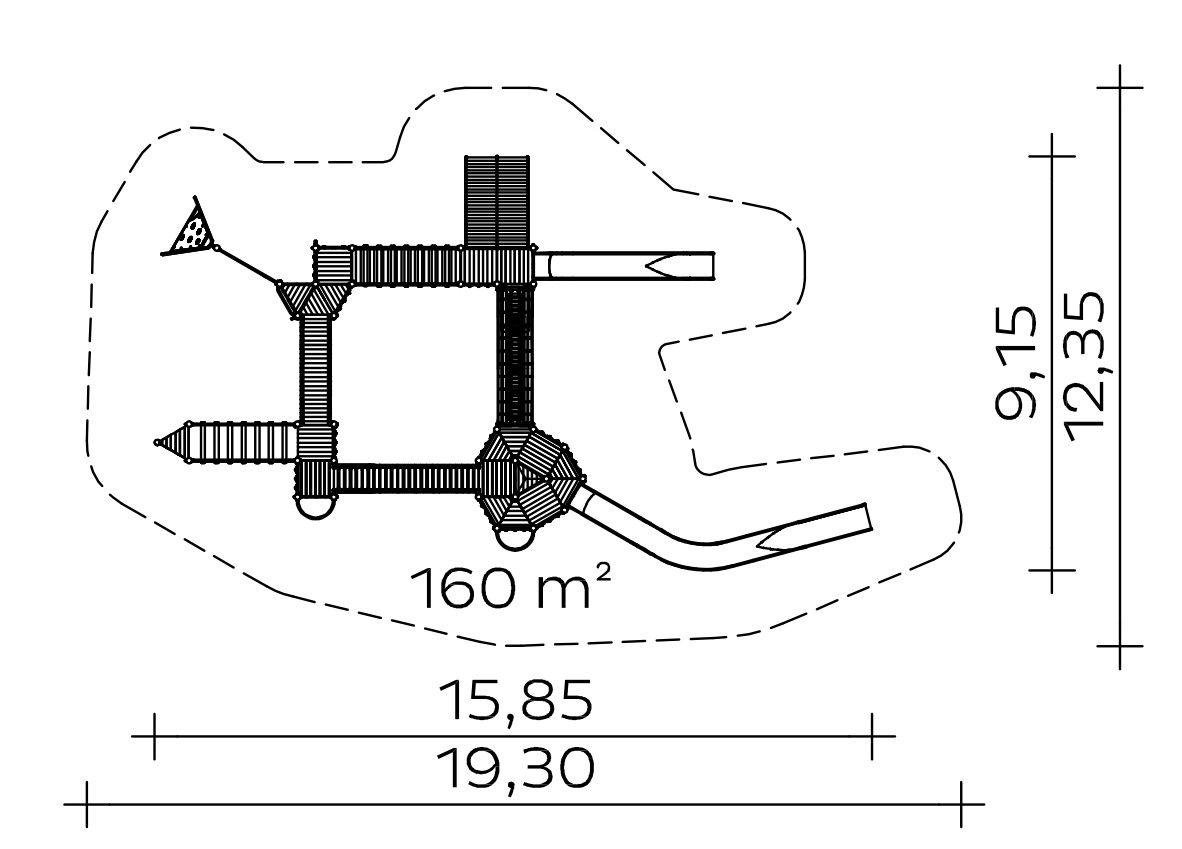

Floor area: approx. 9.15 x 15.85 m
Minimum space: approx. 12.35 x 19.30 m (160 m²)
Platform height: 0.20 to 3.00 m
Slide attachment height: 2.00/2.80 m
Seat height: 2.10/2.90 m
Slide inclination: 30°/36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps. Stainless steel tubular base for the foundation and elevation of robinia roundwood posts, Ø 120 mm, below the play level. Post flush with the platform, covered with a welded-on stainless steel round cap.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Panelled balustrade made of highly weather-resistant HPL laminate (red), fastened between stainless steel tubes Ø 33.7 x 2 mm
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Climbing rungs (cranked) made of stainless steel tube, Ø 33.7 mm
- Seat plate made of highly weather-resistant HPL laminate (red), 20 mm
- Wobbly bridge on tandem crossbeam, robinia timbers Ø 100 mm, robinia wood walk-through protection
- Wobbly staircase on tandem crossbeam, walkway posts made of robinia Ø 100 mm, fine-linked stainless steel railing chains
- Arched bridge made of robinia wood
- Slab parapet (arched bridge) made of highly weather-resistant HPL laminate (red), fastened between stainless steel tubes Ø 33.7 x 2 mm
- Slanted climbing wall made of highly weather-resistant HPL laminate (red), 20 mm, frame made of stainless steel tube, 5 climbing openings
- Climbing net made of stainless steel chains on stainless steel crossbeam
- Suspension bridge made of 45 x 100 mm timbers with 30 mm hard rubber spacer blocks, Ø 10 mm stainless steel suspension cables with 4 tensioning devices, fine-linked stainless steel railing chains,
- Footbridge: V-shaped net construction made of Forta-Herkules rope, walkway made of wooden rungs with approx. 40 mm clear rung spacing, attached to steel frame construction, parapet height approx. 0.85 m
- Bridge support posts made of robinia plywood Ø 120 mm with stainless steel tube base
- Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Forta Hercules climbing rope
- Climbing wall made of highly weather-resistant HPL laminate (red), 20 mm, frame made of stainless steel tube, 6 climbing openings
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Vertical climbing pole made of stainless steel tube, Ø 38 mm, on half-round tube
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
- Tower roof, pitch 80°, made of highly weather-resistant HPL laminate (brown), 13 mm, with wind vane
K&K slope slide 30°, Ah 2.80 m
Slide segments made of stainless steel, particularly quiet due to the trough shape, welded to form a one-piece slide, consisting of the following elements:
- 041521001 K&K slope slide maxi seat
- 041580001 K&K slope slide transition
- 041610 K&K slope slide curve, 5 pcs,
Turning 45° left
- 0415500525 K&K Hangrutschen-Gerade,
Length 0.525 m
- 041660 K&K slope slide centre run-out
Including K&K slope slide support posts for the curve area and mounting flange. Each made of stainless steel.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
34 units 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
1 piece 1.40 x 0.75 x 0.40 m
7 units 0.30 x 0.30 x 0.40 m
2 pcs. 0.60 x 1.00 x 0.50 m
1 piece 0.40 x 0.40 x 0.60 m
Concrete volume: 3.66 m³
Assembly time
4 fitters 15 hours each, plus lifting gear
(without foundation)
Free fall height
2,90 m
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities
Item number: 023835701
This Kaiser & Kühne product enables:
