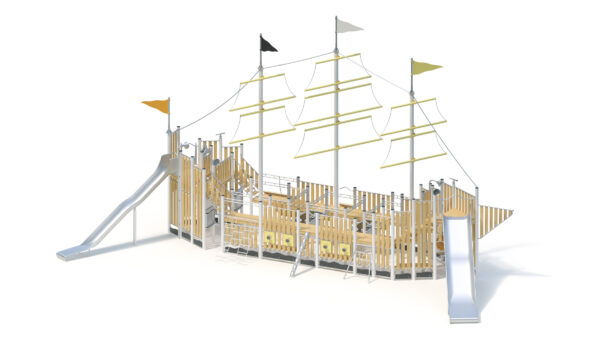

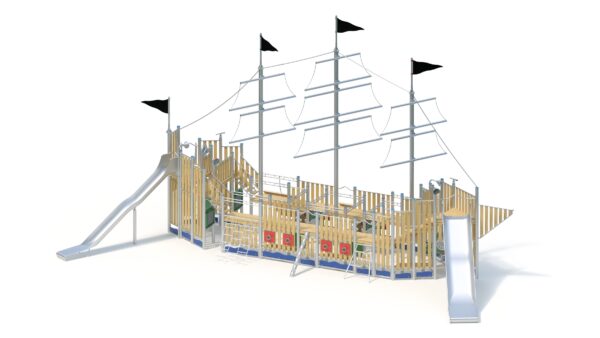

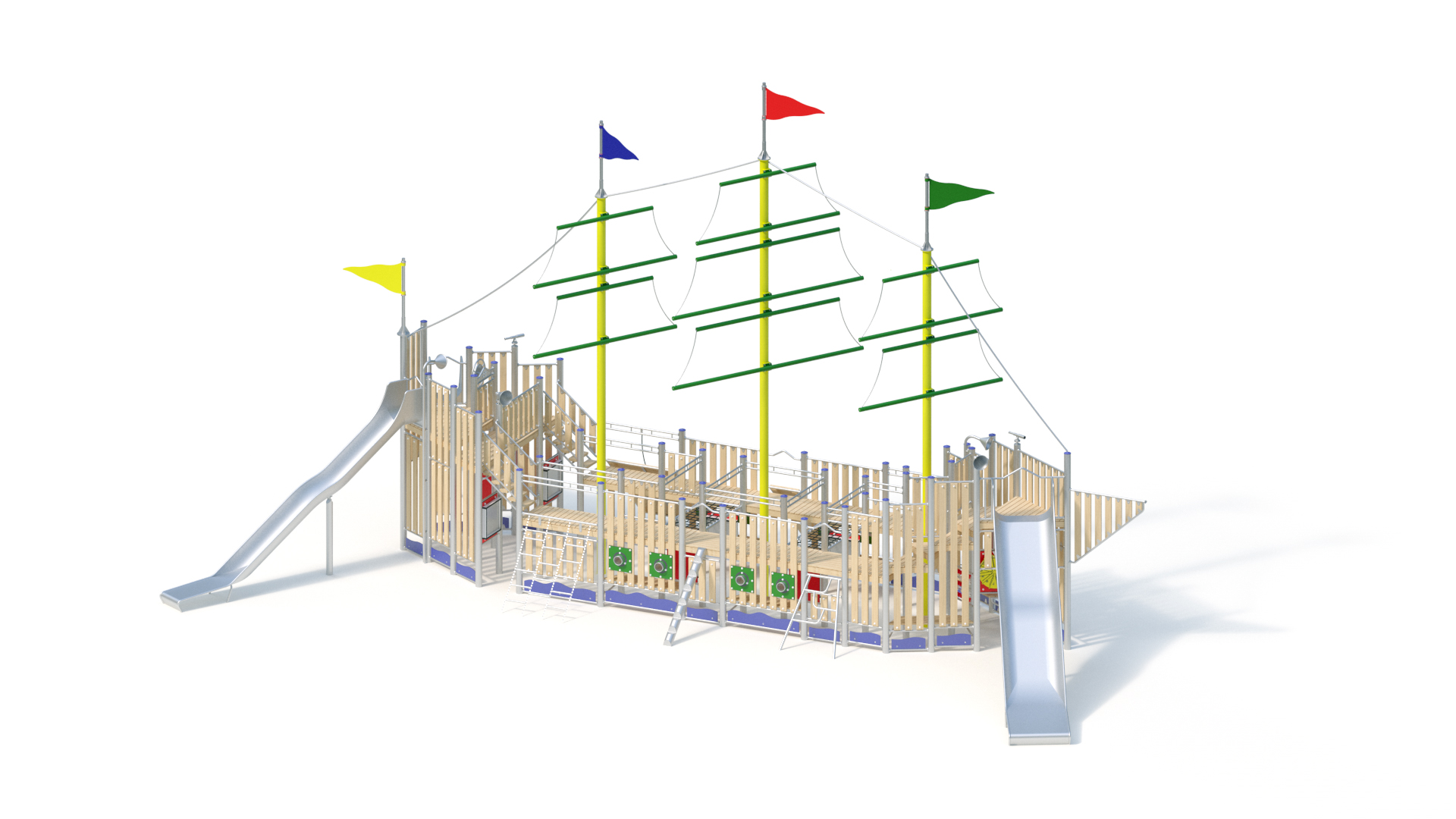

Technical data

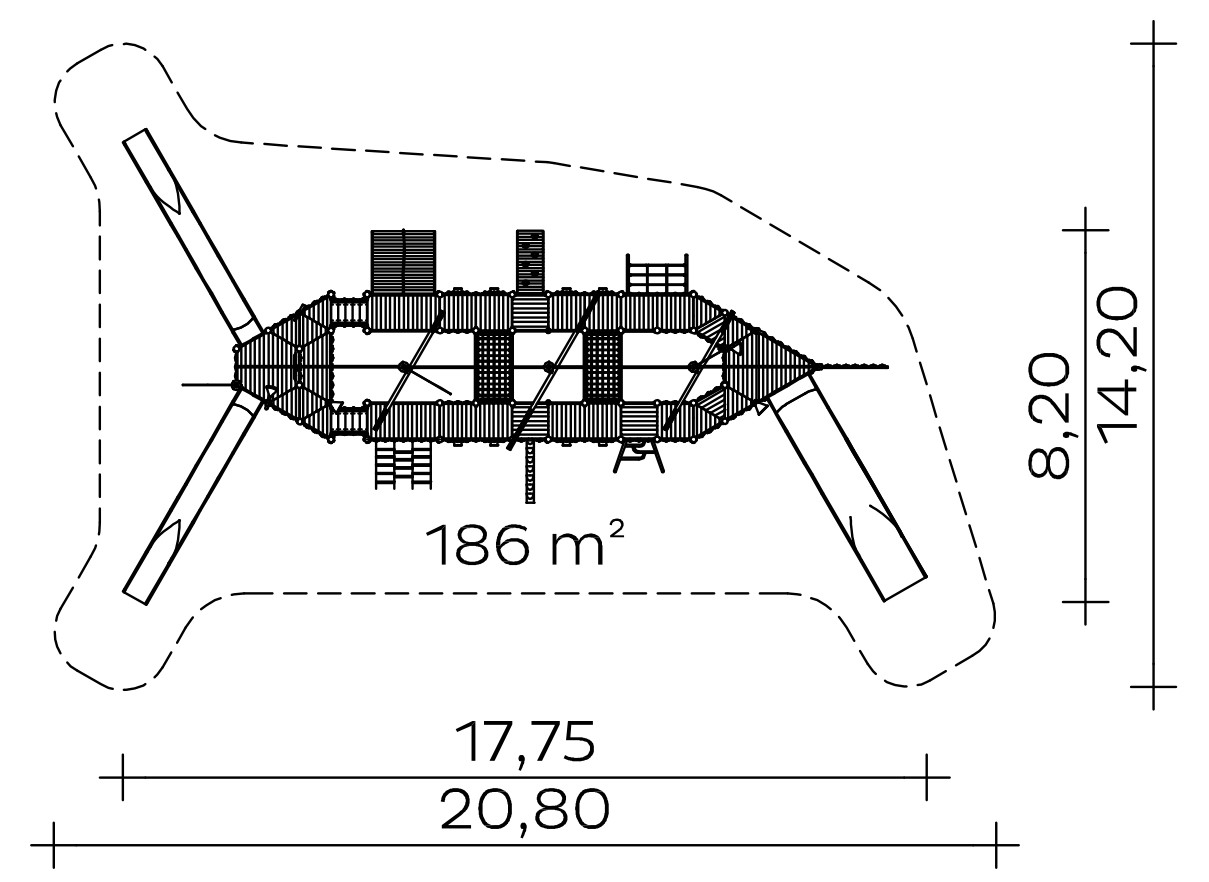

Equipment room: 17.75 x 8.20 x 9.65 m
Minimum space: 20.80 x 14.20 x 9.65 m
Impact area: 186 m²
Total height: 9.65 m
Platform heights: 1.40 - 2.40 m
Slide attachment height: 2.40 m
Seat height: 2.50 m
Free fall height: 2.90 m
Slide widths: 0.60/1.10 m
Sliding plate thickness: 2.5 mm

Support post
Stainless steel posts, Ø 120 x 3 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Posts that are flush with a platform are not fitted with post caps.
Three centre uprights made of powder-coated steel.

Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.

Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Water wave made of highly weather-resistant coloured HPL laminate
- Megaphone horizontally rotatable 360
- Telescope horizontally rotatable 360°, vertically adjustable
- Steering wheel, rotatable with latching mechanism, made of stainless steel, low-wear double plain bearings
- Stainless steel telephone
- Hercules panel net 0.80 x 1.60 m, Ø 16 mm, frame made of stainless steel tube Ø 48.3 x 2 mm
- Climbing post made of stainless steel tube Ø 159 x 3 mm, tread surface made of profiled stainless steel sheet
- Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Hercules climbing rope
- Forta-Herkules rope boarding net on stainless steel frame
- Chain ladder with stainless steel rungs
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
- Samba ladder made of stainless steel tube
- Add-on staircase with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, step height 133 mm
- Staircase balustrade made of robinia wood, fixed between stainless steel tubes Ø 33.7 x 2 mm
- Cannon made of stainless steel tube, mounted on highly weather-resistant HPL laminate panel
- Wheel of fortune wall, 0.80 x 0.80 m, made of highly weather-resistant HPL laminate, 15 mm, with number plate attached to pivot bearing and rubber-cut pointer
- Slide rule, polyamide elements
- Convex and concave mirrors made of highly polished stainless steel in HPL frames
- Robinia wood bench with stainless steel tube brackets
- Stainless steel wind vane, powder-coated
- Powder-coated steel rigging.
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
- Attachable wide slide, 1.10 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll guard above the single-seat section

For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.

Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.

Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities

Item number: 023500500
