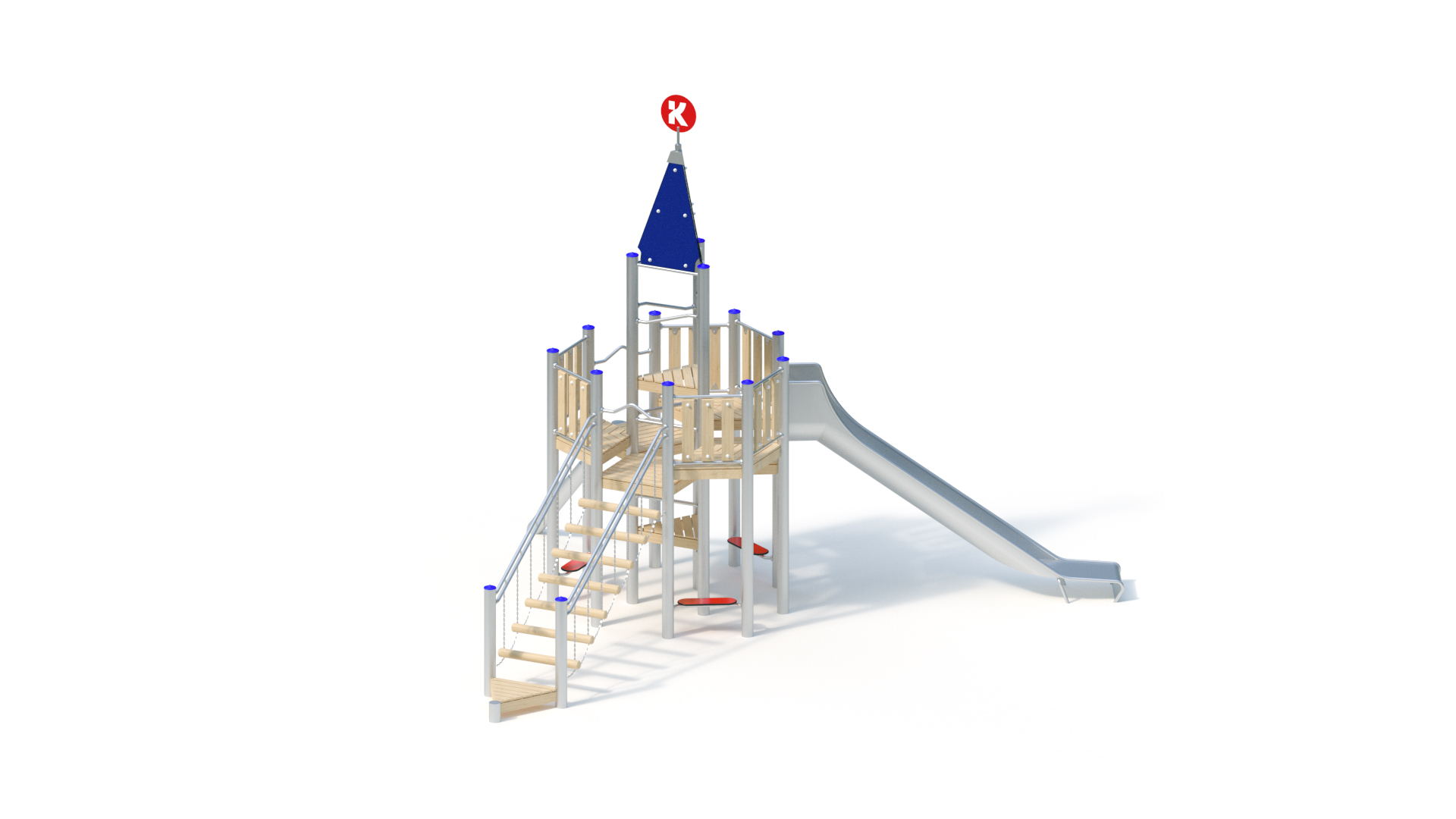

Play structure

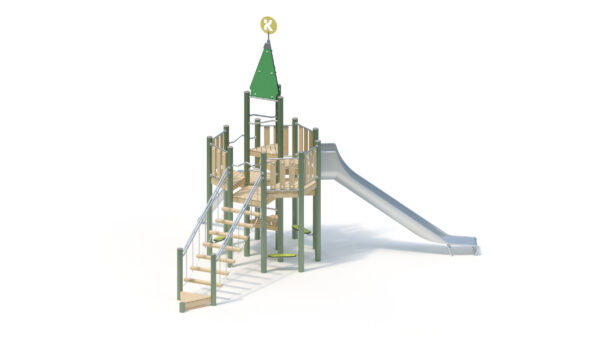

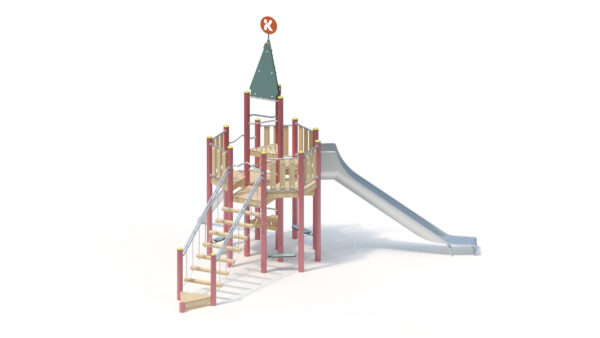

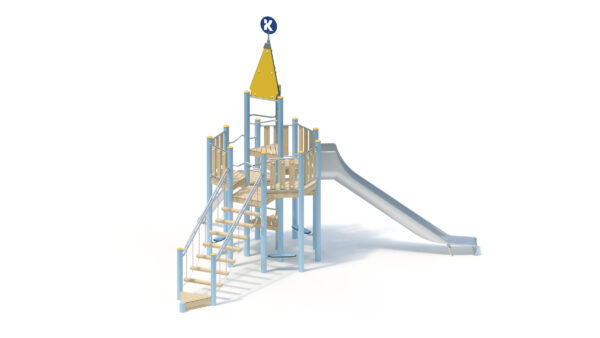

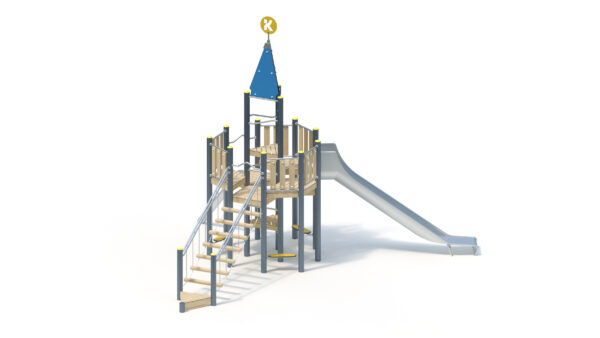

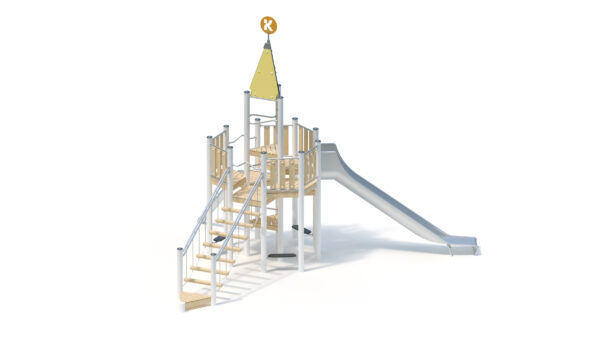

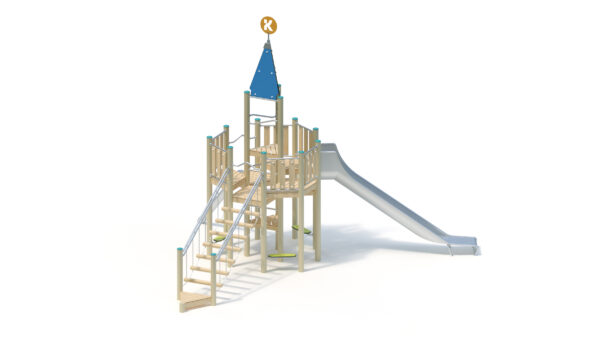

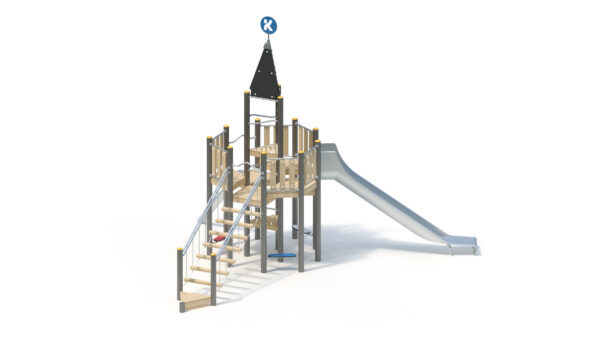

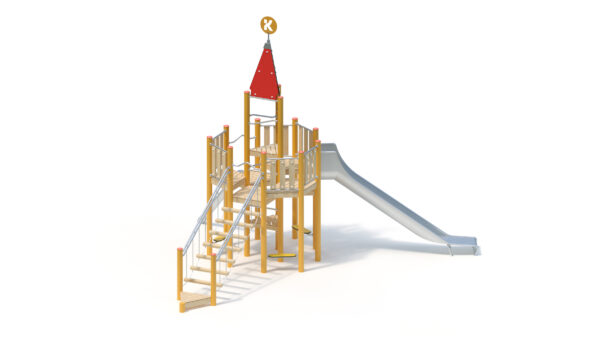

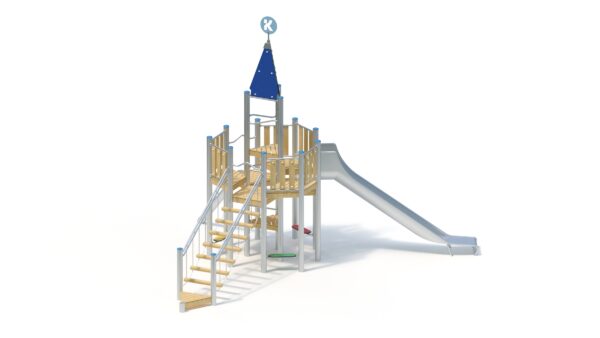

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 21 Personen |
| Aktivitäten ? | Balance, Physical activity, Climbing, Slide |
Technical data
| Mindestraumlänge ? | 10,15 m |
|---|---|
| Mindestraumbreite ? | 8,95 m |
| Mindestraumhöhe ? | 5,40 m |
| Gerätelänge ? | 6,65 m |
| Gerätebreite ? | 5,95 m |
| Gerätehöhe ? | 5,40 m |
| Freie Fallhöhe ? | 1,80 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 955.00 kg |
| Schwerstes Einzelteil ? | 100.00 kg |
Assembly & Foundations
| Montagezeit ? | 8,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 1x (0.3m x 0.3m x 0.4m) Quantity: 15 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

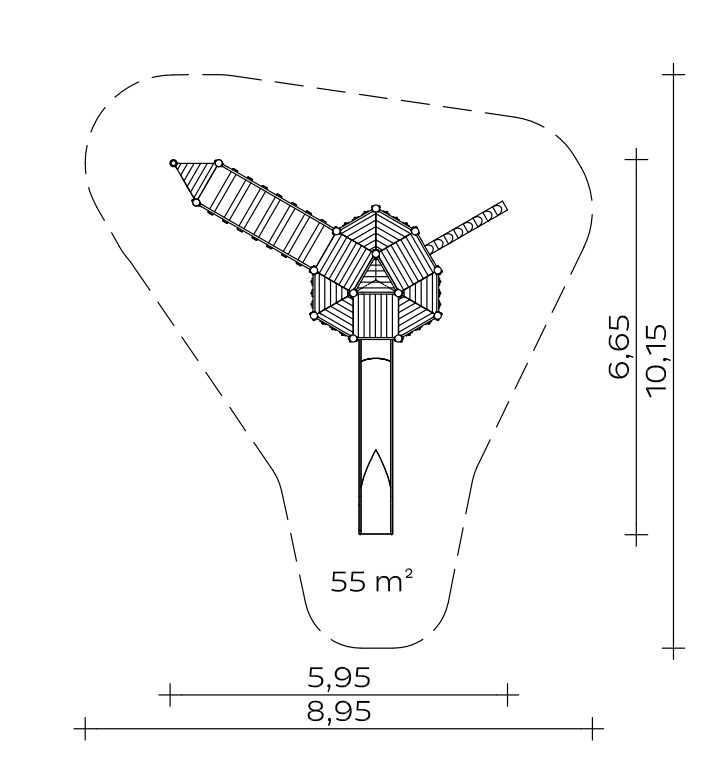

Floor area: 5.95 x 6.65 m
Minimum space: 8.95 x 10.15 m (55 m²)
Total height: 5.40 m
Platform height: 0.20 to 2.40 m
Seat height: 1.70 m
Weight: 100 kg heaviest individual part
955 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Stainless steel tube railing, Ø 33.7 x 2 mm, torsion-resistant
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
- Wobbly staircase on tandem crossbeam, 10 cm diameter robinia walkways, fine-linked stainless steel railing chains
- Climbing post made of stainless steel tube Ø 159 x 3 mm, tread surface made of profiled stainless steel sheet
- Bench made of highly weather-resistant HPL laminate, 20 mm
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Tower roof, inclination 75°, made of highly weather-resistant HPL laminate, 13 mm, with wind chimes.
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
1 piece 0.30 x 0.30 x 0.40 m
15 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 1.12 m³
Assembly time
2 fitters 8 hours each
(without foundation)
Free fall height
1,80 m
Suitable for
Children aged 4 and over,
public playgrounds etc.
Physical activities
Item number: 023131503
