The 3D model serves as a spatial view. The colours do not correspond to the selected variant.
Play structure

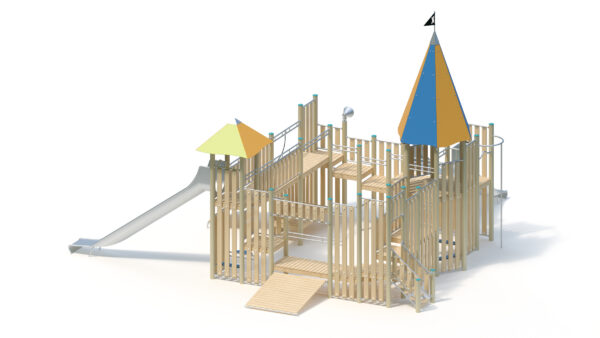

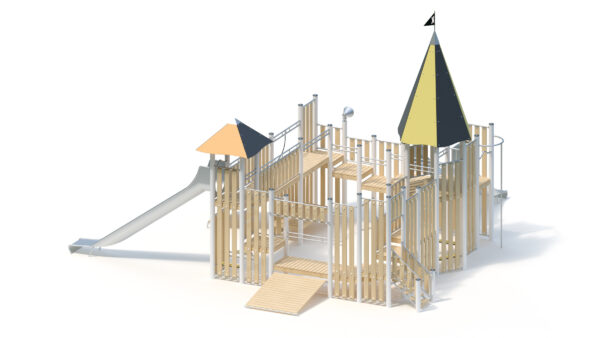

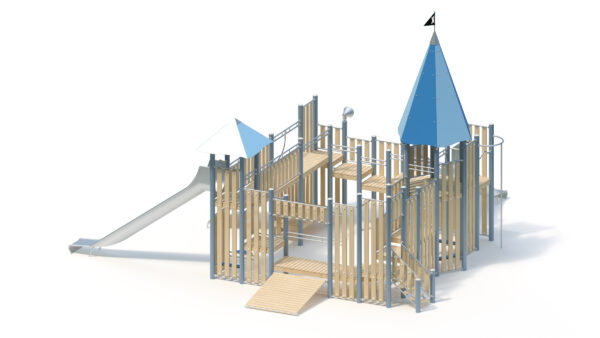

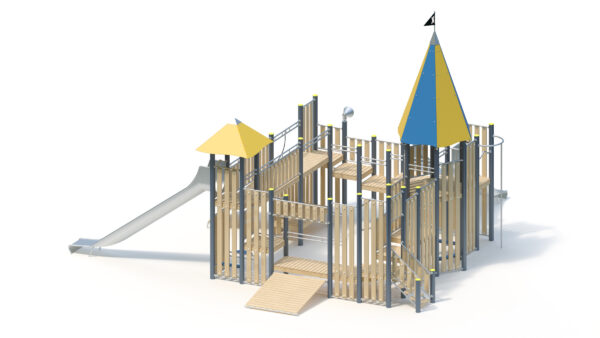

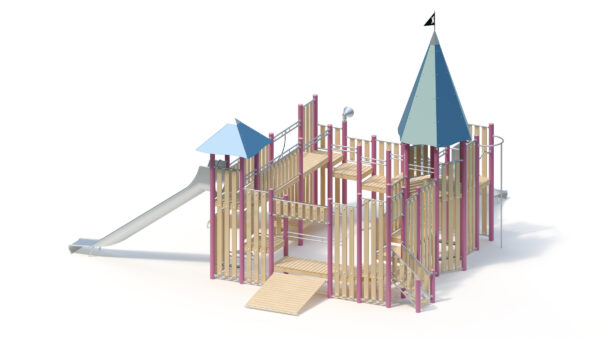

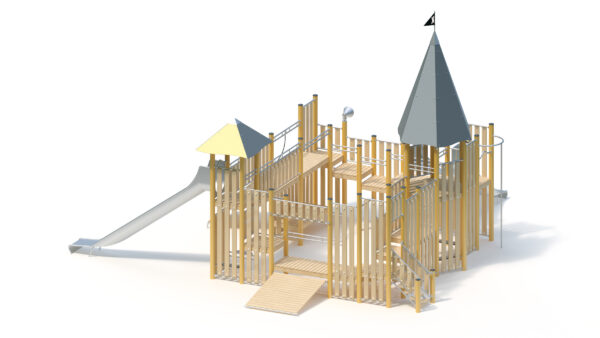

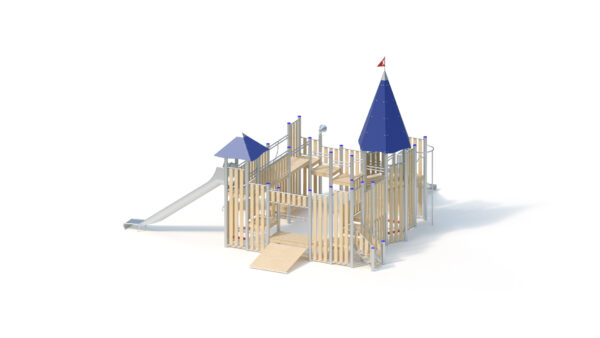

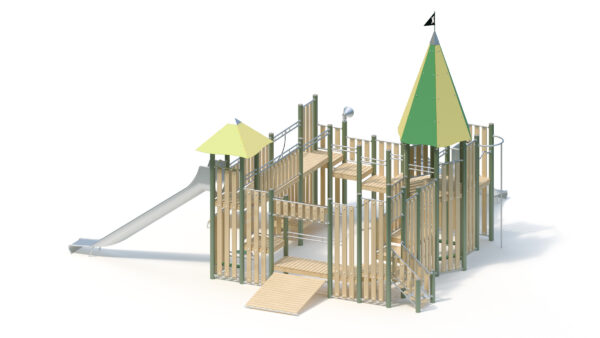

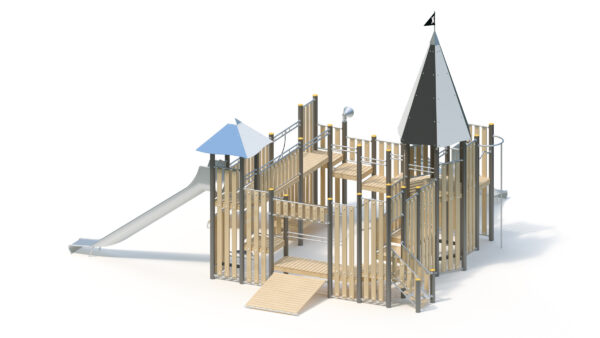

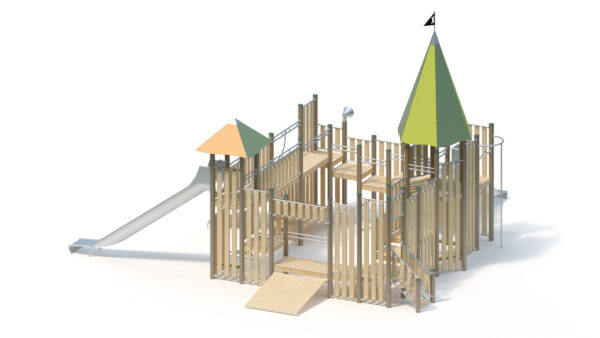

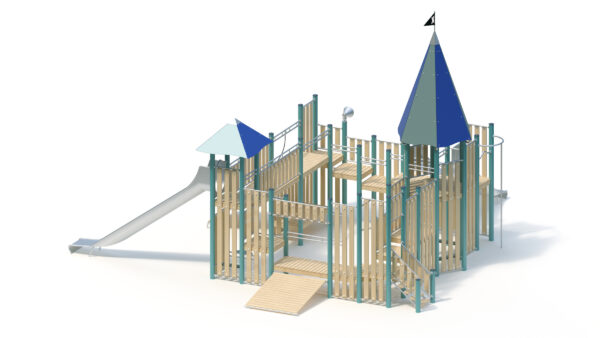

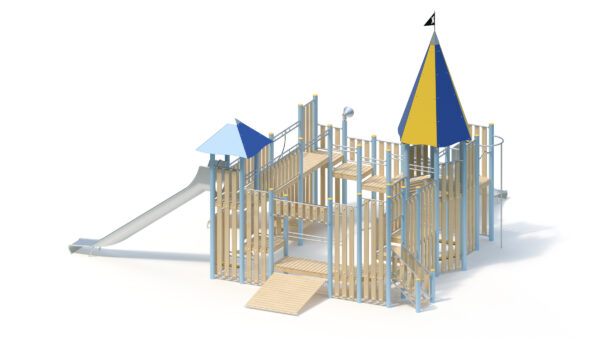

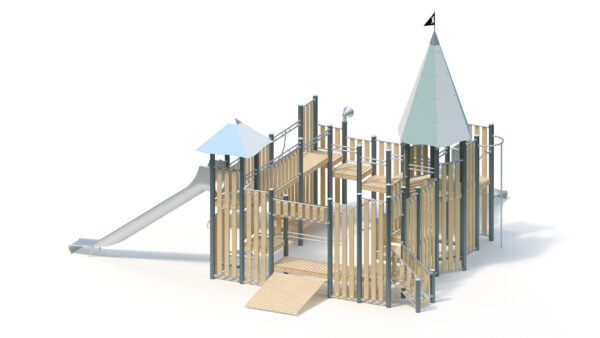

Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 67 persons |
| Activities ? | Physical activity, Climbing, Slide, Social activity |
Technical data
| Device length ? | 10,25 m |
|---|---|
| Device width ? | 9,70 m |
| Device height ? | 6,55 m |
| Free fall height ? | 2,10 m |
| Platform heights | - |
| Total weight ? | 3105.00 kg |
| Heaviest single item ? | 190.00 kg |
| Minimum room length ? | 13,75 m |
| Minimum room width ? | 13,20 m |
| Minimum room height ? | 6,55 m |
Assembly & Foundations
| Assembly time ? | 18,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | Yes |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data

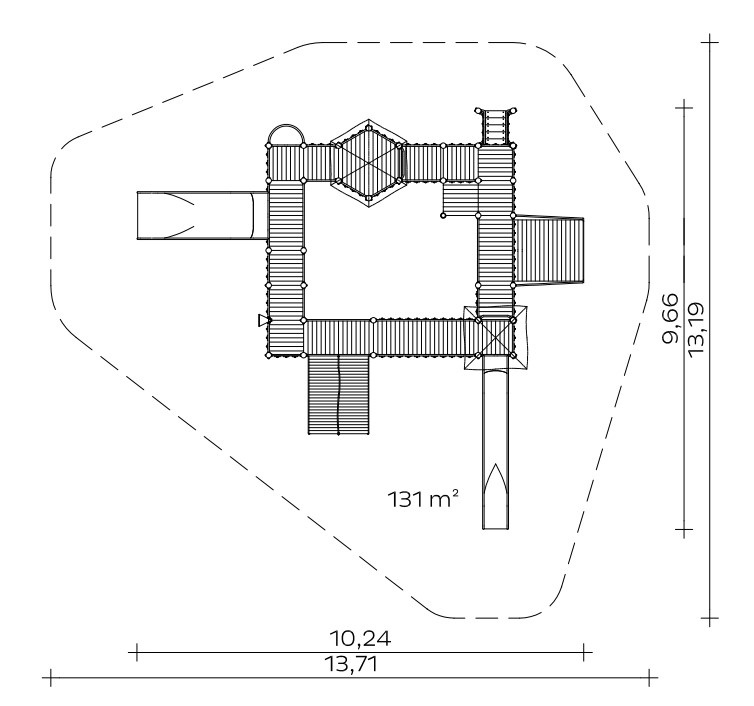

Floor area: 9.70 x 10.25 m
Minimum space: 13.20 x 13.75 m (131 m²)
Total height: 6.55 m
Platform height: 0.50 to 2.00 m
Seat height: 1.50/2.10 m
Weight: 190 kg heaviest individual part
3105 kg in total
Support post
Posts made of stainless steel tube Ø 12 cm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Hercules climbing rope
- Ramp made of robinia wood with stainless steel drawbridge chain
- Add-on staircase with steps made of robinia 160 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm. Pitch height of the steps 133 mm
- Stair railing made of stainless steel tube, Ø 33.7 x 2 mm, torsion-resistant
- Seat and table: made of highly weather-resistant HPL laminate (red), 20/15 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
- Climbing pole and climbing rungs made of stainless steel tube, Ø 38 mm
- Megaphone horizontally rotatable 360
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate (royal blue), 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm, with stainless steel cover
- Tower roof, pitch 75°, made of highly weather-resistant HPL laminate (royal blue), 13 mm
- Tower vane, rotatable
- Attachable wide slide, 1.10 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll guard above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
7 units 0.30 x 0.30 x 0.40 m
37 units 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
1 piece 0.40 x 1.25 x 0.40 m
Concrete volume: 2.94 m³
Assembly time
3 fitters 26 hours each, plus lifting gear
(without foundation)
Free fall height
2,10 m
Suitable for
Children from 2 years,
public playgrounds etc.
Physical activities
Item number: 022712504
