Das 3D-Modell dient der räumlichen Ansicht. Die Farben entsprechen nicht der gewählten Variante.

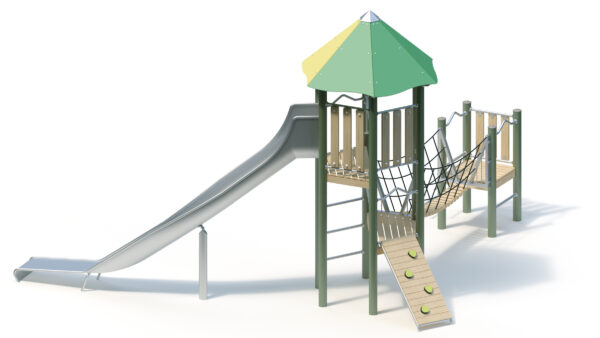

Play structure

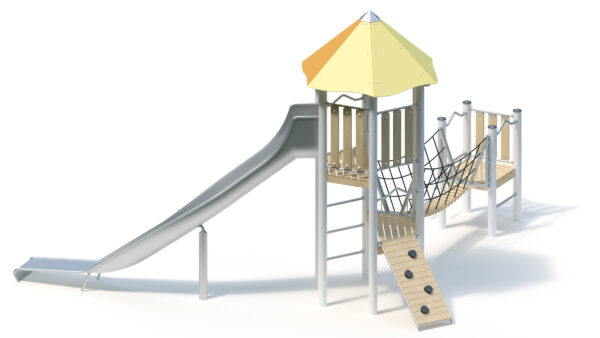

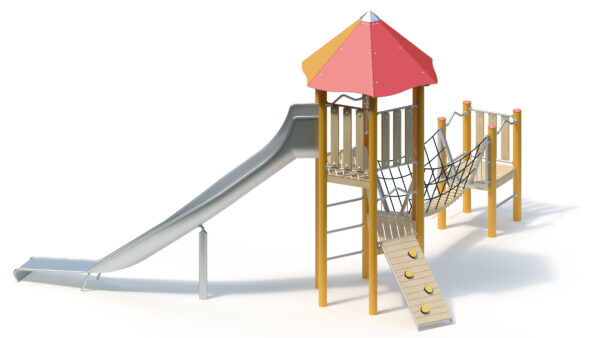

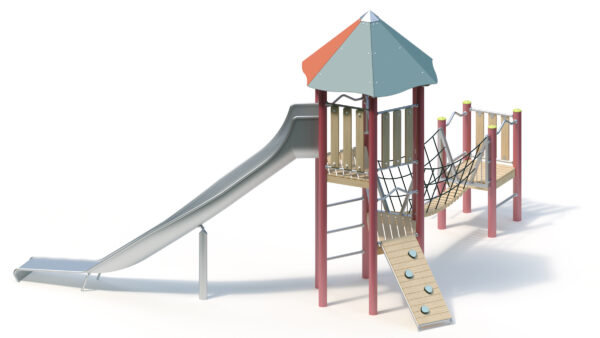

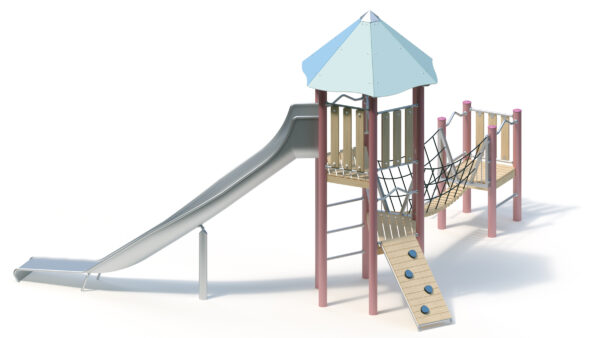

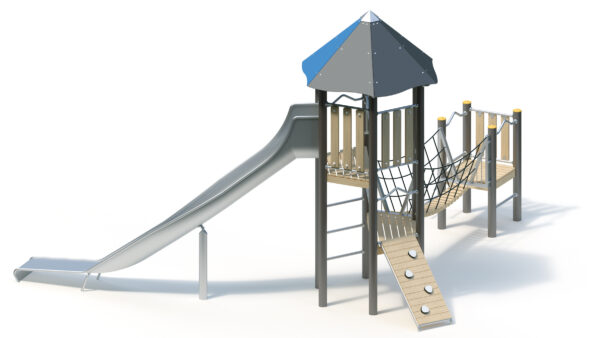

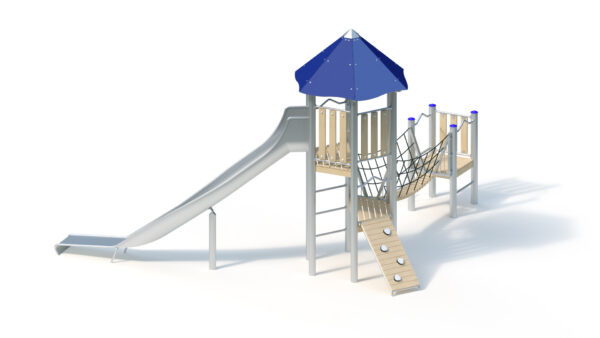

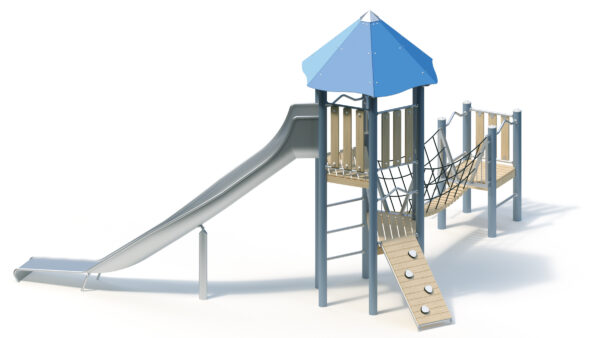

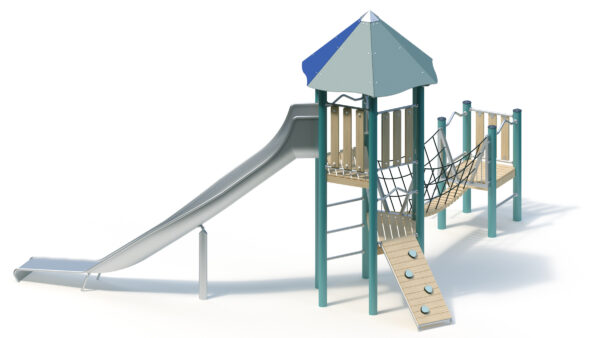

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 16 Personen |
| Aktivitäten ? | Physical activity, Slide |
Technical data
| Mindestraumlänge ? | 9,96 m |
|---|---|
| Mindestraumbreite ? | 8,57 m |
| Mindestraumhöhe ? | 4,30 m |
| Gerätelänge ? | 6,46 m |
| Gerätebreite ? | 5,67 m |
| Gerätehöhe ? | 4,30 m |
| Freie Fallhöhe ? | 2,10 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 930.00 kg |
| Schwerstes Einzelteil ? | 130.00 kg |
Assembly & Foundations
| Montagezeit ? | 12,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | Ja |
| Fundamente | Quantity: 10 (0.4m x 0.4m x 0.4m) Quantity: 2 (0.3m x 0.3m x 0.4m) Quantity: 1 (0.6m x 0.4m x 0.4m) Quantity: 1 (0.9m x 0.75m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 4.30 m
Floor area: 5.67 x 6.46 m
Minimum space: 8.57 x 9.96 m (54 m²)
Platform height: 0.80/1.00/2.00 m
Slide attachment height: 2.00 m
Seat height: 2.10 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Weight: 130 kg heaviest individual part
930 kg in total
Support post
Support posts made of stainless steel tube Ø 120 x 3 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Chain ladder with stainless steel rungs
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate.
- Footbridge: V-shaped net construction made of Hercules rope, walkway made of wooden rungs with approx. 40 mm clear rung spacing, attached to steel frame construction, parapet height approx. 0.75 m
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm. Attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm.
Slope slide 36° Ah 2.00 m
Stainless steel slide segments are particularly quiet thanks to their trough shape, welded to form a one-piece slide.
Course: Curve 27° right
Including K&K slope slide support posts for the curve area and mounting flange, each made of stainless steel.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
10 pcs. 0.40 x 0.40 x 0.40 m
2 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.40 x 0.40 x 0.60 m
1 piece 0.90 x 0.75 x 0.40 m
Concrete volume: 1.08 m³
Assembly time
2 fitters 12 hours each, plus lifting gear
(without foundation)
Free fall height
2,10 m
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities
Item number: 022620503
