Das 3D-Modell dient der räumlichen Ansicht. Die Farben entsprechen nicht der gewählten Variante.

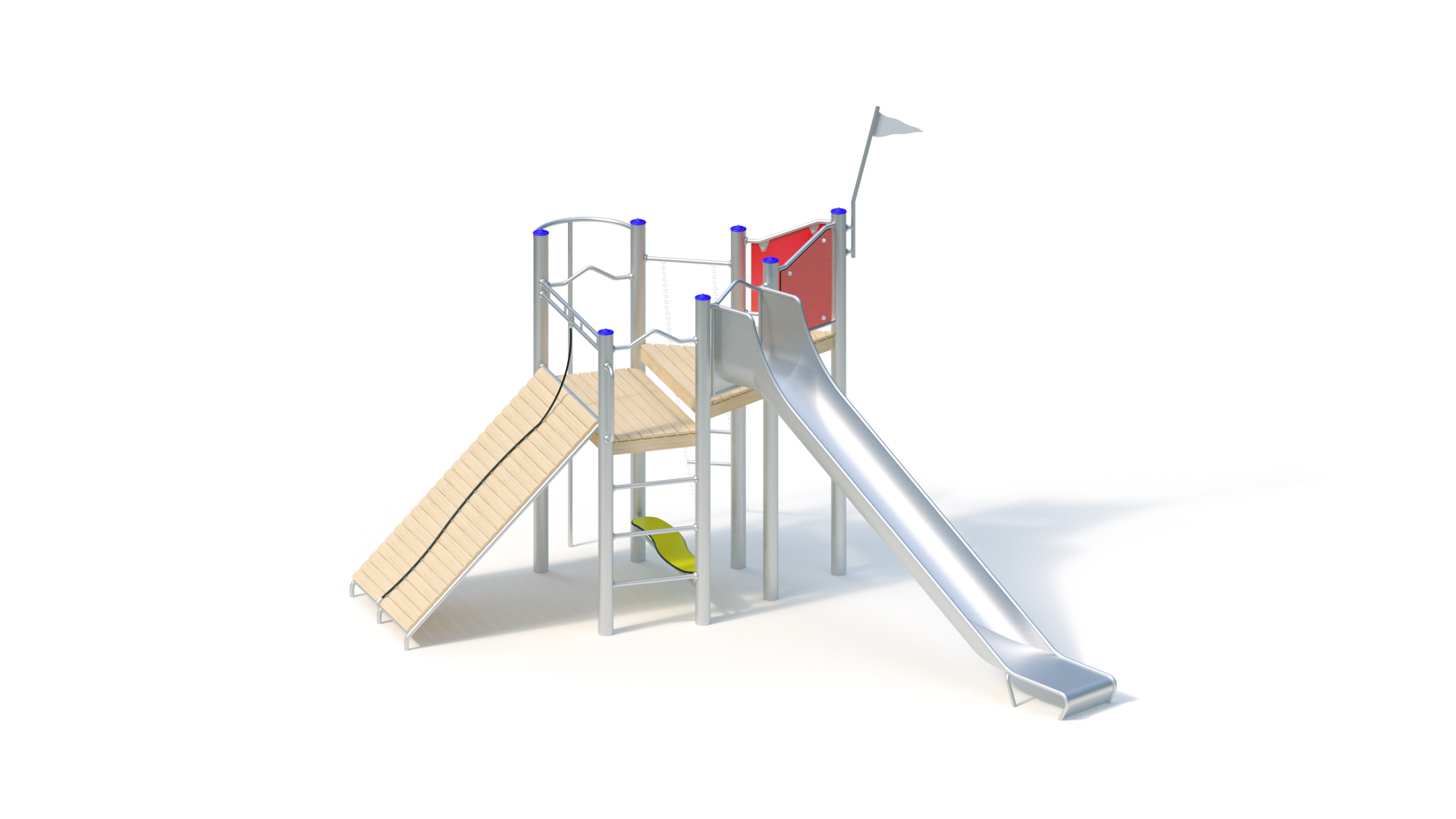

Play structure

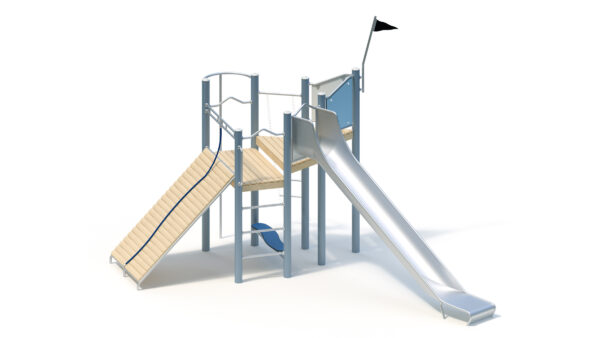

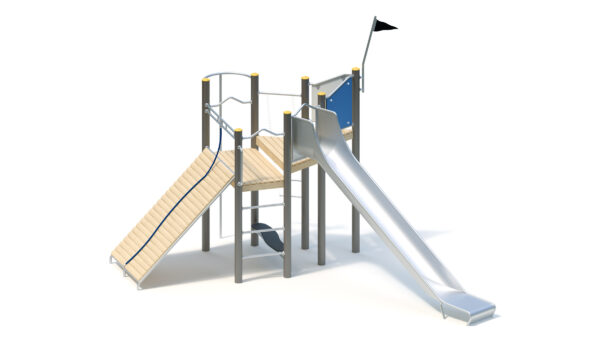

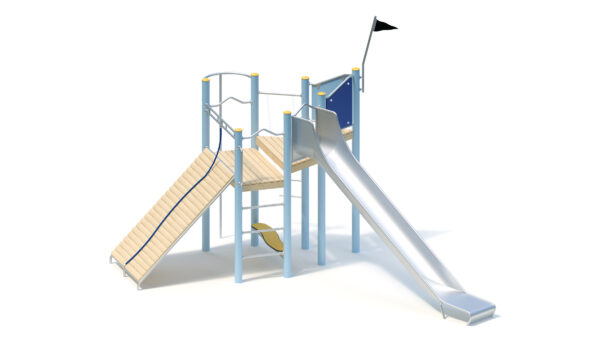

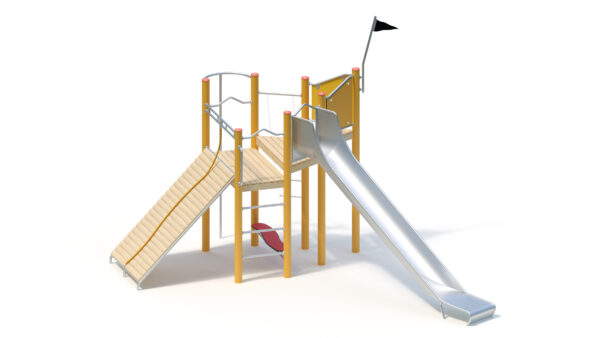

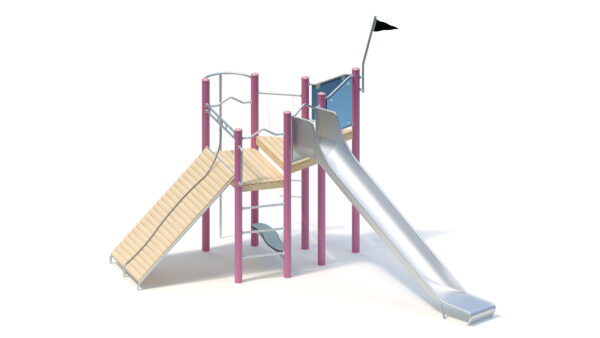

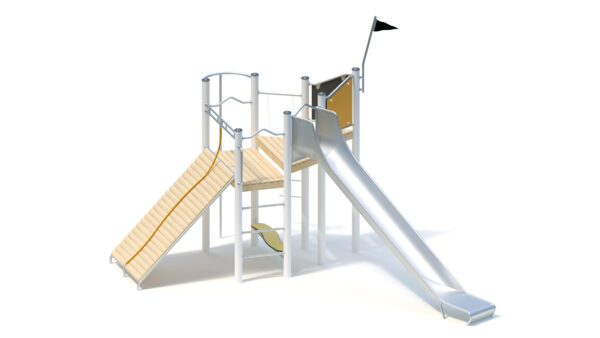

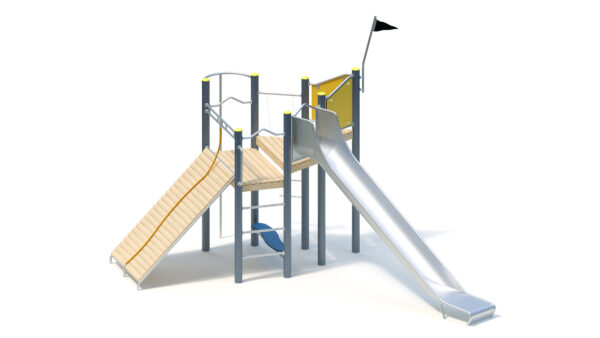

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 14 Personen |
| Aktivitäten ? | Physical activity, Climbing, Slide |
Technical data
| Mindestraumlänge ? | 9,19 m |
|---|---|
| Mindestraumbreite ? | 7,88 m |
| Mindestraumhöhe ? | 3,85 m |
| Gerätelänge ? | 5,81 m |
| Gerätebreite ? | 4,88 m |
| Gerätehöhe ? | 3,83 m |
| Freie Fallhöhe ? | 2,00 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 660.00 kg |
| Schwerstes Einzelteil ? | 170.00 kg |
Assembly & Foundations
| Montagezeit ? | 5,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 4 (0.3m x 0.3m x 0.4m) Quantity: 7 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 3.85 m
Floor area: 4.88 x 5.81 m

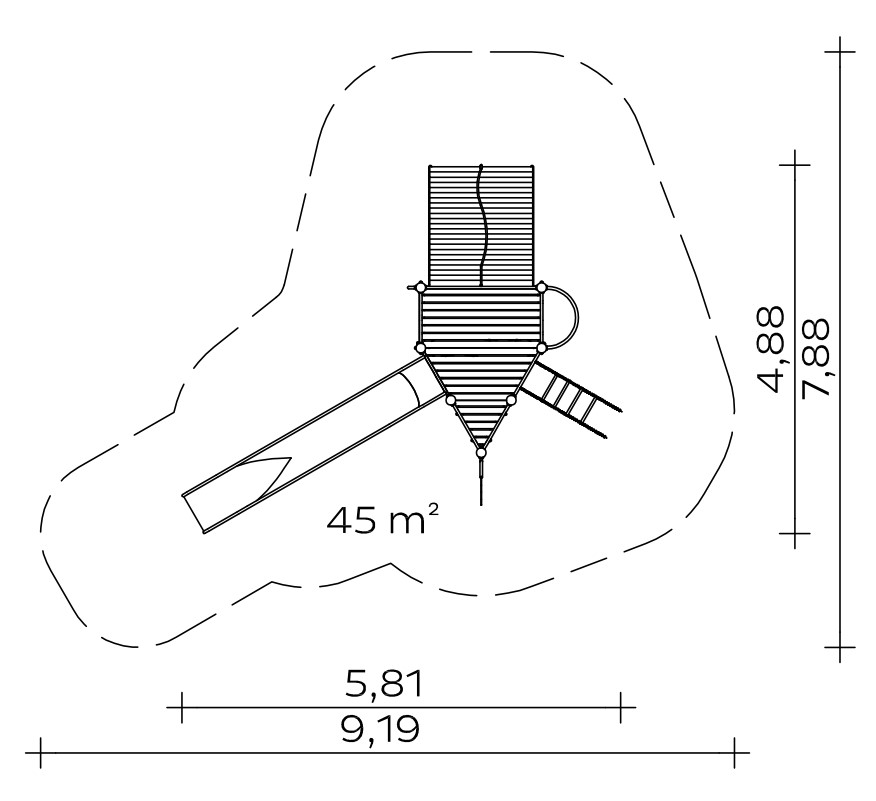

Minimum space: 7.88 x 9.19 m (45 m²)
Platform height: 1.60/1.80/2.00 m
Slide attachment height: 1.80 m
Seat height: 1.90 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Weight: 170 kg heaviest individual part
660 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Counter, wave-shaped, made of coloured, highly weather-resistant HPL laminate, 20 mm
- Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Hercules climbing rope
- Vertical climbing pole made of stainless steel tube, Ø 38 mm
- Chain ladder with stainless steel rungs
- Panel balustrade made of coloured, highly weather-resistant HPL laminate. Fastening between stainless steel tubes Ø 33.7 x 2 mm
- Flag with flagpole
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
4 units 0.30 x 0.30 x 0.40 m
7 units 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.7 m³
Assembly time
2 fitters 5 hours each
(without foundation)
Free fall height
2,00 m
Suitable for
Children aged 4 and over,
public playgrounds, etc.
Physical activities
Item number: 022520502
