Play structure
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 9 Personen |
| Aktivitäten ? | Physical activity, Climbing, Slide |
Technical data
| Gerätelänge ? | 5,55 m |
|---|---|
| Gerätebreite ? | 4,05 m |
| Gerätehöhe ? | 2,70 m |
| Freie Fallhöhe ? | 1,70 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 615.00 kg |
| Schwerstes Einzelteil ? | 160.00 kg |
| Mindestraumlänge ? | 9,15 m |
| Mindestraumbreite ? | 7,05 m |
| Mindestraumhöhe ? | 3,20 m |
Assembly & Foundations
| Montagezeit ? | 3.0 hours |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 7 (0.3m x 0.3m x 0.4m) Quantity: 4 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

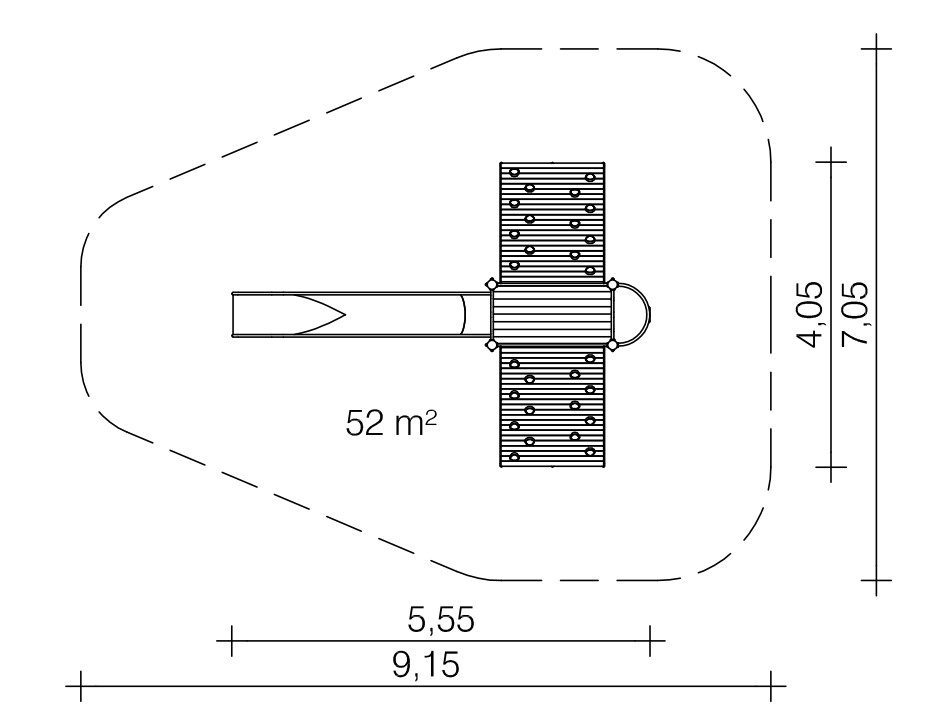

Floor area: 4.05 x 5.55 m
Minimum space: 7.05 x 9.15 m (52 m²)
Total height: 2.70 m
Platform height: 1.60 m
Seat height: 1.70 m
Weight: 160 kg heaviest individual part
615 kg in total
Support post
Support posts made of stainless steel tube, Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Curved climbing pole on the semicircular tube
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate, 20 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
7 units 0.30 x 0.30 x 0.40 m
4 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.63 m³
Assembly time
2 fitters 3 hours each
(without foundation)
Free fall height
1,70 m
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities
Item number: 022208501
