Play structure

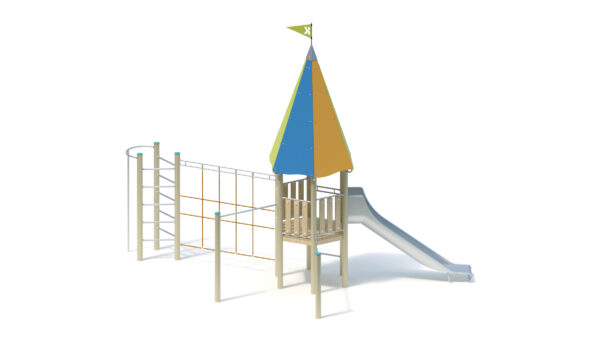

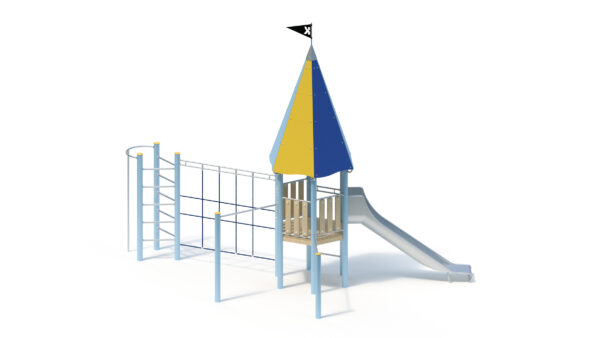

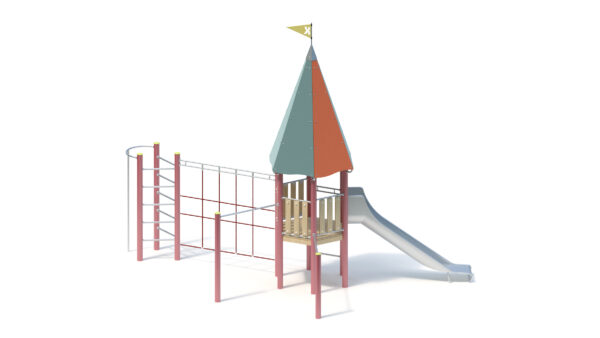

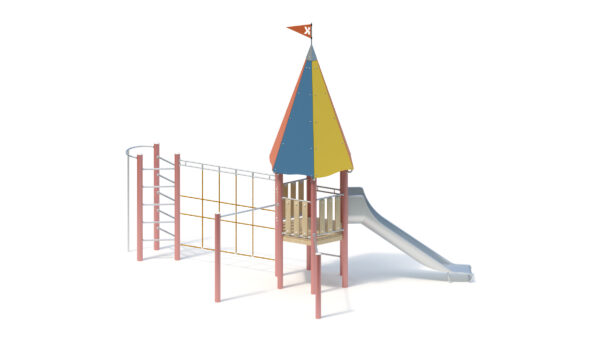

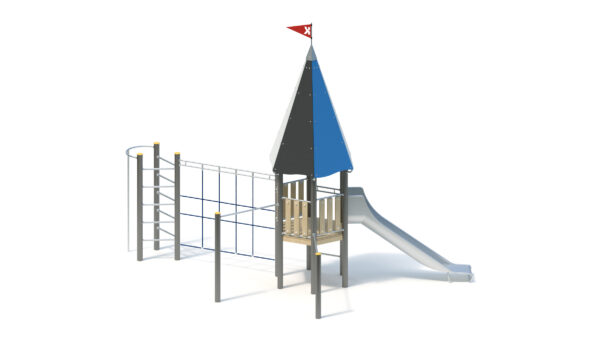

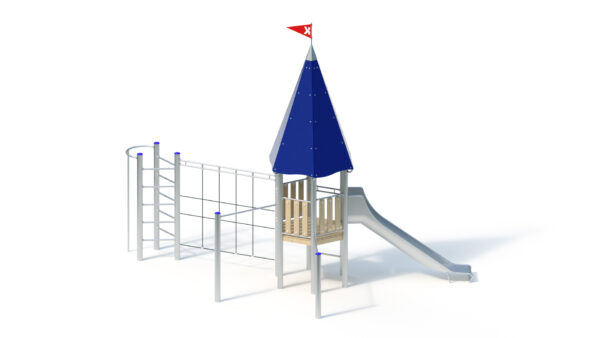

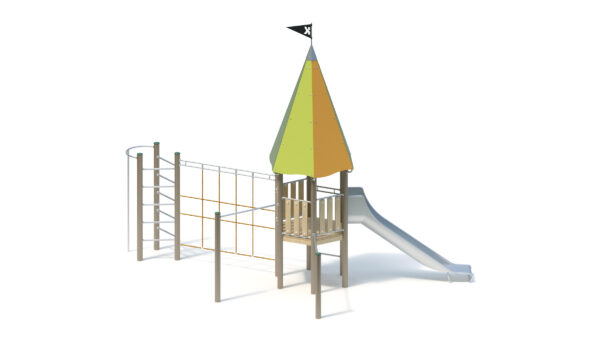

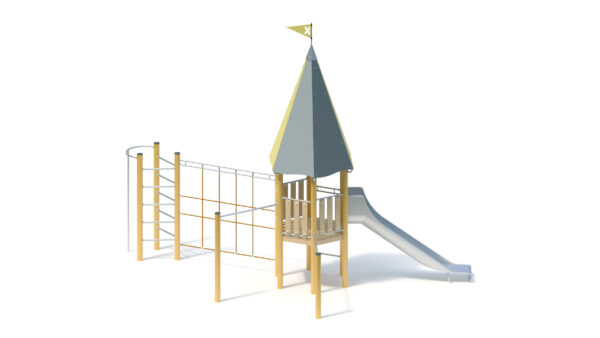

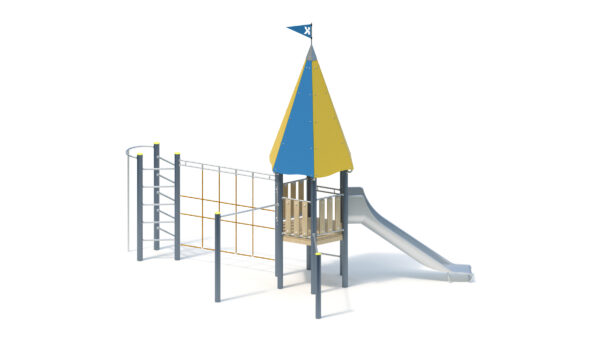

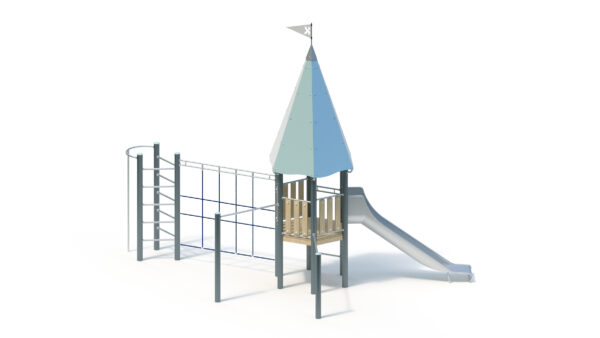

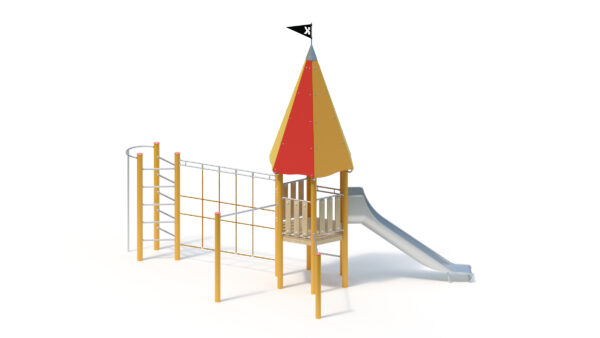

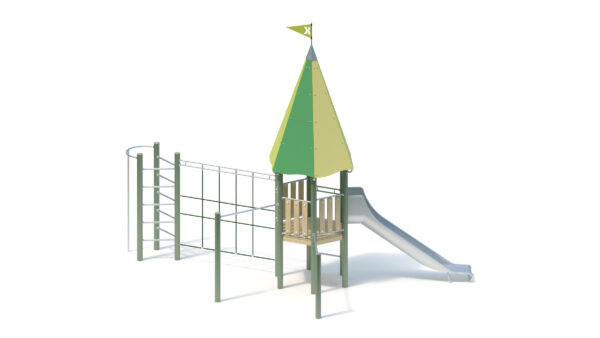

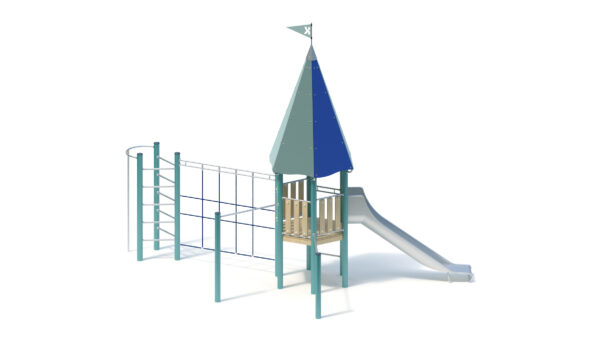

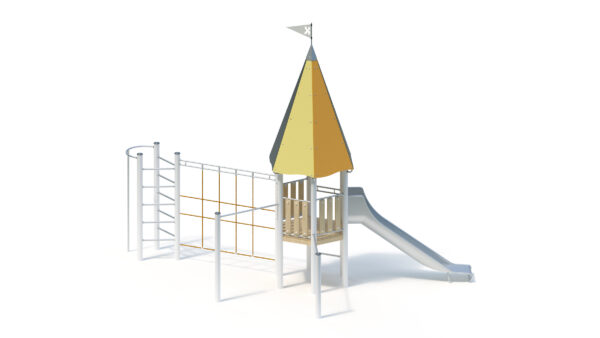

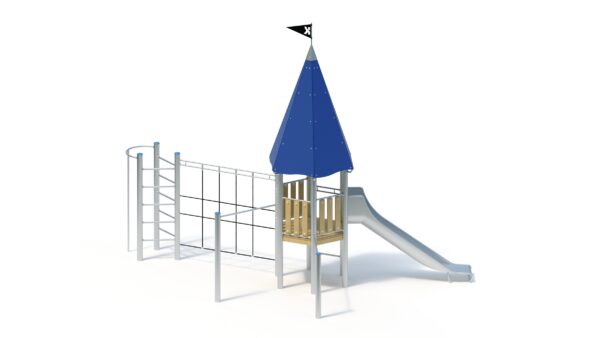

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 19 Personen |
| Aktivitäten ? | Physical activity, Climbing, Slide |
Technical data
| Mindestraumlänge ? | 11,60 m |
|---|---|
| Mindestraumbreite ? | 7,25 m |
| Mindestraumhöhe ? | 5,85 m |
| Gerätelänge ? | 7,50 m |
| Gerätebreite ? | 4,10 m |
| Gerätehöhe ? | 5,85 m |
| Freie Fallhöhe ? | 2,32 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 555.00 kg |
| Schwerstes Einzelteil ? | 85.00 kg |
Assembly & Foundations
| Montagezeit ? | 11,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 1x (0.3m x 0.3m x 0.4m) Quantity: 11 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

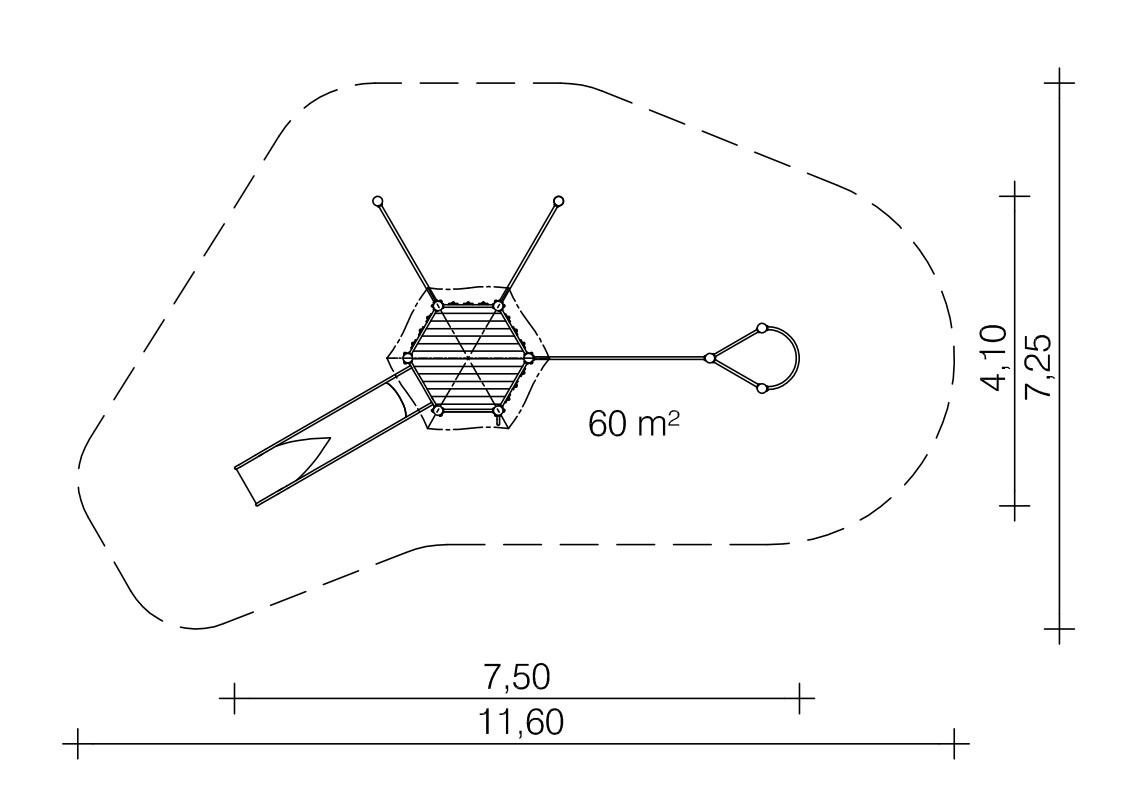

Floor area: 4.10 x 7.50 m
Minimum space: 7.25 x 11.60 m
Impact area: 60 m²
Total height: 5.85 m
Free fall height: 2.32 m
Platform height: 1.20 m
Seat height: 1.30 m
High bar heights: 1.35/1.90 m
Weight: 85 kg heaviest individual part
555 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Tower roof, pitch 72°, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Tower vane, rotatable
- Stainless steel tube horizontal bar, Ø 38 x 2.5 mm, torsion-resistant
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing pole and climbing rungs made of stainless steel tube, Ø 38 mm
- Climbing net made of Hercules rope on stainless steel crossbar
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Foundations (client-provided)
1 piece 0.30 x 0.30 x 0.40 m
11 units 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.86 m³
Assembly time
2 fitters 11 hours each
(without foundation)
Suitable for
Children aged 4 and over,
public playgrounds etc.
Physical activities
Item number: 021634501
