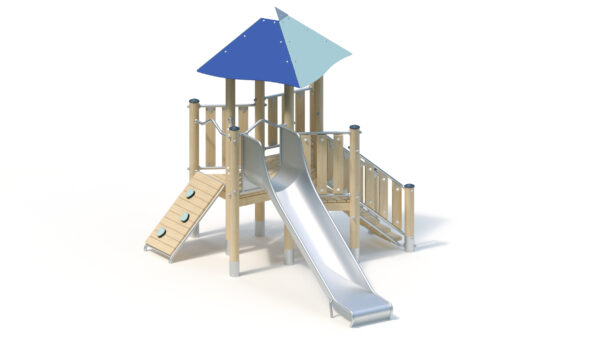

Play structure

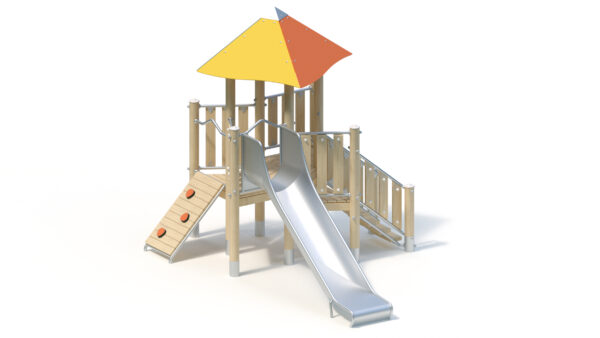

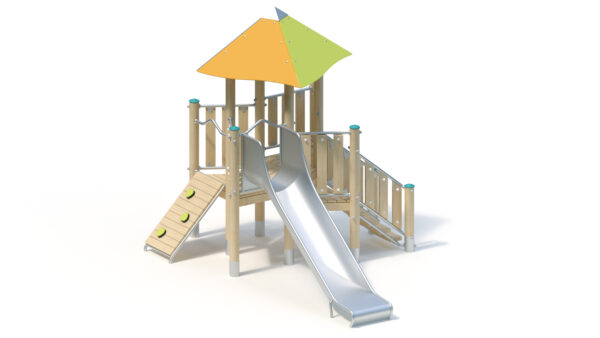

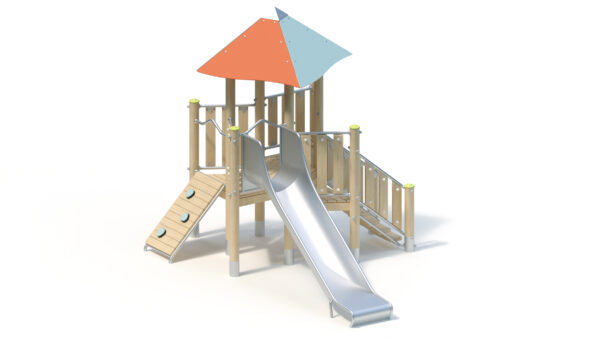

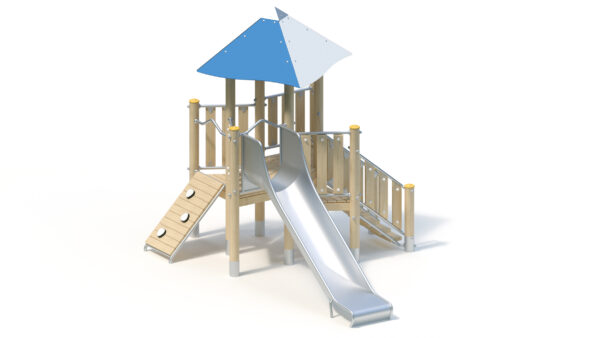

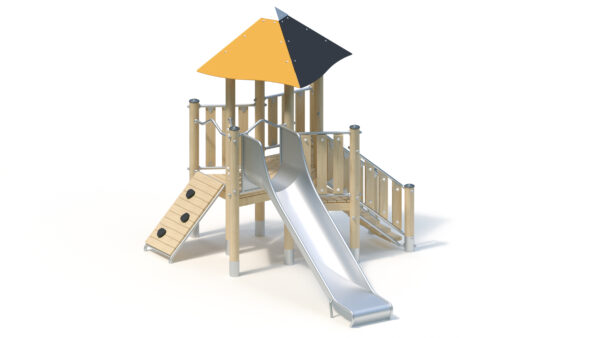

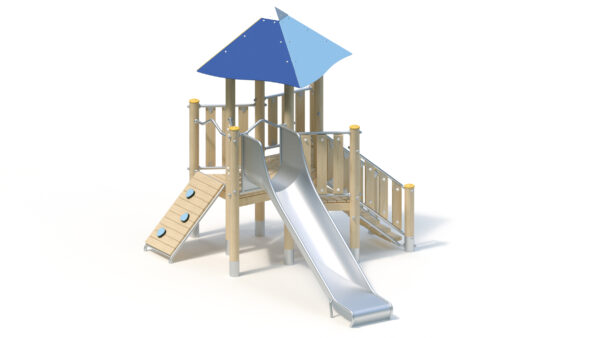

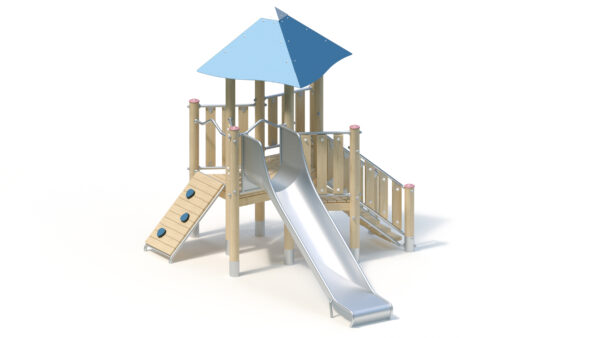

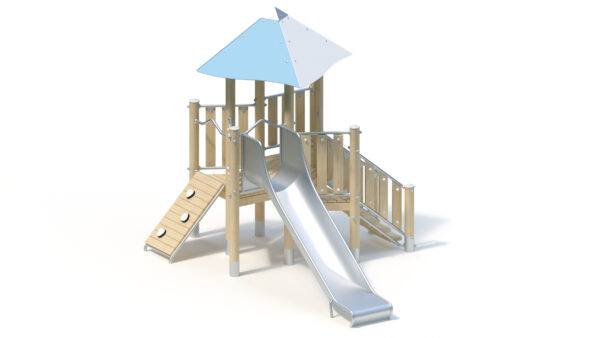

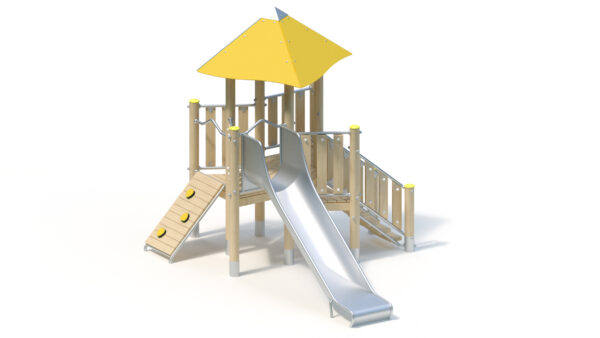

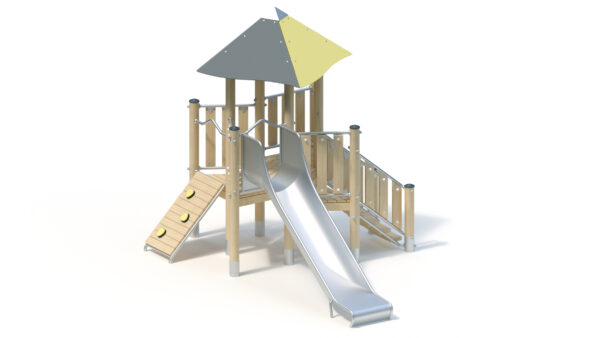

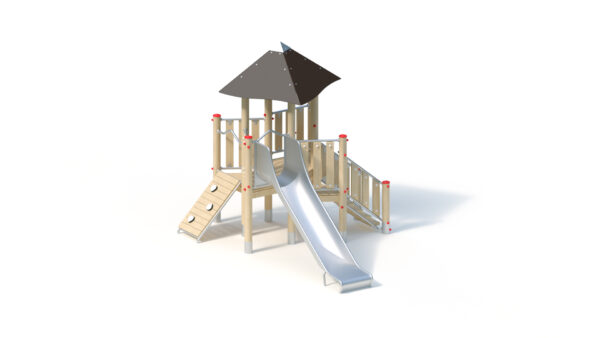

Variante wählen:
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 9 Personen |
| Aktivitäten ? | Physical activity, Slide |
Technical data
| Mindestraumlänge ? | 7,50 m |
|---|---|
| Mindestraumbreite ? | 6,55 m |
| Mindestraumhöhe ? | 3,15 m |
| Gerätelänge ? | 3,90 m |
| Gerätebreite ? | 3,40 m |
| Gerätehöhe ? | 3,15 m |
| Freie Fallhöhe ? | 1,10 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 645.00 kg |
| Schwerstes Einzelteil ? | 85.00 kg |
Assembly & Foundations
| Montagezeit ? | 7,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 10 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) Quantity: 2 (0.3m x 0.3m x 0.4m) |
Product Downloads
Product description
Technical data

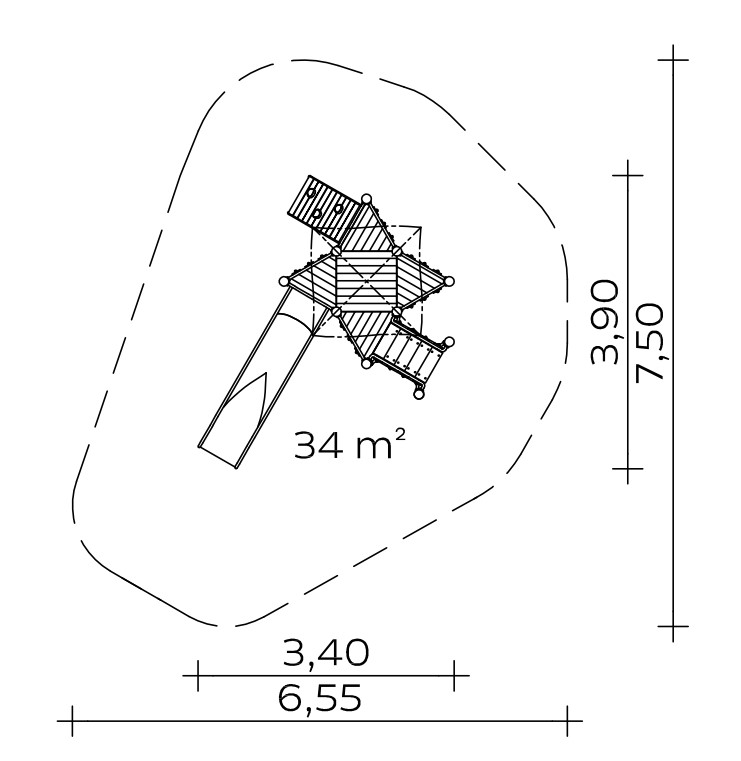

Floor area: 3.40 x 3.90 m
Minimum space: 6.55 x 7.50 m (34 m²)
Total height: 3.15 m
Platform height: 0.80/1.00 m
Slide attachment height: 1.00 m
Seat height: 1.10 m
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate, 20 mm
- Add-on staircase with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, step height 133 mm
- Staircase balustrade made of robinia wood, fixed between stainless steel tubes Ø 33.7 x 2 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm.
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm, with stainless steel cover
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
10 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
2 pcs. 0.30 x 0.30 x 0.40 m
Concrete volume: 0.83 m³
Assembly time
2 fitters 7 hours each
(without foundation)
Free fall height
1,10 m
Suitable for
Children from 2 years,
public playgrounds etc.
Physical activities
Item number: 021294702
