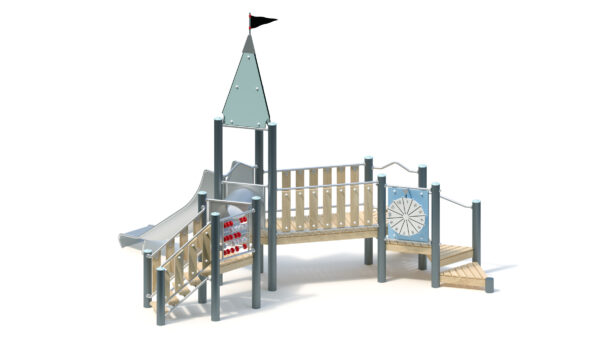

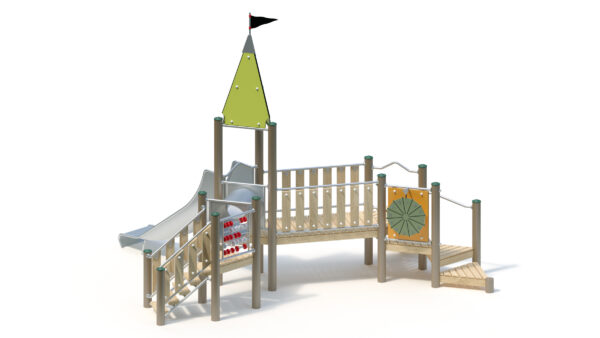

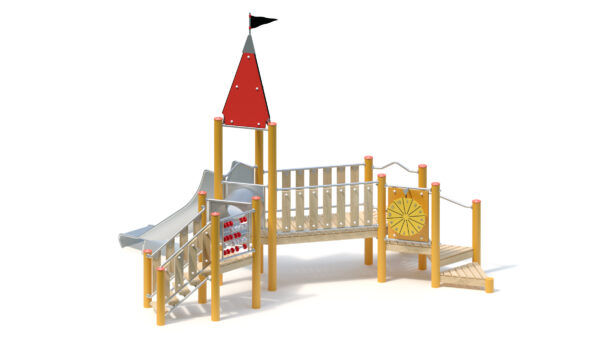

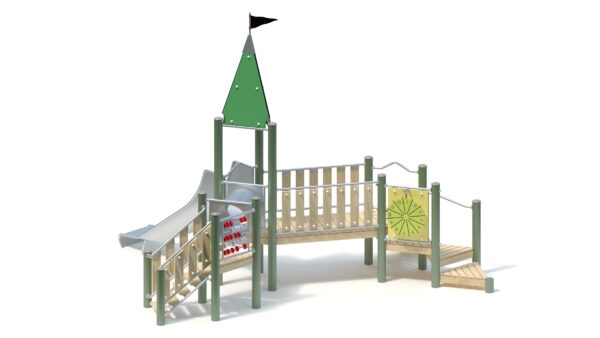

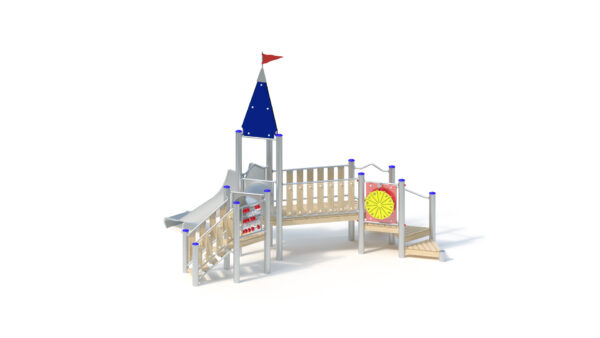

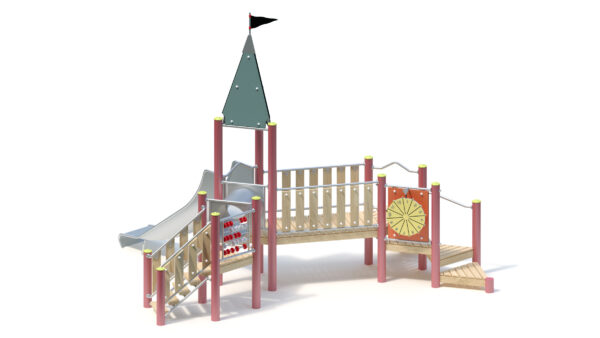

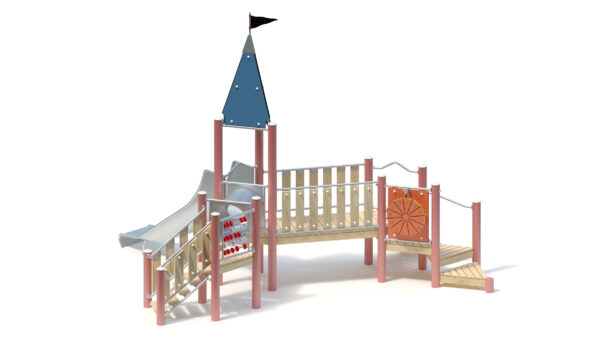

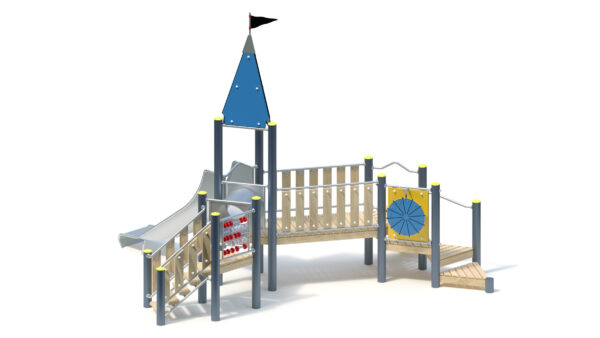

The 3D model serves as a spatial view. The colours do not correspond to the selected variant.

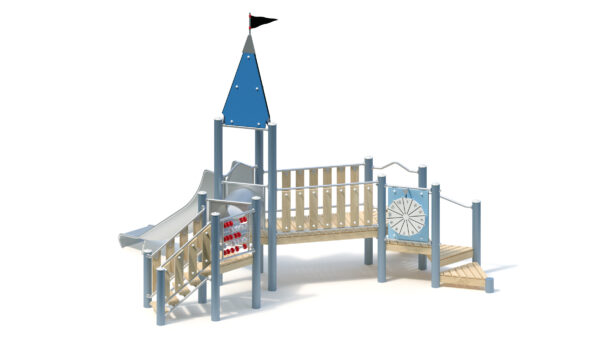

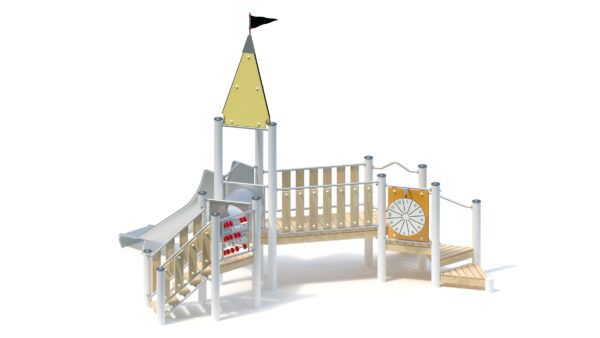

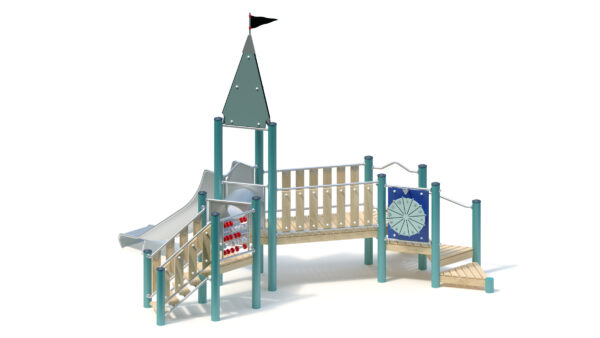

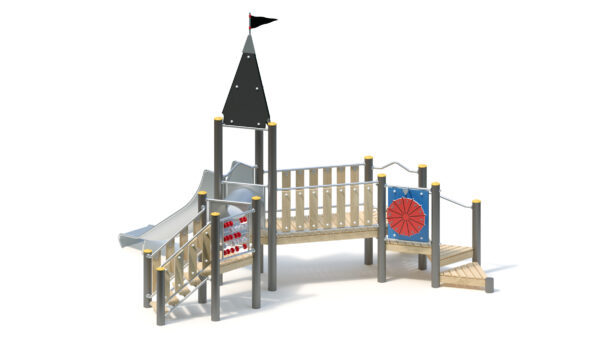

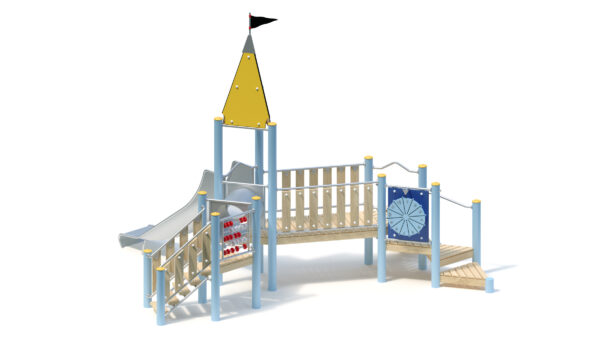

Play structure
Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 15 persons |
| Activities ? | Physical activity, Slide |
Technical data
| Device length ? | 5,05 m |
|---|---|
| Device width ? | 3,80 m |
| Device height ? | 4,05 m |
| Free fall height ? | 1,55 m |
| Platform heights | - |
| Total weight ? | 820.00 kg |
| Heaviest single item ? | 70.00 kg |
| Minimum room length ? | 8,05 m |
| Minimum room width ? | 7,20 m |
| Minimum room height ? | 4,05 m |
Assembly & Foundations
| Assembly time ? | 8,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data
Total height: 4.05 m
Floor area: 3.80 x 5.05 m

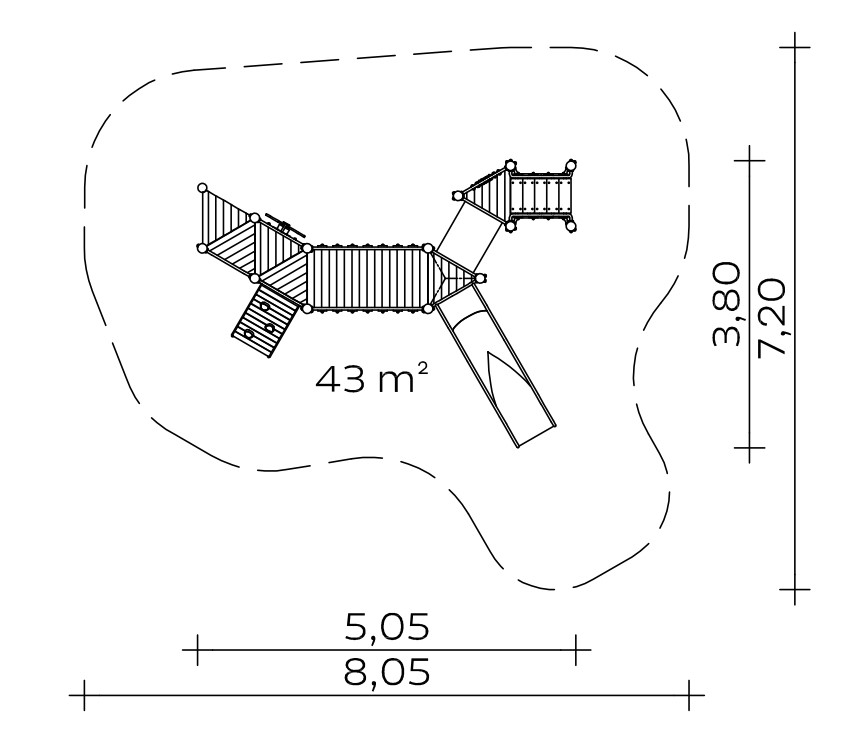

Minimum space: 7.20 x 8.05 m (43 m²)
Platform height: 0.20 to 0.80 m
Slide attachment height: 0.80 m
Seat height: 0.90 m
Weight: 70 kg heaviest individual part
820 kg in total
Support post
Stainless steel posts Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Slide rule with polyamide elements, Ø 80 mm, on axles made of welded stainless steel tube, Ø 20 mm
- Wheel of fortune wall made of HPL laminate
- Add-on staircase with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, step height 133 mm
- Staircase balustrade made of robinia, fastening between stainless steel tubes, Ø 33.7 x 2 mm
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate, 20 mm
- Crawl tunnel, Ø 56 cm, stainless steel sheet 2.5 mm
- Tower roof, pitch 80°, made of highly weather-resistant HPL laminate, 13 mm
- Tower flag, corrugated
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness 2.5 mm, with anti-roll guard above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
14 units 0.40 x 0.40 x 0.40 m
2 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 1.18 m³
Assembly time
2 fitters 8 hours each
(without foundation)
Free fall height
1,55 m
Suitable for
Children from 2 years,
public playgrounds etc.
Physical activities
Item number: 021166500
