The 3D model is for spatial reference only. The colours may not match the selected variant.
Toddler's court

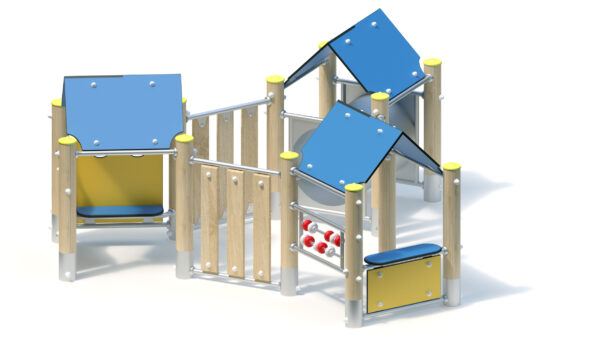

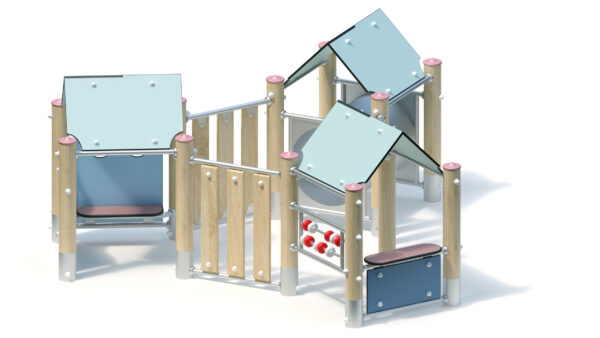

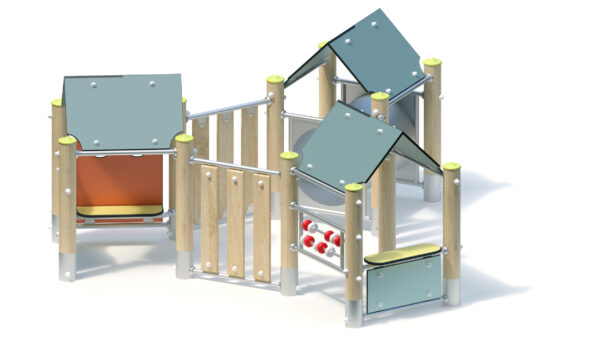

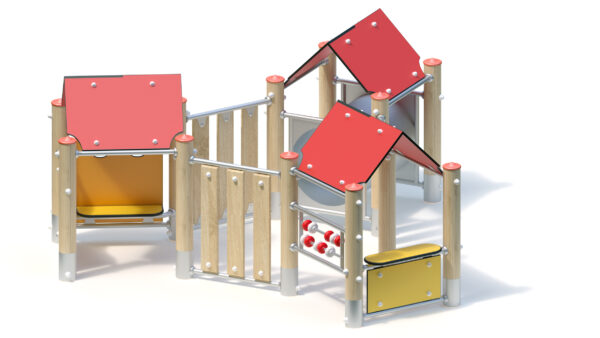

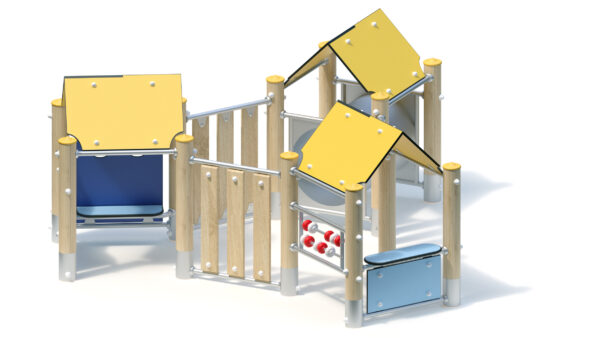

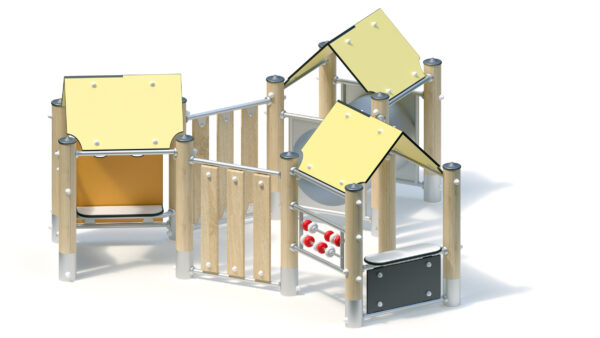

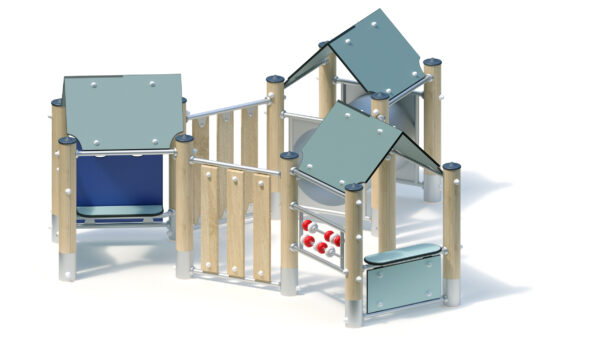

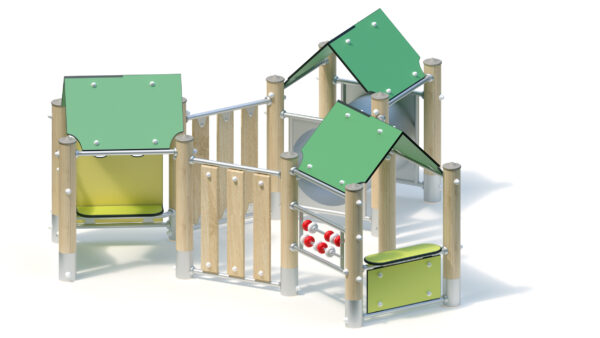

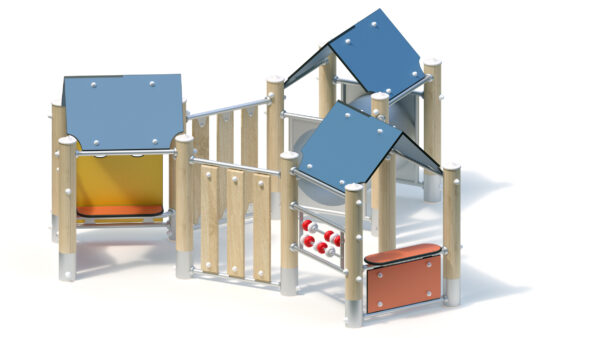

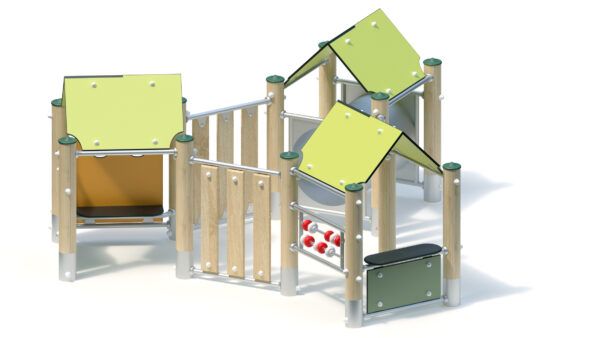

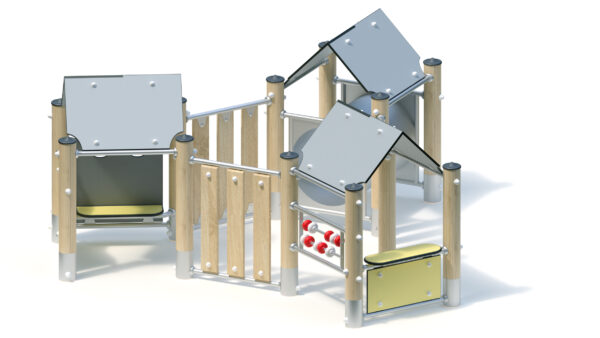

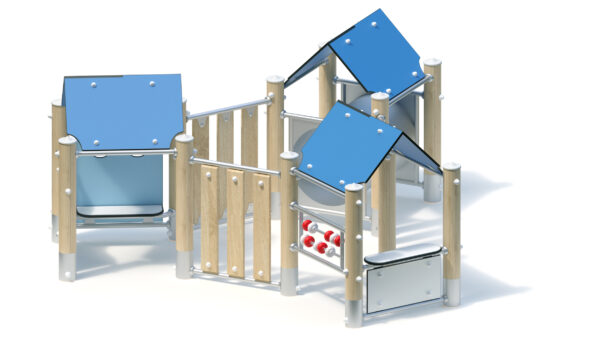

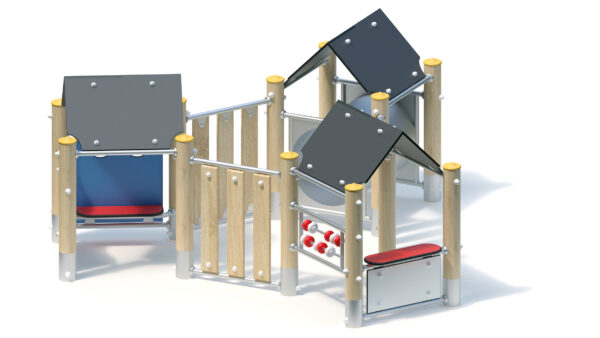

Select variant:
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 9 people |
| Activities ? | Physical activity, Social activity |
Technical data
| Minimum space length ? | 6,15 m |
|---|---|
| Minimum space width ? | 5,75 m |
| Minimum space height ? | 1,35 m |
| Equipment length ? | 3,15 m |
| Equipment width ? | 2,75 m |
| Equipment height ? | 1,35 m |
| Free-fall height ? | 1,33 m |
| Platform heights | - |
| Total weight ? | 320.00 kg |
| Heaviest single part ? | 40.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 12 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 1.35 m
Floor area: 2.75 x 3.15 m
Minimum space: 5.75 x 6.15 m (28 m²)
Weight: 40 kg heaviest individual part
320 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Panelled balustrade made of highly weather-resistant HPL laminate
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Seat/counter made of coloured, highly weather-resistant HPL laminate, 20 mm
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Crawl tunnel Ø 56 cm, stainless steel sheet 2.5 mm
- Slide rule, polyamide elements, Ø 80 mm
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
12 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.77 m³
Assembly time
2 fitters 3 hours each
(without foundation)
Free fall height
1,33 m
Suitable for
Children from the age of one,
public playgrounds etc.,
Social/movement activities
Item number: 020053701
