The 3D model is for spatial reference only. The colours may not match the selected variant.

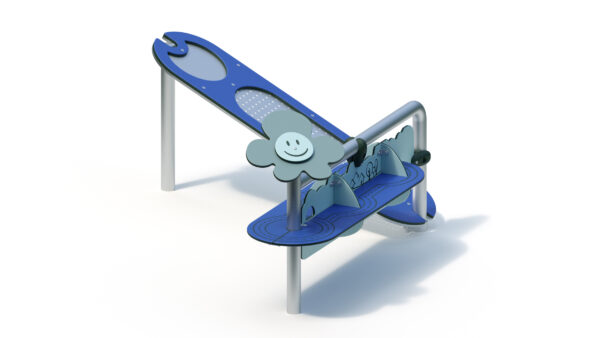

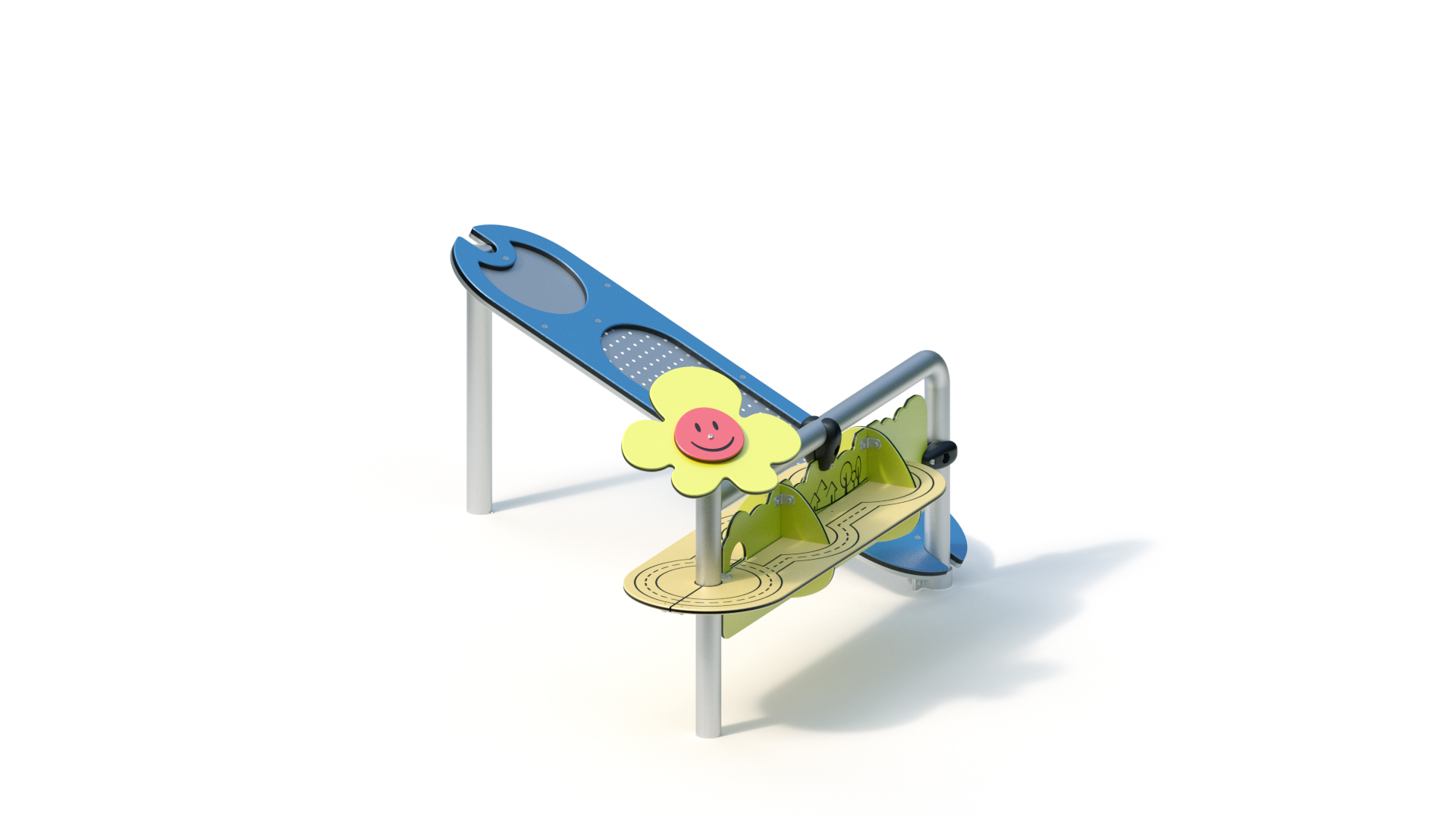

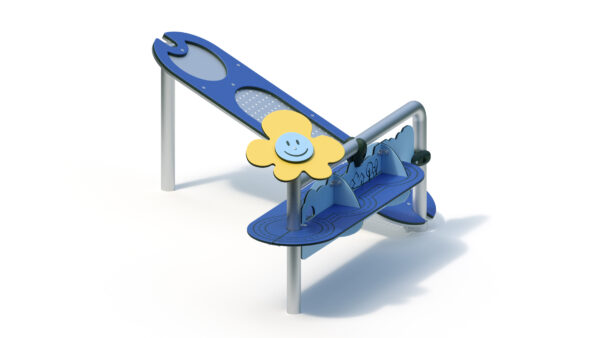

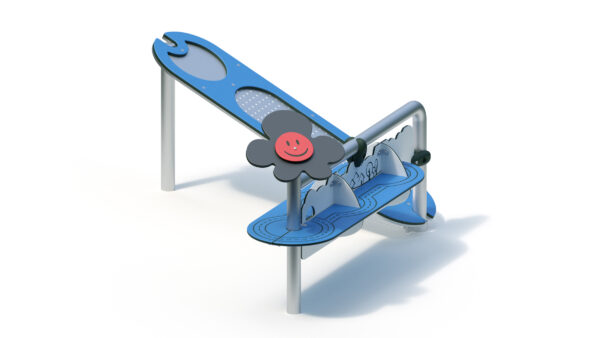

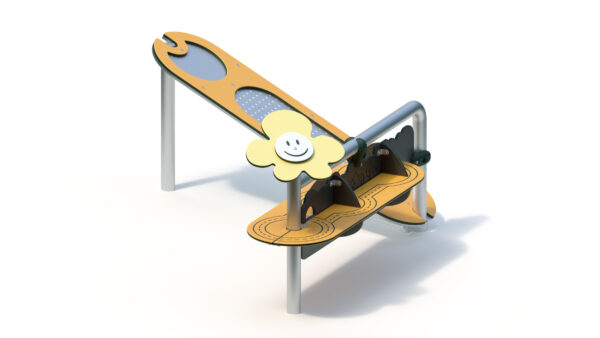

Sand combination

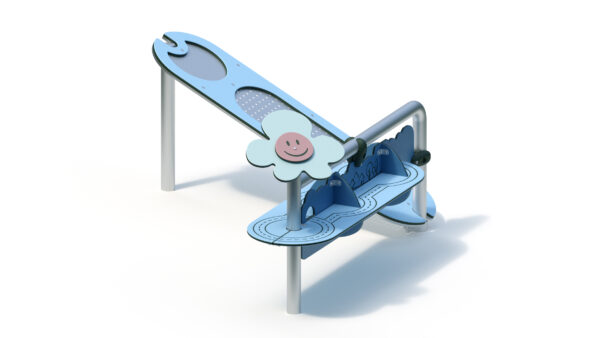

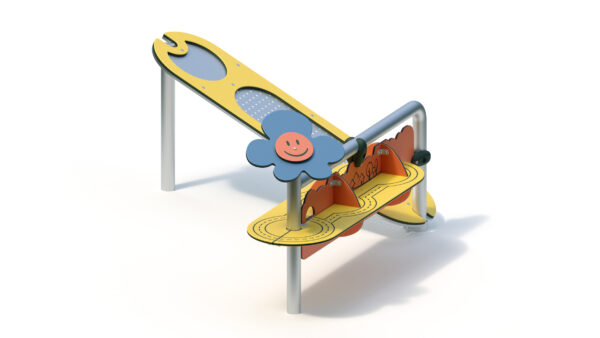

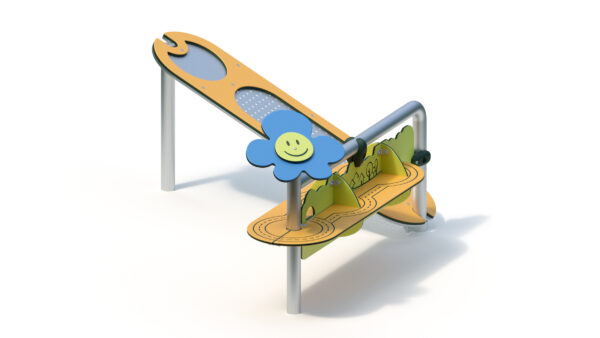

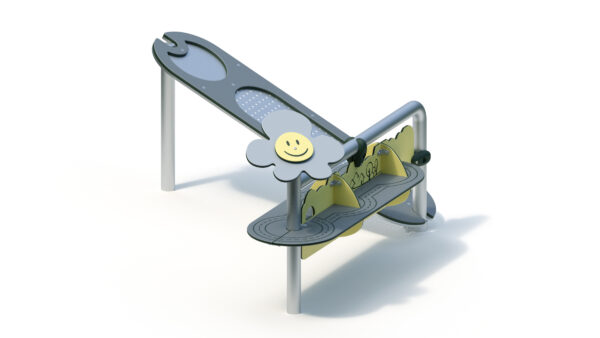

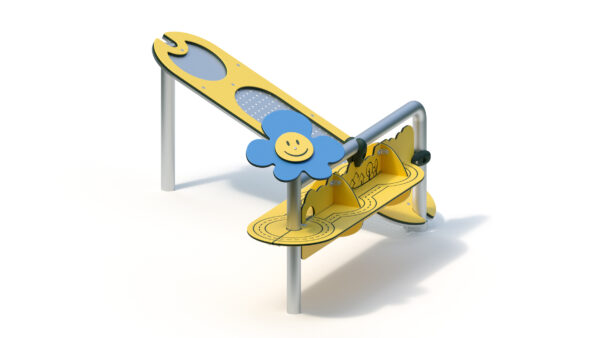

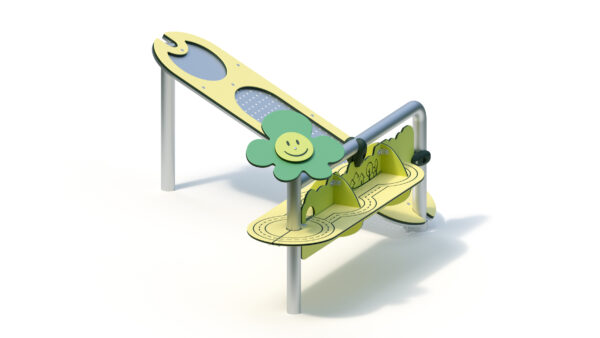

Select variant:
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of use ? | supervised playgrounds |
| Number of users ? | 8 people |
| Activities ? | Manual activity, Social activity |
Technical data
| Minimum space length ? | 4,60 m |
|---|---|
| Minimum space width ? | 4,45 m |
| Minimum space height ? | 0,85 m |
| Equipment length ? | 1,60 m |
| Equipment width ? | 1,45 m |
| Equipment height ? | 0,85 m |
| Free-fall height ? | 0,38 m |
| Platform heights | - |
| Total weight ? | 60.00 kg |
| Heaviest single part ? | 15.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 3 (0.3m x 0.3m x 0.3m) |
Product Downloads
Product description
Technical data
Total height: 0.85 m
Base area: 1.45 x 1.60 m

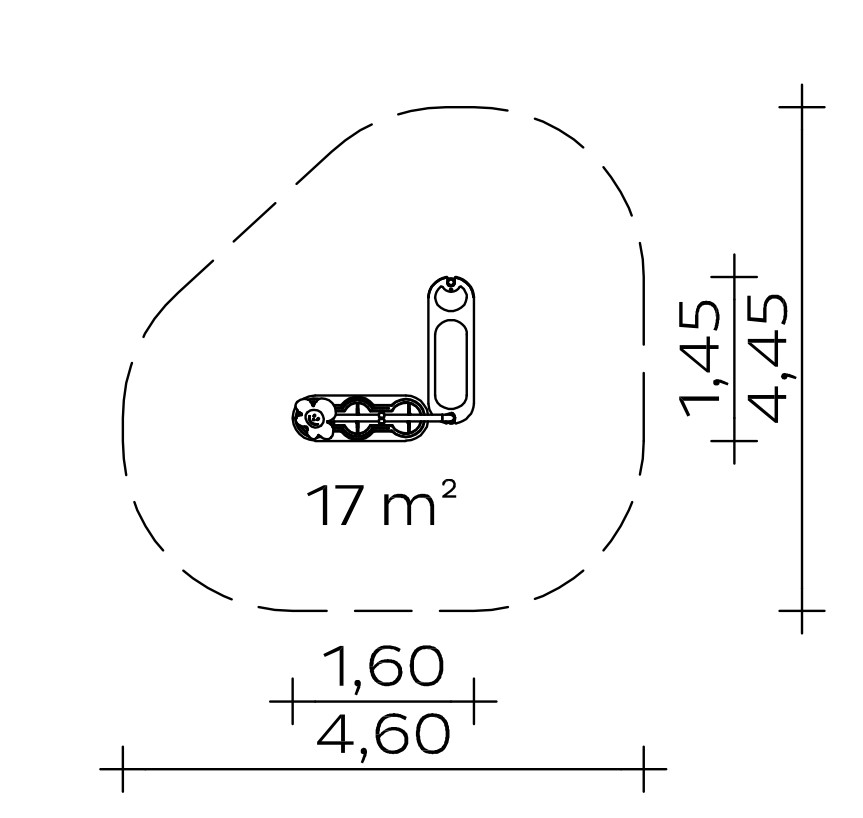

Minimum space: 4.45 x 4.60 m (17 m²)
Weight: 16 kg heaviest individual part
60 kg in total
Attachments
- Tubular bracket and standpipe made of stainless steel tube 60.3 x 3 mm
- Flower made of highly weather-resistant HPL laminate (yellow/red), 15 mm
- Sand sieve and motorway made of highly weather-resistant HPL laminate (blue/lime green/yellow) 13 and 15 mm and perforated stainless steel sheet. Fastening with stainless steel clamps and aluminium clamps on tubular construction.
Metal components: Stainless steel, aluminium
Foundations (client-provided)
3 pcs. 0.30 x 0.30 x 0.30 m
Concrete quantity: 0.08 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Free fall height
0,38 m
Suitable for
Children from 1 - 6 years,
supervised playgrounds etc.
Movement activities/social activities
Item number: 039070000
This Kaiser & Kühne product enables:
