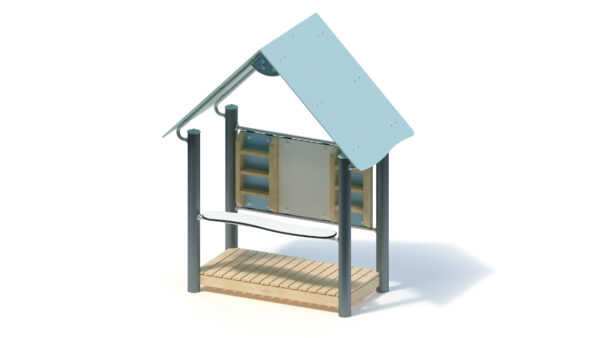

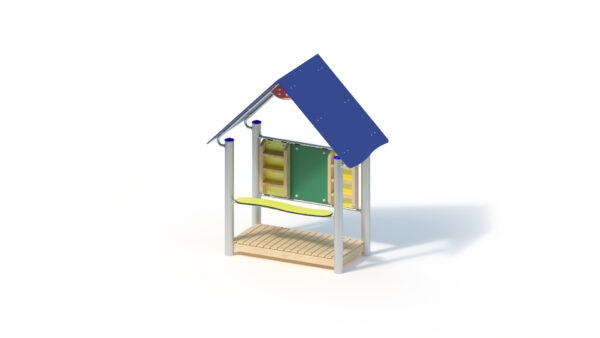

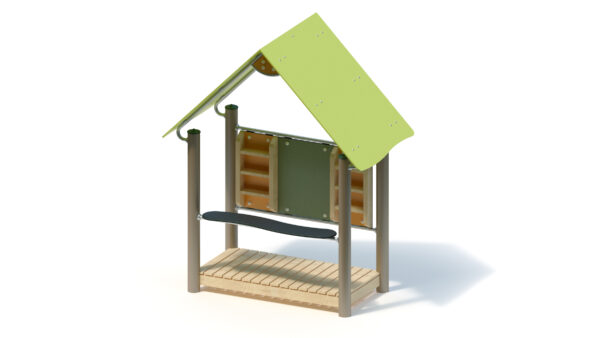

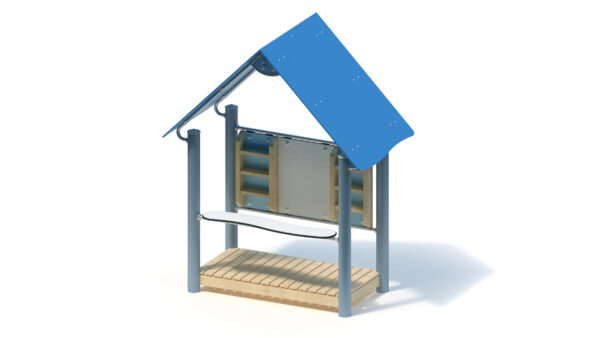

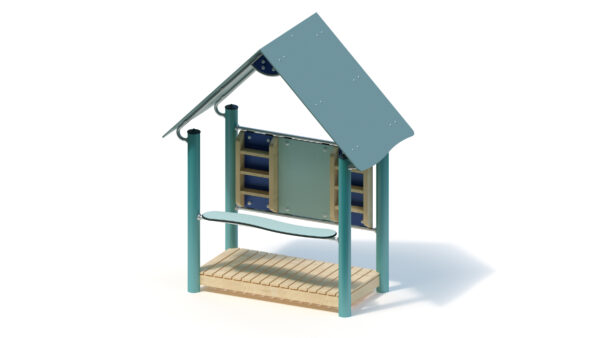

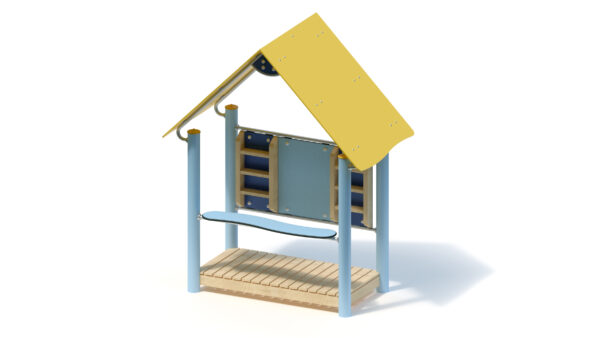

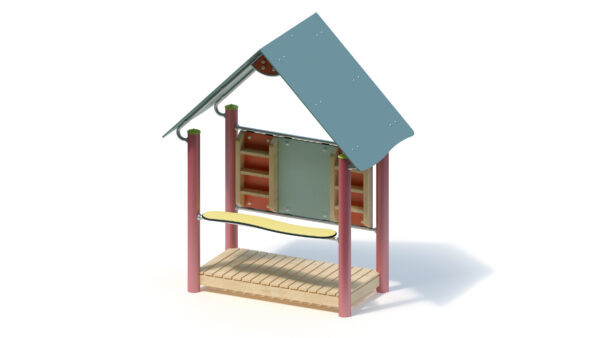

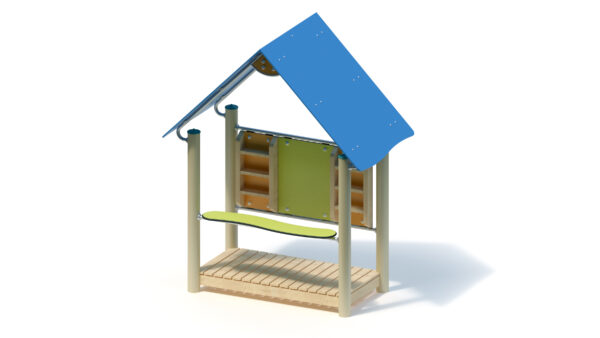

The 3D model serves as a spatial view. The colours do not correspond to the selected variant.
Shop
Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 5 persons |
| Activities ? | Social activity |
Technical data
| Device length ? | 2,15 m |
|---|---|
| Device width ? | 1,20 m |
| Device height ? | 2,65 m |
| Free fall height ? | 0,80 m |
| Platform heights | - |
| Total weight ? | 235.00 kg |
| Heaviest single item ? | 55.00 kg |
| Minimum room length ? | 5,15 m |
| Minimum room width ? | 4,20 m |
| Minimum room height ? | 2,65 m |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data

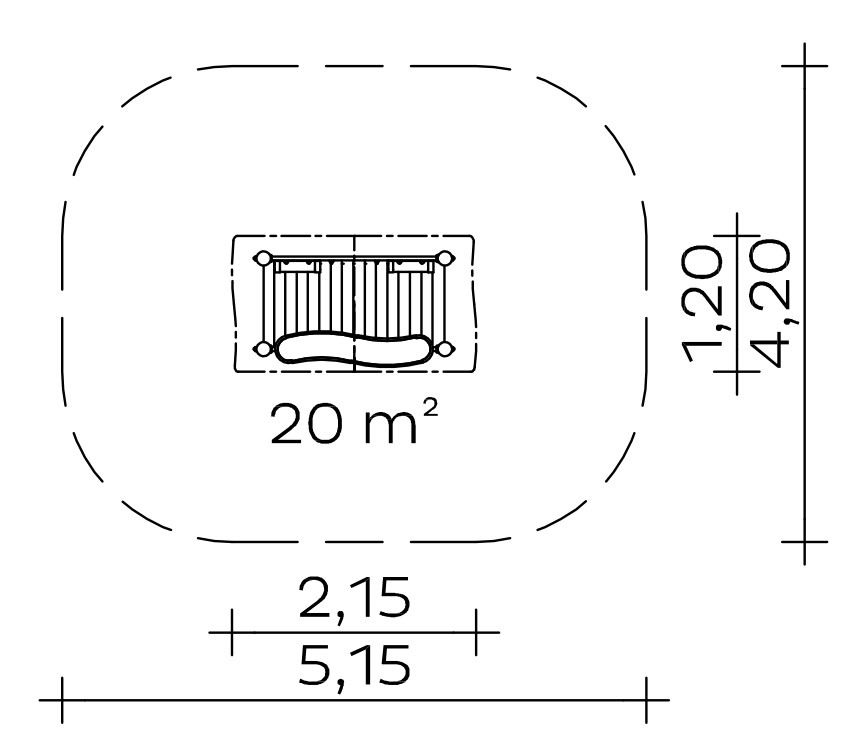

Base area: 1.20 x 2.15 m
Minimum space: 4.20 x 5.15 m (20 m²)
Total height: 2.65 m
Platform height: 0.20 m
Weight: 55 kg heaviest individual part
235 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Shelf made of robinia 45 x 100 mm, planed, bevelled and free of rotting knots, rear panel made of highly weather-resistant HPL laminate, 15 mm
- Gable roof, pitch: 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Counter, wave-shaped, made of highly weather-resistant HPL laminate, 20 mm
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
4 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.26 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
0,80 m
Suitable for
Children from 2 years,
public playgrounds etc.
Social activities
Item number: 020314500
This Kaiser & Kühne product enables:
