The 3D model is for spatial reference only. The colours may not match the selected variant.

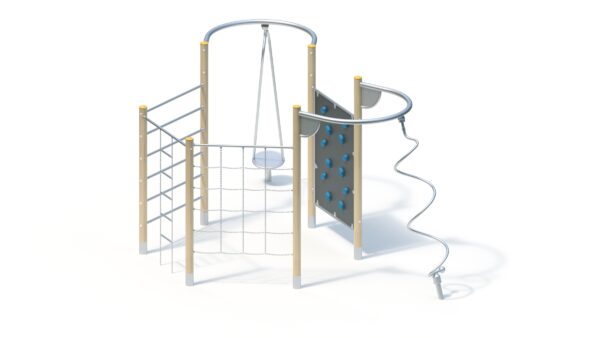

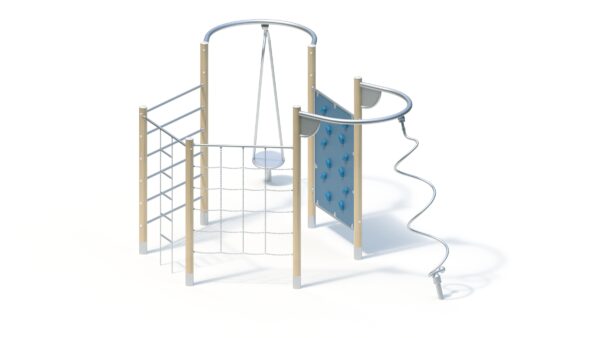

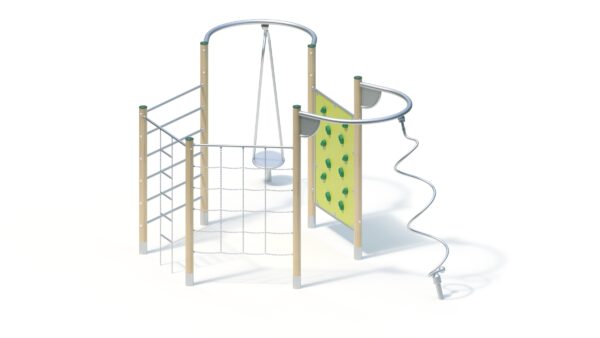

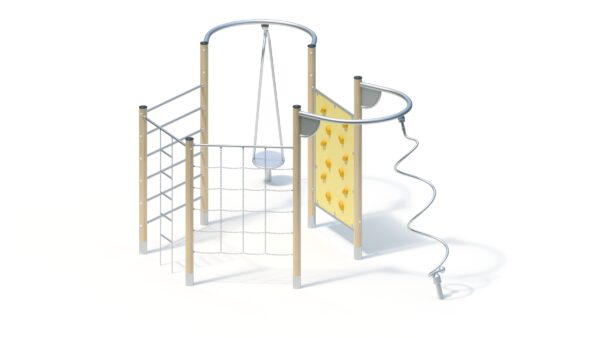

Hexagonal combination
Select variant:
The most important information
| Age group ? | 6+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 10 people |
| Activities ? | Physical activity, Climbing, Physical activity |
Technical data
| Minimum space length ? | 10,10 m |
|---|---|
| Minimum space width ? | 8,48 m |
| Minimum space height ? | 0,00 m |
| Equipment length ? | 5,46 m |
| Equipment width ? | 4,80 m |
| Equipment height ? | 2,87 m |
| Free-fall height ? | 2,81 m |
| Platform heights | - |
| Total weight ? | 537.00 kg |
| Heaviest single part ? | 100.00 kg |
Assembly & Foundations
| Assembly time ? | 6,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 6 (0.4m x 0.4m x 0.4m) Quantity: 2 (0.6m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data

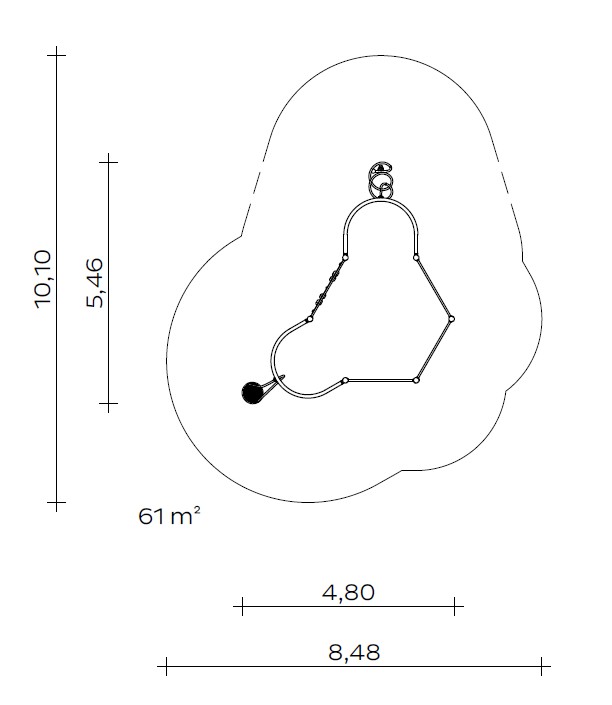

Total height: 2.87 m
Floor area: 5.46 x 4.80 m
Impact area: 10.10 x 8.48 m (61m²)
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Attachments
- Big Tornado with stainless steel pipe bend, Ø 60.3 x 3 mm, and spiral-shaped construction made of stainless steel pipe with knurled base; anti-friction bearings, protected from dirt; foundation anchor made of hot-dip galvanised steel
- Big Hurricane made of welded stainless steel tube bend, Ø 60.3 x 3 mm; welded, twisted construction made of stainless steel tube, rotating base made of profiled stainless steel sheet; anti-friction bearings, protected from dirt; foundation anchor made of hot-dip galvanised steel
- Horizontal bar 1.60 m with chain ladder with stainless steel rungs
- Stainless steel chain mesh with connection to ES120 uprights
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, frame made of stainless steel tube, with free climbing elements attached on both sides
- Stainless steel tube horizontal bar, Ø 38 x 2.5 mm, torsion-resistant
General note
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations
6 pcs. 0.40 x 0.40 x 0.40 m
2 pcs. 0.60 x 0.60 x 0.50 m
Assembly time
2 fitters 6 hours each, plus lifting gear
(without foundation)
Free fall height
2,81 m
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Each of our units is manufactured in accordance with the highest quality standards and the currently valid EN 1176. This model serves as an inspirational suggestion and can be designed with posts made of laminated robinia wood or stainless steel on request. The colour design is flexible and can be individually adapted to your wishes.
Item number: L755365028
