Technical data
Total height: 3.61 m

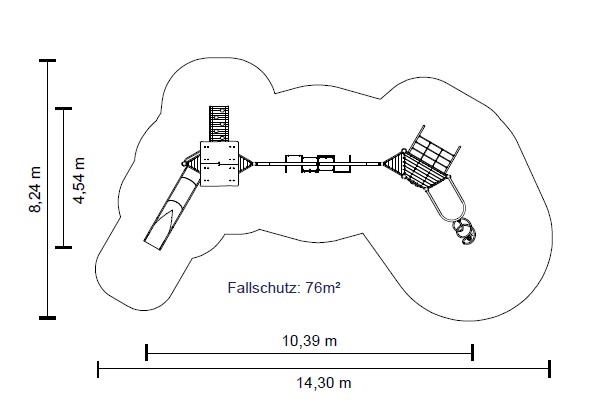

Floor area: 4.54 x 10.39 m
Impact area: 8.24 x 14.30m (71 m²)
Platform height: 1.20 / 1.40 / 1.60 m
Slide attachment height: 1.20m
Seat height: 1.30 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm

Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.

Platforms
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.

Attachments
- Big Tornado with stainless steel pipe bend, Ø 60.3 x 3 mm, and spiral-shaped construction made of stainless steel pipe with knurled base; anti-friction bearings, protected from dirt; foundation anchor made of hot-dip galvanised steel
- Boarding net made of Hercules rope on stainless steel frame
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, fastened between stainless steel tubes, with free climbing elements attached on one side
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
- Climbing rung (cranked) made of stainless steel tube, Ø 33.7 x 2 mm
- Panel balustrade made of highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm, round window opening Ø 260 mm with polycarbonate pane
- Gable roof, with round eaves, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Double step railing made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Access railing, roll-preventing, welded construction made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube with bent, vertically arranged support tubes
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
-Climbing Cube with stainless steel tube bend element Ø 76.1 x 3.6 mm, polypropylene rope net with galvanised steel insert Ø 16 mm, rubber mats 8 mm and stainless steel chain fastenings Ø 7 mm.

Slide information
When planning, please bear in mind that stainless steel slides should be orientated accordingly due to possible heating of the slide surface: north-east in the northern hemisphere and south-east in the southern hemisphere. Alternatively, they should be placed in the partial shade of trees.

General note
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.

Foundations
11 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.60 x 0.60 x 0.50 m
2 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.40 x 1.25 x 0.40 m

Assembly time
2 fitters 10 hours each, plus lifting gear
(without foundation)
Free fall height
Not specified in knowledge base
Slide: The free fall height and the extent of the impact area are determined by the vertical distance between the bottom edge of the slide and the top edge of the terrain.
The impact surface in the slip area must be fitted with a floor material that fulfils the requirements of Table 4 (see EN 1176-1). If a different material is to be used, its shock-absorbing properties must be verified by testing in accordance with EN 1177. The floor surface surrounding the run-out section of the slide must fulfil the requirements for a critical fall height of at least 1000 mm (see EN 1176-3).
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities

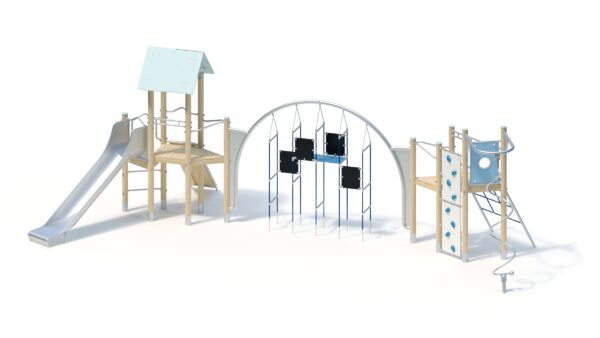

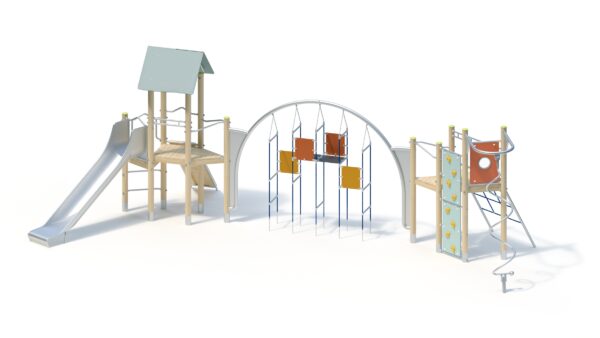

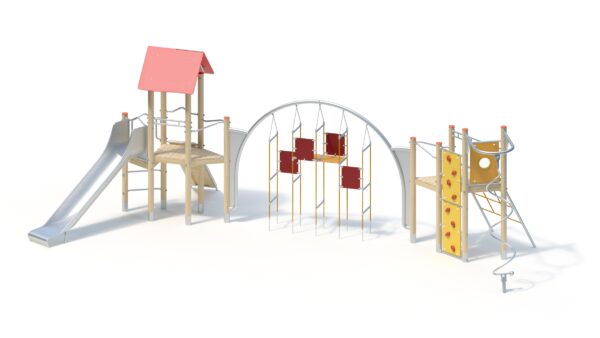

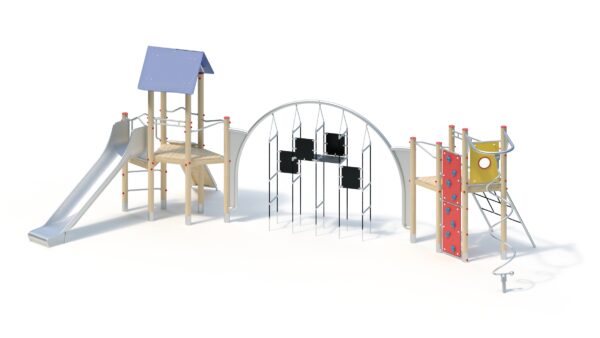

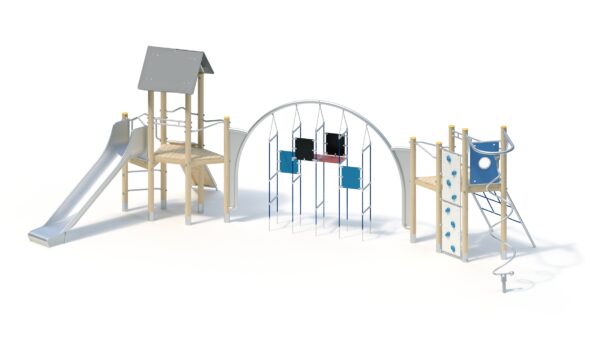

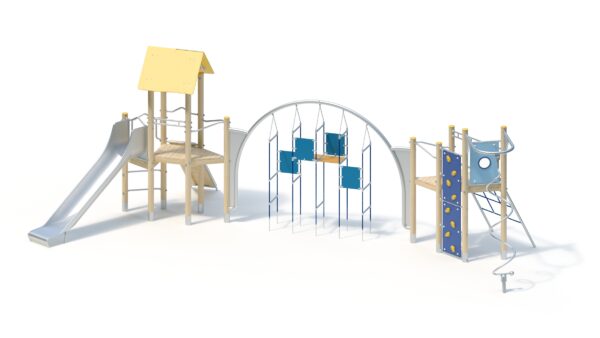

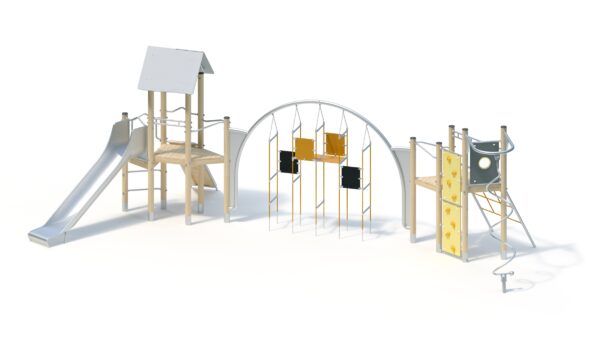

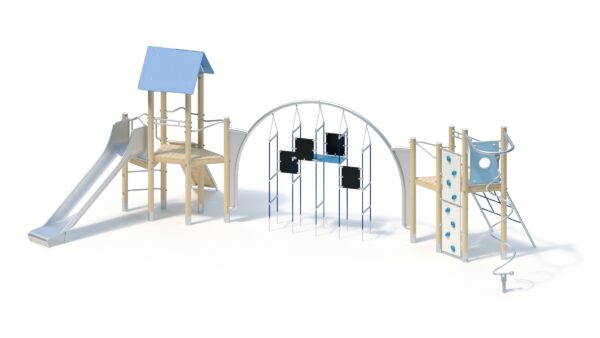

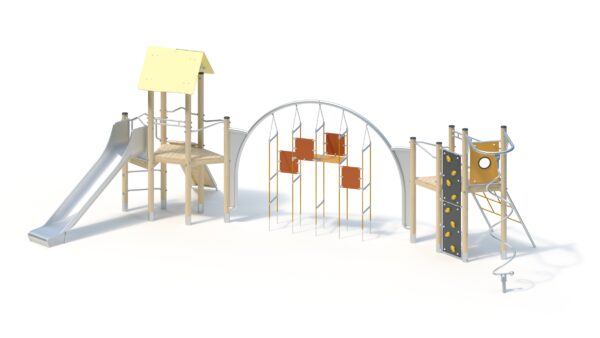

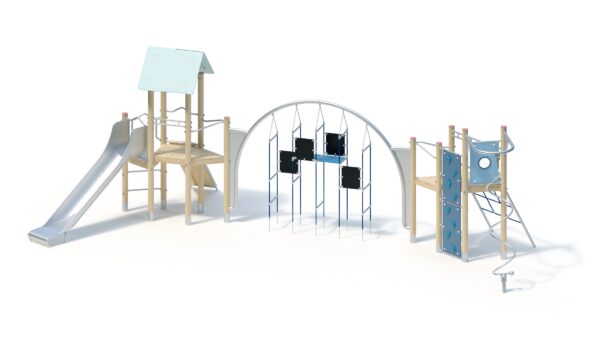

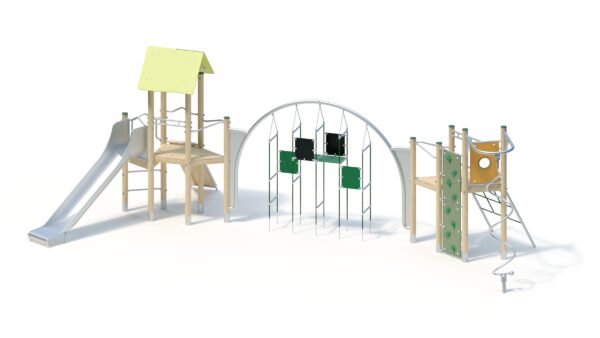

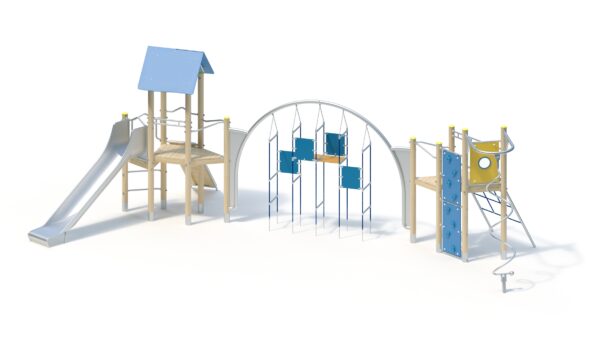

Each of our units is manufactured in accordance with the highest quality standards and the current EN 1176 standard, and this model serves as an inspirational suggestion and can be supplied with posts made of laminated robinia wood or stainless steel on request. The colour design is flexible and can be individually adapted to your wishes.

Item number: L755000073
