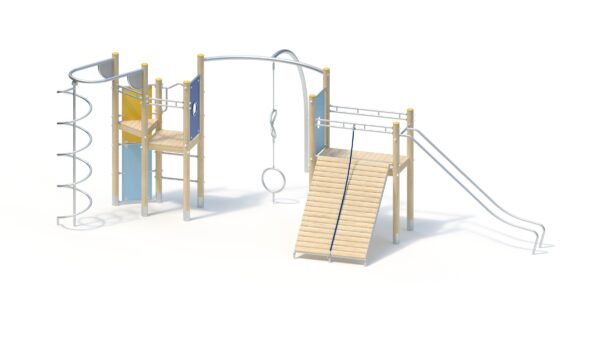

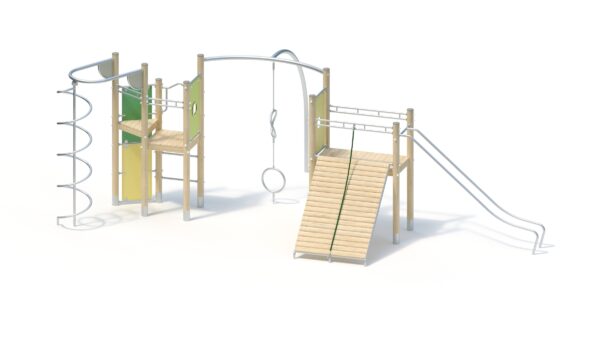

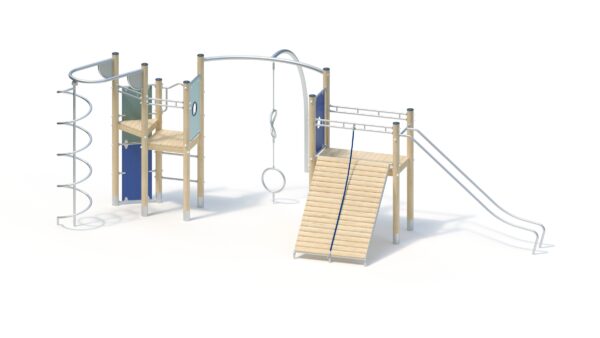

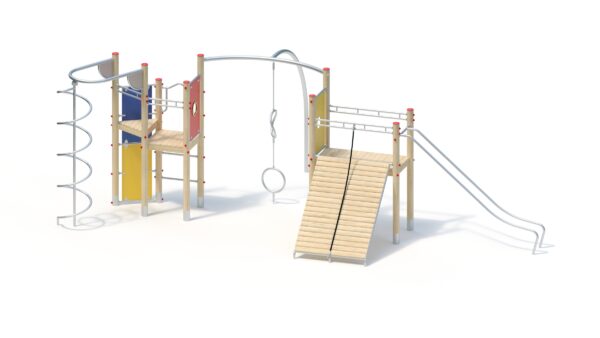

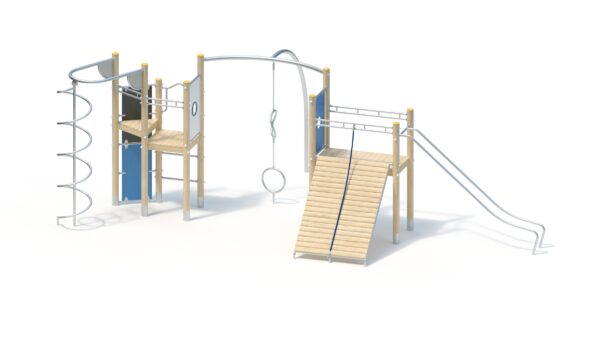

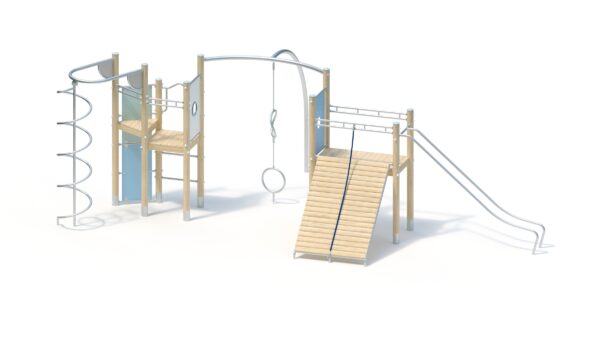

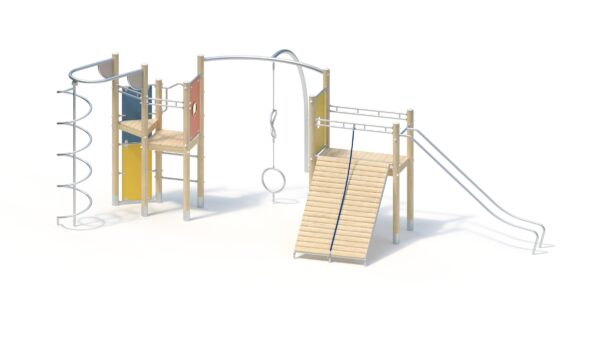

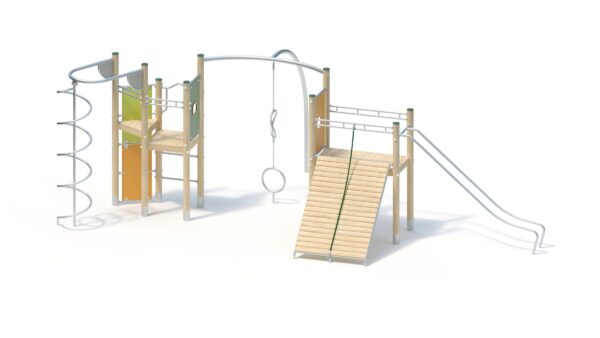

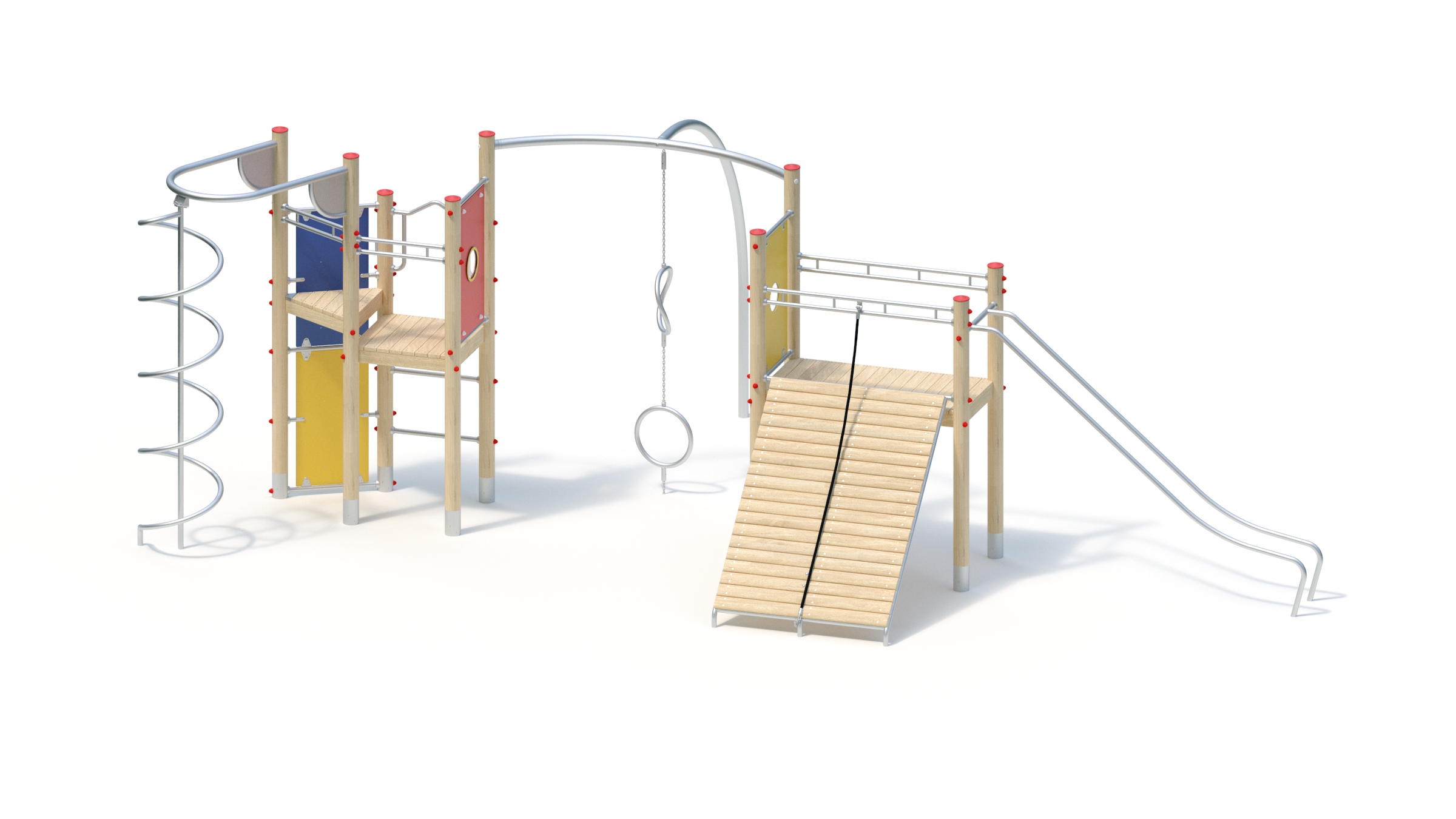

Climbing combination

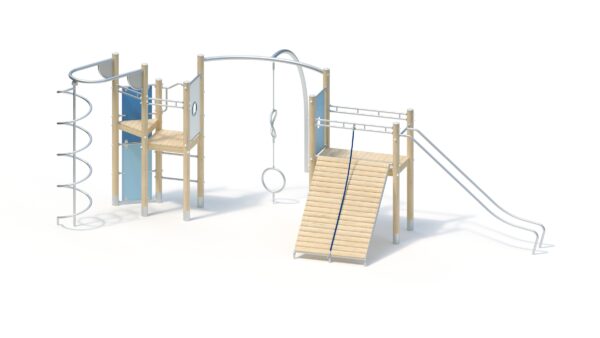

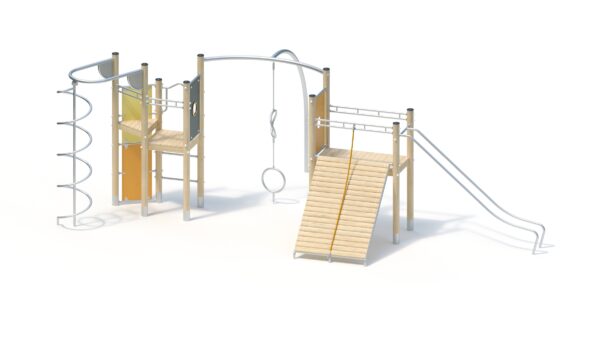

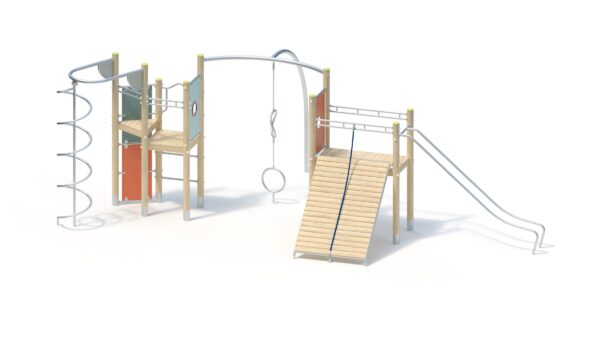

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 20 people |
| Activities ? | Physical activity, Climbing, Slide |
Technical data
| Minimum space length ? | 12,57 m |
|---|---|
| Minimum space width ? | 8,24 m |
| Minimum space height ? | 3,70 m |
| Equipment length ? | 8,79 m |
| Equipment width ? | 4,71 m |
| Equipment height ? | 2,90 m |
| Free-fall height ? | 2.84m |
| Platform heights | - |
| Total weight ? | 828.00 kg |
| Heaviest single part ? | 103.00 kg |
Assembly & Foundations
| Assembly time ? | 8,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 9 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.6m x 0.3m x 0.3m) Quantity: 3 (0.3m x 0.3m x 0.4m) Quantity: 1 (0.5m x 0.5m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 2.92 m
Floor area: 4.71 x 8.79 m

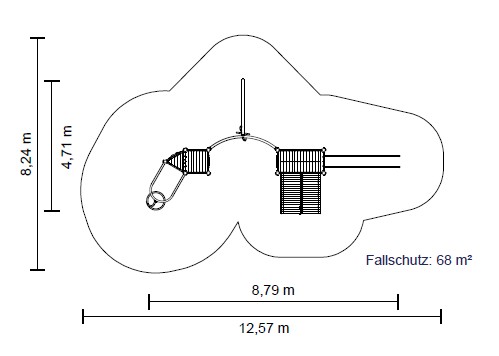

Impact area: 8.24 x 12.57m (68 m²)
Platform height: 1.40 / 1.60 m
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Platforms
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.
Attachments
- Stainless steel spring slide Ø 42.4 mm on stainless steel pipe bend Ø 60.3 x 3 mm
- Railing slide made of stainless steel tube 42.4 x 3.2 mm
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, fastened between stainless steel tubes, with free climbing elements attached on one side
- Climbing rung made of stainless steel tube, Ø 38 mm, torsion-resistant
- Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Hercules climbing rope.
- Panel balustrade made of highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm, round window opening Ø 260 mm with polycarbonate pane
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Access railing, roll-preventing, welded construction made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube with bent, vertically arranged support tubes
- Monkey Rings with tube bend element made of stainless steel Ø 76.1 x 3.6 mm and ring combination made of stainless steel tube Ø 38 mm, freely rotating on stainless steel chains Ø 7 mm suspended with swivel and floor fastening on foundation tube Ø 38 x 2 mm.
General note
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations
9 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.30 x 0.60 x 0.30 m
3 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.50 x 0.50 x 0.40 m
Assembly time
2 fitters 8 hours each, plus lifting gear
(without foundation)
Free fall height
2.84m
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: L755000071
