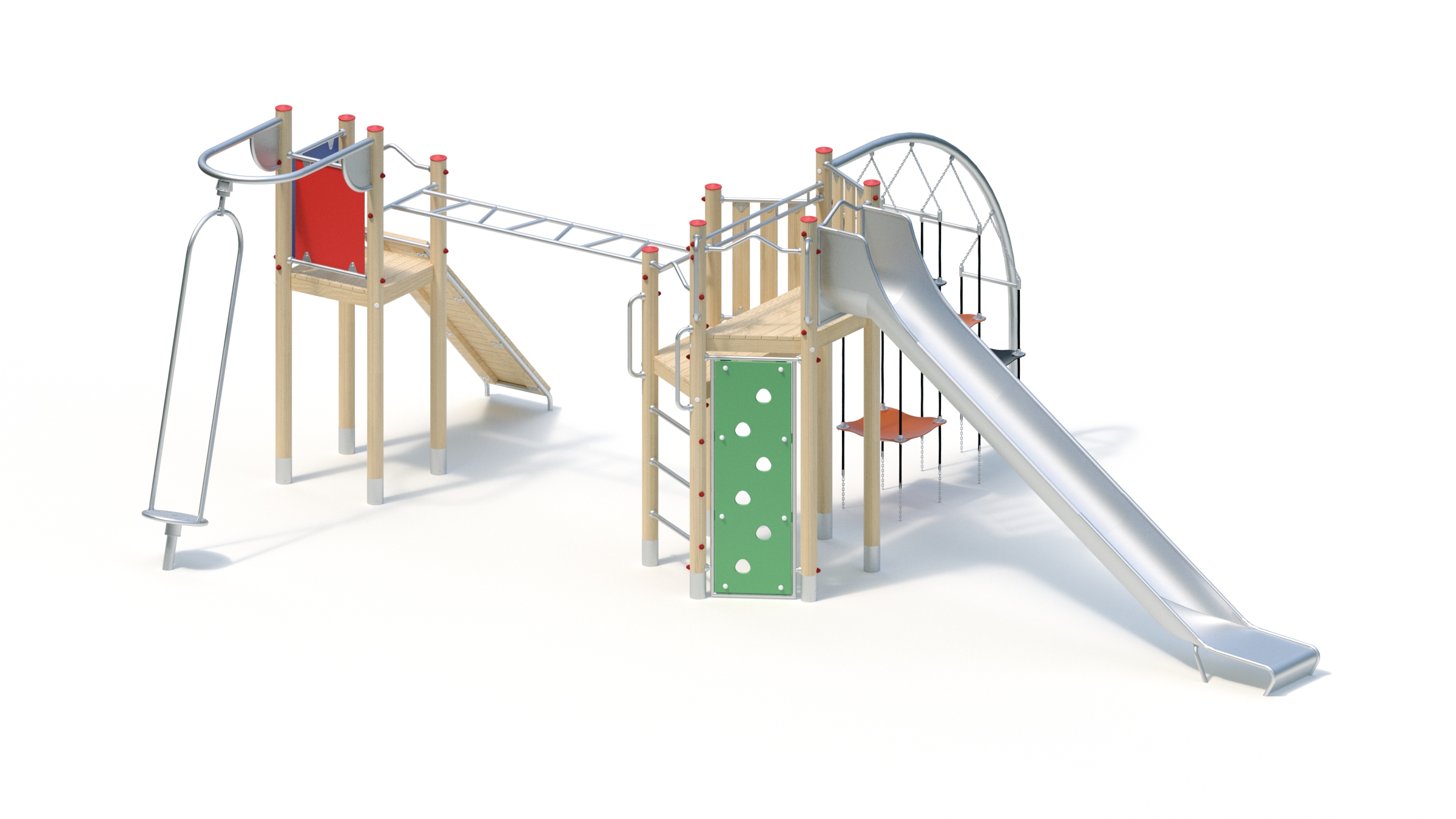

Technical data
Total height: 2.98 m

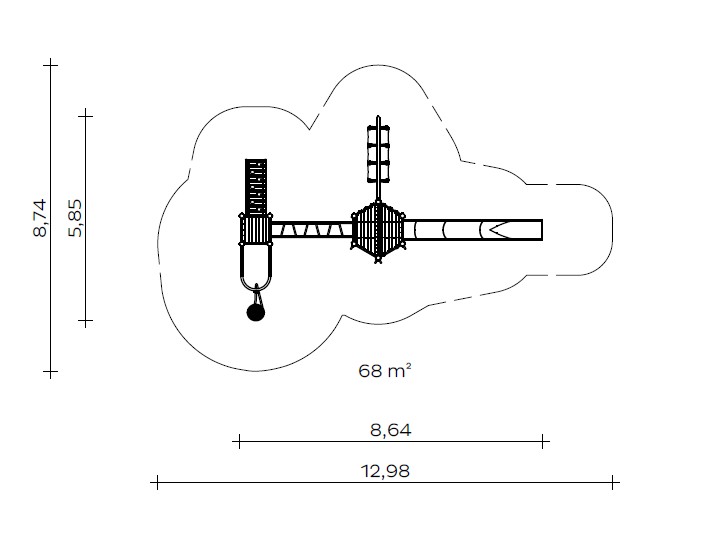

Floor area: 5.85 x 8.64 m
Impact area: 8.74 x 12.98 m (68 m²)
Platform height: 1.60 m /2.00 m
Slide attachment height: 2.00 m
Seat height: 2.10 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm

Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.

Platforms
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.

Attachments
-climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
Climbing rung made of stainless steel tube, Ø 38 mm, torsion-resistant
-Panel balustrade made of coloured, highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm
Railing, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
-Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
-Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
-Wooden balustrade made of robinia, 125 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
-Hanger ladder, horizontal, made of stainless steel tube, 38 x 2.5/33.7 x 2 mm
-Climbing wall made of highly weather-resistant HPL laminate, 20 mm, frame made of stainless steel tube, 6 climbing openings.
-Flying Carpet with stainless steel tube bend element Ø 76.1 x 3.6 mm, polypropylene rope net with galvanised steel insert Ø 16 mm, rubber mats 8 mm and stainless steel chain fastenings Ø 7 mm on foundation tube Ø 38 x 2 mm.
-Big Hurricane with stainless steel pipe bend, Ø 60.3 x 3 mm; welded, twisted construction made of stainless steel pipe, rotating base made of profiled stainless steel sheet; anti-friction bearings, protected from dirt; foundation anchor made of hot-dip galvanised steel
Slide information
When planning, please bear in mind that stainless steel slides should be orientated accordingly due to possible heating of the slide surface: north-east in the northern hemisphere and south-east in the southern hemisphere. Alternatively, they should be placed in the partial shade of trees.

General note
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations
10 pieces 0.40 x 0.40 x 0.40 m
2 pieces 0.30 x 0.30 x 0.40 m
1 piece 0.50 x 0.50 x 0.40 m
1 piece 0.60 x 0.60 x 0.50 m
1 piece 0.40 x 1.25 x 0.40 m

Assembly time
2 fitters 8 hours each, plus lifting gear
(without foundation)

Free fall height
2.84m
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities

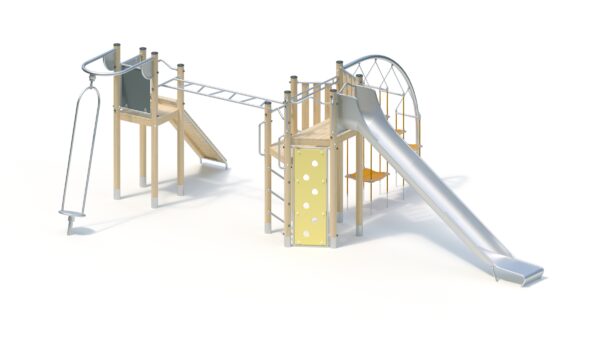

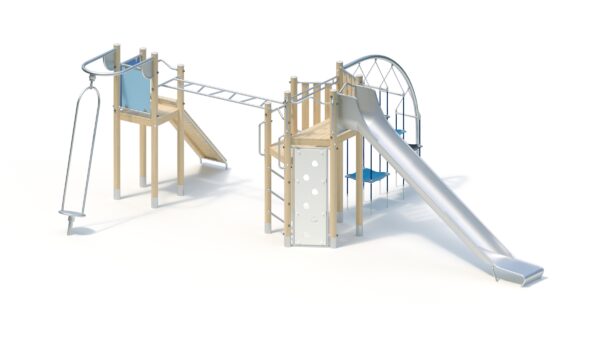

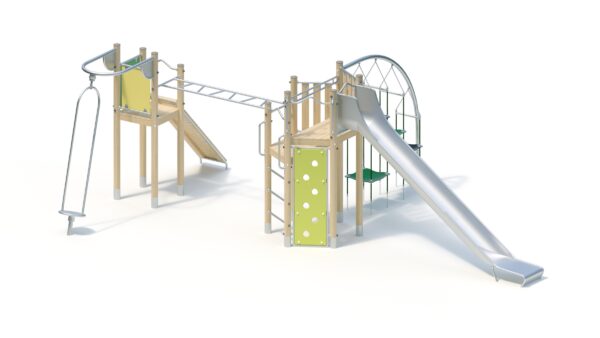

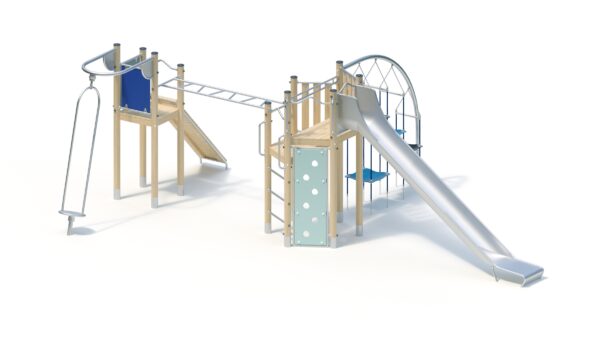

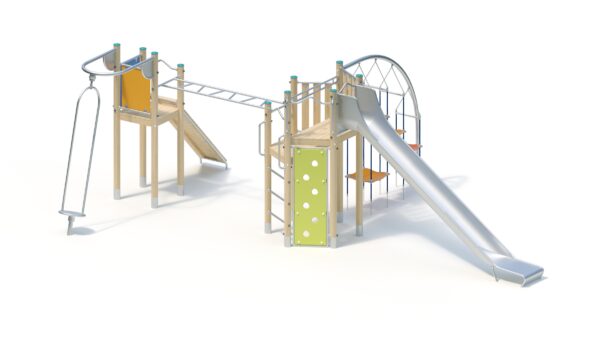

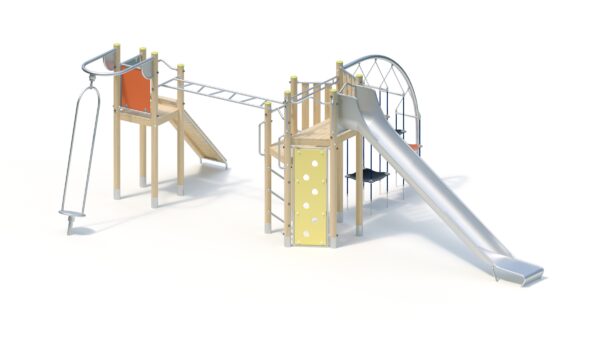

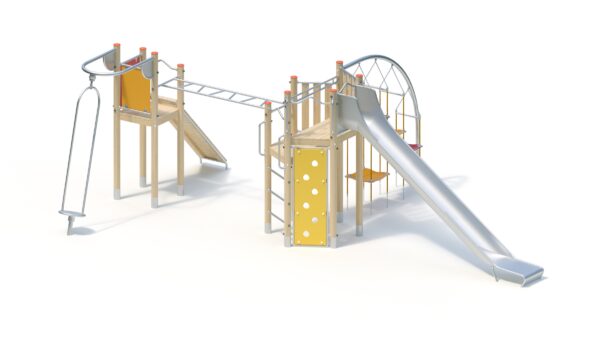

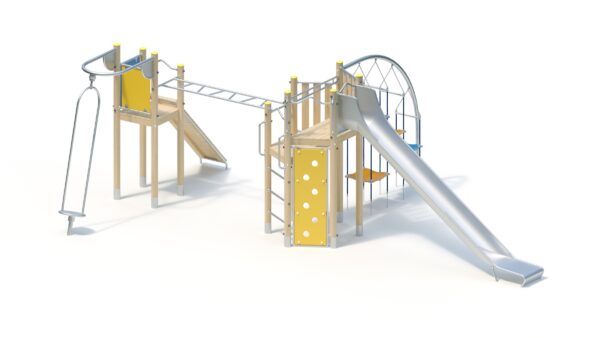

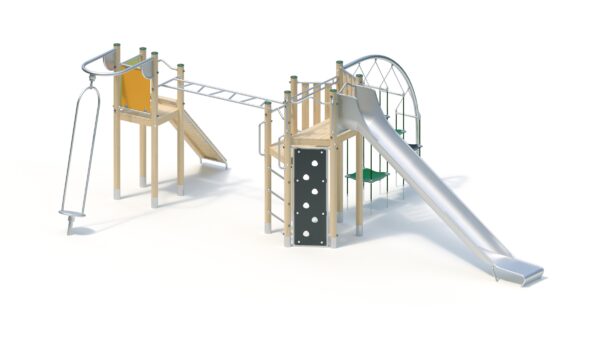

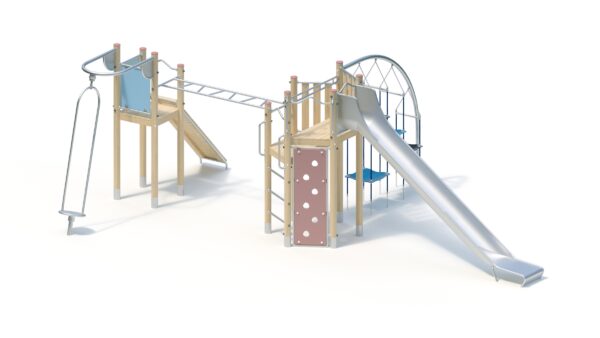

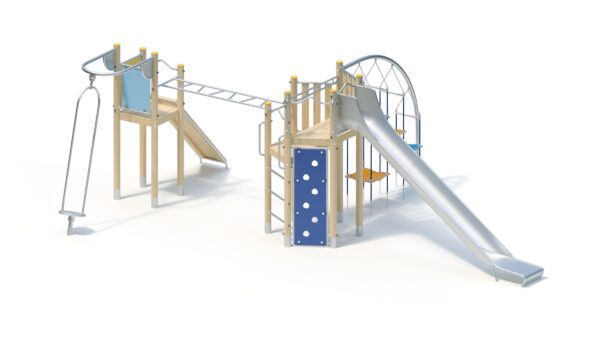

Each of our units is manufactured in accordance with the highest quality standards and the currently valid EN 1176. This model serves as an inspirational suggestion and can be designed with posts made of laminated robinia wood or stainless steel on request. The colour design is flexible and can be individually adapted to your wishes.

Item number: L722530003
