Das 3D-Modell dient der räumlichen Ansicht. Die Farben entsprechen nicht der gewählten Variante.
Play structure

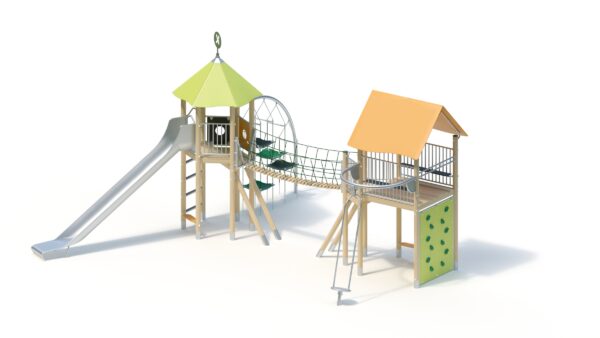

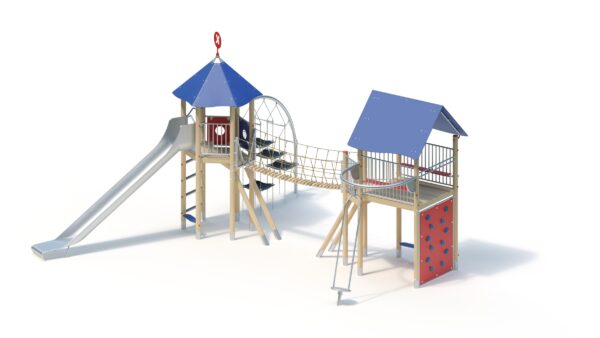

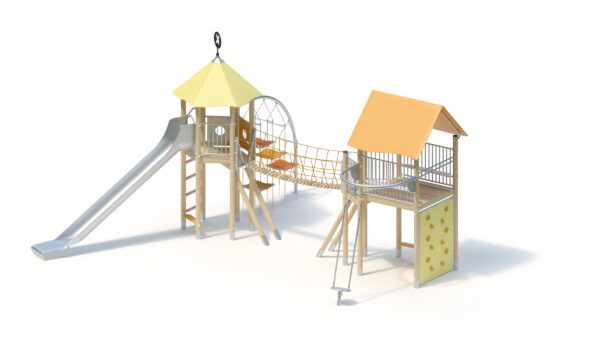

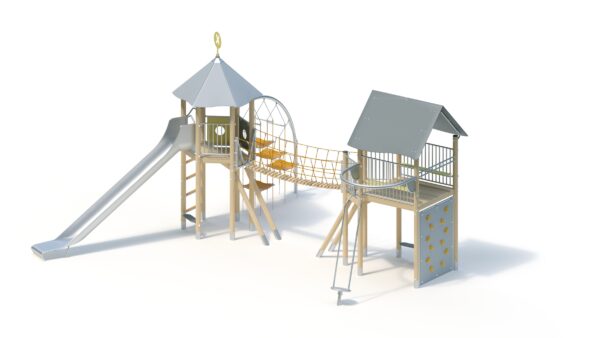

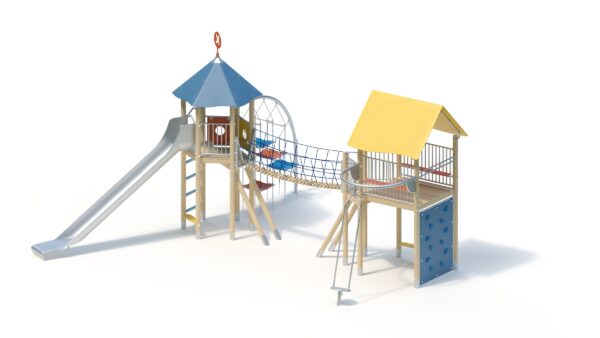

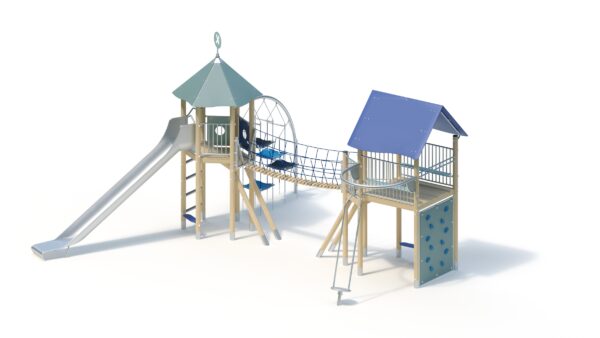

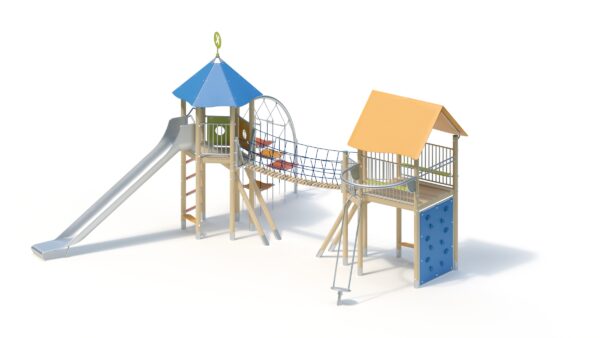

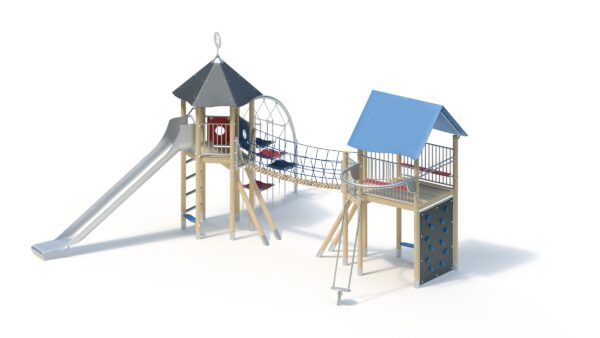

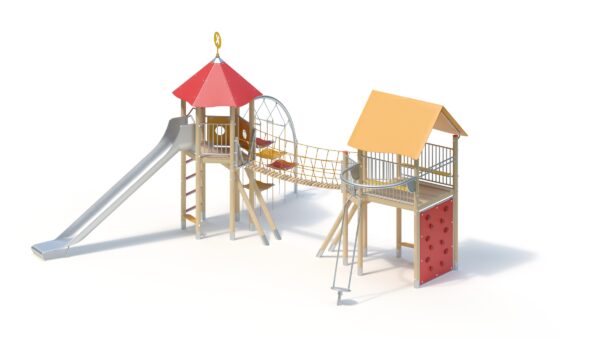

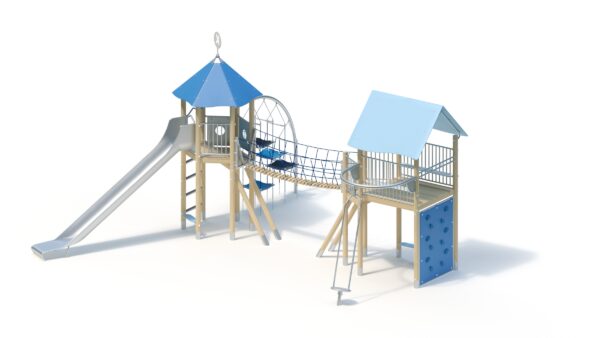

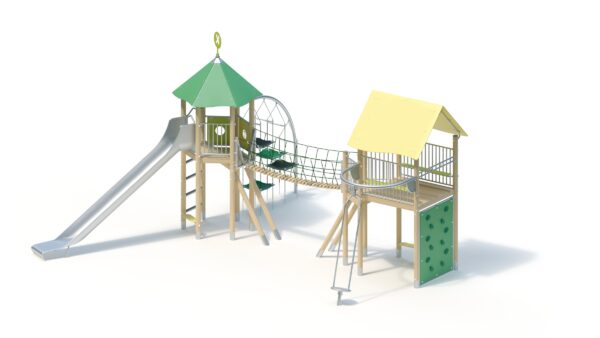

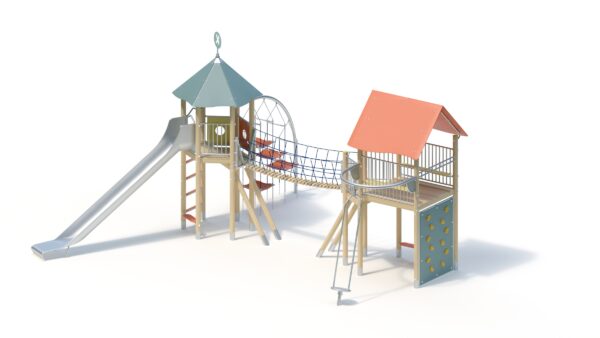

Variante wählen:
The most important information
| Altersgruppe ? | 5+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 30 Personen |
| Aktivitäten ? | Physical activity |
Technical data

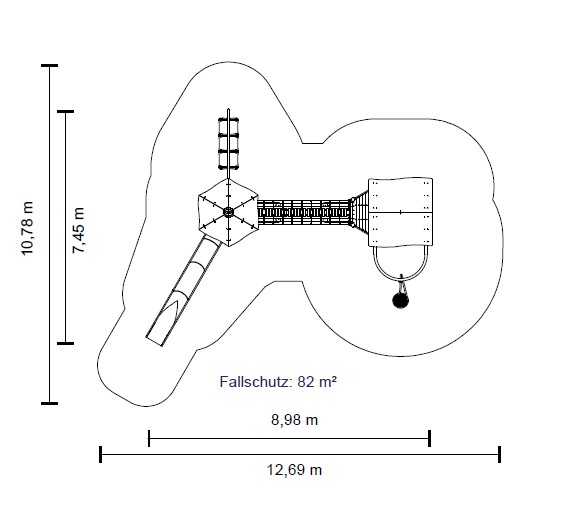

| Mindestraumlänge ? | 10,78 m |
|---|---|
| Mindestraumbreite ? | 12,69 m |
| Mindestraumhöhe ? | 4,87 m |
| Gerätelänge ? | 7,45 m |
| Gerätebreite ? | 8,98 m |
| Gerätehöhe ? | 4,87 m |
| Freie Fallhöhe ? | 2,83 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 1880.00 kg |
| Schwerstes Einzelteil ? | 123.00 kg |
Assembly & Foundations
| Montagezeit ? | 10,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 13 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.4m x 0.75m x 0.4m) Quantity: 2 (1m x 0.6m x 0.5m) Quantity: 1 (0.6m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data
Total height: 4.87 m
Floor area: 7.45 x 8.98 m
Minimum space: 10.78 x 12.69 m
Platform height: 1.80/2.00 m
Slide attachment height: 1.80 m
Seat height: 1.90 m
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floors
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Access railing, roll-preventing, made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube and balustrade tubes arranged vertically on both sides
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Panelled balustrade made of highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm, round window opening
Ø 260 mm with polycarbonate disc
- Footbridge: V-shaped net construction made of Forta-Herkules rope, walkway made of wooden rungs with approx. 40 mm clear rung spacing, attached to steel frame construction, parapet height approx. 0.75 m
- Support post made of robinia plywood Ø 120 mm with tubular base made of stainless steel
- Seat made of highly weather-resistant HPL laminate, 20 mm
- Stainless steel step with EPDM coating
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, frame made of stainless steel tube, with free climbing elements attached on one side
- Big Hurricane made of welded stainless steel tube bend, Ø 60.3 x 3 mm; welded, twisted construction made of stainless steel tube, rotating base made of profiled stainless steel sheet; anti-friction bearings, protected from dirt; foundation anchor made of hot-dip galvanised steel
- Flying Carpet with stainless steel pipe bend, Ø 76.1 x 3.6 mm, stainless steel chain connection Ø 34 x 37 mm; polypropylene rope Ø 16 mm, 6-strand, with galvanised steel insert; elastic mat element made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, with wind chimes, attachment to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Each of our units is manufactured in accordance with the highest quality standards and the current EN 1176 standard, and this model serves as an inspirational suggestion and can be supplied with posts made of laminated robinia wood or stainless steel on request. The colour design is flexible and can be individually adapted to your wishes.
Foundations (client-provided)
13 pieces, 0.40 x 0.40 x 0.40 m
1 piece, 0.40 x 0.75 x 0.40 m
2 pieces, 0.60 x 1.00 x 0.50 m
1 piece 0.60 x 0.60 x 0.50 m
Assembly time
2 fitters 10 hours each + hoist
(without foundation)
Free fall height
2,83 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities
Item number: L722166025
