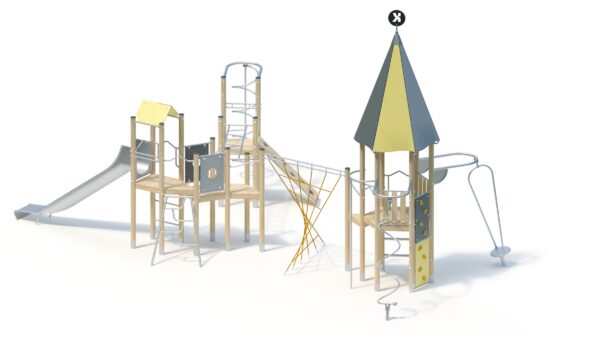

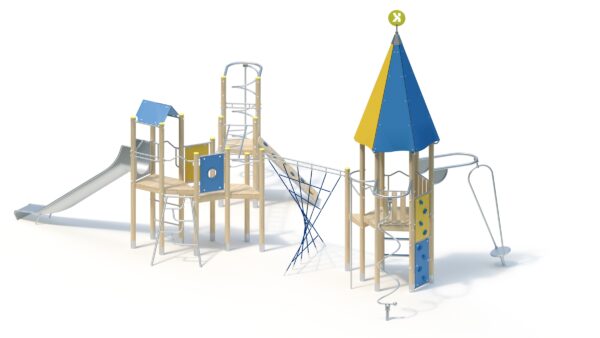

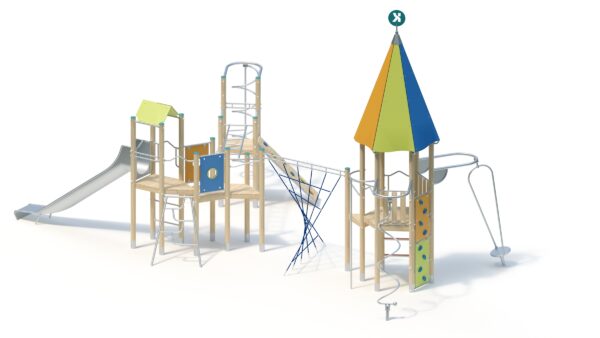

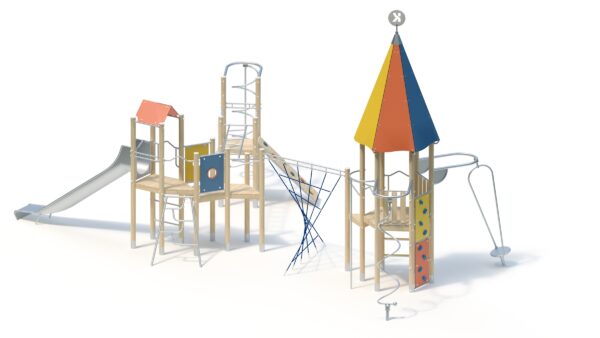

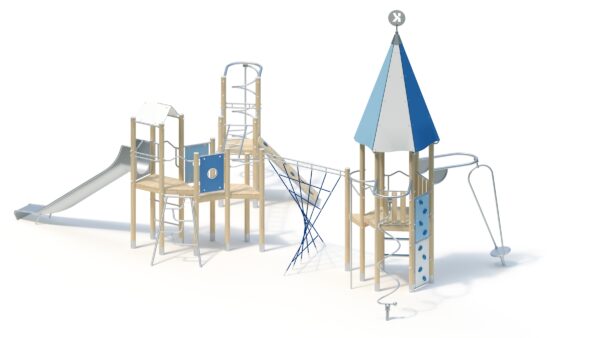

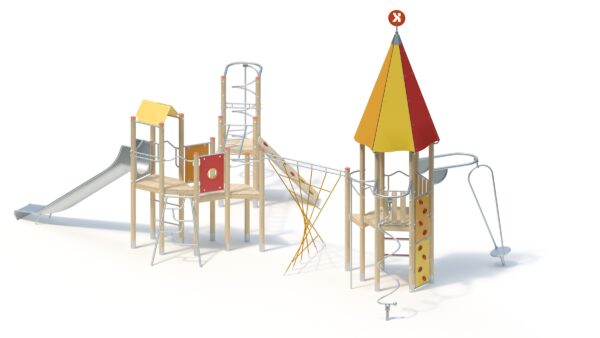

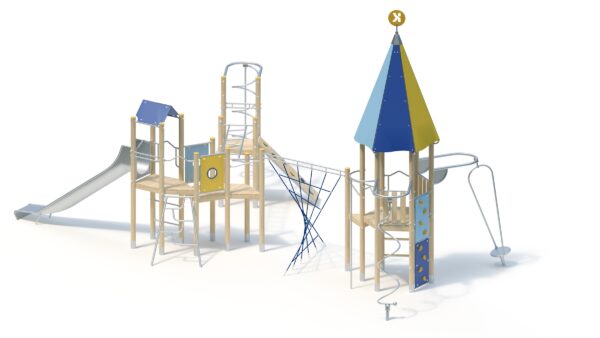

The 3D model is for spatial reference only. The colours may not match the selected variant.

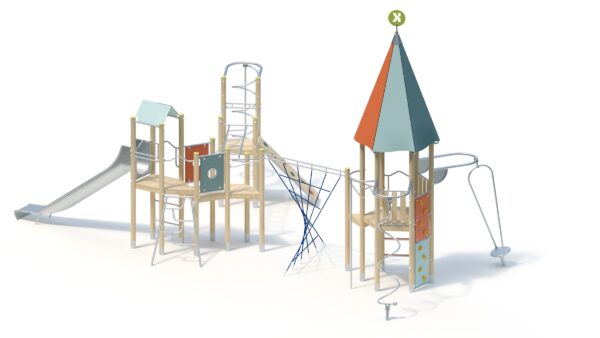

Play structure

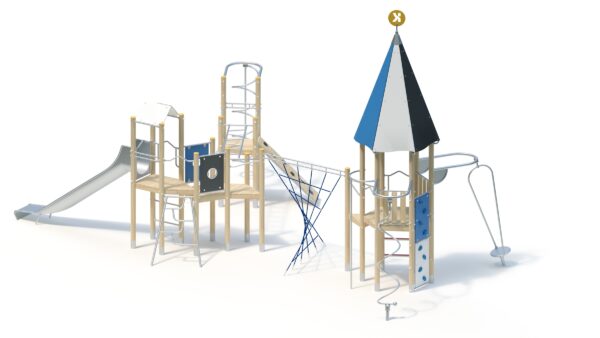

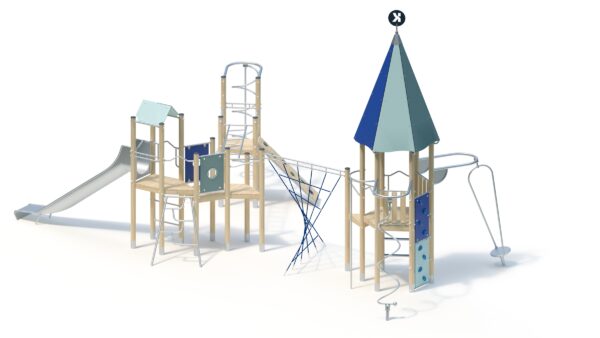

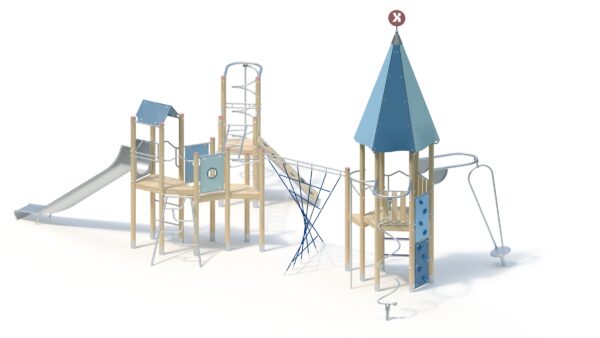

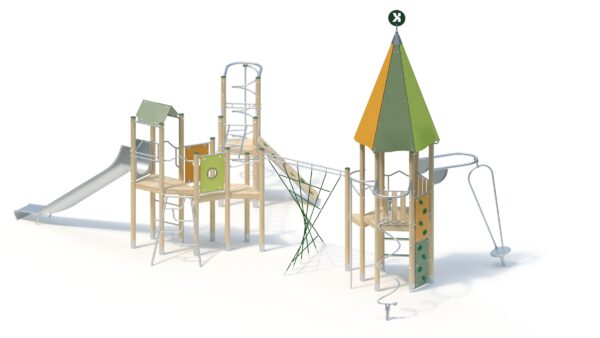

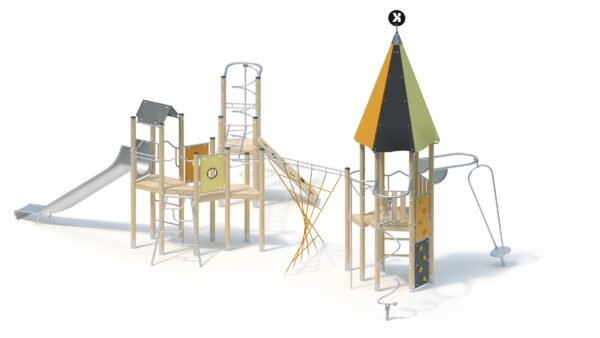

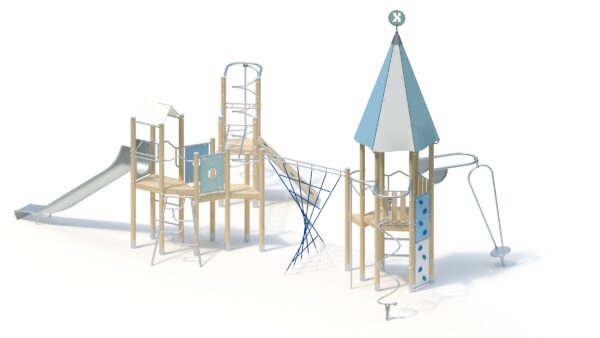

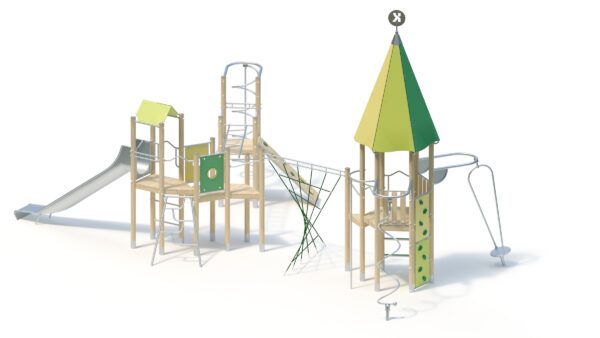

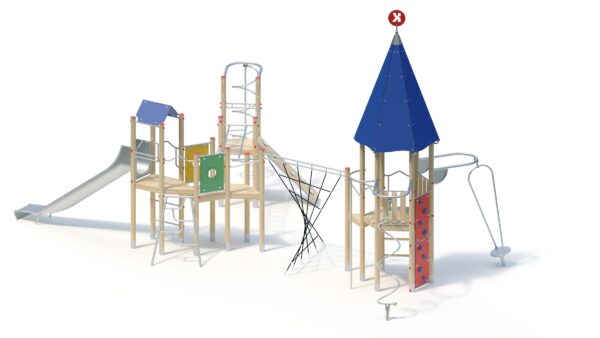

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 40 people |
| Activities ? | Physical activity, Climbing, Slide |
Technical data

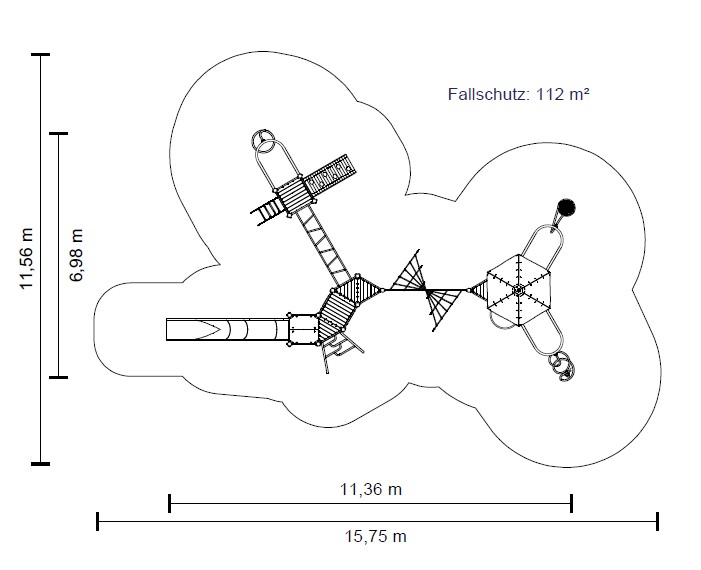

| Minimum space length ? | 15,75 m |
|---|---|
| Minimum space width ? | 11,56 m |
| Minimum space height ? | 0,00 m |
| Equipment length ? | 11,36 m |
| Equipment width ? | 6,98 m |
| Equipment height ? | 6,64 m |
| Free-fall height ? | 2,80 m |
| Platform heights | - |
| Total weight ? | 2034.00 kg |
| Heaviest single part ? | 182.00 kg |
Assembly & Foundations
| Assembly time ? | 20,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 20 (0.4m x 0.4m x 0.4m) Quantity: 5 (0.3m x 0.3m x 0.4m) Quantity: 1 (0.6m x 0.6m x 0.4m) Quantity: 2 (0.6m x 0.6m x 0.5m) Quantity: 1 (0.4m x 0.75m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 6.64 m
Floor area: 6.98 x 11.36 m
Minimum space: 11.56 x 15.75 m
Platform heights: 1.40/1.60 m
Slide attachment height: 1.60 m
Seat height: 1.70 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps. Tubular base made of stainless steel for the foundation and elevation of robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.
Attachments
- Railing bracket to prevent rolling, made of stainless steel tube, Ø 33.7 x 2 mm
- Access railing, roll-preventing, made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube and balustrade tubes arranged vertically on both sides
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Panelled balustrade made of highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm, round window opening
Ø 260 mm with polycarbonate disc
- Climbing rung made of stainless steel tube, Ø 38 x 2.5 mm, twist-proof
- Stainless steel step with EPDM coating
- Chain ladder with stainless steel rungs
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
- Stainless steel spring slide Ø 42.4 mm on stainless steel pipe bend Ø 60.3 x 3 mm
- Horizontal hanging ladder, made of stainless steel tube, 38 x 2.5/33.7 x 2 mm
- Samba ladder made of stainless steel tube Ø 38 x 2 mm
- Climbing net made of Hercules rope on stainless steel crossbar, twisted through 90°
- Vertical climbing pole made of stainless steel tube Ø 38 x 2 mm
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, fastened between stainless steel tubes, with free climbing elements attached on one side
- Big Hurricane made of welded stainless steel tube bend, Ø 60.3 x 3 mm; welded, twisted construction made of stainless steel tube, rotating base made of profiled stainless steel sheet; anti-friction bearings, protected from dirt; foundation anchor made of hot-dip galvanised steel
- Big Tornado with stainless steel pipe bend, Ø 60.3 x 3 mm, and spiral-shaped construction made of stainless steel pipe with knurled base; anti-friction bearings, protected from dirt; foundation anchor made of hot-dip galvanised steel
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Tower roof, inclination 72°, made of highly weather-resistant HPL laminate, 13 mm, with stainless steel wind chimes
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
20 pcs. 0.40 x 0.40 x 0.40 m
5 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.60 x 0.60 x 0.40 m
2 pcs. 0.60 x 0.60 x 0.50 m
1 piece 0.40 x 0.75 x 0.40 m
Assembly time
2 fitters 20 hours each, plus lifting gear
(without foundation)
Free fall height
2,83 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities
Item number: L722000456
