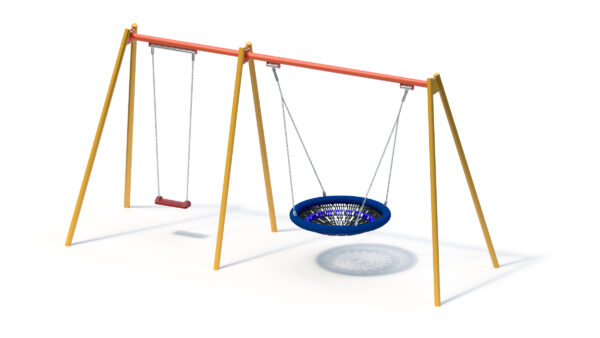

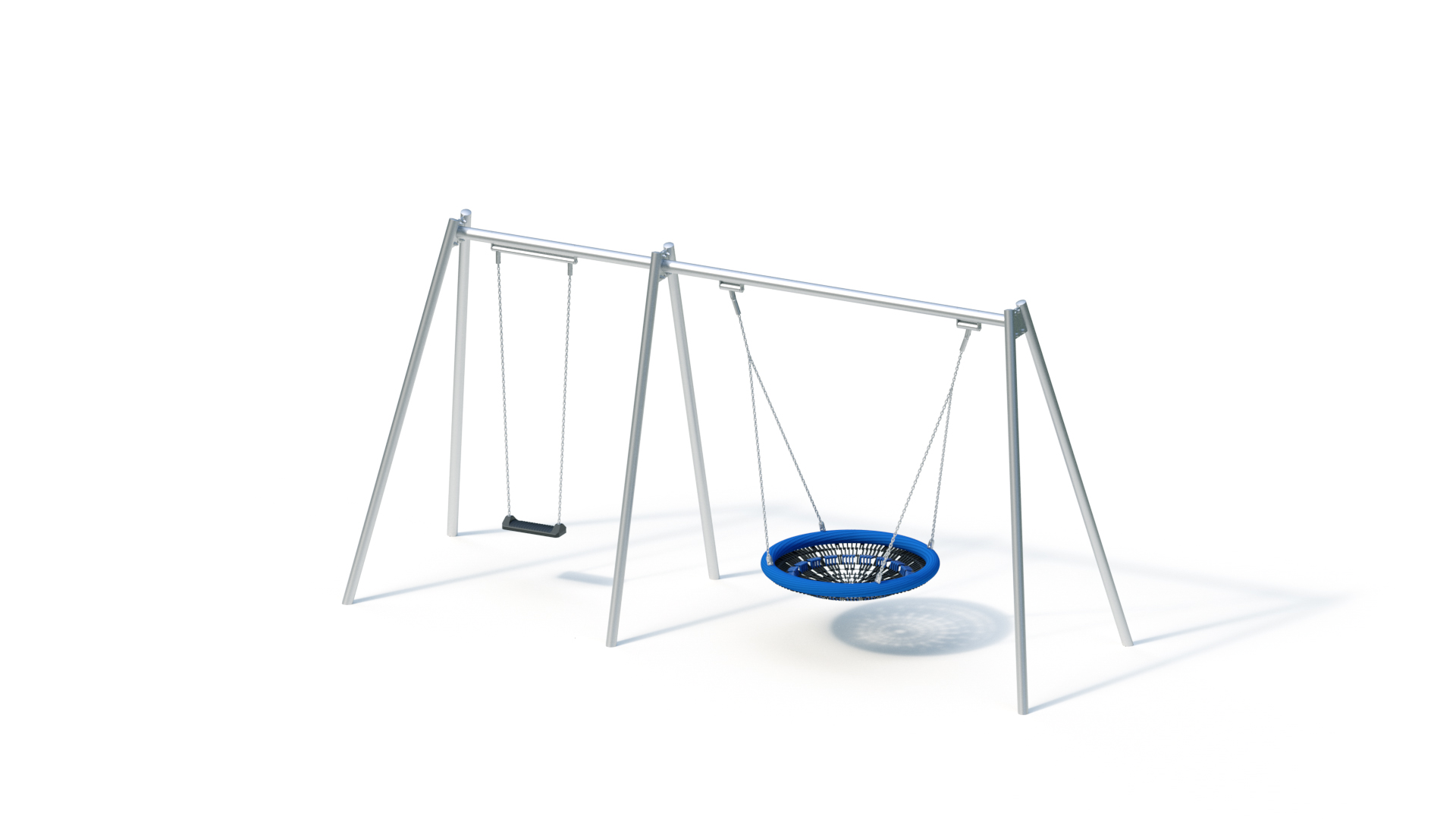

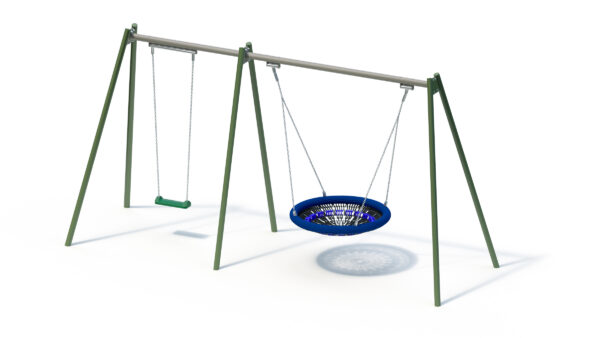

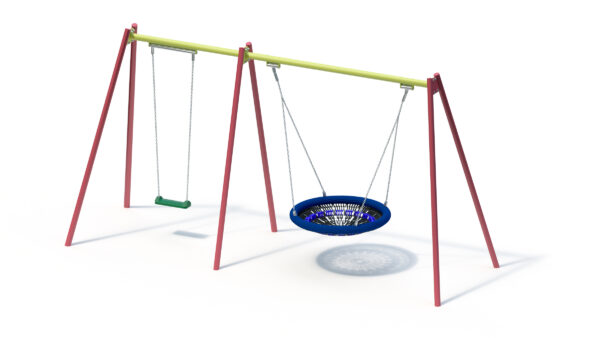

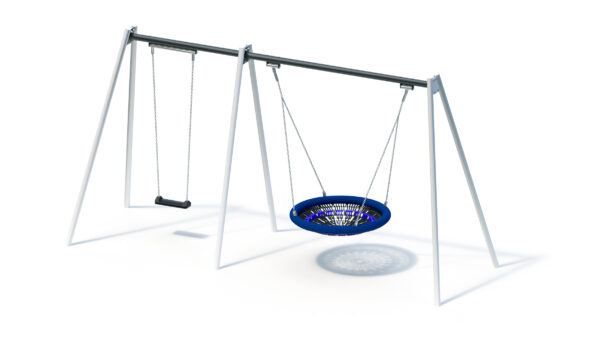

Stainless steel Swing combination (2,50)

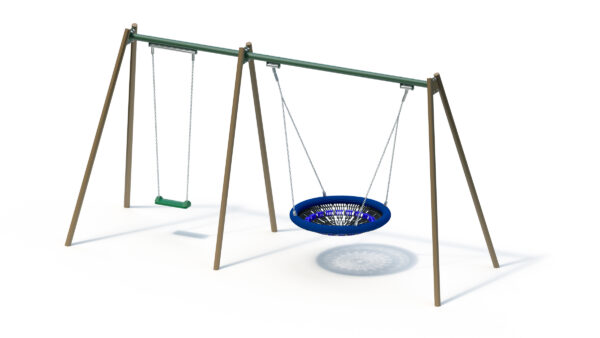

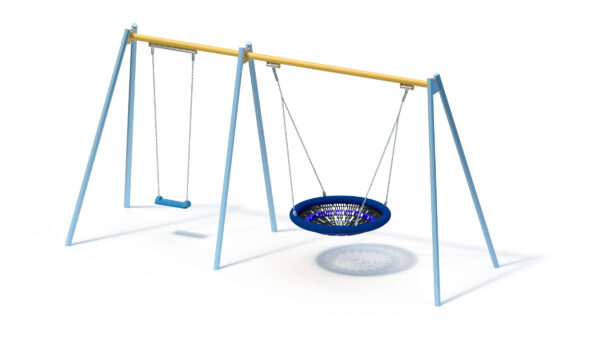

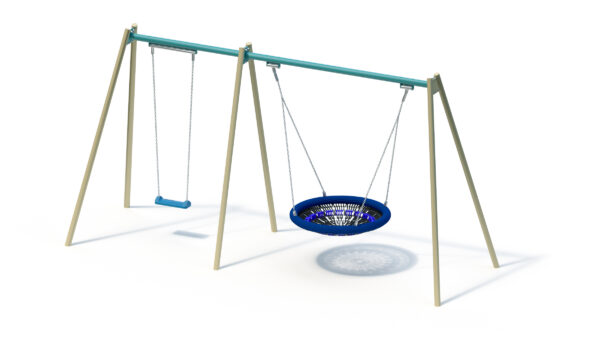

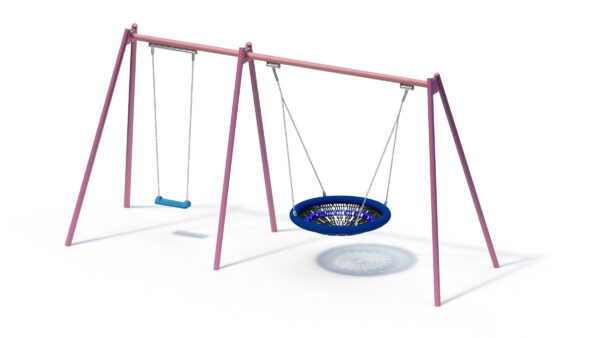

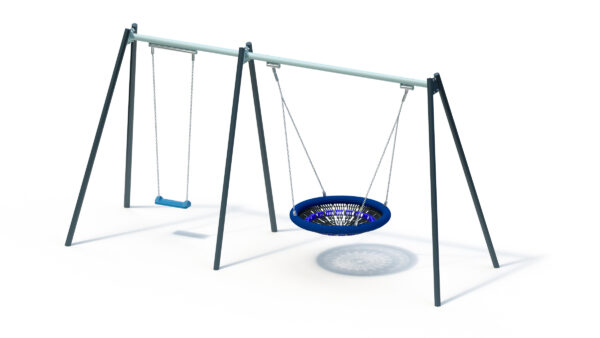

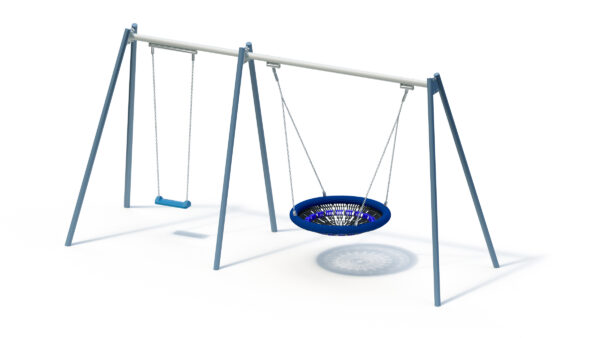

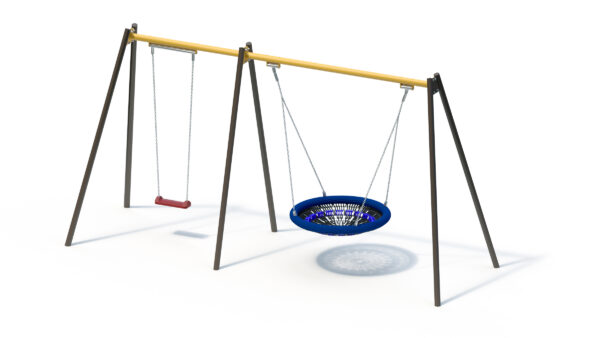

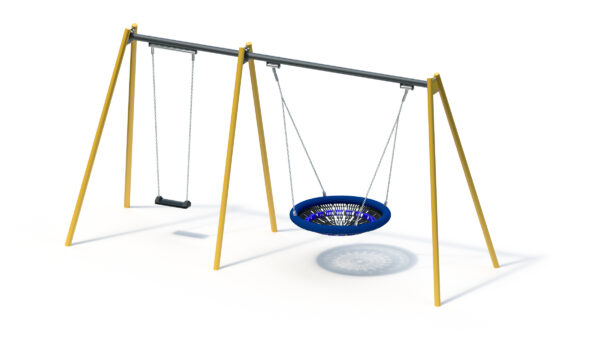

Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | - |
| Number of users ? | 7 persons |
| Activities ? | - |
Technical data
| Device length ? | 1,73 m |
|---|---|
| Device width ? | 5,39 m |
| Device height ? | 2,71 m |
| Free fall height ? | 1,59 m |
| Platform heights | - |
| Total weight ? | 250.00 kg |
| Heaviest single item ? | 5.00 kg |
| Minimum room length ? | 8,05 m |
| Minimum room width ? | 5,39 m |
| Minimum room height ? | 2,71 m |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 070x050x050 |
Product Downloads
Product description
Technical data
Floor area: 1.73 x 5.39 m
Minimum space: 8.05 x 5.39 m
Swing height: 2.50 m
Weight: 50 kg heaviest individual part
250 kg in total
- Swing supports made of stainless steel 1.4301, Ø 76.1 mm, wall thickness 2.9 mm; connection to swing support via connecting plates
- Swing support made of stainless steel 1.4301, Ø 88.9 mm, wall thickness 3.2 mm; connection to swing supports via connecting plates
- Swing axle made of stainless steel, consisting of internal bearing axle Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and plain bearings
- Trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated swivels on ball bearings to prevent the chains from knotting
- on the swing axle and on the swing seat/basket: chain attachment with stainless steel clamping adapter
- Safety swing seat made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- Two-part basket swing axle made of stainless steel with roller bearings, chain holder with plain bearing-mounted equalising universal joint including second device for securing the swing seat to prevent it from falling down if the main attachment fails
- Swinging basket with all-round cushioning made of PUR foam and PE rope sheathing blue Ø 20 mm; basket ring Ø 1.20 m made of stainless steel tube Ø 38 mm, wall thickness 2 mm; basket made of plastic links blue-black, connected with steel rope. The TÜV-tested maximum acceleration is 50g. The limit value according to DIN EN 1176-2 is 120g. The surface pressure after TV testing is 79.6 N/cm², the limit value is 90N/cm²
Foundations (client-provided)
6 pcs. 0.50 x 0.70 x 0.50 m
Assembly time
2 fitters 3 hours each
(without foundation)
Free fall height
1,61 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Physical activities
Item number: 940348220
