Das 3D-Modell dient der räumlichen Ansicht. Die Farben entsprechen nicht der gewählten Variante.

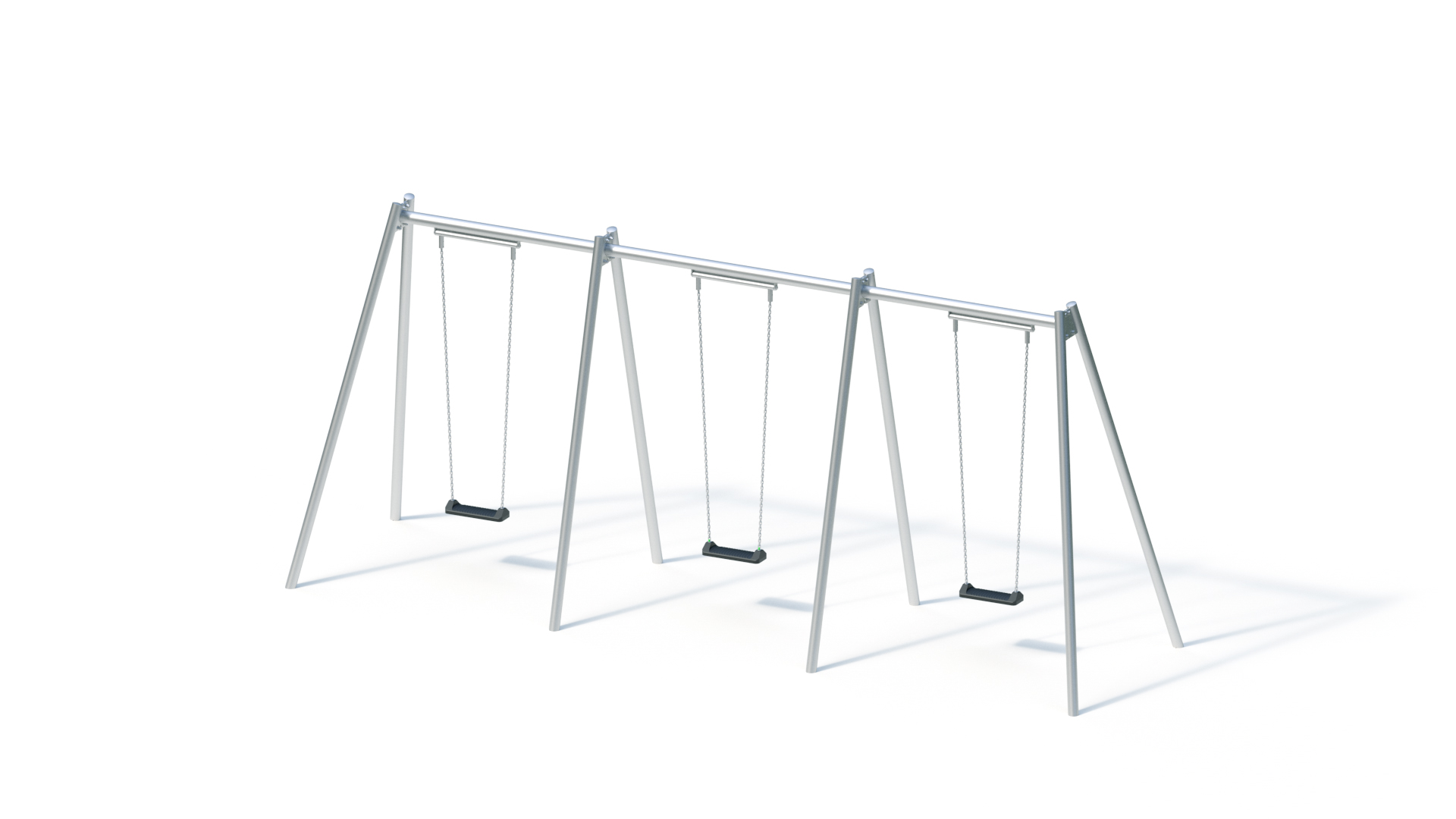

Stainless steel Swing combination (2,50)

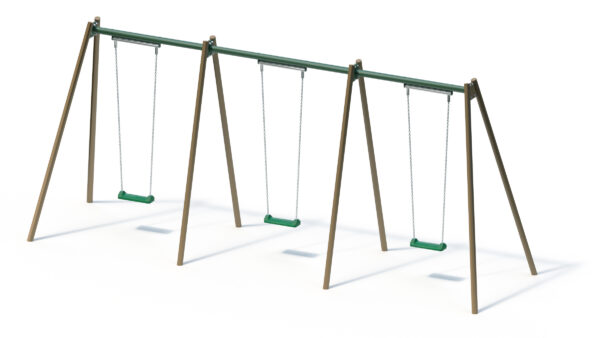

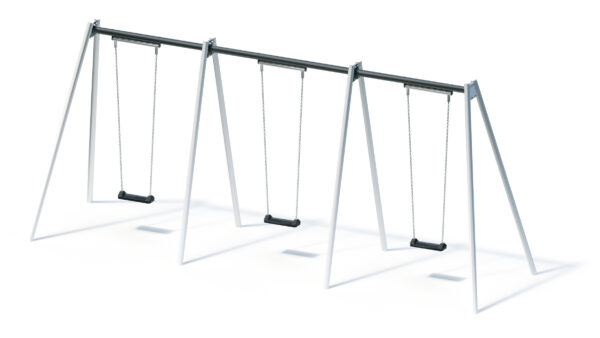

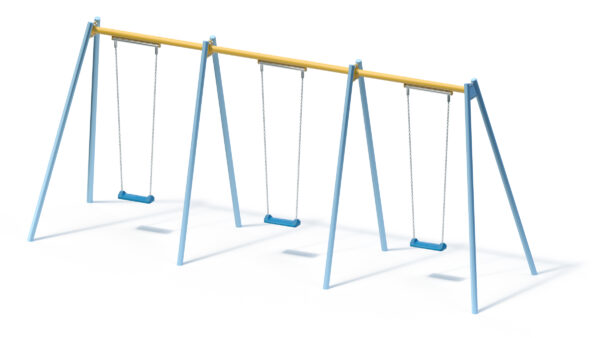

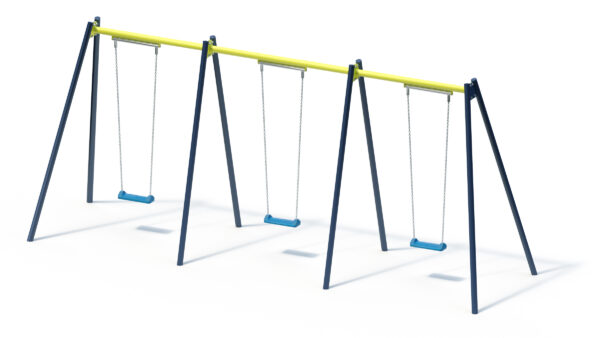

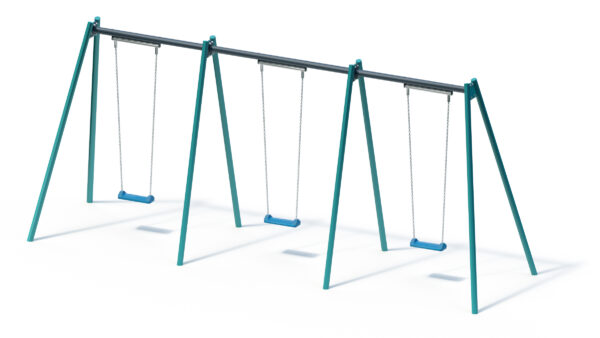

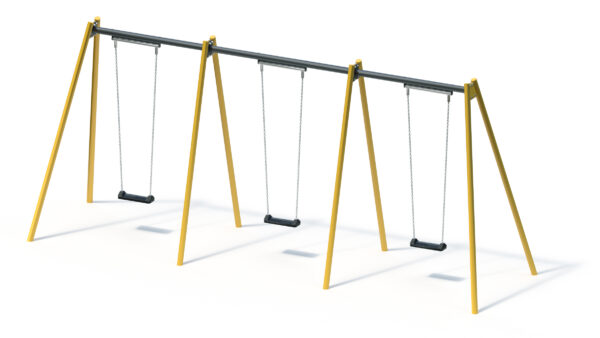

Variante wählen:
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 3 Personen |
| Aktivitäten ? | Physical activity, Swinging |
Technical data
| Gerätelänge ? | 6,25 m |
|---|---|
| Gerätebreite ? | 1,75 m |
| Gerätehöhe ? | 2,71 m |
| Freie Fallhöhe ? | 1,50 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 256.00 kg |
| Schwerstes Einzelteil ? | 25.00 kg |
| Mindestraumlänge ? | 8,05 m |
| Mindestraumbreite ? | 6,25 m |
| Mindestraumhöhe ? | 2,71 m |
Assembly & Foundations
| Montagezeit ? | 3.0 hours |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 6 (0.7m x 0.5m x 0.5m) |
Product Downloads
Product description
Technical data
Floor area: 1.75 x 6.25 m
Minimum space: 8.00 x 6.25 m
Swing height: 2.50 m
Weight: 25 kg heaviest individual part
256 kg in total
- Swing supports made of stainless steel 1.4301, Ø 76 mm, wall thickness 2.9 mm; connection to swing support via connecting plates
- Swing support made of stainless steel 1.4301, Ø 88.9 mm, wall thickness 3.2 mm; connection to swing supports via connecting plates
- Swing axle made of stainless steel, consisting of internal bearing axle Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and plain bearings
- Trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated swivels on ball bearings to prevent the chains from knotting
- on the swing axle and on the swing seat/basket: chain attachment with stainless steel clamping adapter
- Safety swing seat made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
Foundations (client-provided)
8 units 0.50 x 0.70 x 0.50 m
Assembly time
2 fitters 2.5 hours each
(without foundation)
Free fall height
1,50 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities
Item number: 940344021
