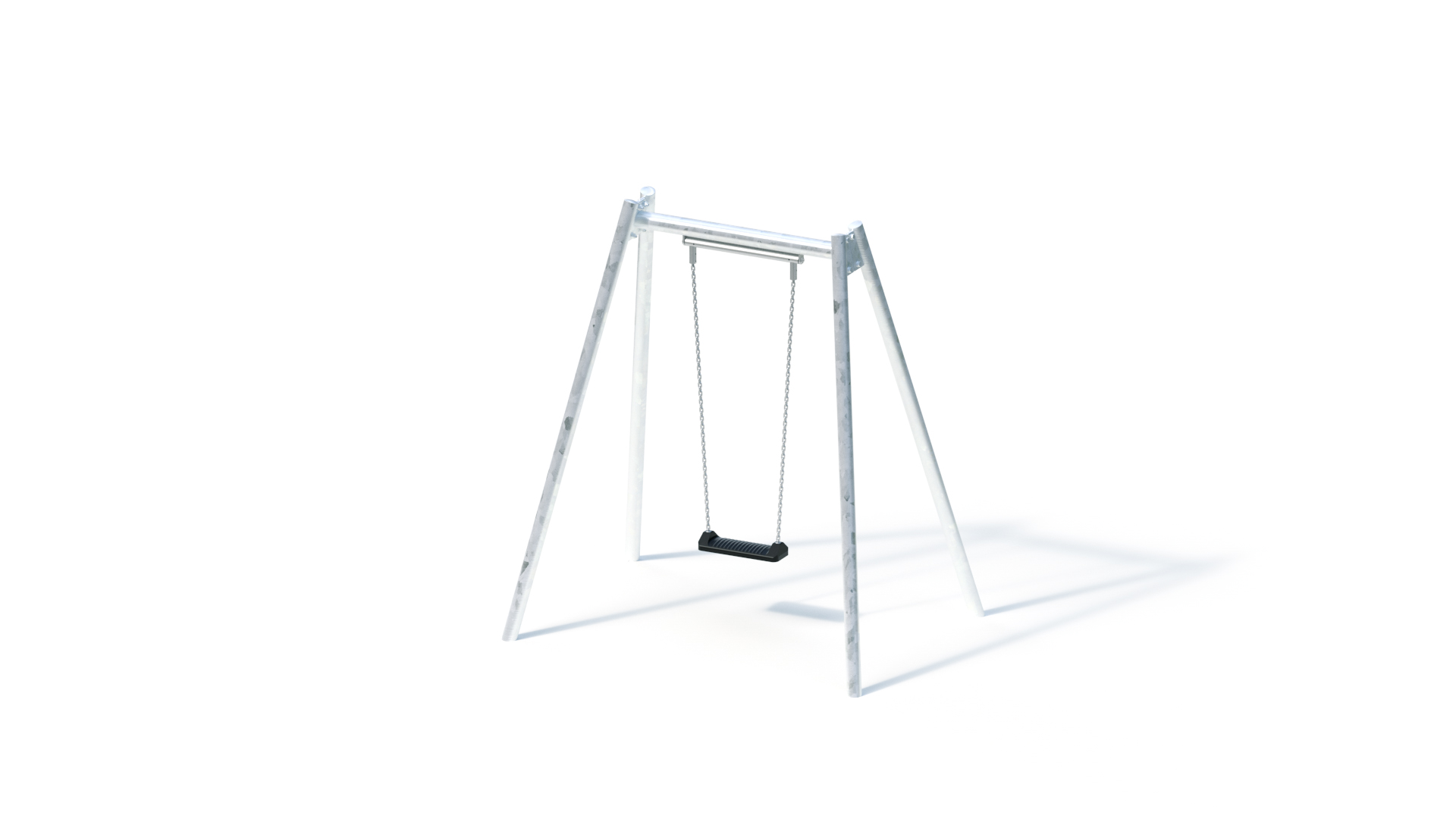

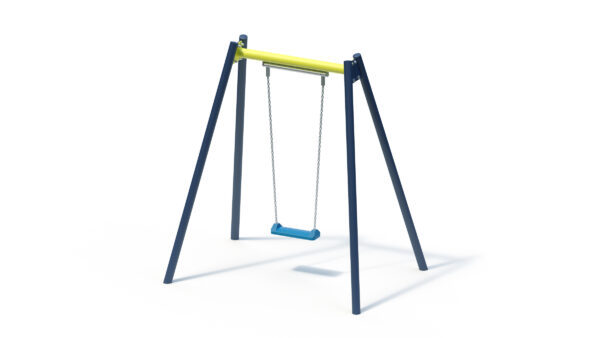

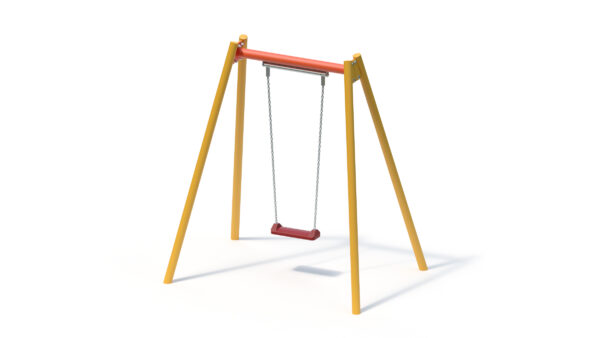

Standard swing (2.00) steel - galvanised

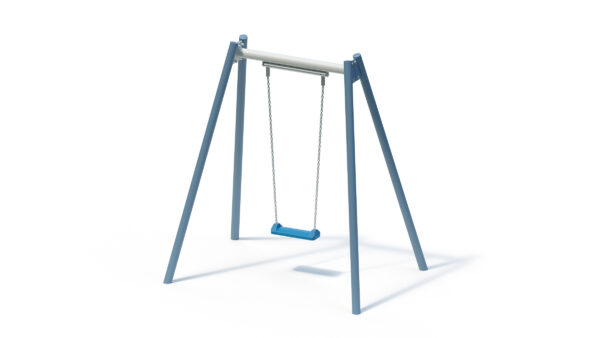

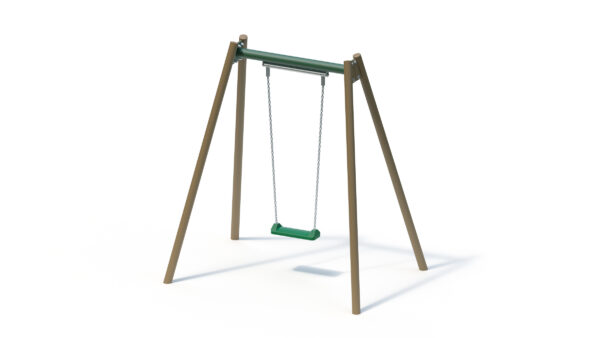

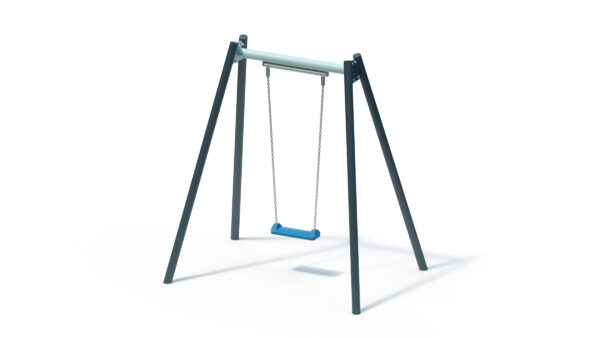

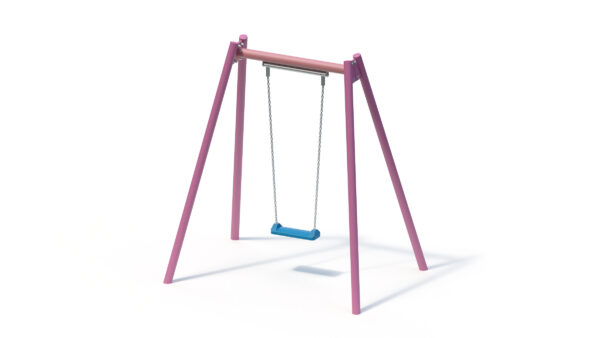

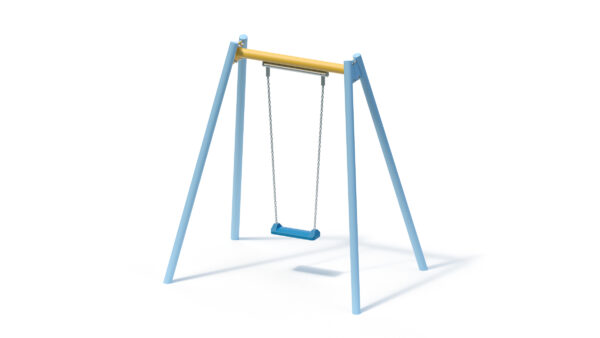

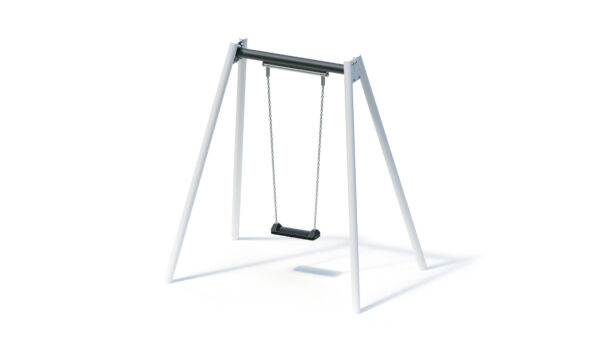

Variante wählen:
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 1 Personen |
| Aktivitäten ? | Physical activity, Swinging |
Technical data
| Gerätelänge ? | 2,05 m |
|---|---|
| Gerätebreite ? | 1,50 m |
| Gerätehöhe ? | 2,21 m |
| Freie Fallhöhe ? | 1,25 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 100.00 kg |
| Schwerstes Einzelteil ? | 20.00 kg |
| Mindestraumlänge ? | 7,30 m |
| Mindestraumbreite ? | 2,05 m |
| Mindestraumhöhe ? | 2,21 m |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 4 (0.6m x 0.6m x 0.47m) |
Product Downloads
Product description
Technical data

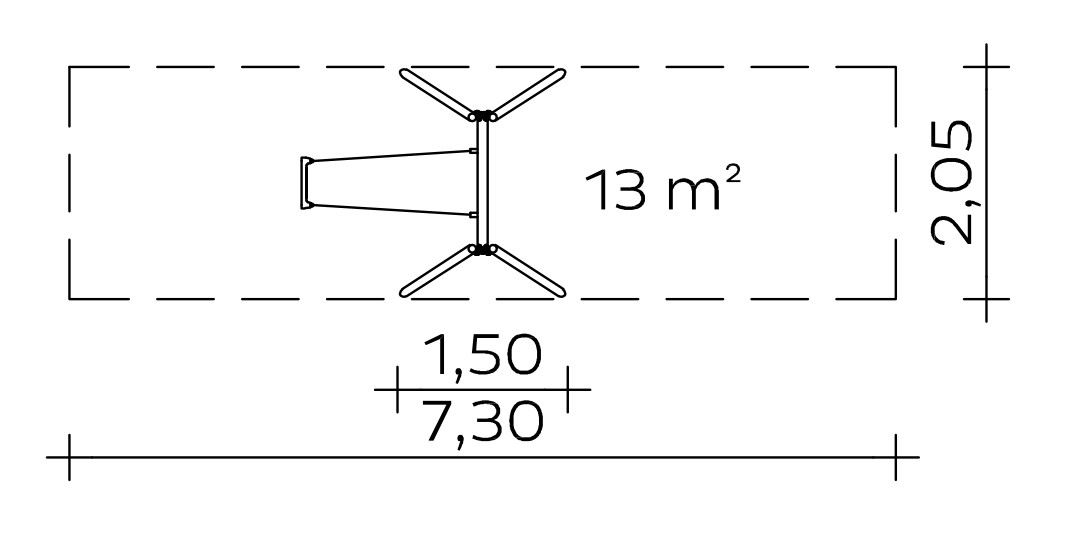

Base area: 1.50 x 2.05 m
Minimum space: 2.05 x 7.30 m (13 m²)
Swing height: 2.00 m
Weight: 20 kg heaviest individual part
100 kg in total
- Swing supports made of steel, Ø 76 mm, wall thickness 2.9 mm, hot-dip galvanised; connection to swing support via connecting plates
- Swing support made of steel, Ø 88.9 mm, wall thickness 3.2 mm, hot-dip galvanised; connection to swing supports via connecting plates
- Swing axle made of stainless steel, consisting of internal bearing axle Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and plain bearings
- Trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated swivels on ball bearings to prevent the chains from knotting
- Safety swing seat made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- on swing axle and swing seat: chain attachment with stainless steel clamping adapter
Foundations (client-provided)
4 units 0.60 x 0.60 x 0.47 m
Concrete volume: 0.68 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
1,25 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Physical activities
Item number: 040330000
