Dalben tower (10,50)
Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 36 persons |
| Activities ? | Physical activity, Slide |
Technical data
| Device length ? | 16,05 m |
|---|---|
| Device width ? | 10,55 m |
| Device height ? | 11,70 m |
| Free fall height ? | 2,40 m |
| Platform heights | - |
| Total weight ? | 2200.00 kg |
| Heaviest single item ? | 330.00 kg |
| Minimum room length ? | 19,55 m |
| Minimum room width ? | 14,05 m |
| Minimum room height ? | 11,70 m |
Assembly & Foundations
| Assembly time ? | 18,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | Yes |
| Foundations | 040x040x060 |
Product Downloads
Product description

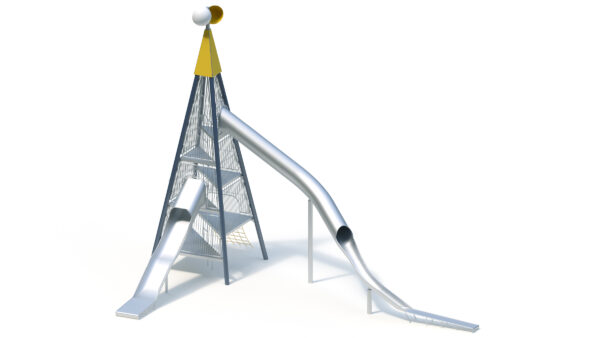

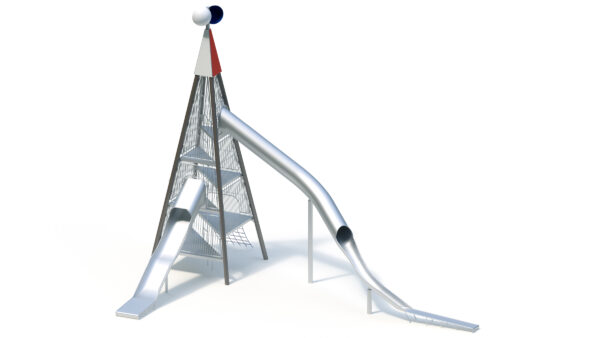

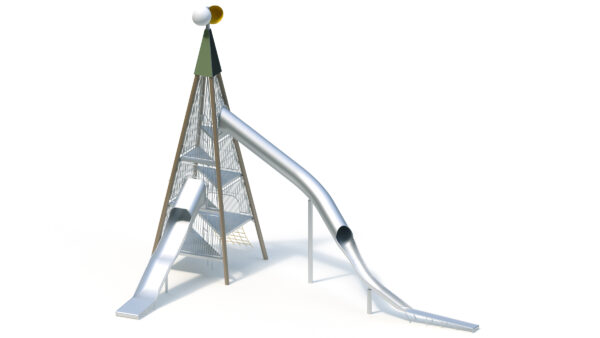

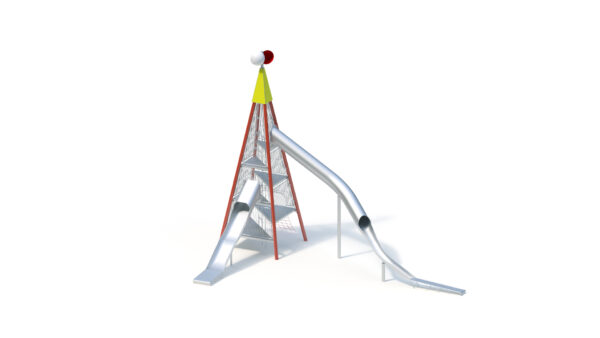

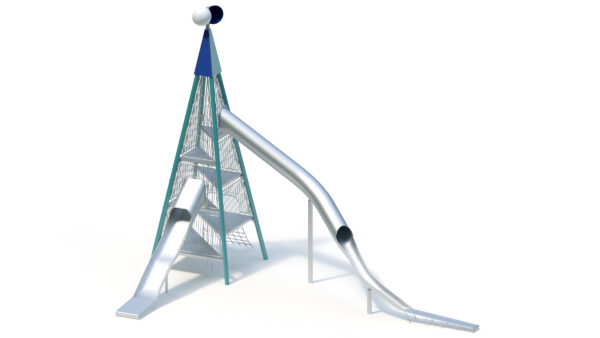

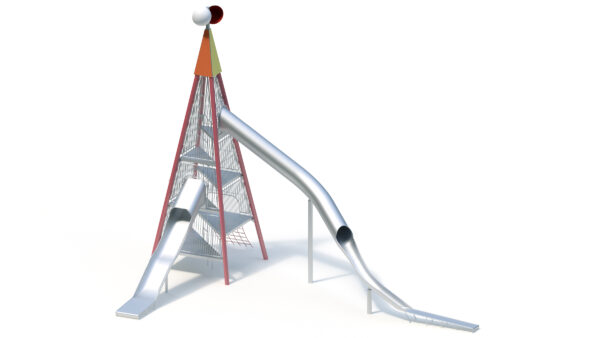

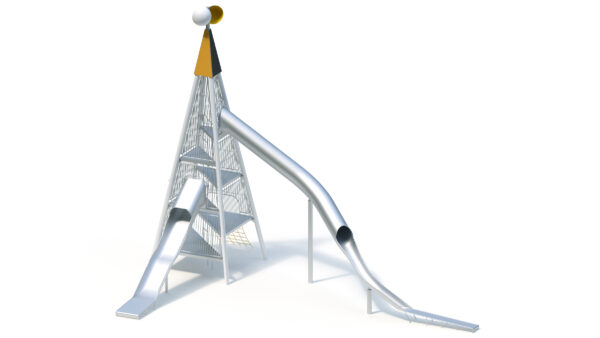

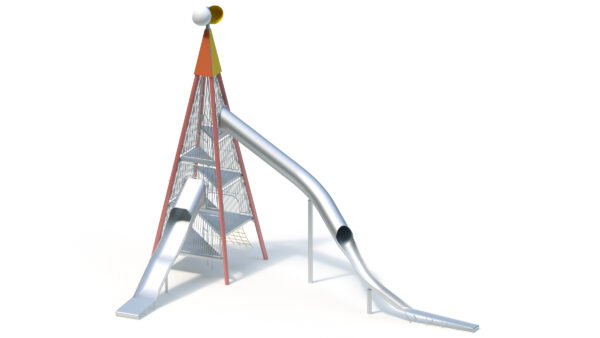

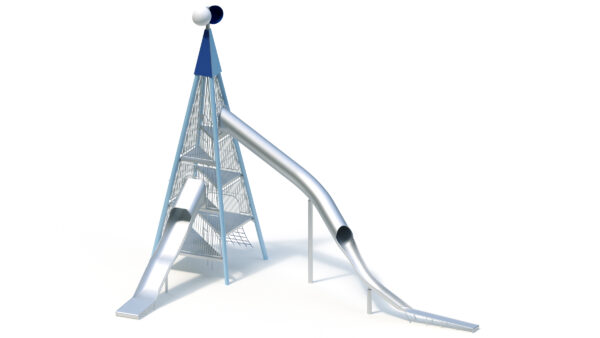

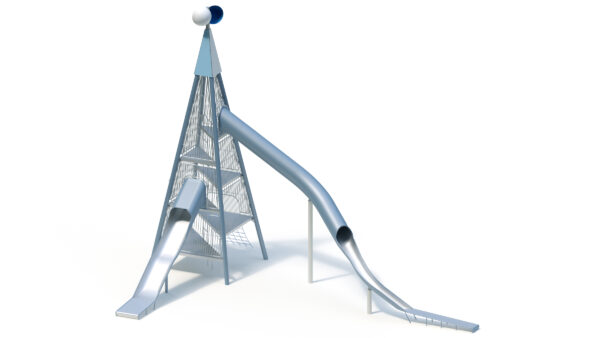

Dalben tower combination consisting of:
Dalben tower (10.50 m) with tunnel hand slide 30° (6.00 m), add-on wide slide with tunnel seat (3.00 m) and net ascent (2.00 m);
Tower bonnet, with wind rotor
Technical data

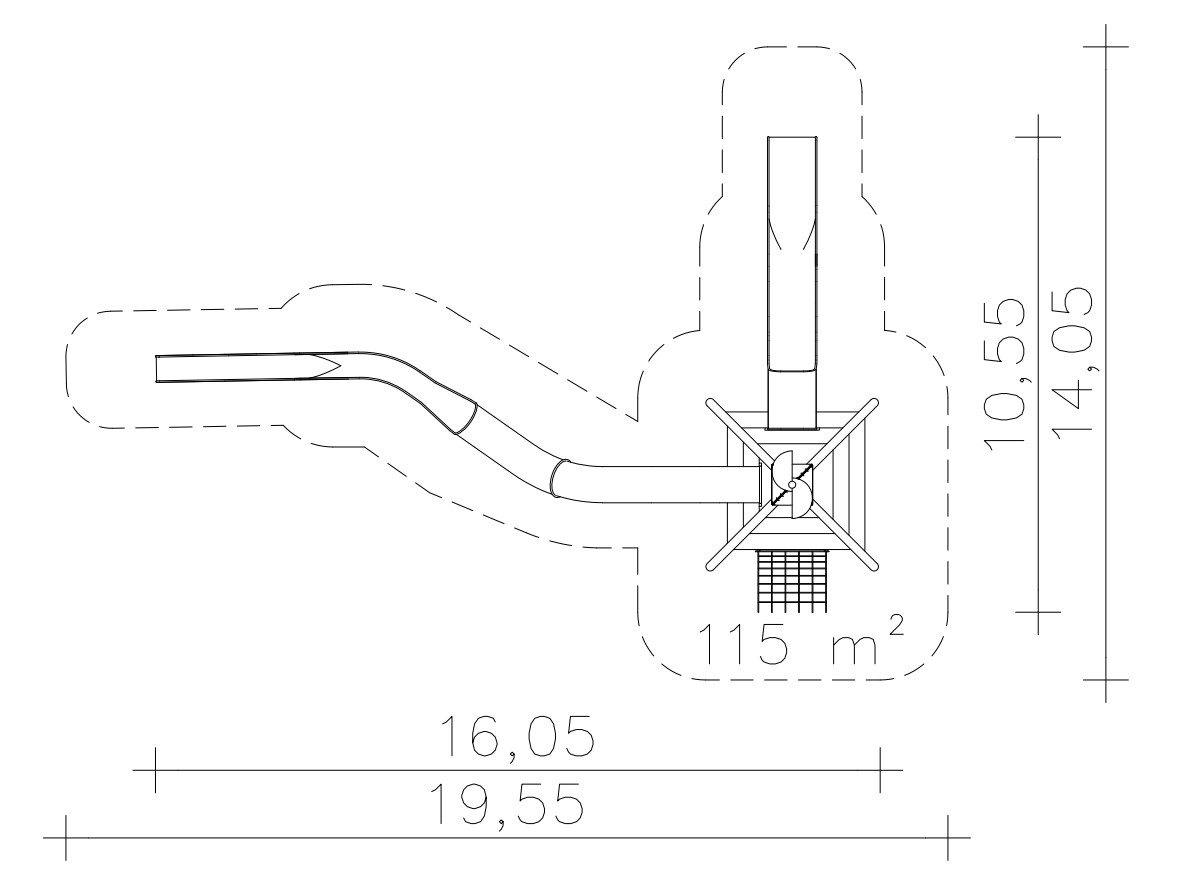

Floor area: approx. 10.55 x 16.05 m
Minimum space: approx. 14.05 x 19.55 m (115 m²)
Height: approx. 10.50 m + tower top
Platform heights: 1.00/2.00/3.00/4.00/5.00/6.00 m
Support post
Steel Ø 193.7 x 4 mm, hot-dip galvanised
Platform floors
Triangular stainless steel pedestals, welded construction with tear plate covering, glass bead blasted, screw-on flange connections on the uprights
Ladder steps made of stainless steel tube, rung height 500 mm, including fall protection, between the landings, glass bead blasted.
Safety gate (from 1.00 m platform height)
Welded construction made of stainless steel tube Ø 21 / 33.7 mm, glass bead blasted, from 1.00 m platform height, screw-on flange connections on the uprights
Tower bonnet
High pressure laminate 15 mm
Tower top
Wind rotor 2-fold
Ascent on platform 2.00 m
- Net access made of Hercules rope Ø 16 mm, mesh size 300 m x 300 mm (centre-to-centre dimension)
Attached wide slide with tunnel seat, Ah 3.00 m
Mounting height: 3.00 m
Seat height: 3.10 m
Slide inclination: 36°
Slide width: 1.10 m
Sliding plate thickness: 2.5 mm
Attachable wide slide, 1.10 m wide, one-piece stainless steel construction, tunnel seat, speed regulation by shaft. Particularly quiet due to trough shape.
Including support post made of stainless steel tube Ø 120 mm, mounting flange made of stainless steel.
Tunnel slope slide 30°, Ah 6.00 m
Mounting height: 6.00 m
Seat height: 6.10 m
Slide inclination: 30°
Slide width: 0.80/0.60 m
Sliding plate thickness: 2.5 mm
Course: Curve 35° right,
Slide segments made of stainless steel, particularly quiet due to tubular/hollow shape, three-part slide, including connecting flanges for assembly on site.
- 16100 K&K tunnel slide single seat 30°
- 16110 K&K tunnel slide straight 30°, 2 pcs.
- 16110050 K&K tunnel slide straight 30°,
Length 0.50 m
- 16160 K&K tunnel slide curve 30°, 7 pcs,
Turning 35° right
- 16110 K&K tunnel slide-straight 30°
- 41590 K&K slope slide tunnel adapter 30°
- 41610 K&K slope slide space curve 30°, 4 pcs,
Turning 36° left
- 41550028 K&K slope-slide-straight 30°,
Length 0.28 m
- 41670 K&K tunnel slide maxi run-out
Including K&K support post made of stainless steel tube Ø 120 mm, stainless steel mounting flange.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Anchoring
Dowelling of the pedestal base with 2 injection anchor rods made of A4 stainless steel.
The tower is equipped with a lightning conductor to protect it from damage.
Foundations (client-provided)
4 pcs. 1.00 x 1.00 x 0.50 m
2 pcs. 2.80 x 0.30 x 0.40 m
1 piece 1.40 x 1.25 x 0.40 m
1 piece 0.40 x 0.40 x 0.60 m
2 units 0.60 x 0.60 x 0.60 m
Concrete volume: 3.90 m³
Assembly time
2 fitters 18 hours each, plus lifting gear
(without foundation)
Free fall height
2,40 m
Suitable for
Children aged 8 and over,
public playgrounds etc.
Physical activities
Item number: 910105047
