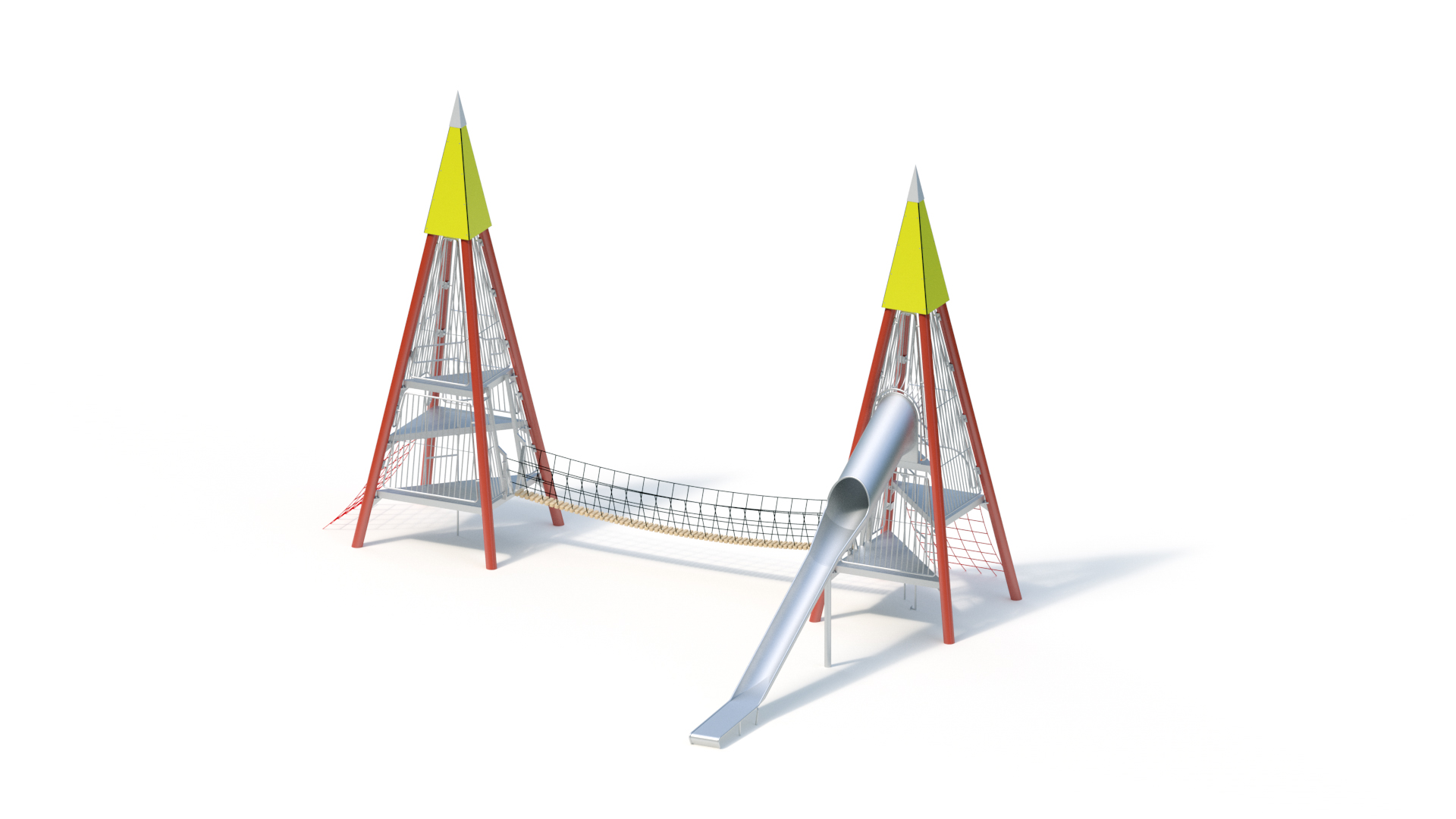

K&K dolphin tower system consisting of:
- K&K dolphin tower (7.50) with tunnel slide (3.00 m) and net ascent (2.00 m);
Hot-dip galvanised uprights, blue tower cover
- K&K dolphin tower (7.50) with net ascent (2.00 m);
Hot-dip galvanised uprights, blue tower cover
- Connection of the towers by footbridge, length 7.00 m, at platform height 1.00 m

Technical data

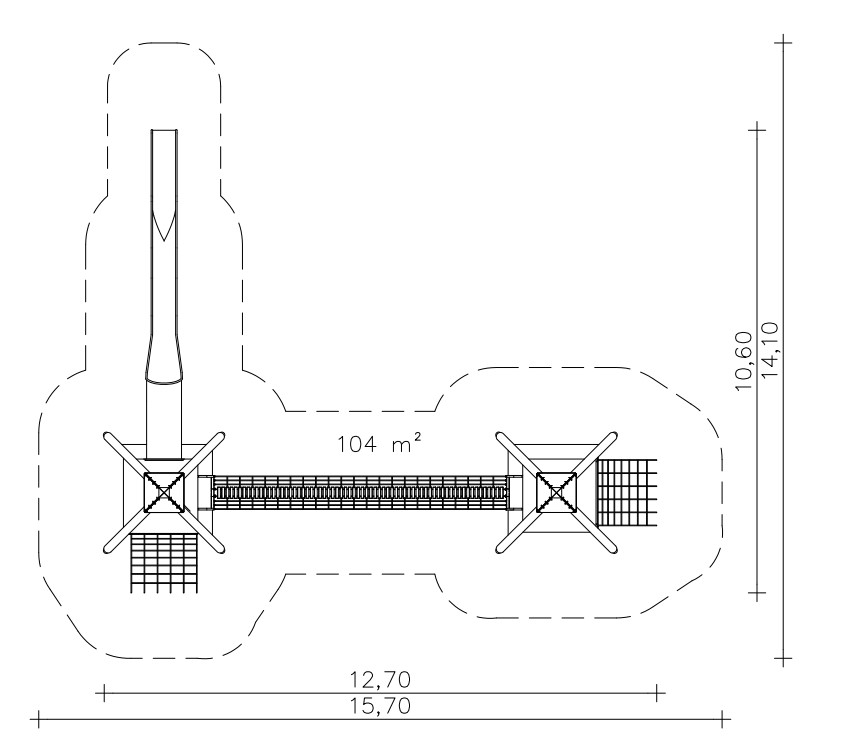

Floor area: approx. 10.60 x 12.70 m
Minimum space: approx. 14.10 x 15.70 m (104 m²)
Height: 7.50 m + tower top
Platform heights: 1.00/2.00/3.00 m
Slide attachment height: 3.00 m
Seat height: 3.10 m
Slide inclination: 30°
Slide width: 0.80/0.60 m
Slide plate thickness: 2.5 mm

Support post
Steel Ø 193.7 x 4 mm, hot-dip galvanised

Platform floors
Triangular stainless steel pedestals, welded construction with tear plate covering, glass bead blasted, screw-on flange connections on the uprights.
Ladder steps made of stainless steel tube, rung height 500 mm, including fall protection, between the landings, glass bead blasted.

Safety gate (from 1.00 m platform height)
Welded construction made of stainless steel tube Ø 21 / 33.7 mm, glass bead blasted, from 1.00 m platform height, screw-on flange connections on the uprights

Tower bonnets
High-pressure laminate 15 mm, colour: blue

Tower top
End cover made of stainless steel sheet

Connection to platform height 1.00 m
- Footbridge, length 7.00 m

Ascents to platform height 2.00 m
- Net access made of Hercules rope Ø 16 mm, mesh size 300 m x 300 mm (centre-to-centre dimension)

K&K tunnel slope slide 30°, Ah 3.00 m
Slide segments made of stainless steel, particularly quiet due to tubular trough shape, welded to form a one-piece slide.
Course: straight
Including K&K slope slide support post, support post made of stainless steel tube Ø 120 x 3 mm, mounting flange made of stainless steel.

For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.

Anchoring
Dowelling of the pedestal base with 2 injection anchor rods made of A4 stainless steel.
The tower is equipped with a lightning conductor to protect it from damage.

Foundations (client-provided)
8 pcs. 1.00 x 1.00 x 0.50 m
1 piece 1.40 x 0.75 x 0.40 m
1 piece 0.40 x 0.40 x 0.60 m
Concrete volume: 4.52 m³

Assembly time
4 fitters 36 hours each, plus lifting gear
(without foundation)

Free fall height
2,30 m

Suitable for
Children aged 8 and over,
public playgrounds etc.
Physical activities

The foundation sizes specified in this offer correspond to the static requirements for medium-dissolvable soil types with a permissible soil pressure of at least ?R,d = 150 kN/m². In the case of different ground conditions and for installation in areas with high wind loads (deviating from German wind zone 2, corresponds to vref = 25.0 m/s) or high snow loads (deviating from German snow load zone 2, corresponds to sk ?0.85 kN/m²), technical modifications to the construction of the product may be necessary (e.g. insertion of cross bracing). This will result in additional costs and an extension of the specified delivery time.
At the Client's request, Kaiser & Kühne may commission a recognised engineering firm to carry out the necessary structural calculations. The resulting costs shall be borne by the Client. The required evidence of the local conditions shall be provided by the Client.

Item number: 910075071
