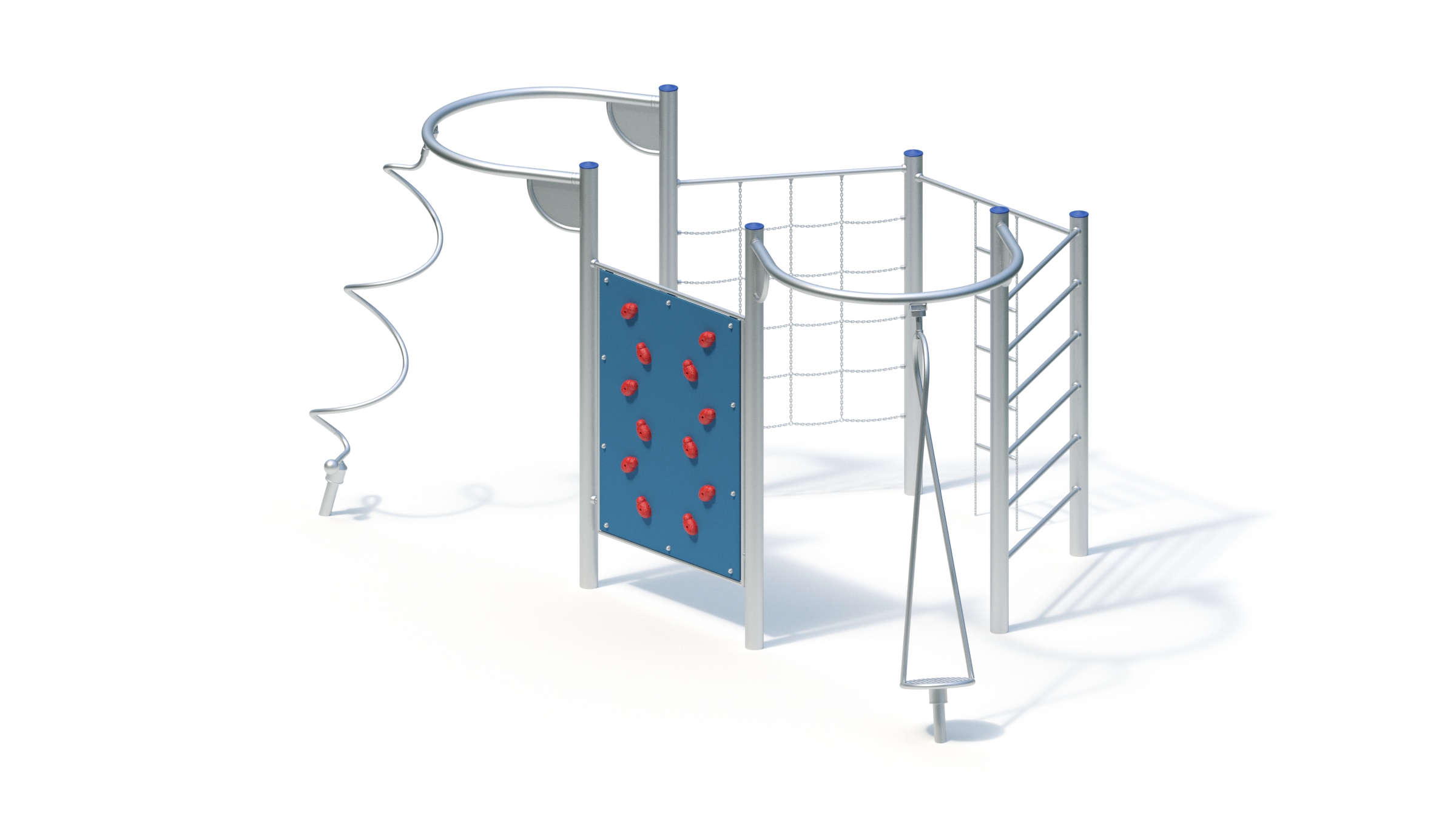

Hexagonal combination

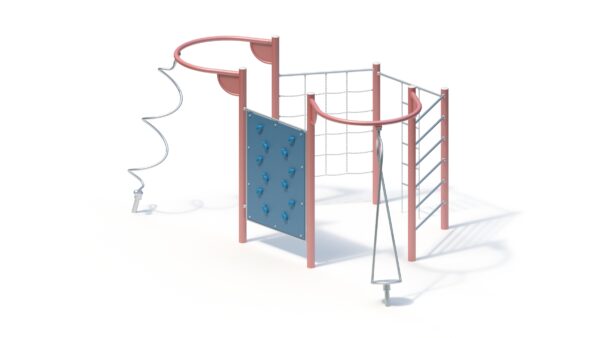

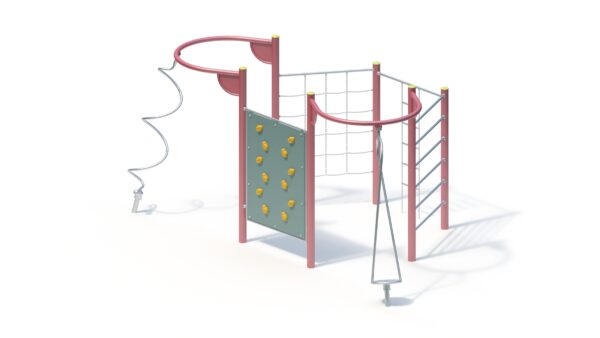

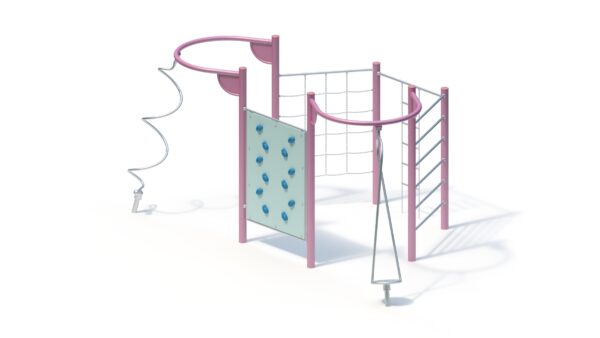

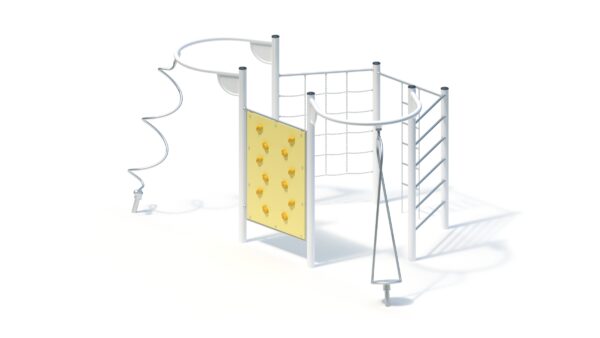

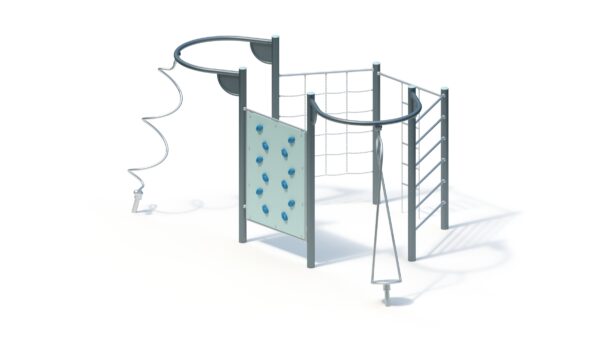

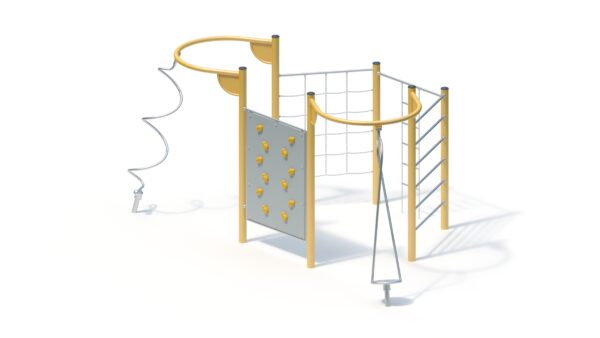

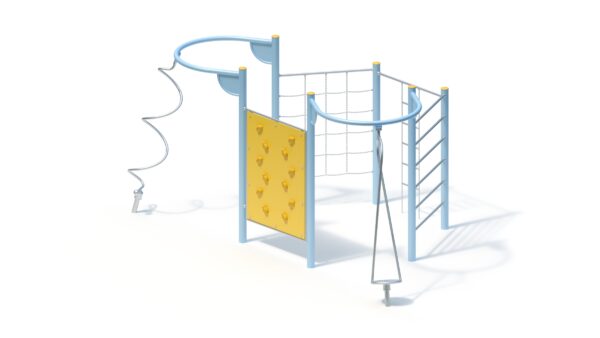

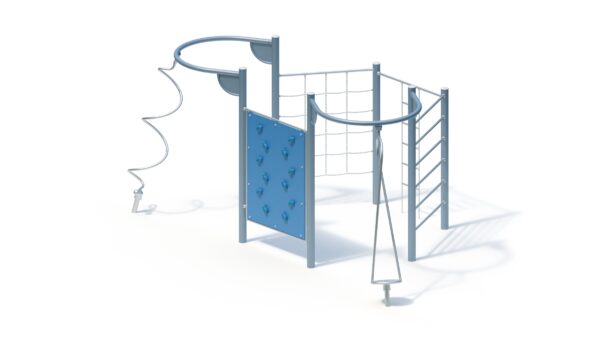

Select variant:
The most important information
| Age group ? | 6+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 10 people |
| Activities ? | Physical activity, Climbing, Physical activity |
Technical data
| Minimum space length ? | 10,10 m |
|---|---|
| Minimum space width ? | 8,48 m |
| Minimum space height ? | 0,00 m |
| Equipment length ? | 5,46 m |
| Equipment width ? | 4,80 m |
| Equipment height ? | 2,87 m |
| Free-fall height ? | 2,81 m |
| Platform heights | - |
| Total weight ? | 447.00 kg |
| Heaviest single part ? | 100.00 kg |
Assembly & Foundations
| Assembly time ? | 6,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 6 (0.4m x 0.4m x 0.4m) Quantity: 2 (0.6m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data

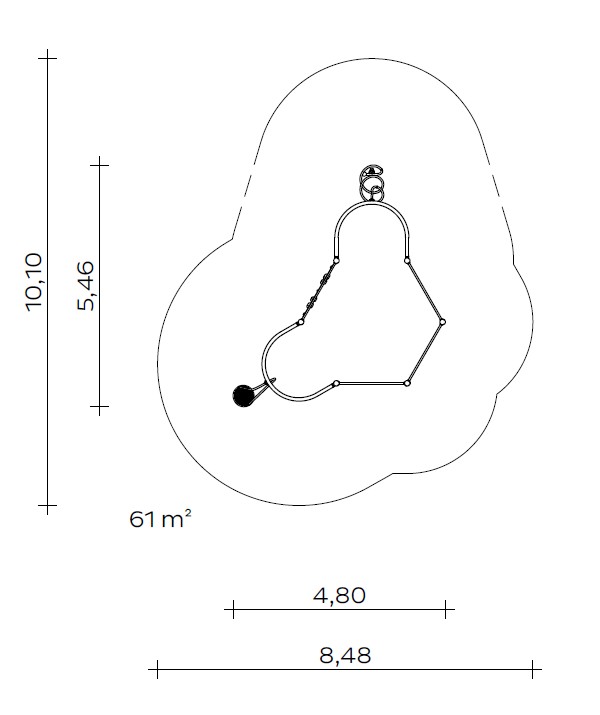

Total height: 2.87 m
Floor area: 5.46 x 4.80 m
Impact area: 10.10 x 8.48 m (61m²)
Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Big Tornado with stainless steel pipe bend, Ø 60.3 x 3 mm, and spiral-shaped construction made of stainless steel pipe with knurled base; anti-friction bearings, protected from dirt; foundation anchor made of hot-dip galvanised steel
- Big Hurricane made of welded stainless steel tube bend, Ø 60.3 x 3 mm; welded, twisted construction made of stainless steel tube, rotating base made of profiled stainless steel sheet; anti-friction bearings, protected from dirt; foundation anchor made of hot-dip galvanised steel
- Horizontal bar 1.60 m with chain ladder with stainless steel rungs
- Stainless steel chain mesh with connection to ES120 uprights
- Stainless steel tube horizontal bar, Ø 38 x 2.5 mm, torsion-resistant
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, in a stainless steel tube frame; with free climbing elements attached on both sides
General note
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations
6 pcs. 0.40 x 0.40 x 0.40 m
2 pcs. 0.60 x 0.60 x 0.50 m
Assembly time
2 fitters 6 hours each, plus lifting gear
(without foundation)
Free fall height
2,81 m
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Each of our units is manufactured in accordance with the highest quality standards and the currently valid EN 1176. This model serves as an inspirational suggestion and can be designed with posts made of laminated robinia wood or stainless steel on request. The colour design is flexible and can be individually adapted to your wishes.
Item number: 855365017
