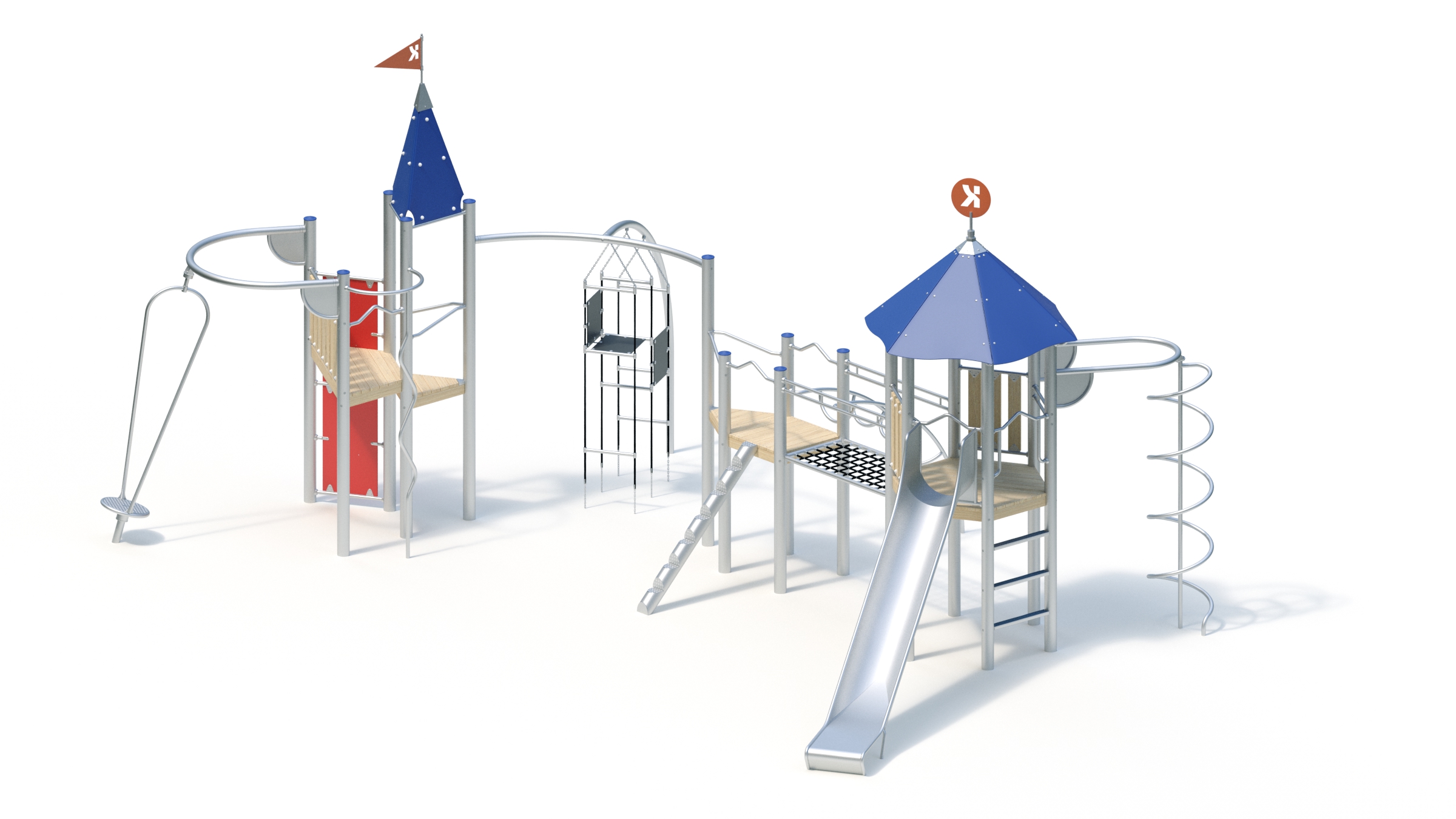

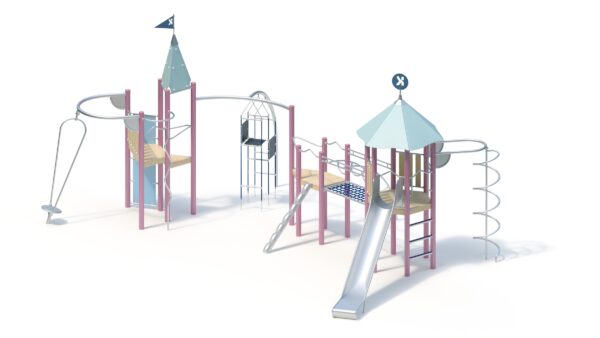

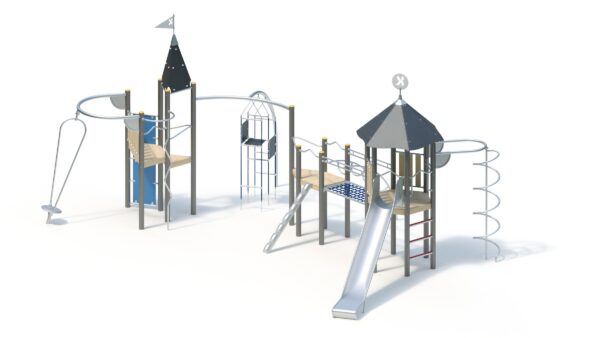

Play structure

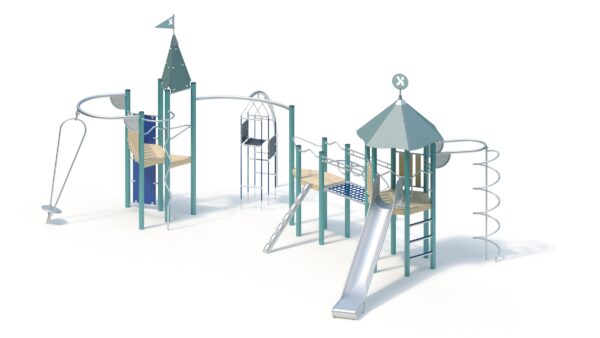

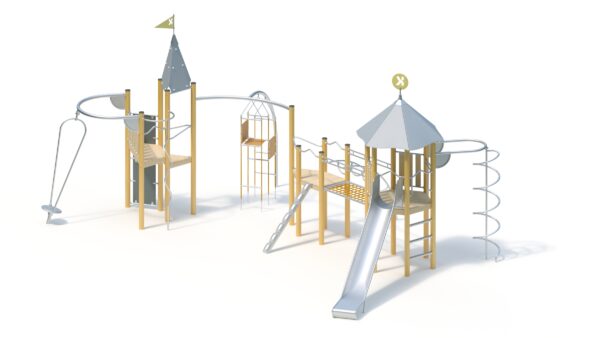

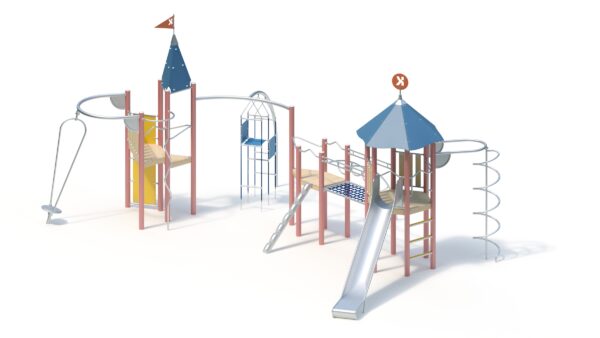

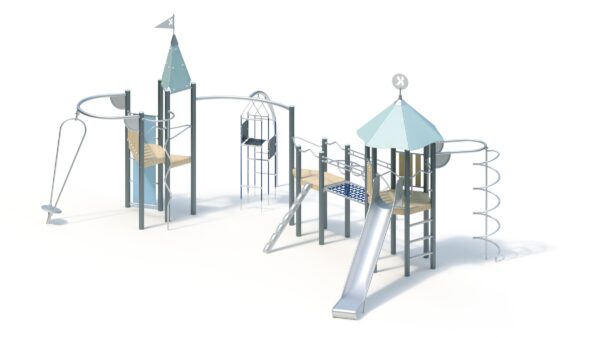

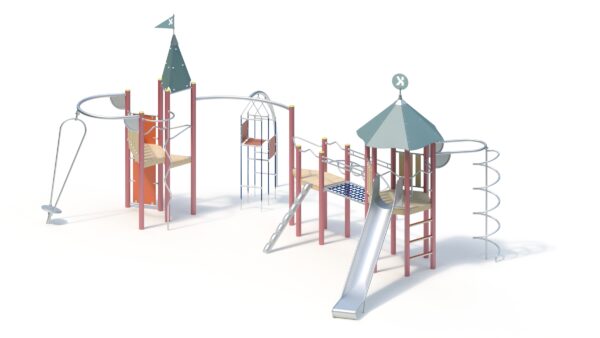

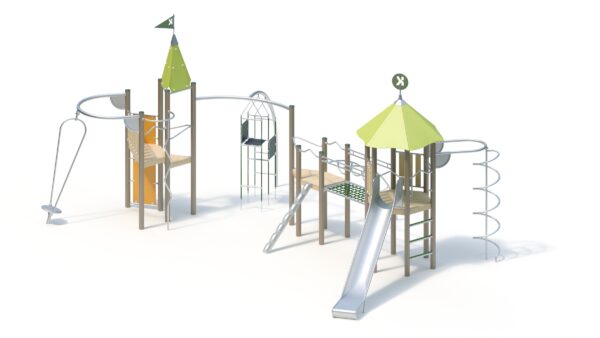

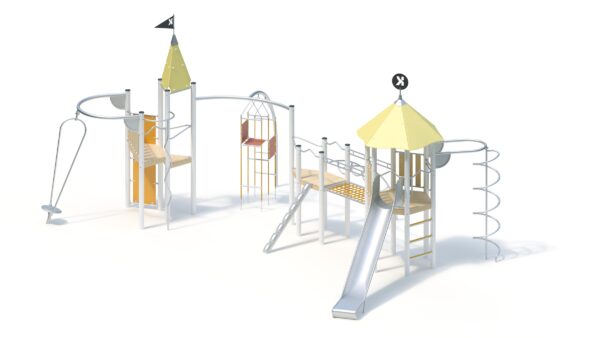

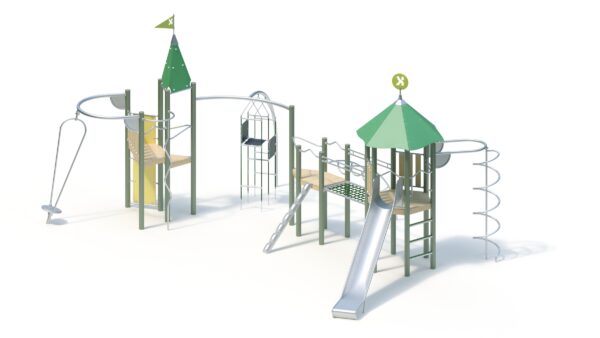

Select variant:
The most important information
| Age group ? | 6+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 30 people |
| Activities ? | Physical activity, Climbing, Manual activity, Slide |
Technical data
| Minimum space length ? | 11,95 m |
|---|---|
| Minimum space width ? | 14,78 m |
| Minimum space height ? | 4,67 m |
| Equipment length ? | 8,50 m |
| Equipment width ? | 10,90 m |
| Equipment height ? | 4,67 m |
| Free-fall height ? | 2,83 m |
| Platform heights | - |
| Total weight ? | 1285.00 kg |
| Heaviest single part ? | 103.00 kg |
Assembly & Foundations
| Assembly time ? | 10,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 16 (0.4m x 0.4m x 0.4m) Quantity: 4 (0.3m x 0.3m x 0.4m) Quantity: 1x (1.25m x 0.4m x 0.4m) Quantity: 1 (0.5m x 0.5m x 0.4m) Quantity: 1 (0.6m x 0.6m x 0.4m) Quantity: 1 (0.6m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data
Total height: 4.67 m
Floor area: 8.50 x 10.90 m

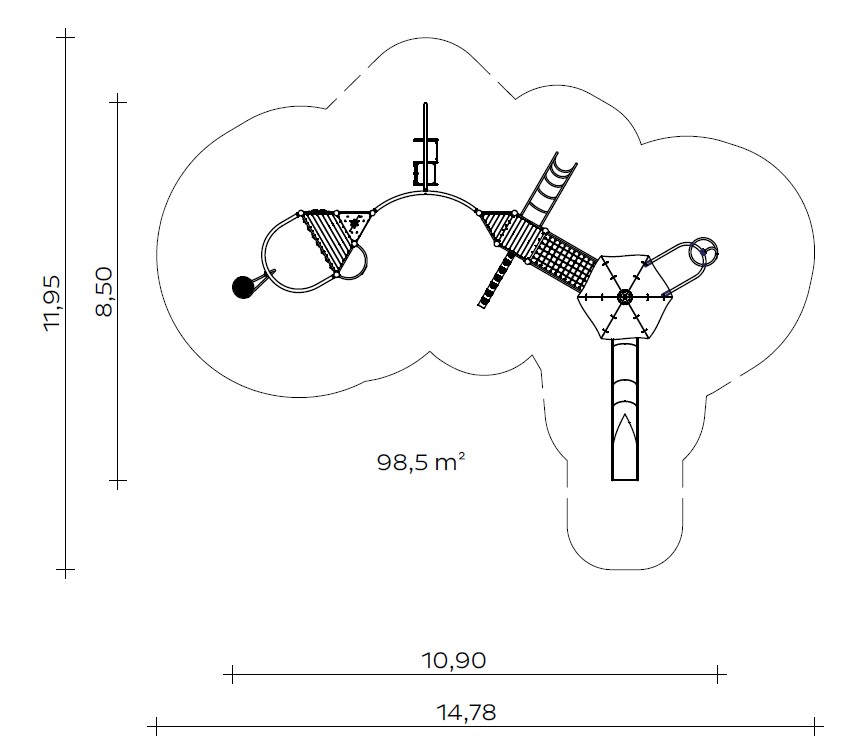

Impact area: 11.95 x 14.78 m (98.5 m²)
Platform height: 1.40 / 1.60 m
Slide attachment height: 1.60m
Seat height: 1.70 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5mm
Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platforms
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.
Attachments
- Big Hurricane made of welded stainless steel tube bend, Ø 60.3 x 3 mm; welded, twisted construction made of stainless steel tube, rotating base made of profiled stainless steel sheet; anti-friction bearings, protected from dirt; foundation anchor made of hot-dip galvanised steel
- Stainless steel spring slide Ø 42.4 mm on stainless steel pipe bend Ø 60.3 x 3 mm
- Curved ladder made of stainless steel tube
- Vertical climbing pole made of stainless steel tube, Ø 38 mm, corrugated
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, fastened between stainless steel tubes, with free climbing elements attached on one side
- Climbing post made of stainless steel tube Ø 159 x 3 mm, tread surface made of profiled stainless steel sheet
- Stainless steel step with EPDM coating
- Hercules panel net 0.80 x 1.60 m, Ø 16 mm, frame made of stainless steel tube Ø 48.3 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Tower roof, pitch 80°, made of highly weather-resistant HPL laminate, 13 mm
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Double step railing made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Access railing, roll-preventing, welded construction made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube with bent, vertically arranged support tubes
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
- Climbing Cube with stainless steel tube bend element Ø 76.1 x 3.6 mm, polypropylene rope net with galvanised steel insert Ø 16 mm, rubber mats 8 mm and stainless steel chain fastenings Ø 7 mm.
Slide information
When planning, please bear in mind that stainless steel slides should be orientated accordingly due to possible heating of the slide surface: north-east in the northern hemisphere and south-east in the southern hemisphere. Alternatively, they should be placed in the partial shade of trees.
General note
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations
16 pcs. 0.40 x 0.40 x 0.40 m
4 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.40 x 1.25 x 0.40 m
1 piece 0.50 x 0.50 x 0.40 m
1 piece 0.60 x 0.60 x 0.40 m
1 piece 0.60 x 0.60 x 0.50 m
Assembly time
2 fitters 10 hours each, plus lifting gear
(without foundation)
Free fall height
2,83 m
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 822000367
