The 3D model serves as a spatial view. The colours do not correspond to the selected variant.
Play structure

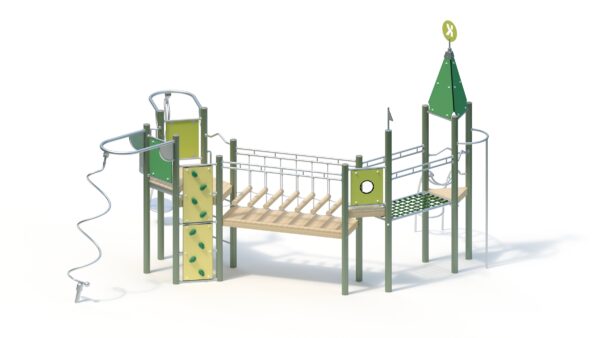

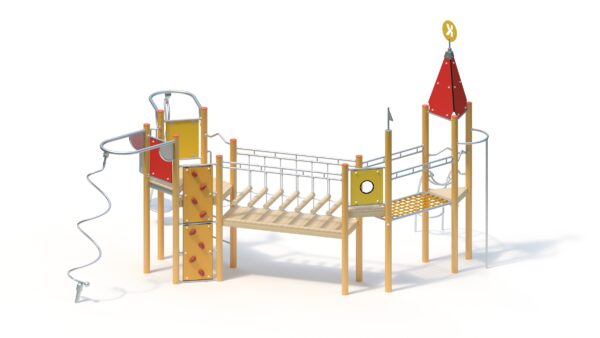

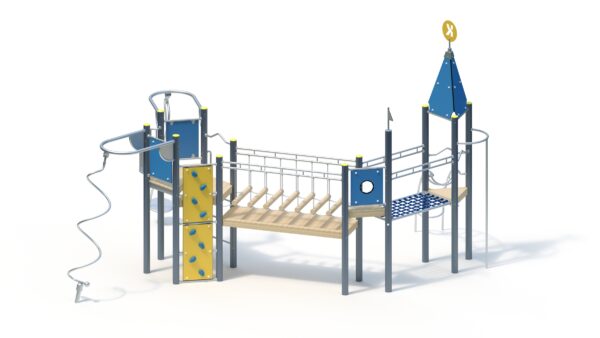

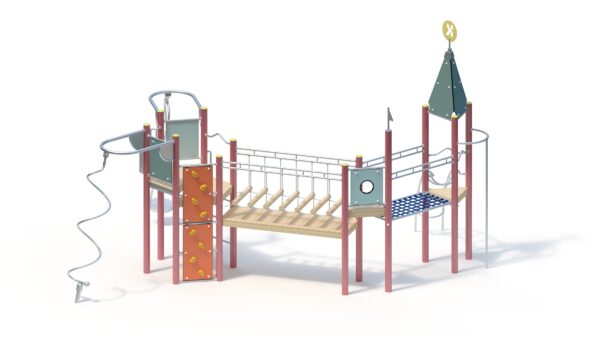

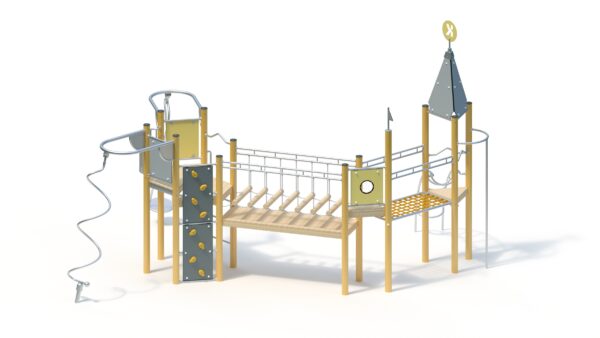

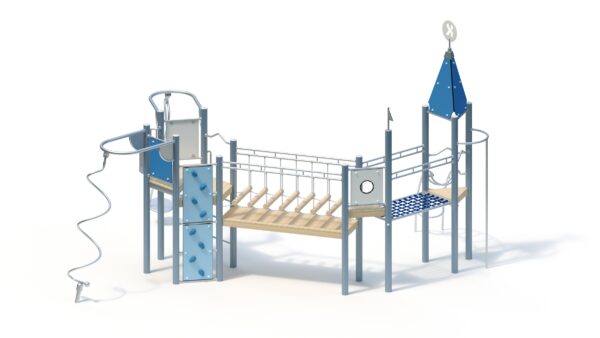

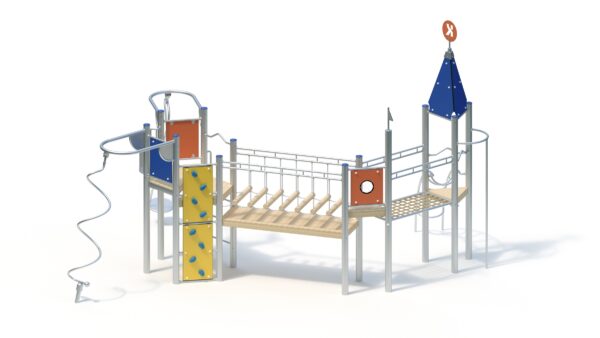

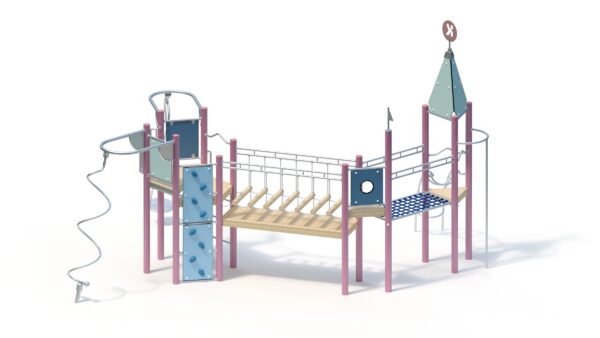

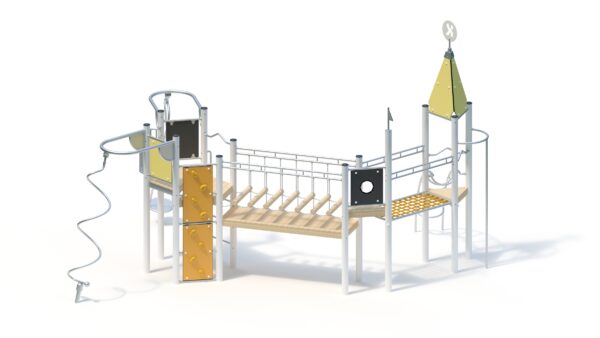

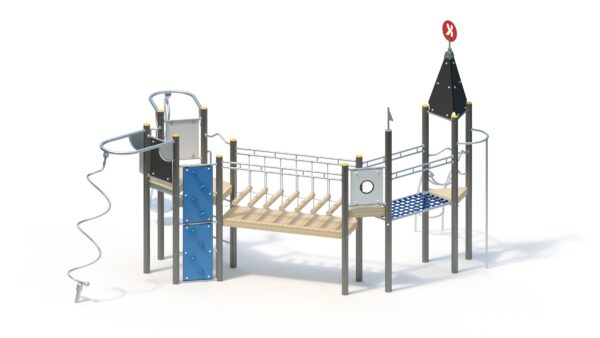

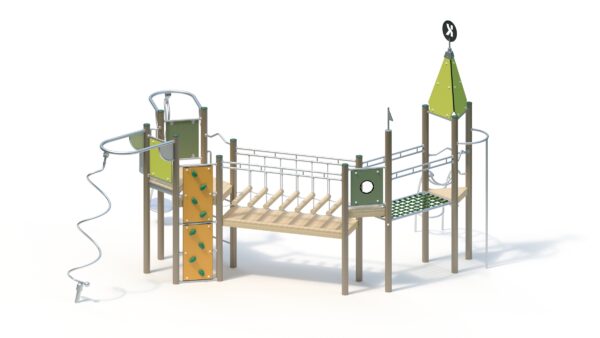

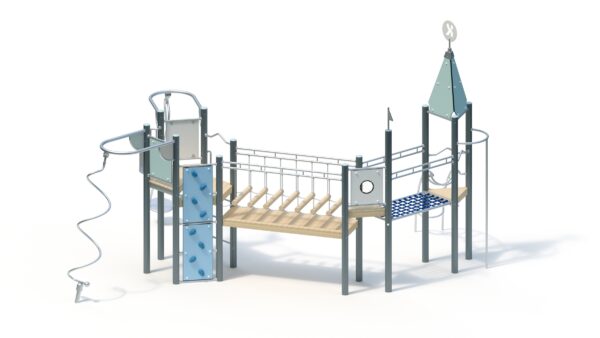

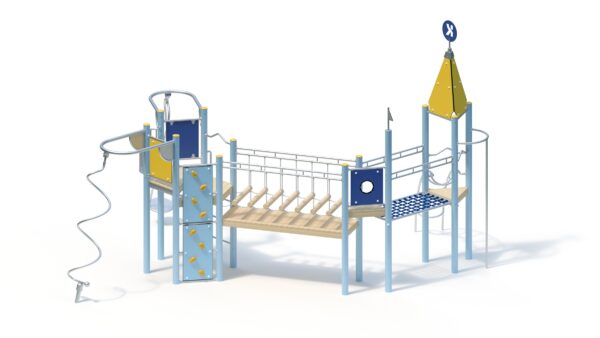

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 25 persons |
| Activities ? | Physical activity, Climbing |
Technical data
| Device length ? | 6,66 m |
|---|---|
| Device width ? | 6,04 m |
| Device height ? | 4,70 m |
| Free fall height ? | 2,80 m |
| Platform heights | - |
| Total weight ? | 838.00 kg |
| Heaviest single item ? | 78.00 kg |
| Minimum room length ? | 11,21 m |
| Minimum room width ? | 9,98 m |
| Minimum room height ? | 4,70 m |
Assembly & Foundations
| Assembly time ? | 10,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 030x030x040 |
Product Downloads
Product description
Technical data
Total height: 4.68 m
Floor area: 6.04 x 6.66 m

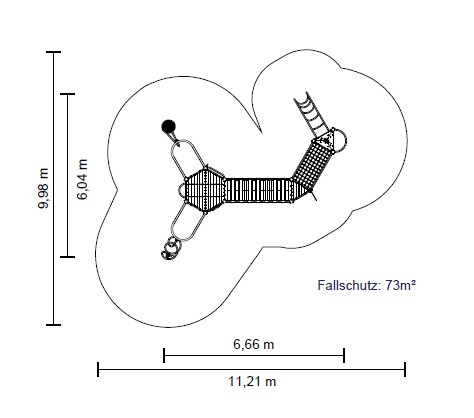

Impact area: 9.98 x 11.21 m ( 73 m²)
Platform height: 1.20/1.40/1.60/1.80 m
Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps, connection of the modular add-on parts to the posts using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements
Platforms
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.
Attachments
- Railing bracket to prevent rolling, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Panelled balustrade made of highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Panel balustrade made of highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm, round window opening Ø 260 mm with polycarbonate pane
- Climbing rungs (cranked) made of stainless steel tube, Ø 33.7 x 2 mm
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing wall made of highly weather-resistant HPL laminate panels, 20 mm, fastened between stainless steel tubes, with free climbing elements attached on one side
- Big Tornado with stainless steel pipe bend, Ø 60.3 x 3 mm, and spiral-shaped construction made of stainless steel pipe with knurled base; anti-friction bearings, protected from dirt; foundation anchor made of hot-dip galvanised steel
- Big Hurricane made of welded stainless steel tube bend, Ø 60.3 x 3 mm; welded, twisted construction made of stainless steel tube, rotating base made of profiled stainless steel sheet; anti-friction bearings, protected from dirt; foundation anchor made of hot-dip galvanised steel
- Wobbly bridge on tandem crossbeam, robinia timbers Ø 100 mm, robinia wood walk-through protection
- Hercules panel net 0.80 x 1.60 m, Ø 16 mm, frame made of stainless steel tube Ø 48.3 x 2 mm
- Vertical climbing pole made of stainless steel tube, Ø 38 mm
- Curved ladder made of stainless steel tube, Ø 33.7 x 2 mm
- Rubber flag with fabric inlay
- Tower roof, pitch 80°, made of highly weather-resistant HPL laminate, 13 mm, with stainless steel sheet wind chimes
General note
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.
Foundations
12 pcs. 0.40 x 0.40 x 0.40 m
3 pcs. 0.30 x 0.30 x 0.40 m
2 pcs. 0.60 x 0.60 x 0.50 m
Assembly time
2 fitters 10 hours each, plus lifting gear
(without foundation)
Free fall height
2,78 m
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 822000360
