Play arbour

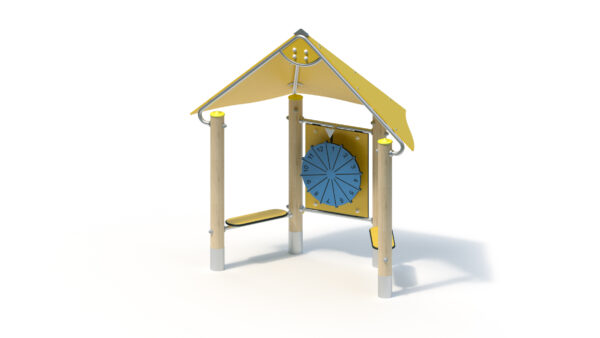

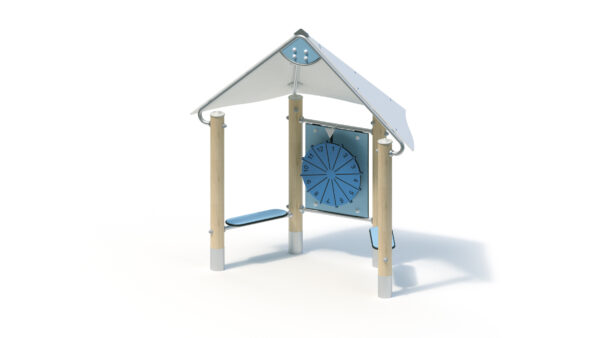

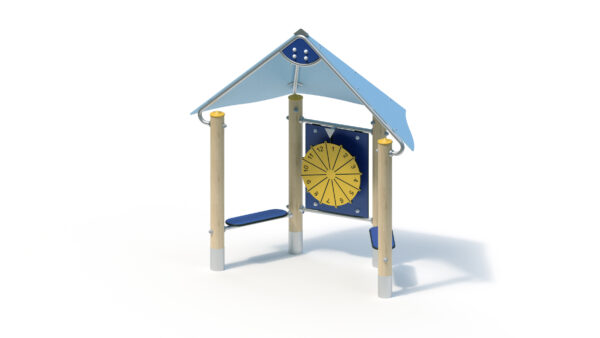

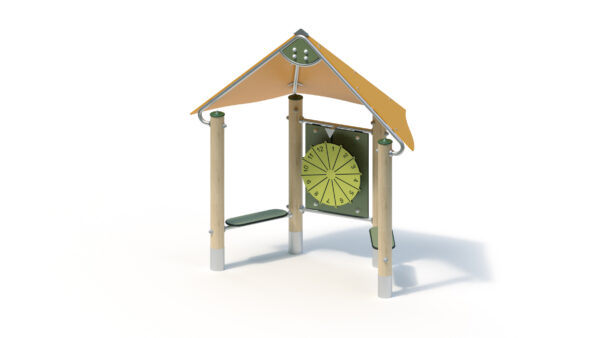

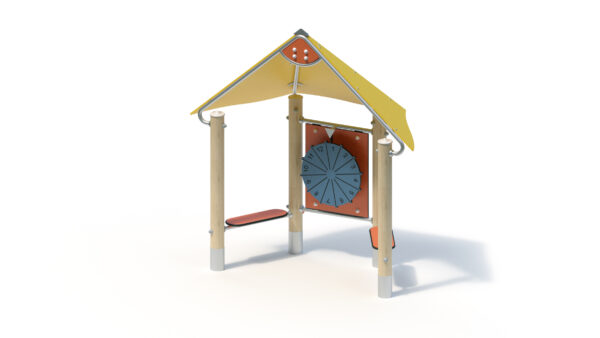

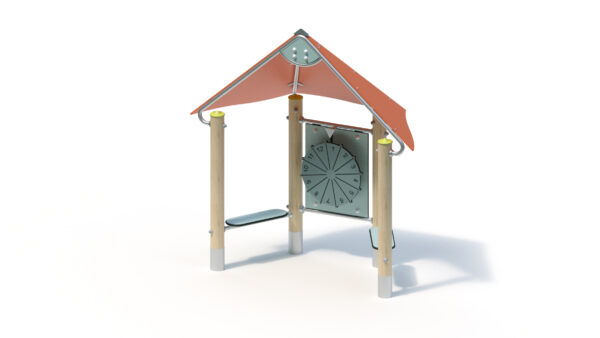

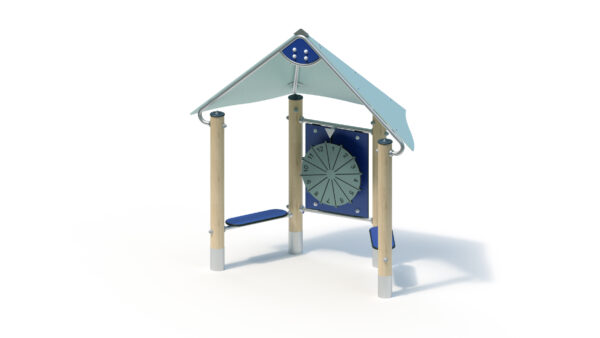

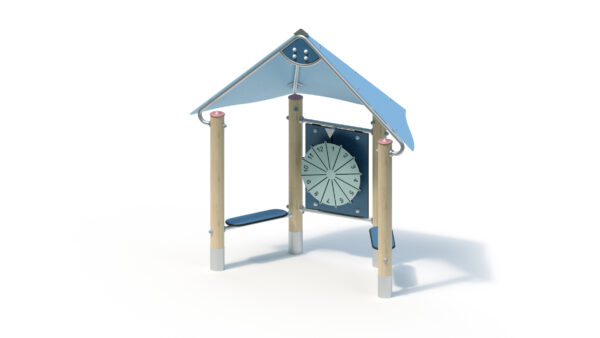

Select variant:
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 7 persons |
| Activities ? | Manual activity, Social activity |
Technical data
| Device length ? | 1,05 m |
|---|---|
| Device width ? | 2,15 m |
| Device height ? | 2,30 m |
| Free fall height ? | 0,40 m |
| Platform heights | - |
| Total weight ? | 155.00 kg |
| Heaviest single item ? | 30.00 kg |
| Minimum room length ? | 5,30 m |
| Minimum room width ? | 4,05 m |
| Minimum room height ? | 2,30 m |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data

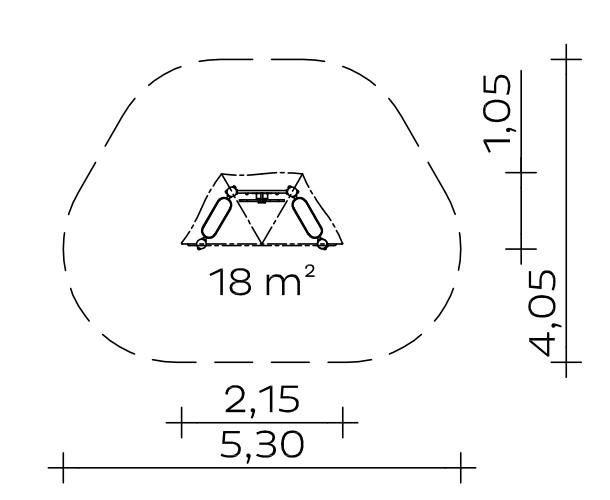

Base area: 1.05 x 2.15 m
Minimum space: 4.05 x 5.30 m
Total height: 2.30 m
Seat height: 0.40 m
Weight: 30 kg heaviest individual part
155 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Seat made of coloured, highly weather-resistant HPL laminate, 20 mm
- Wheel of fortune made of HPL laminate 20 mm
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
4 pcs. 0.40 x 0.40 x 0.40 m
Assembly time
2 fitters 2 hours each
(without foundation)
Suitable for
All age groups,
public playgrounds etc.
social activities.
Item number: 062152701
