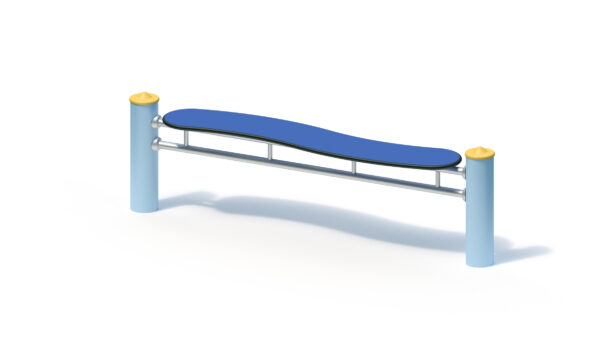

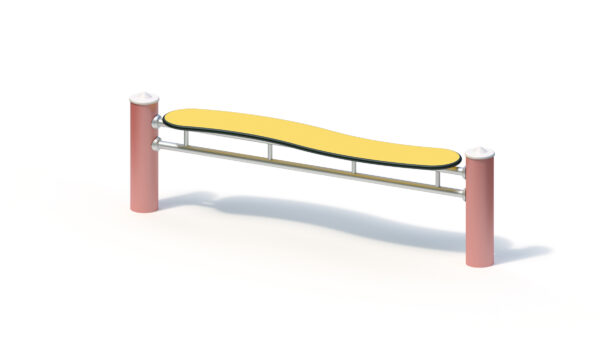

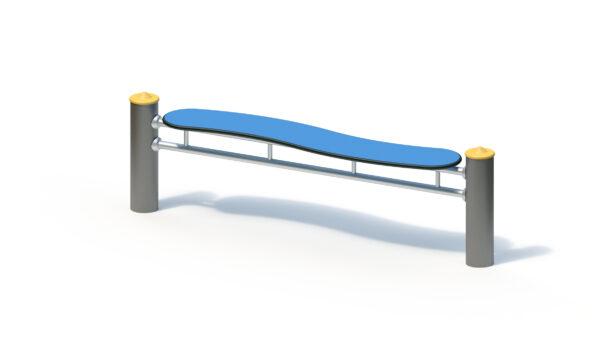

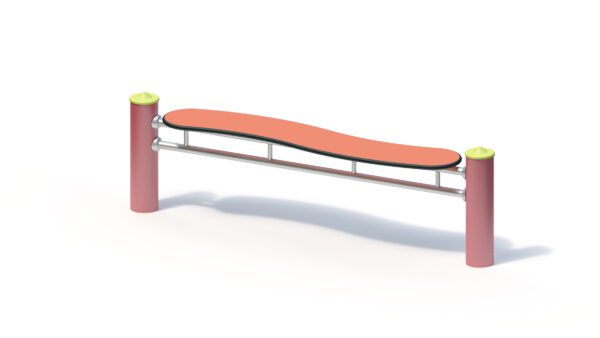

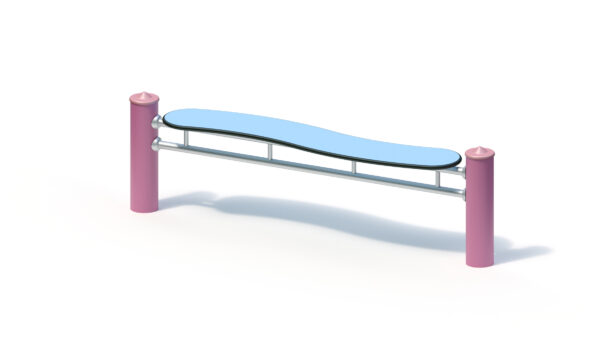

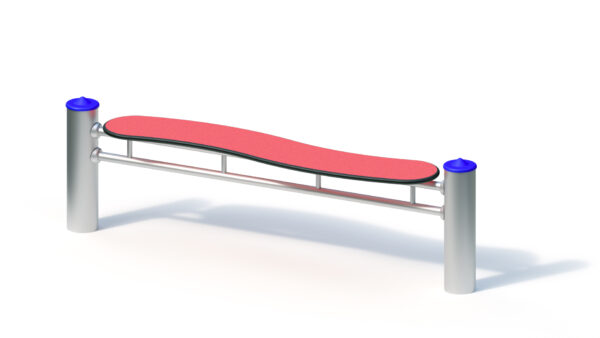

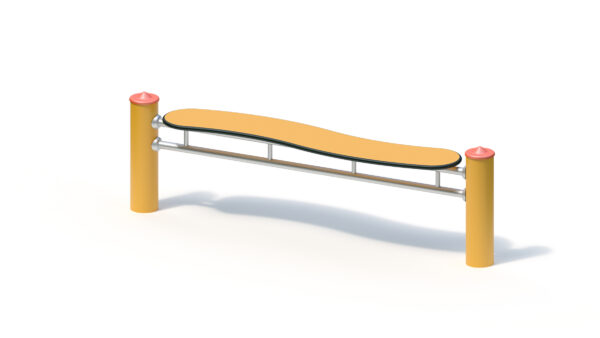

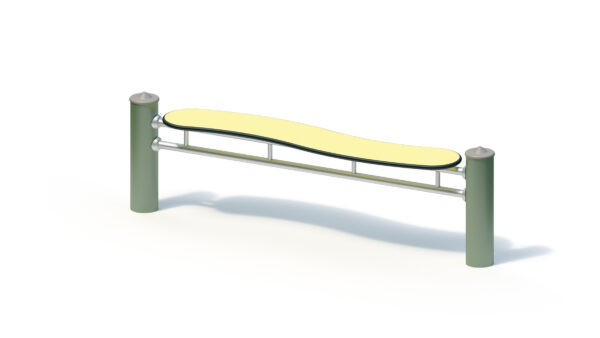

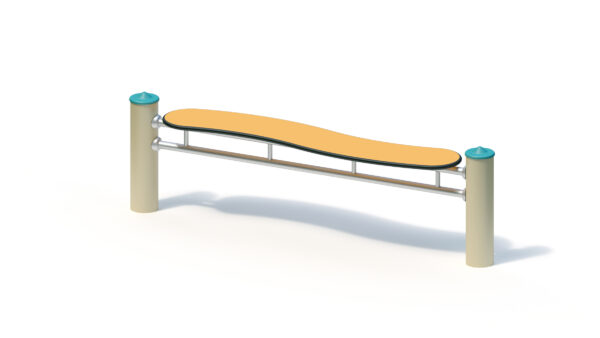

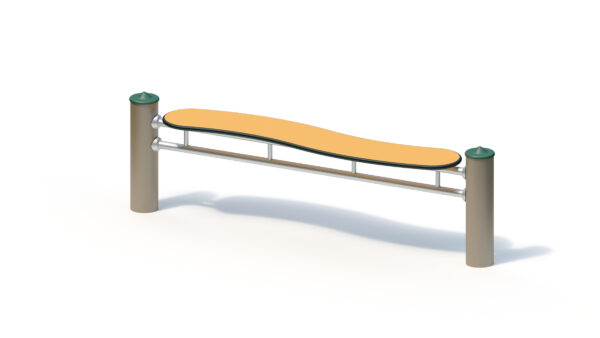

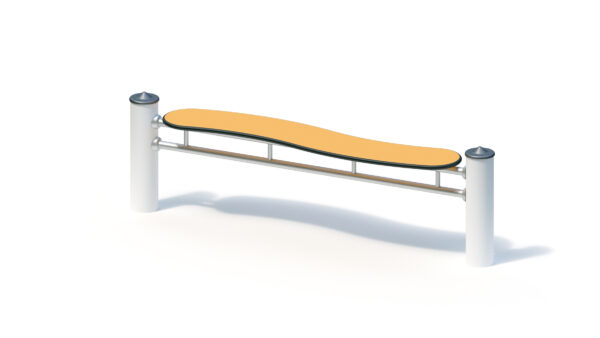

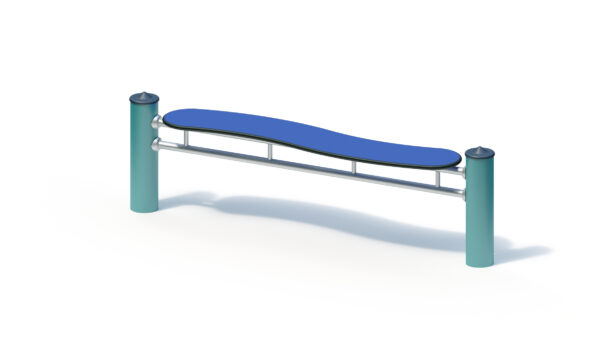

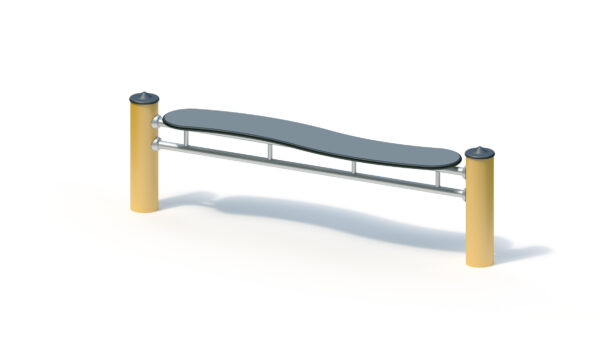

Waved bench
Variante wählen:
The most important information
| Altersgruppe ? | 1+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 4 Personen |
| Aktivitäten ? | Social activity |
Technical data
| Mindestraumlänge ? | 4,75 m |
|---|---|
| Mindestraumbreite ? | 3,35 m |
| Mindestraumhöhe ? | 0,55 m |
| Gerätelänge ? | 1,75 m |
| Gerätebreite ? | 0,35 m |
| Gerätehöhe ? | 0,55 m |
| Freie Fallhöhe ? | 0,00 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 35.00 kg |
| Schwerstes Einzelteil ? | 15.00 kg |
Assembly & Foundations
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 1 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 2 (0.6m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Base area: 0.35 x 1.75 m
Seat height: 0.45 m
Weight: 15 kg heaviest individual part
35 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Bench top, wave-shaped, made of highly weather-resistant HPL laminate, 20 mm
Metal components: Stainless steel
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
2 units 0.40 x 0.60 x 0.40 m
Concrete volume: 0.19 m³
Assembly time
1 fitter 0.5 hours
(without foundation)
Free fall height
0,45 m
Suitable for
all age groups
public playgrounds etc.
Item number: 060151500
