Bench pavilion

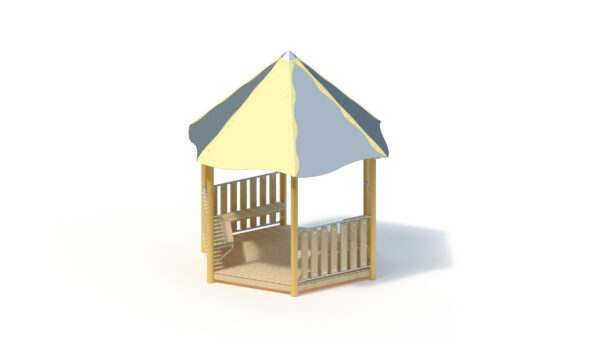

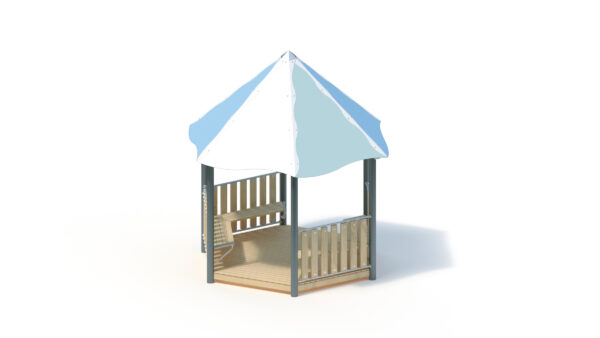

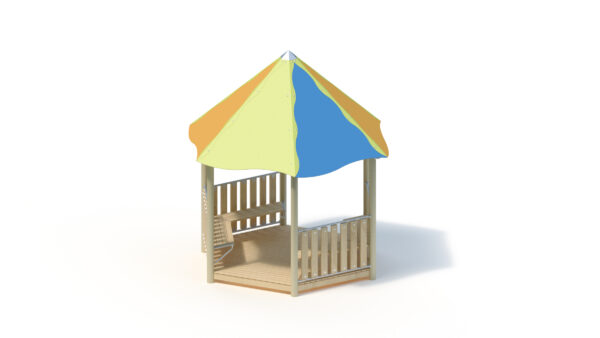

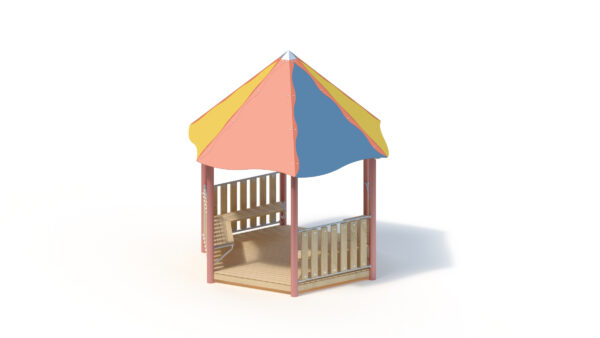

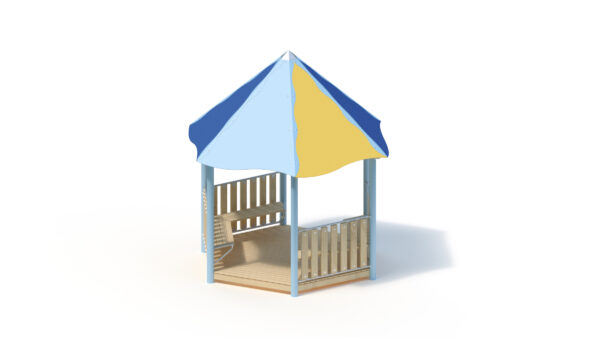

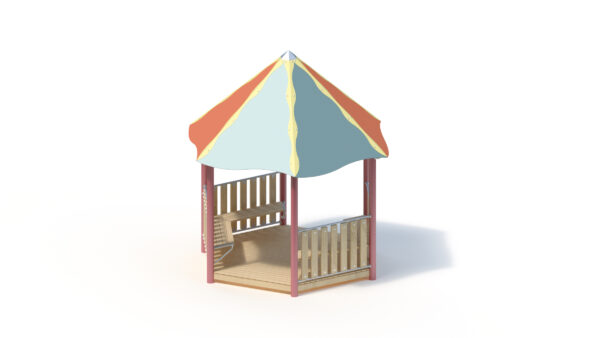

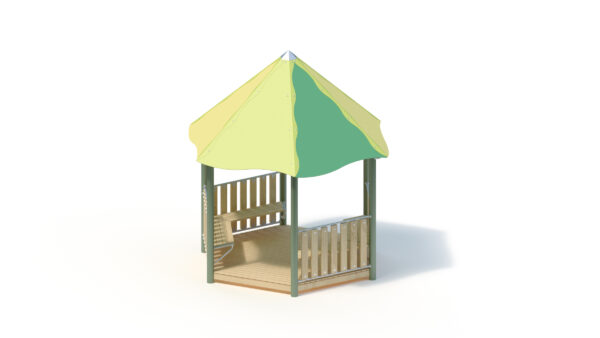

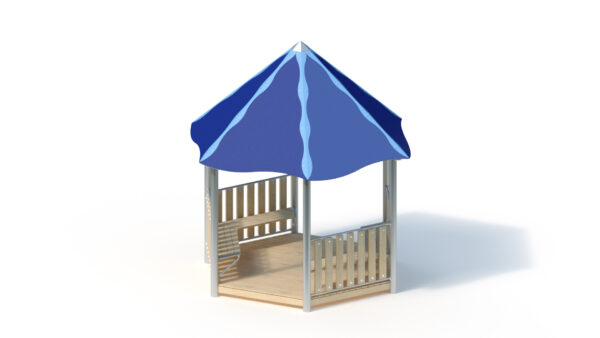

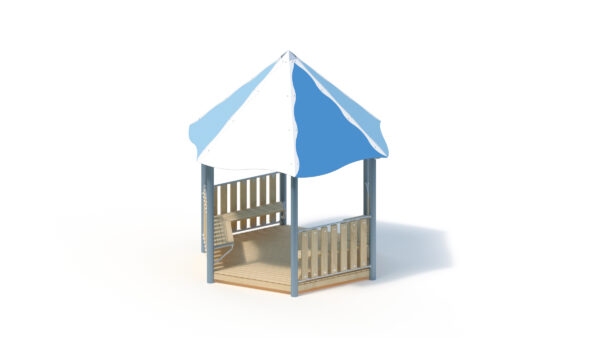

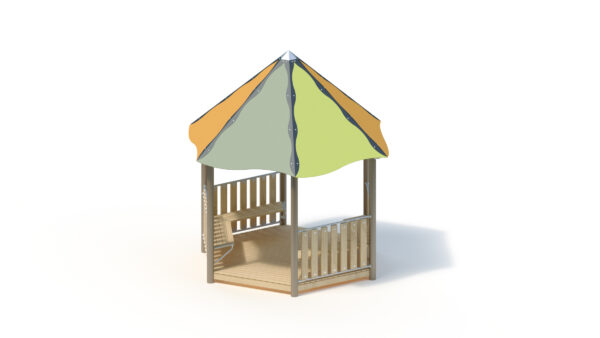

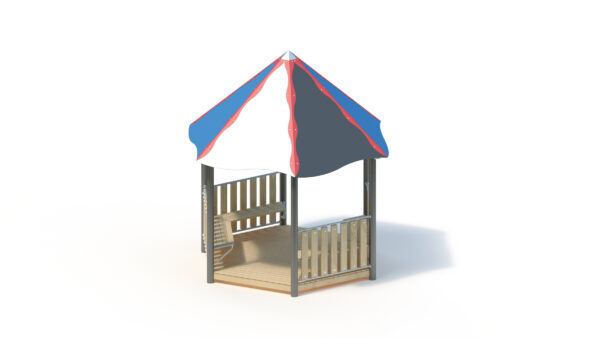

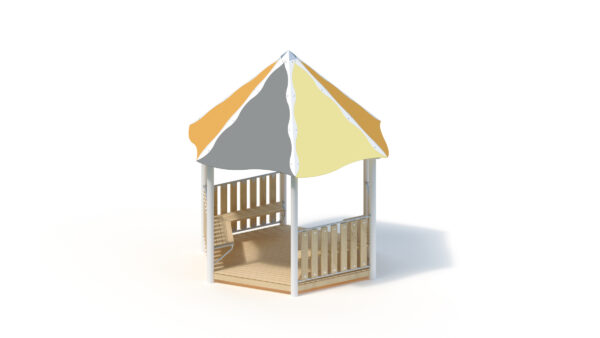

Select variant:
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 17 persons |
| Activities ? | - |
Technical data
| Device length ? | 3,35 m |
|---|---|
| Device width ? | 2,90 m |
| Device height ? | 3,95 m |
| Free fall height ? | 0,65 m |
| Platform heights | - |
| Total weight ? | 775.00 kg |
| Heaviest single item ? | 230.00 kg |
| Minimum room length ? | 6,35 m |
| Minimum room width ? | 5,90 m |
| Minimum room height ? | 3,95 m |
Assembly & Foundations
| Assembly time ? | 7,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | Yes |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data

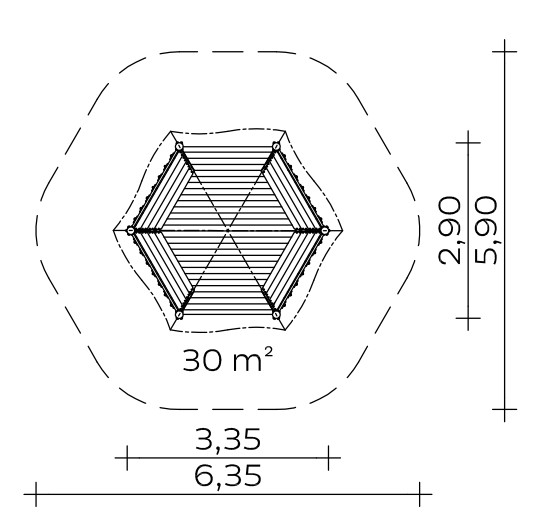

Floor area: 2.90 x 3.35 m
Minimum space: 5.90 x 6.35 m (30 m²)
Total height: 3.95 m
Seat height: 0.45 m
Platform height: 0.20 m
Weight: 230 kg heaviest individual part
775 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm, stainless steel edge cover
- Bench moulding Robinia 45 x 100 mm, planed, chamfered and free of rotting knots. Stainless steel substructure
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
Foundations (client-provided)
6 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.38 m³
Assembly time
2 fitters 7 hours each + hoist
(without foundation)
Free fall height
0,65 m
Suitable for
All age groups,
public playgrounds etc.
Item number: 063160502
