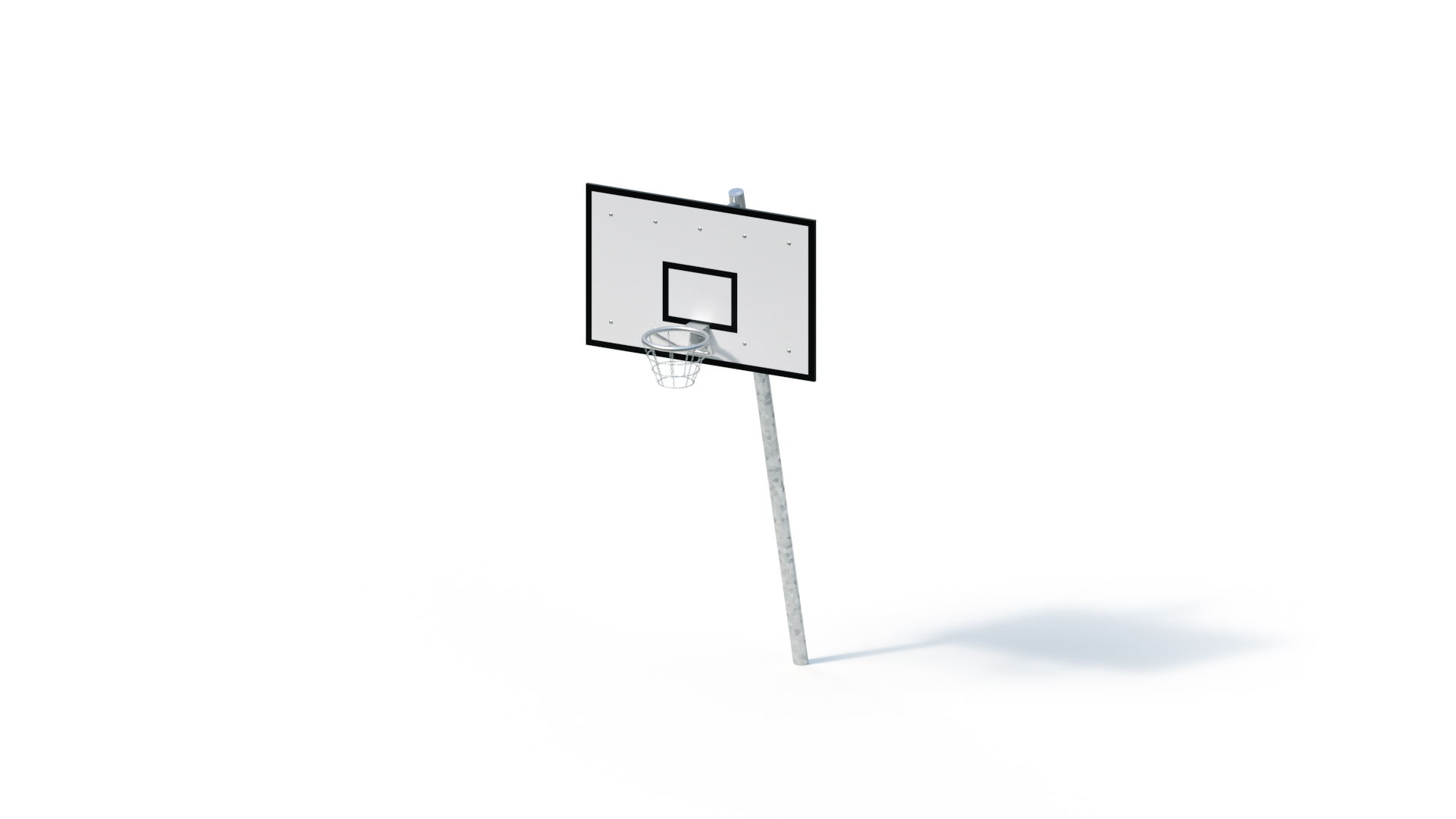

Basketball unit
The most important information
:
;
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 13 people |
| Activities ? | Physical activity |
Technical data
:
;
| Minimum space length ? | 0,00 m |
|---|---|
| Minimum space width ? | 0,00 m |
| Minimum space height ? | 0,00 m |
| Equipment length ? | 2,30 m |
| Equipment width ? | 1,80 m |
| Equipment height ? | 3,95 m |
| Free-fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 290.00 kg |
| Heaviest single part ? | 140.00 kg |
Assembly & Foundations
:
;
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1x (1m x 1m x 0.4m) |
Product Downloads
:
;
Product description
:
;
+Technical specifications
Total height: 3.95 m

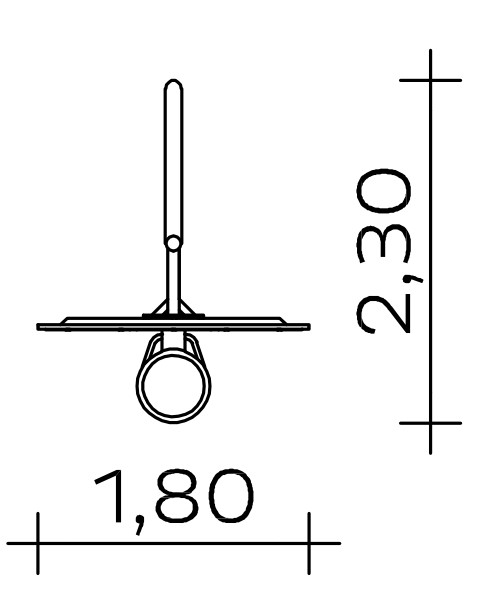

Base area: 1.80 x 2.30 m
Basket height: 3.05 m
Weight: 140 kg heaviest individual part
290 kg in total
- Support post made of tubular steel, Ø 108 x 6.3 mm, hot-dip galvanised, with base plate
- Target board made of white, highly weather-resistant HPL laminate, 25 mm. Milled black marking
- Target ring with stainless steel chain net
Foundation (on site)
1 piece 1.00 x 1.00 x 0.40 m
Concrete volume: 0.40 m³
Assembly time
2 fitters 1 hour each
(without foundations) + lifting gear
Suitable for
Children aged 3 and over,
public playgrounds etc.,
sporting activities
Item number: 058250000
